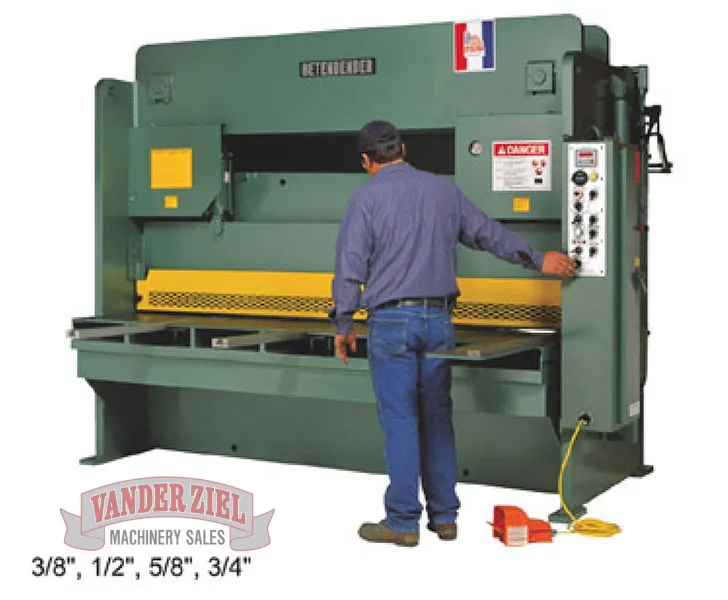

Betenbender 1" High Profile Shear - NEW

Betenbender 1" High Profile Shear - NEW
SKU # 0423008
A precision cut doesn't happen by chance.
It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven Hydraulic Shears are designed
to do exactly that.
Betenbender designs simplicity and safety into its shears-with an advanced hydraulic system, and flexible operation. They're easy to
operate, easy to maintain and able to withstand the rigors of today's production demands. A wide range of options are available.
Features
- Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110v footswitch lets you interrupt
the cutting stroke at any point in its cycle. - Easy Material Handling: A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to
increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4' squaring arm with a recessed scale
makes for fast, easy measurement. - Single Piece Top and Bottom, High Carbon, High Chrome Shock Resistant Knives: Provide four separate edges for clean
cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials. - Electrical System: Meets NFPA 79 and construction requirements of the ANSI B11.4. All machines have disconnect switches
magnetic starters, 110/120v controls, and 208-230/460v 3 phase, others optional. - Backgauges: A Betenbender Shear is capable of shearing 1/8" (10 GA) material to the following tolerance: Dimension - The width
of the off-cut portion of the workpiece is within ±0.005 inch of the backgauge setting.
| Model | Overall Length | Anchor Bolt Dimensions/Length | Knife Length | Strokes Per Minute |
| 1" - 12" | 48" | 128" | 18" | 12 |
***There is a steel surcharge of 10% on ALL base Betenbender machines as of November 2021. It is included in the price.
REF: 010867
