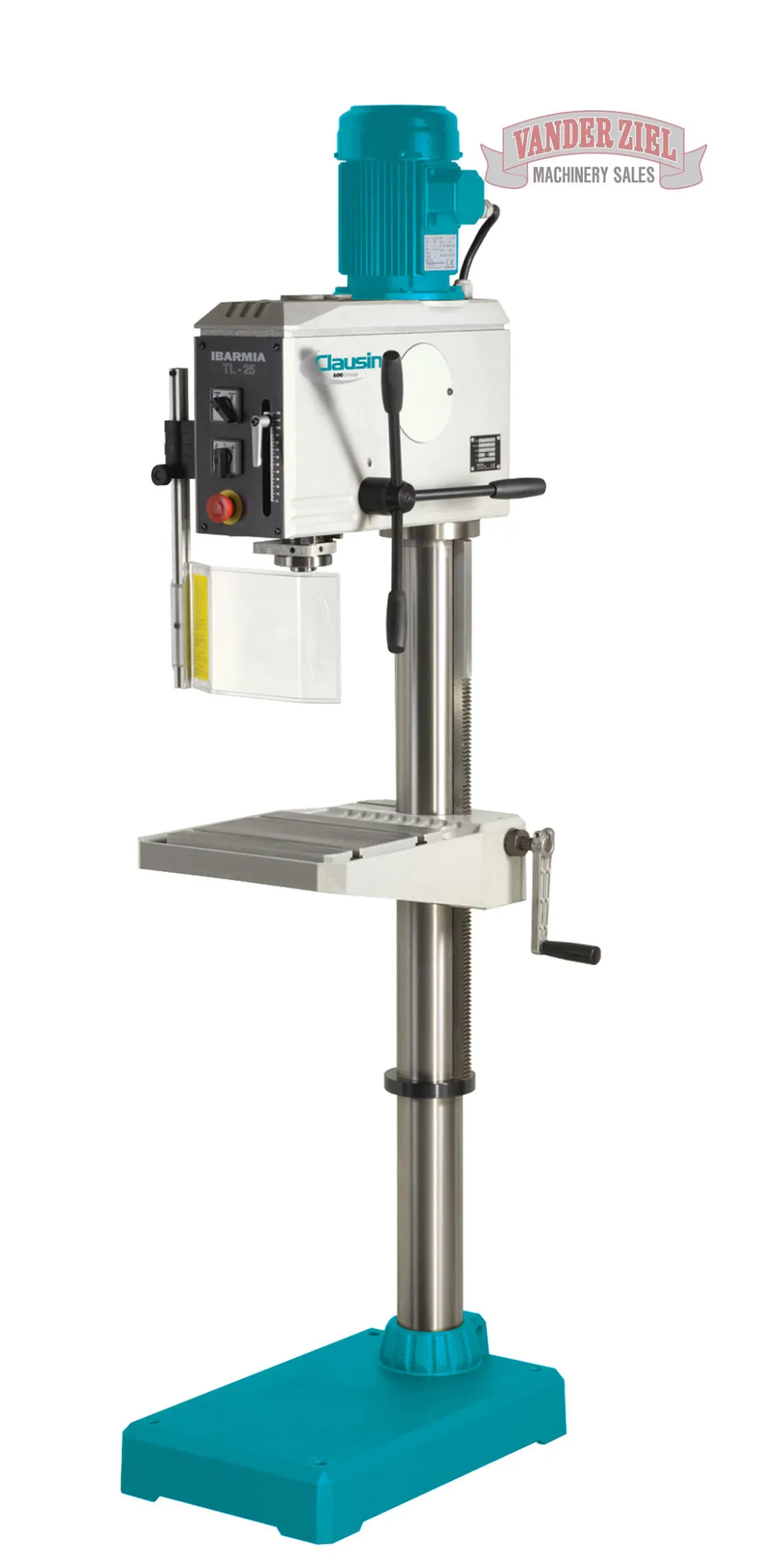

Clausing Ibarmia 19.5" Round Column Geared Head Drill, Model TL-25 - NEW
Clausing Ibarmia 19.5" Round Column Geared Head Drill, Model TL-25 - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU # 0705002
Standard Features...
- Drilling capacity in steel: 1" (25mm) maximum
- Drilling capacity in cast iron: 1.18" (30mm) maximum
- Tapping capacity in steel: .71" (18mm) maximum
- Tapping capacity in cast iron: .87" (22mm) maximum
- Depth scale and adjustable depth stop
- "RS" models are equipped with automatic feed reversing TL25 system for tapping
- Thermomagnetic switch
- Spindle reversing switch
- Automatic tool ejector
- Emergency STOP
- High/low speed range selector
- Drill guard with microswitch
| Models | TL25 | |
| Auto feed reversing "RS" Models | TL25RS | |
| Capacities | ||
| Maximum drilling capacity in steel | 1" (25mm) | |
| Maximum drilling capacity in cast iron | 1.18" (30mm) | |
| Maximum tapping capacity in steel | .71" (18mm) | |
| Maximum tapping capacity in cast iron | .87" (22mm) | |
| Specifications | ||
| Spindle taper | 3MT | |
| Quill diameter | 2.44" (62mm) | |
| Spindle travel (drilling depth) | 4.72" (120mm) | |
| Main motor power | 1/1.5 Hp (.73/1.1 Kw) | |
| No. of speeds (see speed charts) | 8 | |
| Dimensions and Weights | ||
| Height (A) | 75.8"(1925mm) | |
| Height (A1) | - | |
| Base: length x width (B) | 24" x 15" (600x380mm) | |
| Base to spindle (C) | 47.6" (1210mm) | |
| Spindle center to column (D) | 9.84" (250mm) | |
| Spindle to Table (E) | ||
| Minimum | 4.13" (105mm) | |
| Maximum | 25.2" (640mm) | |
| Worktable: length x width (F) | ||
| Base height (G) | 3.7" (95mm) | |
| Column diameter (H) | 3.94" (100mm) | |
| Floor to top of base (I) | - | |
| Cabinet height (J) | - | |
| Net weight | 408 lbs (185kg) | |
| Shipping weight | 496 lbs (225kg) | |
| Shipping dimension (length x width x height) | 20" x 36" x 75" (.5 x .9 x 2.1m) | |
