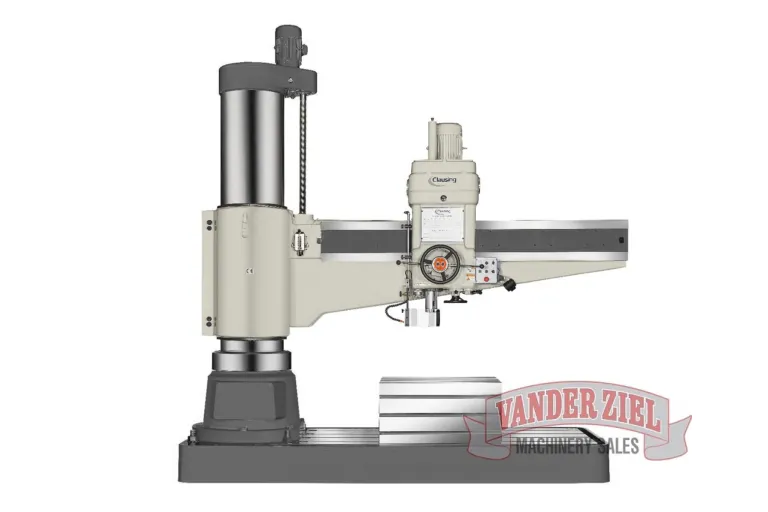

Clausing 21" x 98" Radial Drill, Model CLC2500 - NEW
Clausing 21" x 98" Radial Drill, Model CLC2500 - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0706009
Standard Features...
- Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
- Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
- Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required) Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage
- Coolant system
- CSA Electrics Standard
- Tool kit and manuals
| Working Area | Drill Head | ||
| Column Sleeve Dia. (E) | 21.65" (550mm) | Spindle Taper | 6MT |
| Column Face to Spindle Center | Spindle Stroke | 17.7" (450mm) | |
| Maximum (D+C) | 98.4" (2500mm) | Quill Diameter | 3.94" (100mm) |
| Minimum (D) | 19.7" (500mm) | Number of Spindle Speeds | 16 |
| Spindle Head Travel (C) | 78.7" (2000mm) | Spindle Speeds (rpm) | 16-1250 |
| Base Surface to Spindle End | Number of Steps | 16 | |
| Maximum (A) | 78.7" (2000mm) | Spindle Feed Rate (in(mm)/rev.) | 0.0015"(.04mm)-0.126"(3.20mm) |
| Minimum (B) | 21.6" (550mm) | Spindle Drive Motor (2-speed) | 10 hp (7.5 Kw) |
| Arm Vertical Travel (A-B) | 39.4" (1000mm) | Elevating Motor | 5 hp (3.6 Kw) |
| Arm Rotation (Right & Left) | 180° | Coolant Pump Motor | 1/4 hp (.18 Kw) |
| Baseplate Working Surface | 86.8" x 43.4" (2205 x 1102mm) | ||
| Box Table Area | Capacities | ||
| Length (L) | 39.4" (1000mm) | Drilling In Steel | 3.15" (80mm) |
| Width (K) | 31.5" (800mm) | Drilling In Cast Iron | 3.98" (100mm) |
| Height (H) | 22" (560mm) | Tapping In Steel | 2.56" (65mm) |
| Base Dimensions | Tapping In Cast Iron | 2.95" (75mm) | |
| Floor Area (R x S) | 138.6" x 55.1" (3520 x 1400mm) | Boring In Steel | 6" (150mm) |
| Height (Q) | 12.6" (320mm) | Boring In Cast Iron | 10" (250mm) |
| Dimensions/Weights | |||
| Max. Machine Height (F) | 157" (3990mm) | ||
| Base and Column Height (G) | 151.6" (2660mm) | ||
| Shipping Dimensions(L x W x H) | 158" (4000mm) x 63" (1600mm) x 151.6" (3850mm) | ||
| Net Weight | 24,250 lbs. (11000kg) | ||
| Shipping Weight | 27,557 lbs. (12500kg) | ||
REF: 000270
