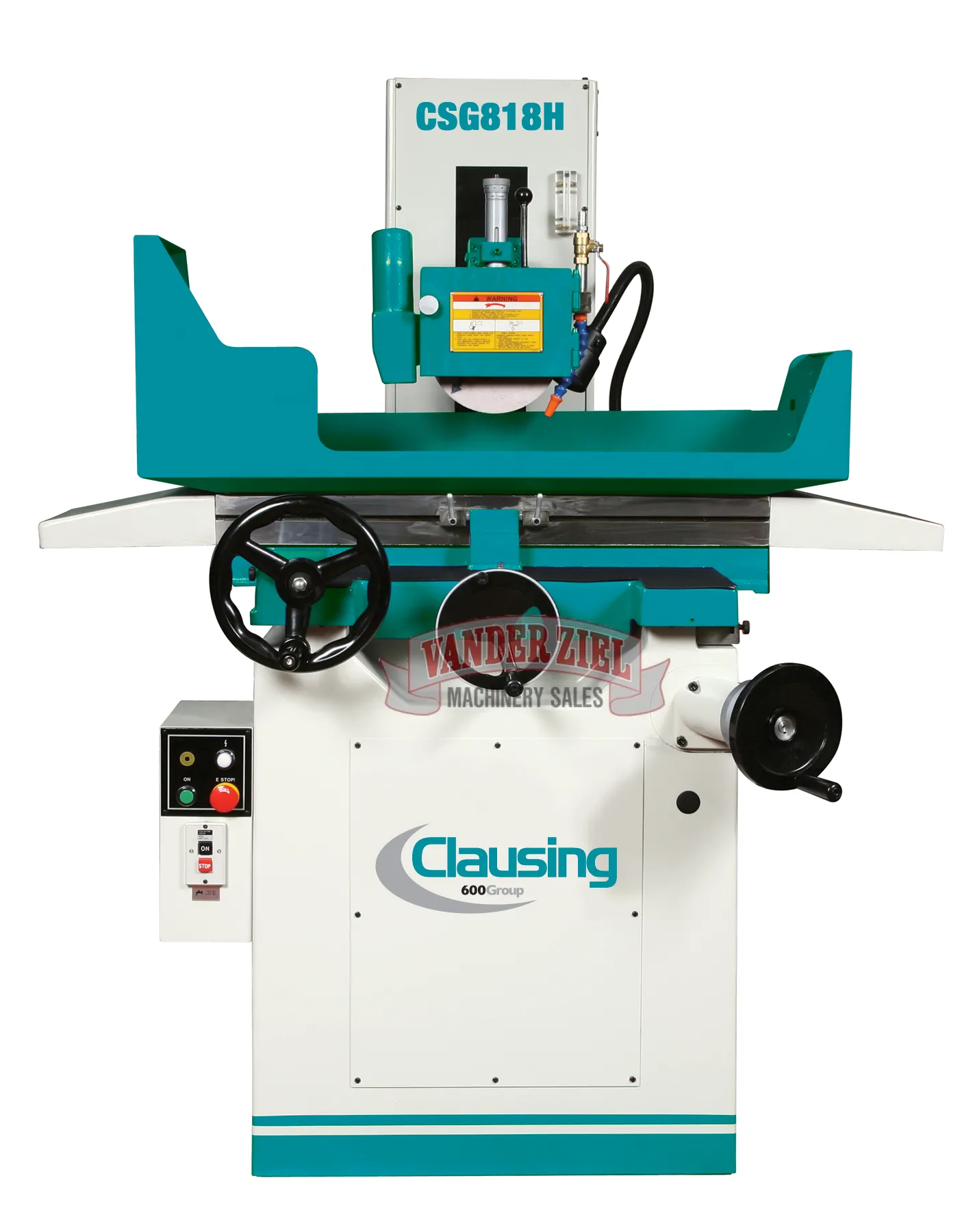

Clausing Model CSG-H Hand Surface Grinders - NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

SKU #0708000

Models		CSG618H	CSG818H
	Table Size	6" x 18" (152 x 460mm)	8" x 18" (203 x 460mm)
	Max. grinding length (longitudinal)	19" (480mm)	19" (480mm)
	Max. grinding width (crosswise)	7" (179mm)	9.375" (238mm)
	Max. distance from table surface to spindle centerline (standard column)	18" (460mm)	18" (460mm)
	Standard magnetic chuck size	6" x 18" (150 x 450mm)	8" x 18" (200 x 450mm)
Longitudinal movement of table
	Max. travel (hydraulic)	-	-
	Max. travel (manual)	20" (510mm)	20" (510mm)
	Table speed infinitely variable	-	-
Crossfeed transverse travel
	Auto transverse increment	-	-
	Max. auto transverse travel	-	-
	Max. manual transverse travel	7.68" (195mm)	9.84" (250mm)
	Handwheel per revolution	0.2" (5mm)	0.2" (5mm)
	Handwheel per graduation	0.0008" (.02mm)	0.0008" (.02mm)
	Wheelhead vertical downfeed
	Handwheel per revolution	0.04" (1mm)	0.04" (1mm)
	Handwheel per graduation	0.0002" (.005mm)	0.0002" (.005mm)
Grinding spindle drive
	Speed (rpm)	3450	3450
	Power rating	2 Hp	2 Hp
Standard grinding wheel
	Diameter	8" (203mm)	8" (203mm)
	Width	.5"(12.7mm) max .75"(19mm)	.5"(12.7mm) max .75"(19mm)
	Bore	1.25" (31.75mm)	1.25" (31.75mm)
	Hydraulic motor (power rating)	-	-
	Crossfeed motor (power rating)	-	-
	Elevating motor (power rating)	-	-
	Total space required (LxWxH)	71" x 45" x 65" (1810 x 1133 x 1660mm)	71" x 50.6" x 66" (1810 x 1285 x 1680mm)
	Net weight	1,587 lbs (720kg)	2,332 lbs (11060kg)
	Gross weight	1,873 lbs (850kg)	2,662 lbs (1210kg)
	Rated power, approx	2 Hp (1.5 kw)	2 Hp (1.5 kw)
	Packing dimensions (L x W x H)	51" x 45" x 76" (1300 x 1140 x 1930mm)	60" x 45" x 76" (1530 x 1300 x 1930mm)

Clausing Model CSG-H Hand Surface Grinders - NEW
