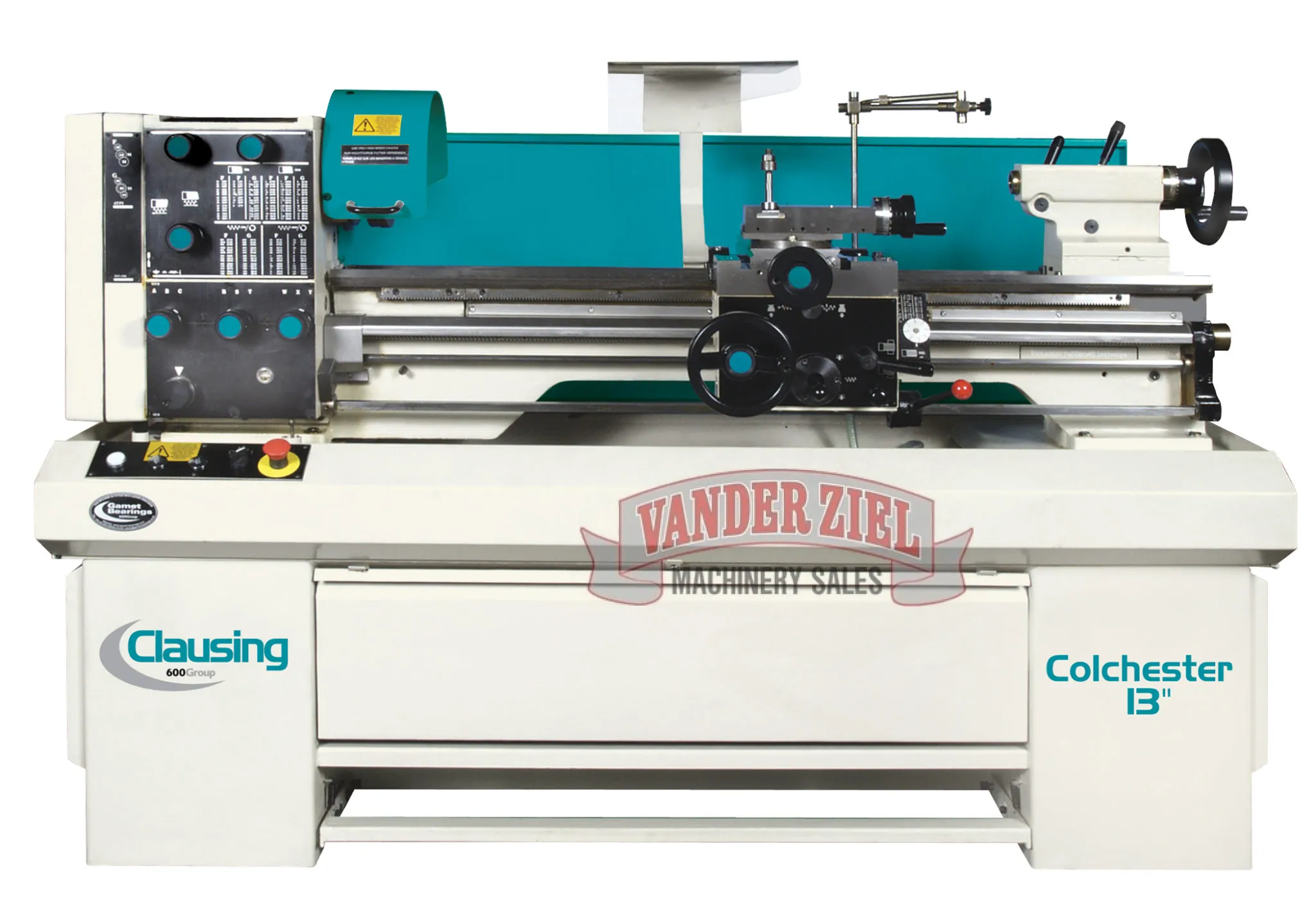

Clausing 13" Swing Geared Head Gap Bed Lathes, Model 802- NEW

Clausing 13" Swing Geared Head Gap Bed Lathes, Model 802- NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

SKU: 0711006

Clausing/Colchester Geared Head Lathe Features

• Headstock: The rugged headstock is designed to provide maximum power for roughing cuts, and smooth, quiet power for fine finishing. The 12 all-geared speeds, from 40 to 2500 rpm, handle a wide variety of work at top efficiency.  All headstock gears are hardened and ground, and headstock shafts are splined and turn on anti-friction bearings.  Increased mass and rigidity of the headstock mean much less transmission noise, and less deflection than previous models.  Spindle bearings, gears, shafts, and headstock clutches are lubricated by a pumped bath of oil.


• Universal Gear Box: A broad range of Feed and Thread selections is available by using three selector levers and an 8-position rotary dial. Feed selections automatically disengage the leadscrew drive and independent torque-limiting clutches give accidental overload protection on both the leadscrew and spline shaft. All gears are hardened, and shafts turn on anti-friction bearings.


• Bed and Base: The sturdy bed is manufactured from close-grained cast iron, which is induction hardened and ground.  The combined vee and flat configuration gives optimum kinematic guiding of the slideways...allowing both precise, accurate machining, and vibration-free cutting.  The control base is rigidly constructed, and incorporates a readily accessible coolant tank mounted at the rear of the machine.


• Apron, Saddle, and Slides: For optimum precision, the cross slide runs along a dovetail guide, and both saddle and cross slide are provided with adjustable gib strips. For heavy cutting, either the saddle or cross slide can be locked, and anti-backlash adjustment is provided on the cross slide nut.  Bed wipers and an apron mounted one-shot lubrication pump are provided as standard.  The cast iron apron is totally enclosed and splash bath lubricated.  A double halfnut assembly is provided for maximum life and screwcutting accuracy.  The drop-out worm feed control is mechanically interlocked to prevent simultaneous half-nut and spline shaft engagement.

 Clausing/Colchester Geared Head Specifications

• Center Bushing


• Two 3MT Centers


• Inch Threading Dial


• Accuracy Chart


• Parts and Instruction Manuals


• Splash Guard


• Coolant System


• Set of Wrenches and Keys


• 208/230 or 460 volt, 3 Phase, 60 hz. Motor (must specify voltage) (other voltages may require a transformer)
