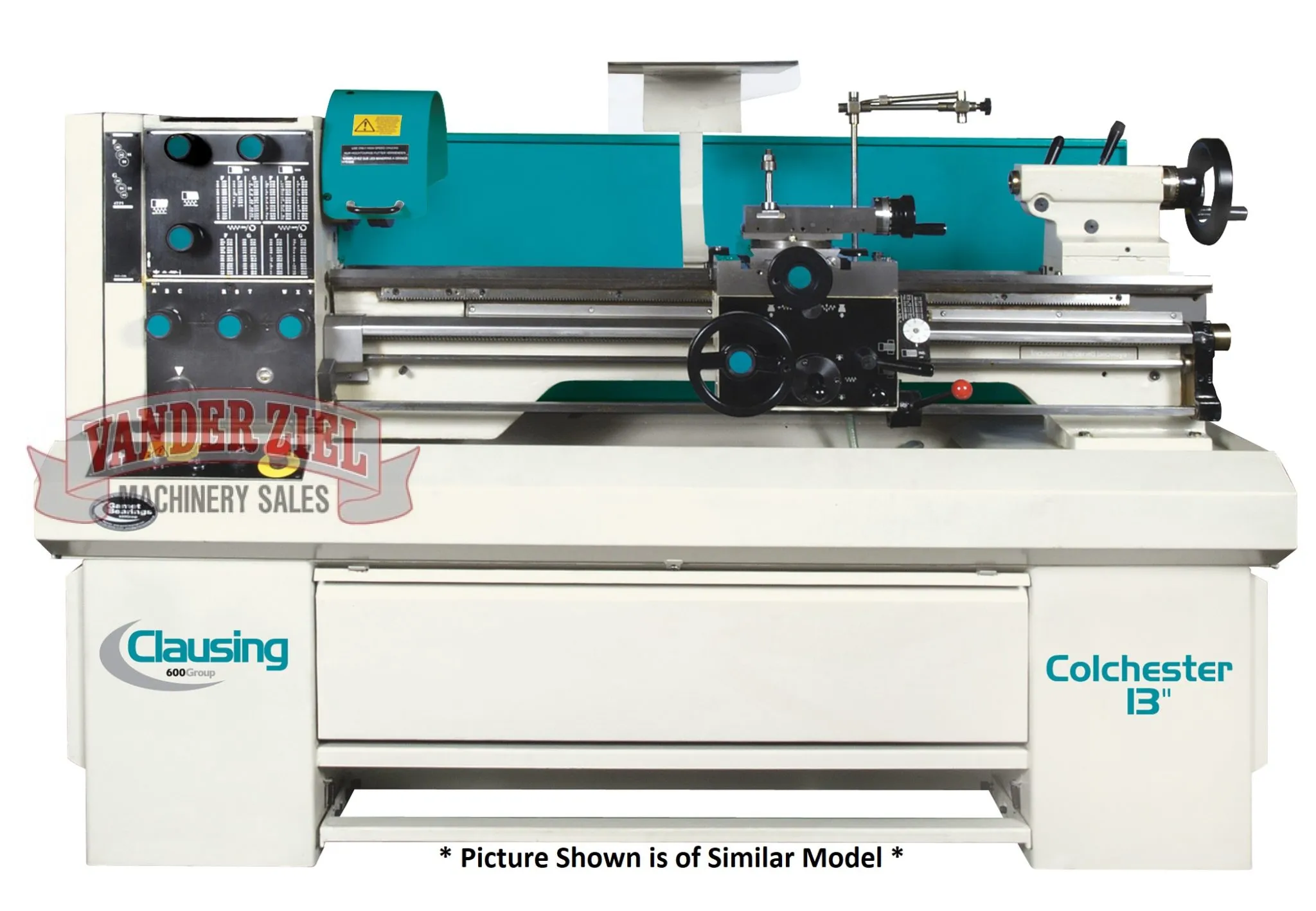

Clausing 15" Swing Geared Head Gap Bed Lathe, Model 804 - NEW

Clausing 15" Swing Geared Head Gap Bed Lathe, Model 804 - NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

Clausing/Colchester Geared Head Lathe Features

• All head stock gears are hardened and ground


• Spindle bearing, gears and shafts are lubricated by a forced lubrication system


• An easy-to-read index plate makes it simple to select the proper feed rate or thread


• The apron has hardened and ground gears and are lubricated in a bath of oil


• Extra wide bed provides accuracy and minimal wear


• Easy access pull-out rolling chip bin


• Precision Gamet tapered roller spindle bearings


• Equipped with chuck guard, full splash guard and leadscrew cover


• Clutch drive, reverse leadscrew with spindle turning for faster thread cutting


• Clutches are operated by levers at apron and headstock for forward/reverse


• A one year warranty and backed by the Clausing Service Center dedicated to support our customers with parts and service

 Clausing/Colchester Geared Head Specifications

Capacity	Height of center	7.68"
	Swing over bed	15.75"
	Swing in gap	23"
	Width in front of faceplate	6.5"
	Swing over cross slide	9.7"
	Bedway width	12.5"
Headstock	Spindle bore	2.12"
	Spindle nose (camlock)	D1-6
	Spindle nose taper	4MT
	Number of spindle speeds	16
	Spindle Speed Range (rpm)	25-2000
Cross/Top Slide	Travel of cross slide	9.8"
	Width of cross slide	7.09"
	Travel of top slide	5.1"
	Width of top slide	3.93"
Tailstock	Quill travel	5.5"
	Quill diameter	2.8"
	Quill taper	5MT
Feeds & Threading	Longitudinal feed range	0.0014"-0.048" in/rev
	Number of inch pitches	56
	Range of inch pitches	2-56 TPI
	Number of metric pitches	51
	Range of metric pitches	0.2-14mm
	Number of diametral pitches	20
Feeds & Threading	Range of diametral pitches	8-56 DP
Cont.	Number of module pitches	20
	Range of module pitches	0.2-3.5 MOD
Motor	Spindle motor	7.5 hp
Dimensions	Swing & Center Distance	15" x 50" / 15" x 25'

8042 - 15" x 25" VS Gap Bed Lathe, Dimensions 75" x 63" x 44, 2970 lbs.

8043 - 15" x 50" VS Gap Bed Lathe, Dimensions 99" x 63" x 44", 3,300 lbs.

Standard Equipment



• Chuck Guard Accuracy Chart


• Covered leadscrew


• Electric coolant pump, tank and fittings


• Emergency stop button


• End guard limit switch


• Forward/Reverse/Stop switch


• Lockable isolator switch


• Splash guard


• Tee slotted top slide


• One shot saddle and cross slide lubrication


• Pullout chip bin


• Thread indicator


• Tool box with wrenches and dead centers


• Instruction and spare parts manual


• 208/230 or 460 volts phase 60 Hz (other voltages may require a transformer)
