Clausing 4VSQ Vertical Knee Mill, 10" x 54", 5 HP - NEW

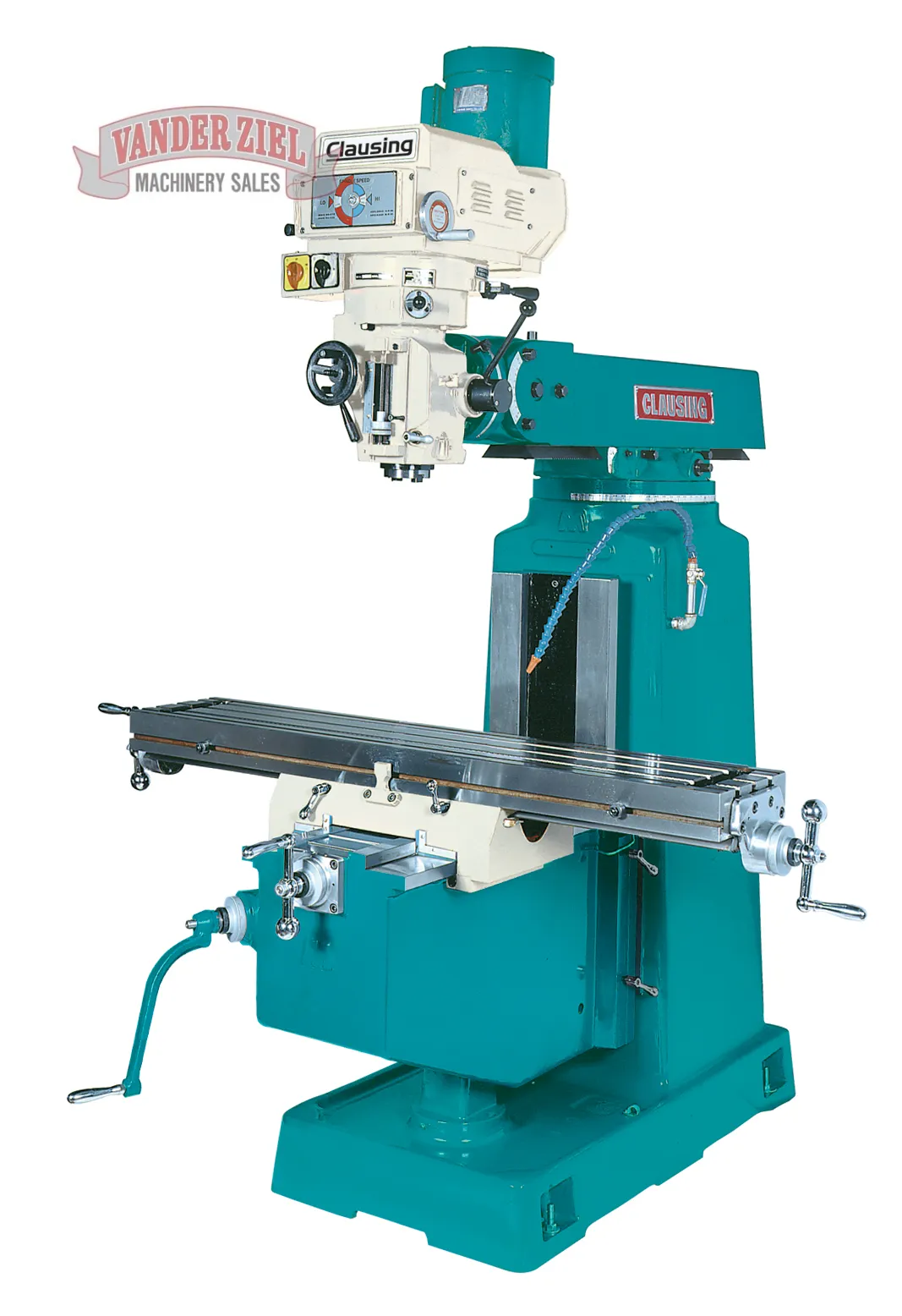

Clausing 4VSQ Vertical Knee Mill, 10" x 54", 5 HP - NEW - Main Image 1

Clausing 4VSQ Vertical Knee Mill, 10" x 54", 5 HP - NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

SKU #0712002

Specifications
Models		4VSQ
Table & Ways
	Table Size	10" x 54" (254x1372mm)
	No. of T-Slots	3
	T-Slot Width	5/8" (16mm)
	T-Slot Center Distance	2.48" (63mm)
	Table Ways	Dovetail
	Knee Ways	Square
	Column Ways	Square
Travels
	X Longitudinal	36" (915mm)
	Y Cross	15.74" (400mm)
	Knee	17.4" (450mm)
	Ram	20.5" (520mm)
Motors & Spindle
	Spindle Motor	5 hp
	Amp. Draw 208v.	15
	Amp. Draw 230v.	15
	Amp. Draw 460v.	8
	Variable Spindle Speed rpm	60-4300
	Low Range rpm	60-500
	High Range rpm	550-4300
	Main Spindle Taper	ISO 40
	Spindle Travel	5" (127mm)
	Quill Feed - in/rev. (mm/rev)	.0015/.0031/.006 (.004/.008/.015mm)
	Quill Diameter	4.13" (105mm)
Construction & Weight
	Column Turret Diameter	16.33" (415mm)
	Knee Width	14.96" (380mm)
	Column Bearing Length	19.69" (500mm)
	Saddle/Table Bearing Length	20.47" (520mm)
	Ram/Turret Bearing Length	20.67" (525mm)
	Ram Length	38.63" (980mm)
	Table Load	990 Ibs. (450kg)
	Net Weight	3,417 Ibs. (1550kg)


Dimensions
Model	4VSQ40
A Height	91" (2310mm)
B Depth	80.3" (2040mm)
C Width	73.6" (1870mm)
D Table to Spindle	1.97"-19.68" (50-500mm)
E 45° Inward	0-16.53" (0-420mm)
F Spindle ø to column	0-26" (0-660mm)
G 45° Outward	8.85"-29.13" (225-740mm)
H Head Tilt	90° right & left

Call for Pricing

Asset Number

#0712002N

CategoryMills-Vertical-Bridgeport Type

ManufacturerClausing

ModelClausing 4VSQ Vertical Knee Mill, 10" x 54", 5 HP

ConditionNew

REF: 000247
