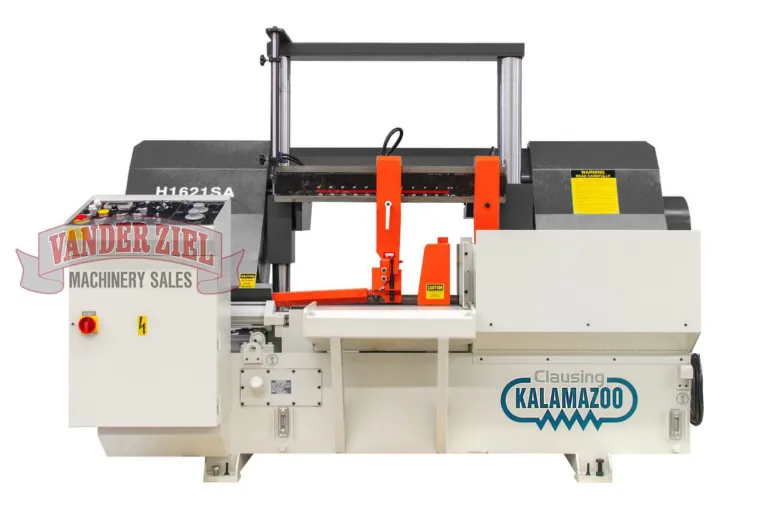

Clausing Kalamazoo 16.5" x 21.6" Semi-Automatic Horizontal Saw, Model H1621SA - NEW
Clausing Kalamazoo 16.5" x 21.6" Semi-Automatic Horizontal Saw, Model H1621SA - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720012
Standard Features...
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
| Motor | 7.5 Hp (5.5 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 2 Hp (1.5 kw) |
| Hydraulic Oil Capacity | 8.75 gallons (35 liters) |
| Blade Speeds (Variable speed) | 66-328 fpm (20-100 m/min) |
| Blade Size (W x T x L) | 1.6" x .050" x 208.7" (41 x 1.3 x 5300mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 23.75 gallons (95 liters) |
| 90° Cutting Capacity | |
| Round | 16.5" (420mm) |
| Square | 16.5" (420mm) |
| Rectangular | 16.5" x 21.6" (420 x 550mm) |
| Length | 43.3" (1100mm) |
| Width | 100.4 " (2500mm) |
| Height | 74.8 " (1900mm) |
| Bed Height | 27.5" (700mm) |
| Net Weight | 3,960 lbs (1800 kg) |
| Shipping Weight | 5,060 lbs (2300 kg) |
REF: 000280
