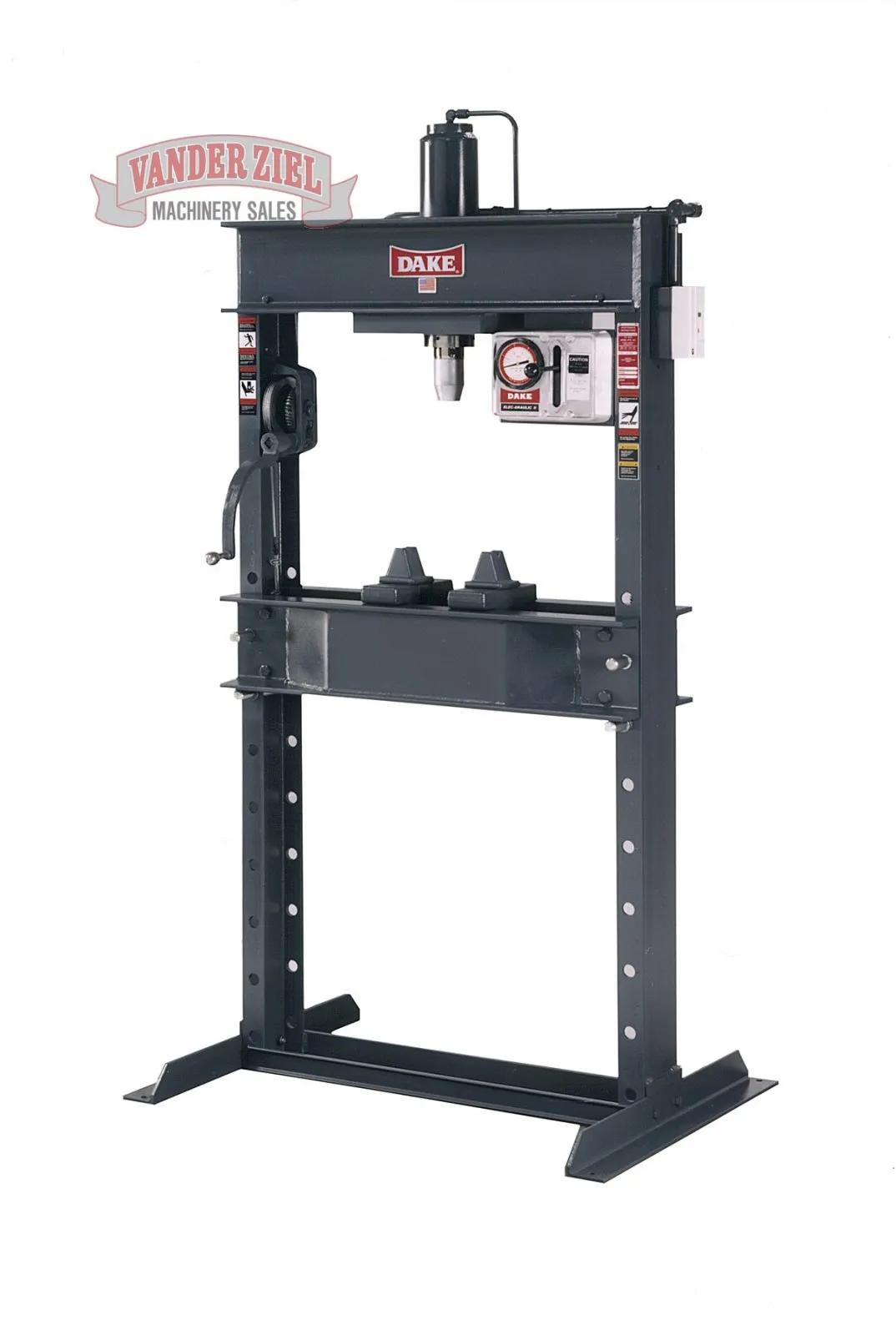

Dake 50 Ton Elec-Draulic II H-Frame Press, Model 8-050 - NEW
Dake 50 Ton Elec-Draulic II H-Frame Press, Model 8-050 - NEW
SKU #0914019
| Number | 908050 |
| Capacity | 50 tons pressing, 18 tons pulling |
| Operation | Electric |
| Horsepower | 2 |
| Voltage | 220V/440V, 3-Phase |
| Width between uprights | 32-3/4" |
| Width between table channels | 7-1/4" |
| Minimum ram to table | 10-1/8" |
| Maximum ram to table | 45-1/8" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 43-1/2" x 36" |
| Height | 86" |
| Weight | 1,360 lbs |
| Base | 43-1/2" x 36" |
| Ram advance speed | n/a |
| Pressing speed | 8 ipm |
| RPM | 1,800 |
| Air Pressure | n/a |
REF: 000384
