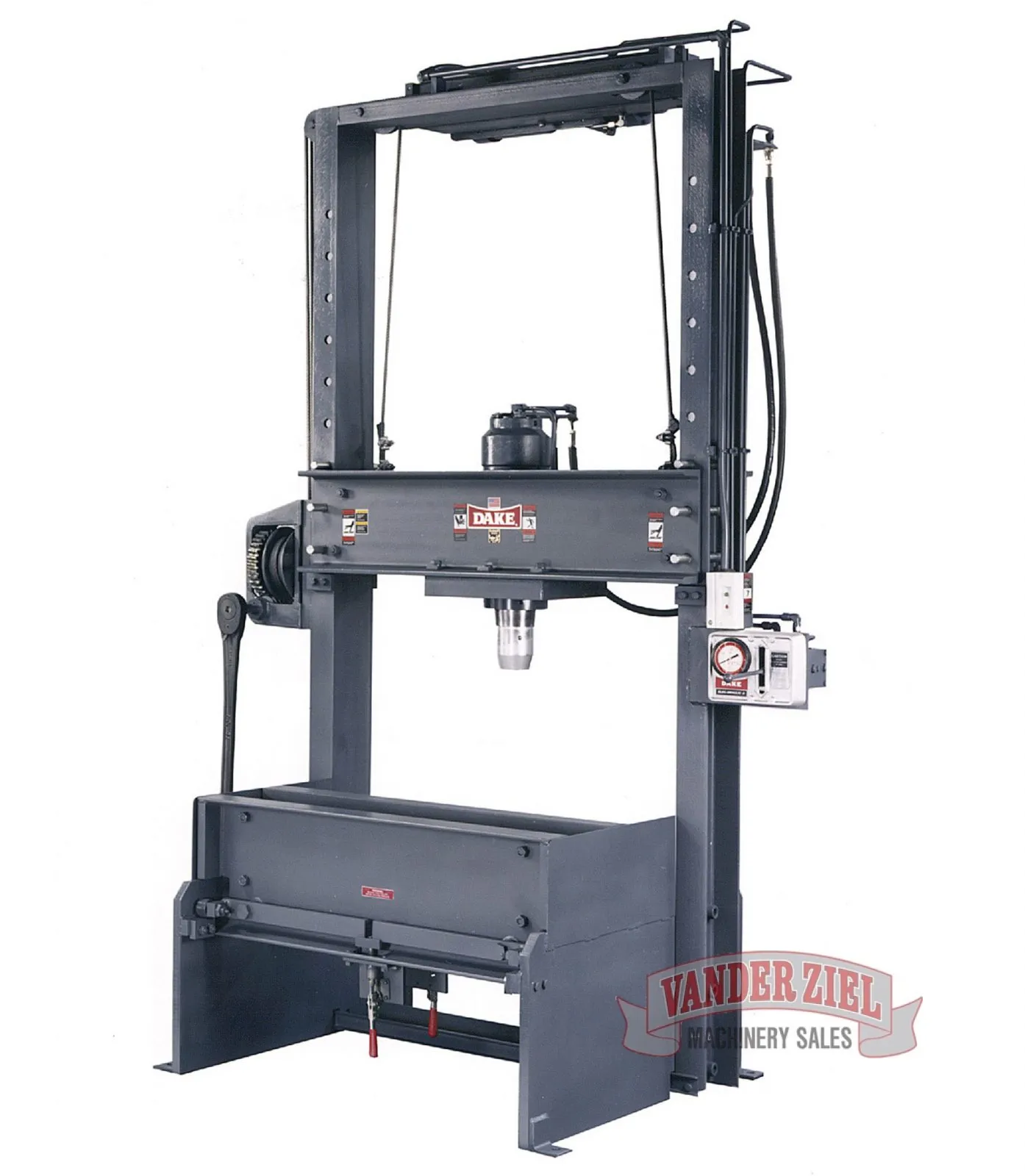

Dake 75 Ton Moveable Table H-Frame Press, Model 42-308 - NEW
Dake 75 Ton Moveable Table H-Frame Press, Model 42-308 - NEW
SKU #0914030
| Number | 942308 |
| Capacity | 75 tons |
| Operation | Air |
| Horsepower | n/a |
| Voltage | n/a |
| Width between uprights | 44" |
| Width between table channels | 8- 1/4" |
| Minimum ram to table | 11- 3/4" |
| Maximum ram to table | 41- 3/4" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 47" x 52" |
| Height | 110" |
| Weight | 2,450 lbs |
| Base | 47" x 52" |
| Ram advance speed | 45 ipm |
| Pressing speed | 2 ipm |
| RPM | n/a |
| Air Pressure | n/a |
REF: 000391
