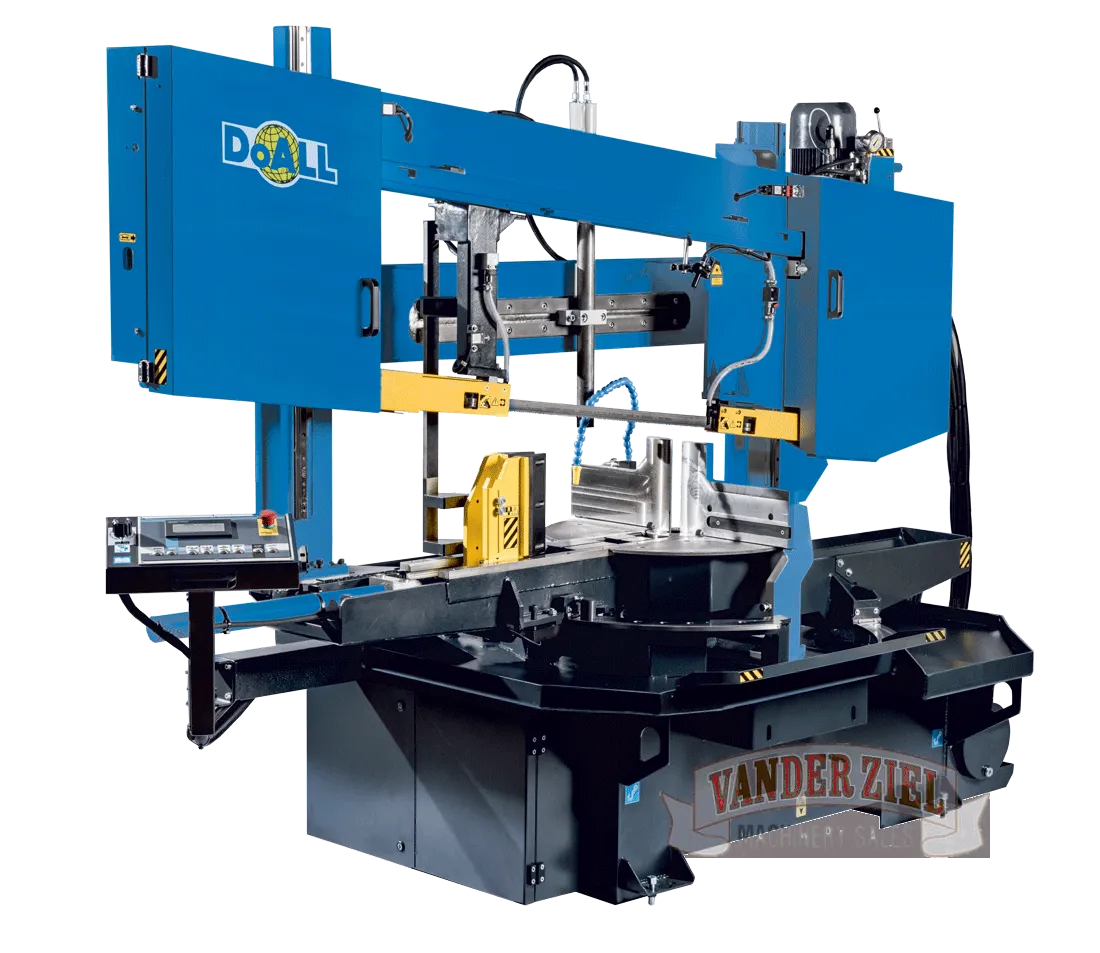

DoAll 16" x 24" Dual Column Semi-Automatic Horizontal Saw, Model DCDS-600SA - NEW
DoAll 16" x 24" Dual Column Semi-Automatic Horizontal Saw, Model DCDS-600SA - NEW
SKU #1120000
Machine Capacity: 16 x 24" (440x600mm)
Round Tube: 18.5" (470mm) | Round Solid: 9-7/8" (250mm)
Production Level: Extreme Duty
The DoALL DCDS-600SA high production, horizontal StructurALL®, semi-automatic, dual column, dual mitering metal cutting band saw offers up to 16x24" (440x600mm) rectangular cutting capacity and 18-1/2" round capacity. Also classified as a double column, dual swivel, the DCDS-600SA is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-600SA offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-600SA is the ideal machine for a fabricator cutting multiple angles in the same work piece.
- Cutting Capacity Round Tube: 18.5" (470mm)
- Cutting Capacity Round Solid: 9-7/8" (250mm)
- Cutting Capacity Rectangle: 16-1/8 x 24" (410x610mm)
- Maximum Bundle Capacity: 24 x 10" (610x255mm)
- Miter Cutting: 60° left and right
- Capacity Round at 45°: 18.5" (470mm)
- Capacity Rectangle at 45°: 19.5 x 16.3" (495x415mm)
- Capacity Round at 60°: 13" (330mm)
- Capacity Rectangle at 60°: 12 x 16.7" (305x425mm)
- Band Saw Blade Width: 1-1/4 x 0.043" (34x1.1mm)
- Maximum Blade Length: 239" (6060mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 5 hp (4kW)
- Hydraulic Pump: 3.8 hp (2.84kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 3715 lbs (1685kg)
- Dimensions W x L x H: 138 x 69 x 87" (3500x1760x2200mm)
Standard Equipment:
- Mitsubishi saw control
- Laser line generator
- Overfeed protection
- Hydraulic angular position and lock
- Automatic guide arm setting
- Work light
- Digital read out of cutting angles
- Pulley-driven band brush
- Hydraulic band tension
- Safety covers
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
