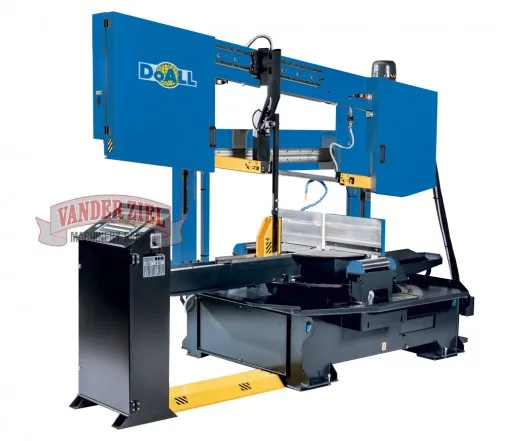

DoAll 19" x 30" Dual Column Semi-Automatic Horizontal Saw, Model DCDS-750SA - NEW
DoAll 19" x 30" Dual Column Semi-Automatic Horizontal Saw, Model DCDS-750SA - NEW
SKU #1120001
Machine Capacity: 19x30" (480x750mm)
Round Tube: 20" (500mm) | Round Solid: 15-3/4" (400mm)
Production Level: Extreme
The DoALL DCDS-750SA high production, horizontal StructurALL®, semi-automatic, dual column, dual mitering metal cutting band saw offers up to 19x30" (480x750mm) rectangular and a 20" (500mm) round cutting capacity. Also classified as a double column, dual swivel, the DCDS-750SA is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-750SA offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-750SA is the ideal machine for a fabricator cutting multiple angles in the same work piece.
- Cutting Capacity Round Tube: 19.69" (500mm)
- Cutting Capacity Round Solid: 15-3/4" (400mm)
- Cutting Capacity Rectangle: 18.9 x 29.53" (480x750mm)
- Maximum Bundle Capacity: 29.5 x 10.2" (750x260mm)
- Miter Cutting: 60° left and right
- Capacity Round at 45°: 19.7" (500mm)
- Capacity Rectangle at 45°: 13" x 18.9" (330x480mm)
- Capacity Round at 60°: 13" (330mm)
- Capacity Rectangle at 60°: 4.7 x 4.3" (120x110mm)
- Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)
- Maximum Blade Length: 256" (6500mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 5 hp (4kW)
- Hydraulic Pump: 3 hp (2.2kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 32" (815mm)
- Machine Weight: 4409 lbs (2000kg)
- Dimensions W x L x H: 142 x 67 x 94.5" (3600x1700x2400mm)
Standard Equipment:
- Mitsubishi saw control
- Digital read out of cutting angle
- Work light
- Laser line generator
- Hydraulic angular rotation (position and lock)
- Feed rate indicator - in/min or mm/min
- Overfeed protection
- Automatic guide arm setting
- Pulley-driven band brush
- Hydraulic band tension
- Safety covers
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
Similar Machines
Browse All Equipment Listings
Ellis 13" x 16" Horizontal Saw, Model 4000 - NEW

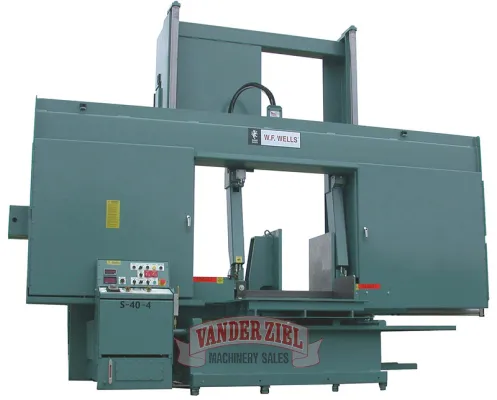

W.F. Wells 40" x 40" Semi-Automatic Horizontal Saw, Model S-40-4 -NEW
