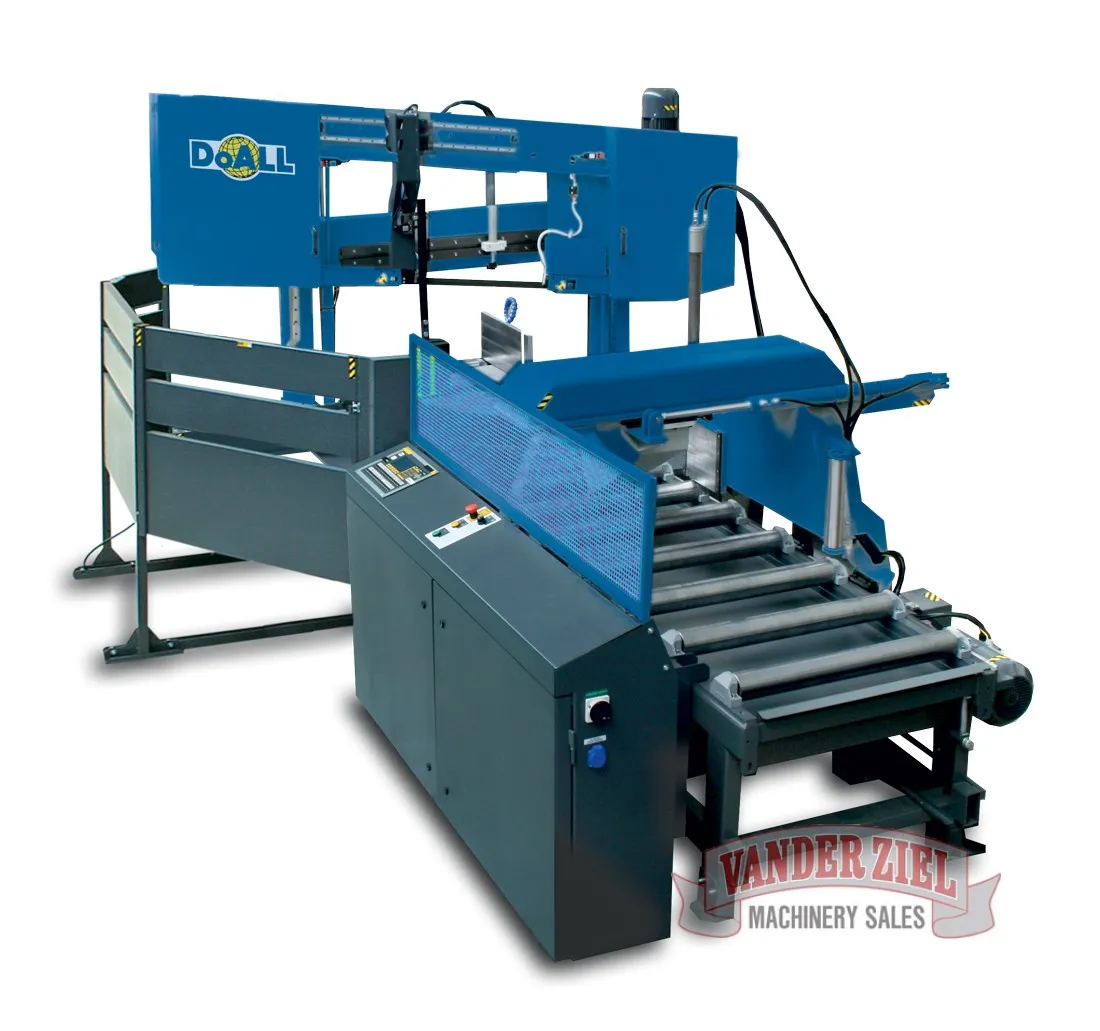

DoAll 19" x 30" Dual Column Miter Horizontal Saw, Model DCDS-750NC - NEW
DoAll 19" x 30" Dual Column Miter Horizontal Saw, Model DCDS-750NC - NEW
SKU #1120003
Machine Capacity: 19x30" (480x750mm)
Round Tube: 20" (510mm) | Round Solid: 15-3/4" (400mm)
Production Level: Extreme
The DoALL DCDS-750NC high production, horizontal StructurALL®, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 19x30" (480x750mm) rectangular cutting capacity and 20" round capacity. Also classified as a double column, dual swivel, the DCDS-750NC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-750NC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-750NC is the ideal machine for a fabricator cutting multiple angles in the same work piece.
- Cutting Capacity Round Tube: 19.7" (500mm)
- Cutting Capacity Round Solid: 15-3/4" (400mm)
- Cutting Capacity Rectangle: 29.5 x 18.9" (750x480mm)
- Maximum Bundle Capacity: 29.5 x 10.2" (750x260mm)
- Miter Cutting: 60° left and right
- Capacity Round at 45°: 19.7" (500mm)
- Capacity Rectangle at 45°: 19.7 x 18.9" (500x480mm)
- Capacity Round at 60°: 13" (330mm)
- Capacity Rectangle at 60°: 13 x 18.9" (330x480mm)
- Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)
- Maximum Blade Length: 256" (6500mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 5 hp (4kW)
- Hydraulic Pump: 3 hp (2.2kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 32" (815mm)
- Machine Weight: 9149lbs (4150kg)
- Dimensions W x L x H: 142 x 231.5 x 94.5" (3600x5880x2400mm)
- Index Single Stroke Min-Max: 0.12-78.7" (3-2000mm)
- Auto Index Multiple Stroke Max: 394" (9999mm)
Standard Equipment:
- Siemens saw control with touch display
- Digital read out of cutting angle
- Work light
- Hydraulic band tension
- Feed rate indicator
- Automatic feed control
- Automatic guide arm setting
- Pulley-driven band brush
- Variable vise pressure control - set of 2
- Hydraulic angular position and lock
- Safety covers and 3 panel work area surround
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
