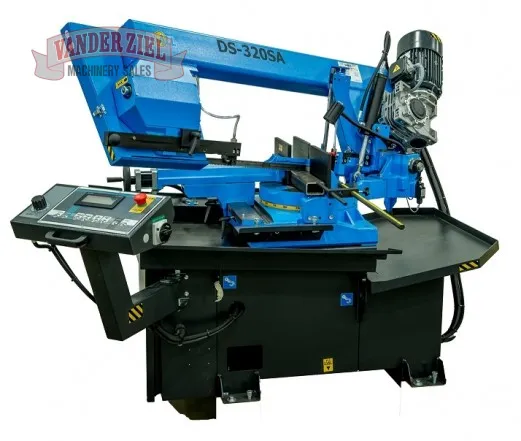

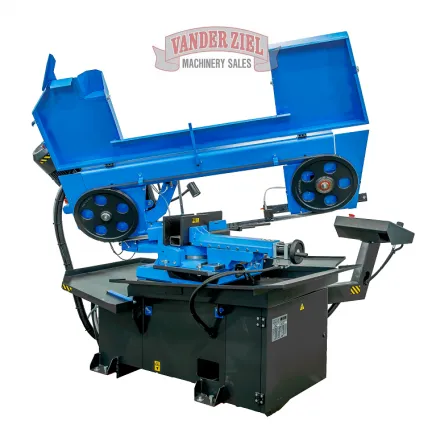

DoAll 11.75" x 12.5" Dual Miter Semi-Automatic Horizontal Saw, Model DS-320SA - NEW

DoAll 11.75" x 12.5" Dual Miter Semi-Automatic Horizontal Saw, Model DS-320SA - NEW
SKU #1120006
Machine Capacity: 11-3/4 x12-1/2" (300x320mm)
Production Level: Intermittent
The DoALL DS-320SA StructurALL® semi-automatic, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. The DS-320SA dual-swivel ability allows miter-cutting from 60° right and 45° left. The semi-automatic DS-320SA features a variable frequency drive with programmable feed rates. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cuttting capacity for round tube: 11.75" (300mm)
- Cutting capacity for rectangle: 11.75 x 12.5" (300x320mm)
- Cutting capacity for solid: Round: 7" (180mm)
- Miter cutting: 0⁰ - 60⁰ right and 0⁰ - 45⁰ left
- Miter cutting capacity for tube at 45⁰ - Right: Round: 11.75" (300mm), Rectangle: 11.75 x 9.75" (300x250mm)
- Miter cutting capacity for solid at 45⁰ - Right: Round: 4 1/4" (110mm)
- Miter cutting capacity for tube at 60⁰ - Right: Round: 7.75" (200mm), Rectangle: 7.75 x 7.75" (200x200mm)
- Miter cutting capacity for solid at 60⁰ - Right: Round: 3 1/8" (80mm)
- Miter cutting capacity for tube at 45⁰ - Left: Round: 11" (280mm), Rectangle: 10.4" x 7.9" (265mm x 200mm)
- Miter cutting capacity for solid at 45⁰ - Left: Round: 4 1/4" (110mm)
- Min and max nesting capacity at 90°: 0.12" (3mm) to 12.5 x 6.25" (320x160mm)
- Remnant length drop: Width: 1.2" (30mm)
- Band saw blade dimensions: Width: 1 x 0.035" (27x0.9mm), Length: 144" (3660mm)
- Band speed: 65-328fpm (20-100mpm)
- Band drive motor: 3 hp (2.23kW)
- Hydraulic pump: 0.07 hp (0.05kW)
- Coolant pump: 0.6 hp (0.44kW)
- Coolant capacity: 5-1/4 gal (20 lit)
- Material pass line height: 31-1/2" (800mm)
- Machine weight: 1290 lbs (585kg)
- Floor space requirements W x L X H: 90 x 46 x 81" (2270x1170x2040mm)
- Machine Voltages Available: 460vac, 3-Phase, 60hz, Wye configuration required
Standard Equipment:
- Mitsubishi saw control
- Work light
- Overfeed protection
- Blade-driven band brush
- 3.3 ft (1000mm) Work stop directly mounted
- Work height sensor
- Variable frequency drive
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000463
