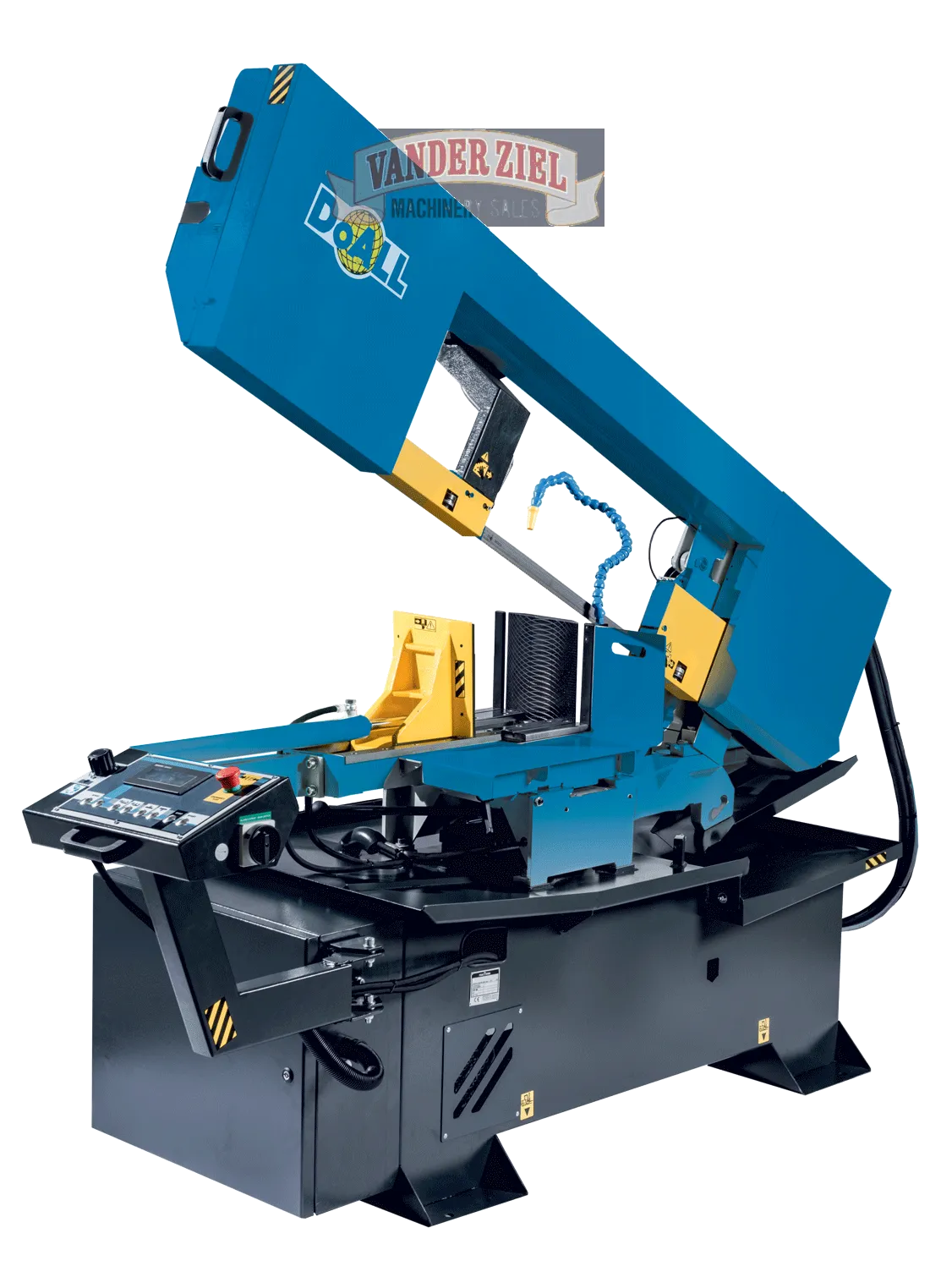

DoAll 14" x 20" Dual Miter Semi-Automatic Horizontal Saw, Model DS-500SA - NEW
DoAll 14" x 20" Dual Miter Semi-Automatic Horizontal Saw, Model DS-500SA - NEW
SKU #1120007
Machine Capacity: 14x20" (360x500mm)
Round Tube: 15" (380mm) | Round Solid: 9-7/8" (250mm)
Production Level: Intermittent
The DoALL DS-500SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the DS-500SA is ideal for machine shops, repair facilities and industrial manufacturing plants that need to occasionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round Tube: 14.17" (360mm)
- Cutting Capacity Rectangle: 14.17x19.69" (360x500mm)
- Cutting Capacity Round Solid: 9-7/8" (250mm)
- Miter Cutting: 60° left and 60° right
- Capacity Round at 45°: 14.2" (360mm)
- Capacity Rectangle at 45°: 15.75" x 7.5" (400x190mm)
- Capacity Round at 60°: 12.2" (310mm)
- Capacity Rectangle at 60°: 10.6" x 12.6" (270x320mm)
- Band Saw Blade Width: 1-1/4" x 0.042" (34x1.1mm)
- Maximum Blade Length: 188" (4780mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 4 hp (3kW)
- Hydraulic Pump: 0.07 hp (0.05kW)
- Coolant Pump: 0.6 hp (0.44kW)
- Material Pass Line Height: 32-1/3" (820mm)
- Machine Weight: 1576 lbs (715kg)
- Dimensions W x L x H: 109 x 38 x 90" (2750x950x2270mm)
Standard Equipment:
- Mitsubishi saw control
- Variable frequency drive
- Pulley-driven, band brush
- Overfeed protection
- Digital read out of cutting angle
- Work light
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
Similar Machines
Browse All Equipment Listings

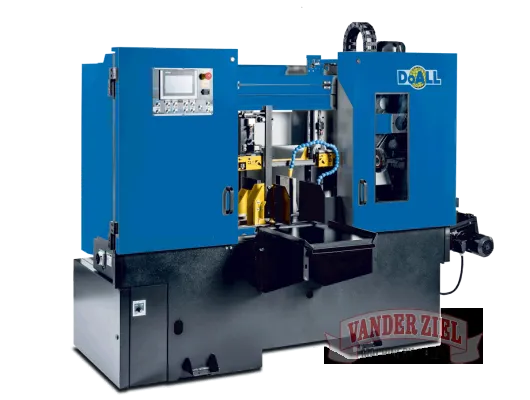

DoAll 12" x 12" Dual Column Enclosed CNC Bandsaw, Model DC-300CNC - NEW
