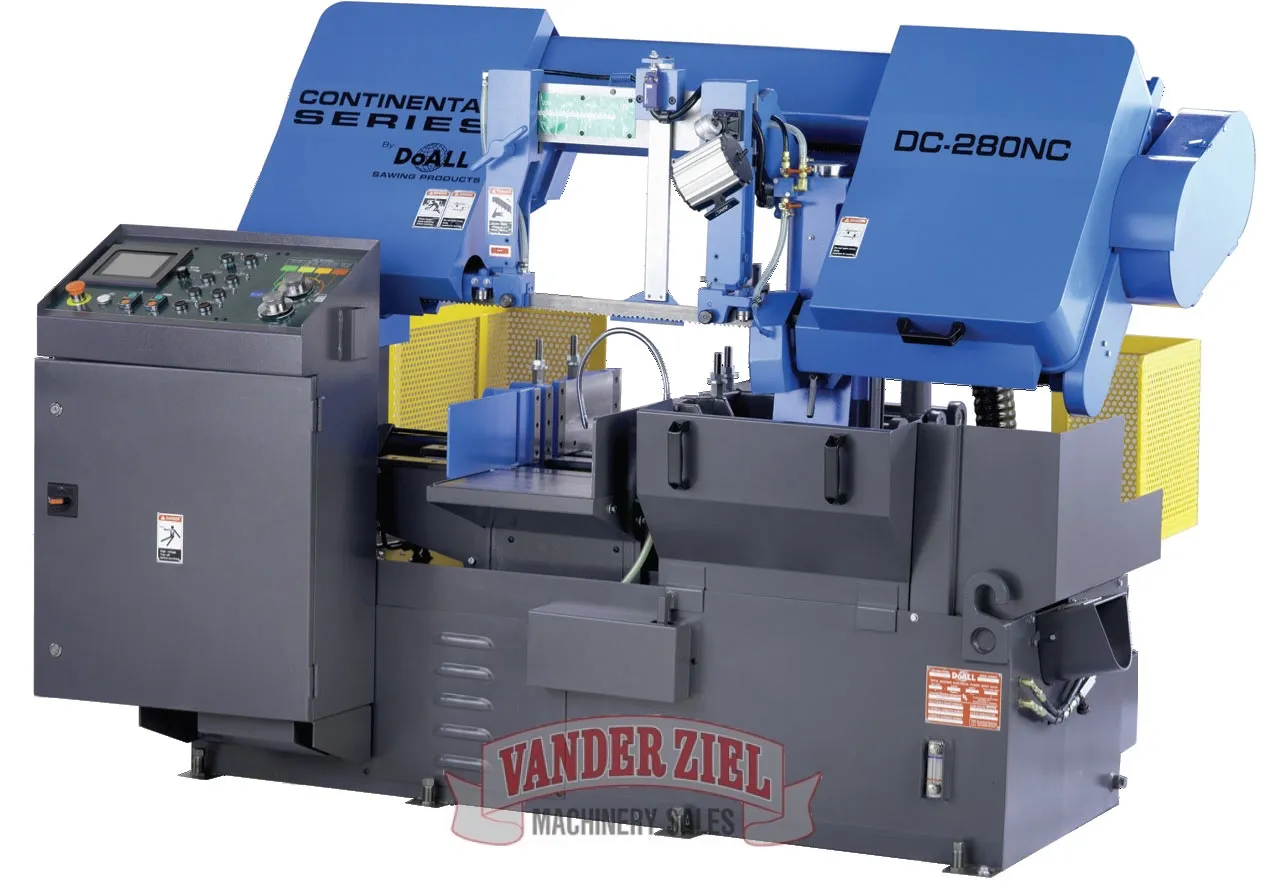

DoAll 11.75" x 11" Production Horizontal Saw, Model DC-280NC - NEW
DoAll 11.75" x 11" Production Horizontal Saw, Model DC-280NC - NEW
SKU #1120014
Machine Capacity: 11-3/4 x 11" (300x280mm) | Round: 11" (280mm)
Production Level: High
The DC-280NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 11" (280mm)
- Cutting Capacity Rectangle: 11-3/4" W x 11" H (300mm x 280mm)
- Bundle Capacity Maximum: 9-3/4" W x 4" H (250mm x 100mm)
- Bundle Capacity Minimum: 6-1/2" W x 5/8" H (165mm x 15mm)
- Band Saw Blade: 1-1/4 x 0.042 x 151" (32x1.1x3820mm)
- Band Speed: 72-390 fpm (22-120mpm)
- Band Drive: 5 hp (3.7 kW)
- Hydraulic Pump: 1 hp (.75kW)
- Hydraulic Tank Capacity: 16 Gal. (60 Liters)
- Coolant Tank Capacity: 20 Gal. (80 Liters)
- Automatic Index Length Single: 15.75" (400mm)
- Automatic Index Length Multiple: 141.73" (3600mm)
- Material Pass Line Height: 27-1/2" (700mm)
- Floor Space Required: 83 x 79 x 51" (2100x1990x1300mm)
- Machine Weight: 3858 lbs. (1750kb)
Standard Equipment:
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Nesting fixture for bundle cutting
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000469
