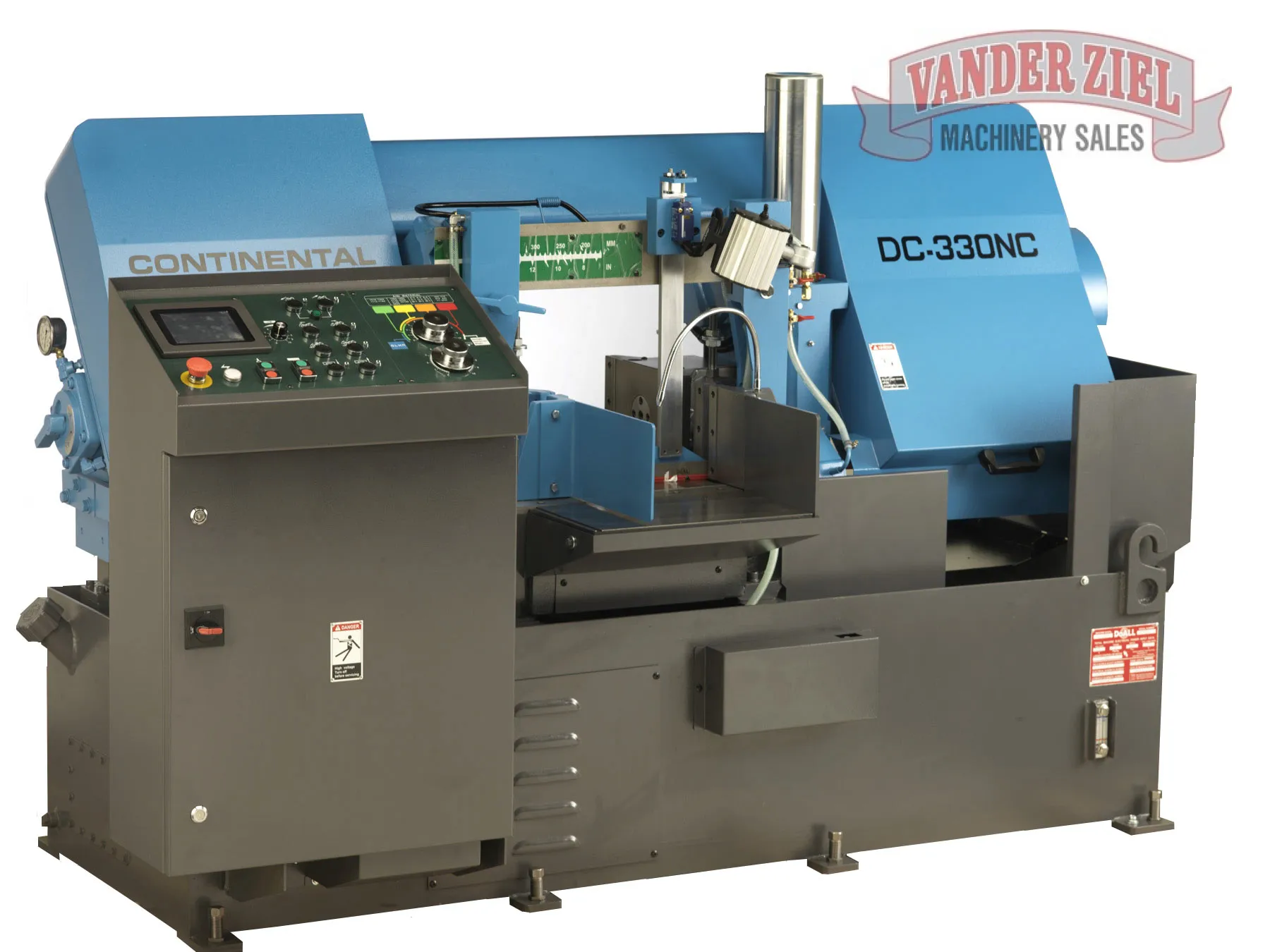

DoAll 15.75" x 13" Production Horizontal Saw, Model DC-330NC - NEW
DoAll 15.75" x 13" Production Horizontal Saw, Model DC-330NC - NEW
SKU #1120015
Machine Capacity: 15-3/4 x 13" (400x330mm) | Round: 13" (330mm)
Production Level: High
The DC-330NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 13" (330mm)
- Cutting Capacity Rectangle: 15-3/4 x 13" (400mm x 330 mm)
- Bundle Capacity Maximum: 14-1/2 x 6-5/8" (370mm x 170mm)
- Bundle Capacity Minimum: 6-1/2" x 2" (165mm x 170mm)
- Band Saw Blade: 1-1/4 x 0.042 x 167" (32mm x 1.1x4242mm)
- Band Speed: 72 - 390 SFPM (22 - 120 m/min)
- Band Drive: 5 hp (3.75kW)
- Hydraulic Pump: 1 hp (.75kW)
- Hydraulic Tank Capacity: 16 Gal. (60 Liters)
- Coolant Tank Capacity: 24 Gal. (90 Liters)
- Automatic Index Length Single: 19.68" (500mm)
- Automatic Index Length Multiple: 177.16" (4500mm)
- Material Pass Line Height: 27-1/2" (700mm)
- Floor Space Required: 89 X 87 x 56" (2250x2195x1400mm)
- Machine Weight: 4410 lbs. (2000kg)
Standard Equipment:
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Nesting fixture for bundle cutting
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000470
