DoAll 18" x 20" Production Horizontal Saw, Model DC-460NC - NEW
DoAll 18" x 20" Production Horizontal Saw, Model DC-460NC - NEW
SKU #1120017
Machine Capacity: 18 x 20" (460x510mm) | Round: 18" (460mm)
Production Level: High

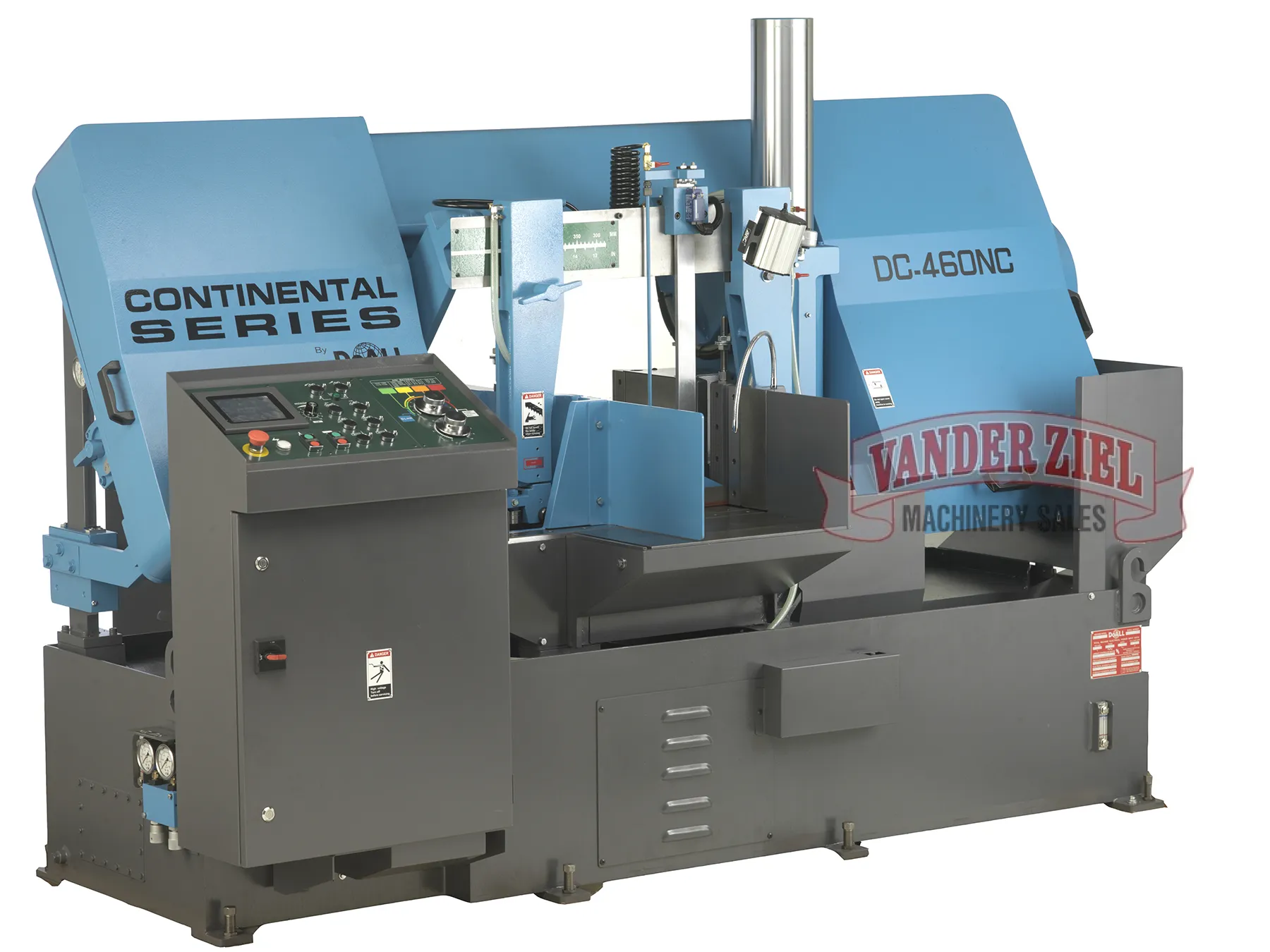

The DC-460NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 18" (460mm)
- Cutting Capacity Rectangle: 20" x 18" (510x460mm)
- Bundle Capacity Maximum (WxH): 18.88 x 9.75" (480x240mm)
- Bundle Capacity Minimum (WxH) : 9.38 x 3-1/4" (240 x 80mm)
- Band Saw Blade (L x W x Gage): 209 x 1-1/2 x 0.05" (5310x38x1.3mm)
- Band Speed: 72 - 390 fpm (22-120mpm)
- Band Drive: 10 HP (7.5kW)
- Hydraulic Pump: 2 HP (1.5 kW)
- Hydraulic Tank Capacity: 22 Gal. (85 Liters)
- Coolant Tank Capacity: 29 Gal. (110 Liters)
- Automatic Index Length Single: 19.68" (500mm)
- Automatic Index Length Multiple: 177.16" (4500mm)
- Material Pass Line Height: 29-1/2" (750mm)
- Machine Weight: 6284 lbs. (2850kg)
- Floor Space Required: 102 x 89 x 71" (2580x2240x1800mm)
Standard Equipment:

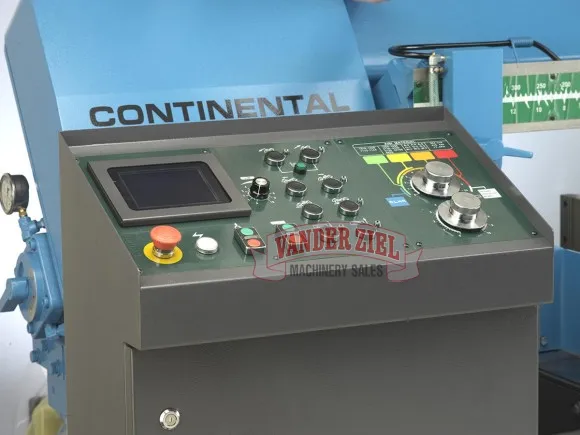

- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control

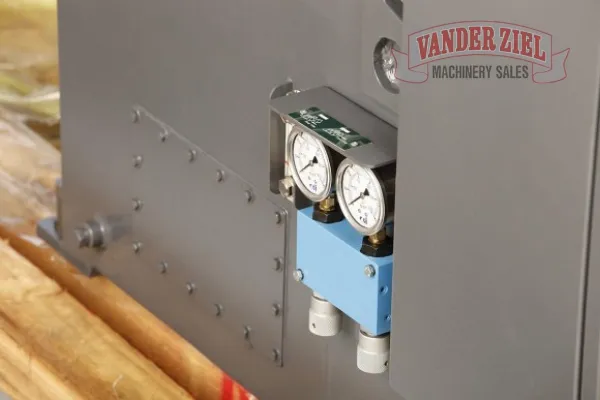

- Multi-step full stroke vises with split front vise and variable vise pressure control
- Nesting fixture for bundle cutting
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush

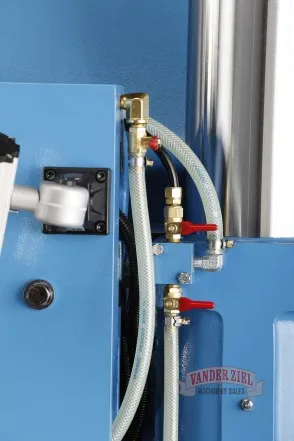

- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- Instruction and parts manuals on CD
- One DoALL bi-metal saw blade
REF: 000472
