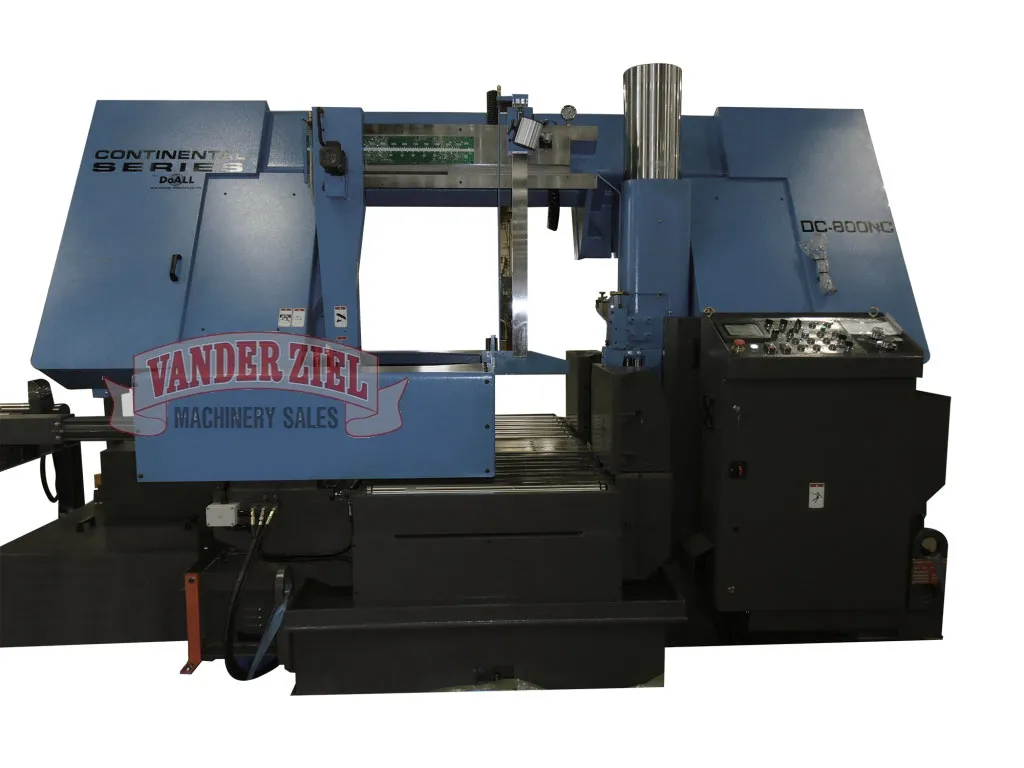

DoAll 39" x 31" Production Horizontal Saw, Model DC-800NC - NEW
DoAll 39" x 31" Production Horizontal Saw, Model DC-800NC - NEW
SKU #1120020
Machine Capacity: 39.3" x 31.4" (998x800mm)
Production Level: High
The DC-800NC Continental Series™ high production horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-800NC offers automatic operation, numerical control and features solid heavy-duty construction, which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 7.8" - 31.4" (200-800mm)
- Cutting Capacity Rectangle: 39.3" x 31.4" (1000 x 800mm)
- Bundle Capacity Maximum: 25-5/8" x 14-5/8" (650 x 370mm)
- Bundle Capacity Minimum: 14-1/8" x 10-1/4" (360 x 260mm)
- Band Saw Blade: 2-5/8" x 346" (67mm x 8788mm)
- Band Speed: 52 - 275 FPM (16-85 m/min)
- Band Drive: 15 HP (11.1kW)
- Hydraulic Pump: 3 HP (2.23kW)
- Hydraulic Tank Capacity: 34 Gal. (130 Liters)
- Coolant Tank Capacity: 63 Gal. (240 Liters)
- Automatic Index Length Single: 15.75" (400mm)
- Automatic Index Length Multiple: 236.2" (6000mm)
- Material Pass Line Height: 36.2" (920mm)
- Machine Weight: 25,350 lbs. (11500kg)
Standard Equipment:
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000475
