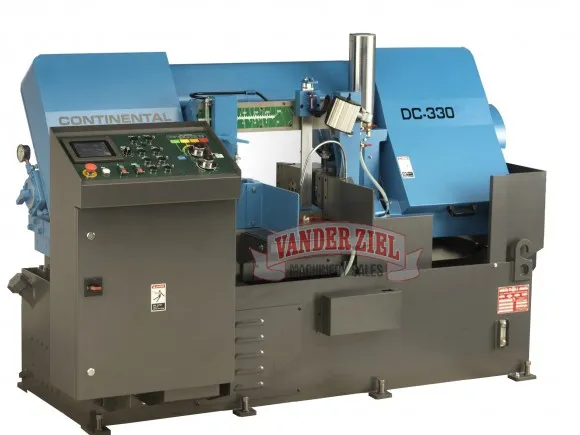

DoAll 15.75" x 13" Semi-Automatic Horizontal Saw, Model DC-330SA - NEW
DoAll 15.75" x 13" Semi-Automatic Horizontal Saw, Model DC-330SA - NEW
SKU #1120022
Machine Capacity: 15.75 x 13" (400x330mm) - Round: 13" (330mm)
Production Level: Low
The DC-330SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
- Cutting Capacity Round: 13" (330mm)
- Cutting Capacity Rectangle: 15.75" x 13" (400x330mm)
- Band Saw Blade (L x W x Gage): 167 x 1-1/4 x 0.042" (4242x34x1.1mm)
- Band Speed: 66-262 FPM (20 - 80 m/min)
- Band Drive: 5 hp (3.75kW)
- Hydraulic Pump: 1 hp (.75kW)
- Hydraulic Tank Capacity: 16 Gal. (60 Liters)
- Coolant Motor: 1/4 hp (0.2 kw)
- Coolant Tank Capacity: 21 gal (80 L)
- Material Pass Line Height: 27-1/2" (700mm)
- Machine Weight: 3638 lbs (1650 kg)
- Dimensions W x L x H: 88.2 x 47.6 x 61" (2240 x 1210 x 1550mm)
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions

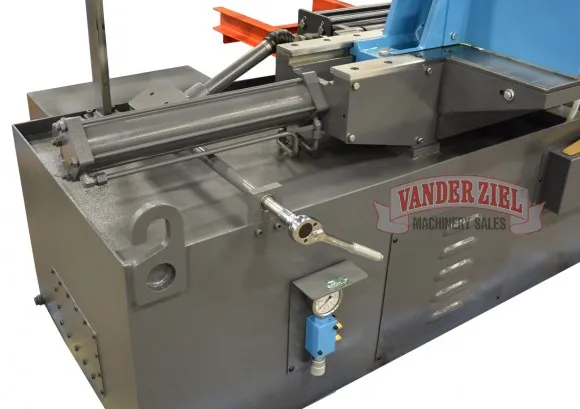

- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks

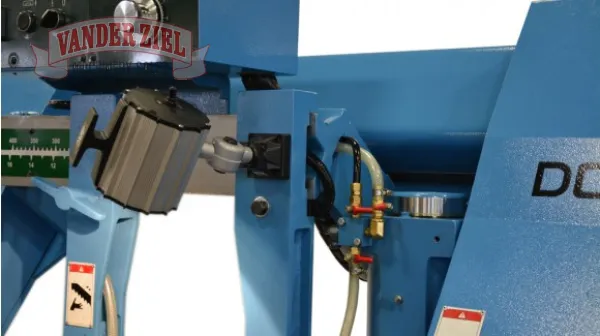

- Work light

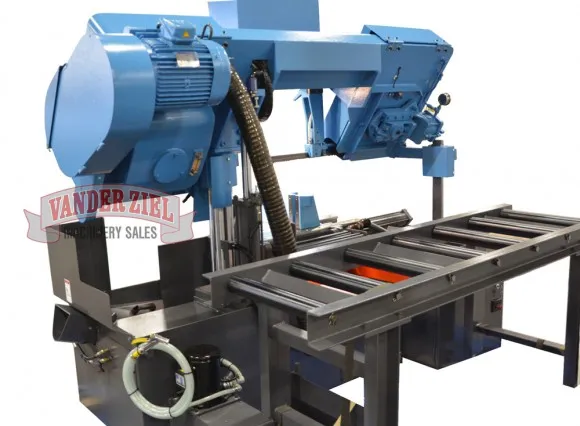

- One set of 6-foot (2-meter) roller stands
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
