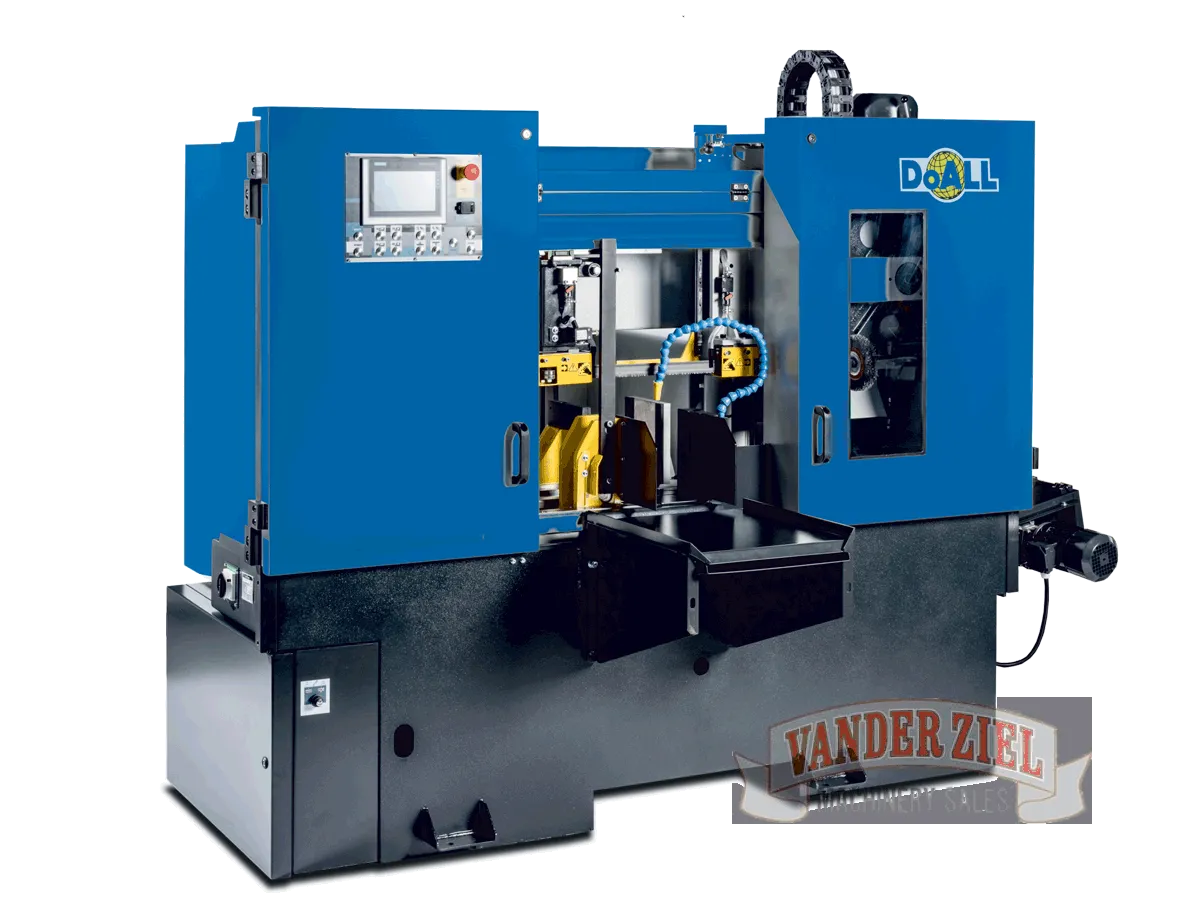

DoAll 12" x 12" Dual Column Enclosed CNC Bandsaw, Model DC-300CNC - NEW
DoAll 12" x 12" Dual Column Enclosed CNC Bandsaw, Model DC-300CNC - NEW
SKU #1120028
Machine Capacity: 12x12" (300x300mm)
Round Tube: 12" (300mm) | Round Solid: 9-7/8" (250mm)
Production Level: Extreme
The DC-300CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-300CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the dual column design of the DC-300CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round Tube: 11.8" (300mm)
- Cutting Capacity Round Solid: 9-7/8" (250mm)
- Cutting Capacity Rectangle: 11.8 x 11.8" (300x300mm)
- Maximum Bundle Capacity: 11.8 x 8.7" (300x220mm)
- Band Saw Blade Width: 1-1/4 x 0.043" (34x1.1mm)
- Maximum Blade Length: 178" (4520mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 5 hp (4kW)
- Hydraulic Pump: 1 hp (0.75kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 3131lbs (1420kg)
- Dimensions W x L x H: 87 x 82 x 85" (2200x2080x2140mm)
- Index Single Stroke Min-Max: 0.2-19.9" (5-505mm)
- Auto Index Multiple Stroke Max: 394" (9999mm)
Standard Equipment:
- Siemens saw control
- Hydraulic band tension
- Work light
- Power-driven, band brush
- Automatic guide arm setting
- Work height sensor
- Automatic feed control with programmable feed rates
- Variable vise pressure control - Set of 2
- Worm chip conveyor
- Discharge chute
- Automatic retraction of material in cycle for protection of carbide blades
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
