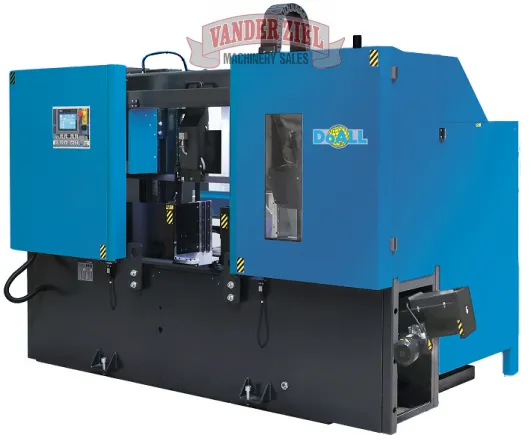

DoAll 16" x 16" Dual Column Enclosed CNC Bandsaw, Model DC-400CNC - NEW
DoAll 16" x 16" Dual Column Enclosed CNC Bandsaw, Model DC-400CNC - NEW
SKU #1120029
Machine Capacity: 16x16" (400x400mm) | Round Tube or Solid: 16" (400mm)
Production Level: Extreme
The DC-400CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation.
- Cutting Capacity Round (Tube and Solid): 15.75" (400mm)
- Cutting Capacity Rectangle: 15.75" x 15.75" (400x400mm)
- Maximum Bundle Capacity: 15.75 x 9.8" (400x250mm)
- Band Saw Blade Width: 1-1/2" x 0.05" (41x1.3mm)
- Maximum Blade Length: 220" (5580mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 7.5 hp (5.6kW)
- Hydraulic Pump: 2 hp (1.5kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 30-1/2" (775mm)
- Machine Weight: 6040lbs (2740kg)
- Dimensions W x L x H: 117 x 102.5 x 87" (2970x2600x2200mm)
- Index Single Stroke Min-Max: 0.12-21.7" (3-550mm)
- Auto Index Multiple Stroke Max: 394" (9999mm)
Standard Equipment:
- Siemens saw control
- Work light
- Work height sensor
- Power-driven, band brush
- Hydraulic band tension
- Worm chip conveyor
- Automatic guide arm setting
- Automatic feed control with programmable feed rates
- Variable vise pressure control - Set of 2
- Automatic retraction of material in cycle for protection of carbide blades
- Dual acting index vice jaws for crooked stock
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000483
