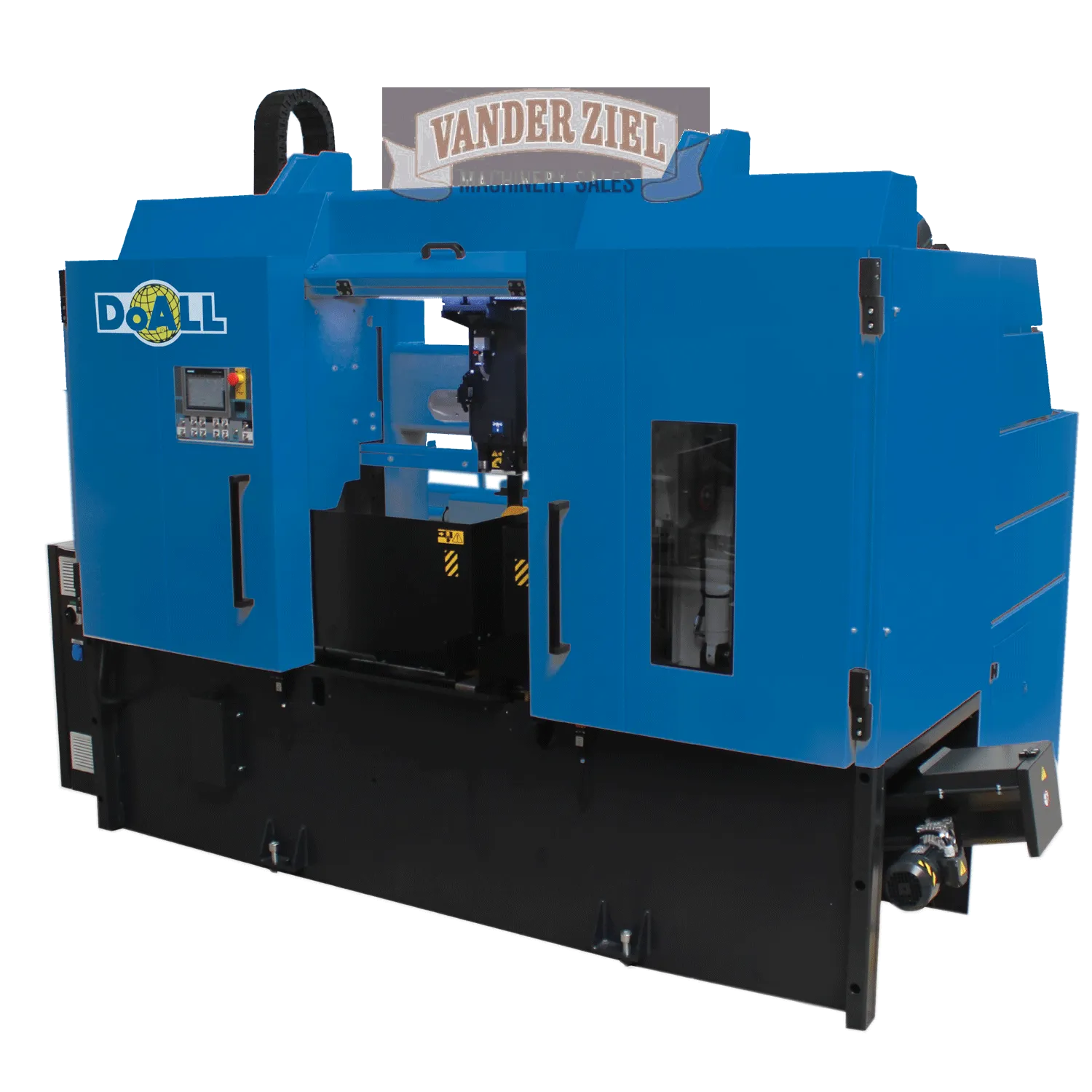

DoAll 20" x 20" Dual Column Enclosed CNC Bandsaw, Model DC-510CNC - NEW
DoAll 20" x 20" Dual Column Enclosed CNC Bandsaw, Model DC-510CNC - NEW
SKU #1120030
Machine Capacity: 20x20" (510x510mm) | Round (Tube or Solid): 20" (510mm)
Production Level: High
The DC-510CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-510CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-510CNC it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round (Tube or Solid): 20.08" (510mm)
- Cutting Capacity Rectangle: 20.08 x 22" (510x560mm)
- Maximum Bundle Capacity: 19.6 x 17.7"
- Band Saw Blade Width: 2 x 0.063" (54x1.6mm)
- Maximum Blade Length: 238-1/2" (6060mm)
- Band Speed: 50-262 fpm (15-80mpm)
- Band Drive: 10 hp (7.5kW)
- Hydraulic Pump: 2 hp (1.5kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 13713lbs (6220kg)
- Dimensions W x L x H: 122 x 94.5 x 102.5" (3100x2400x2600mm)
- Index Single Stroke Min-Max: 0.12-21.7" (3-550mm)
- Auto Index Multiple Stroke Max: 394" (9999mm)
Standard Equipment:
- Siemens saw control
- Ball screw feed
- Work light
- Work height sensor
- Power-driven, band brush
- Hydraulic band tension
- Worm chip conveyor
- Automatic feed control with programmable feed rates
- Automatic guide arm setting
- Variable vise pressure control - Set of 2
- Automatic retraction of material in cycle for protection of carbide blades
- Dual acting index vice jaws for crooked stock
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
