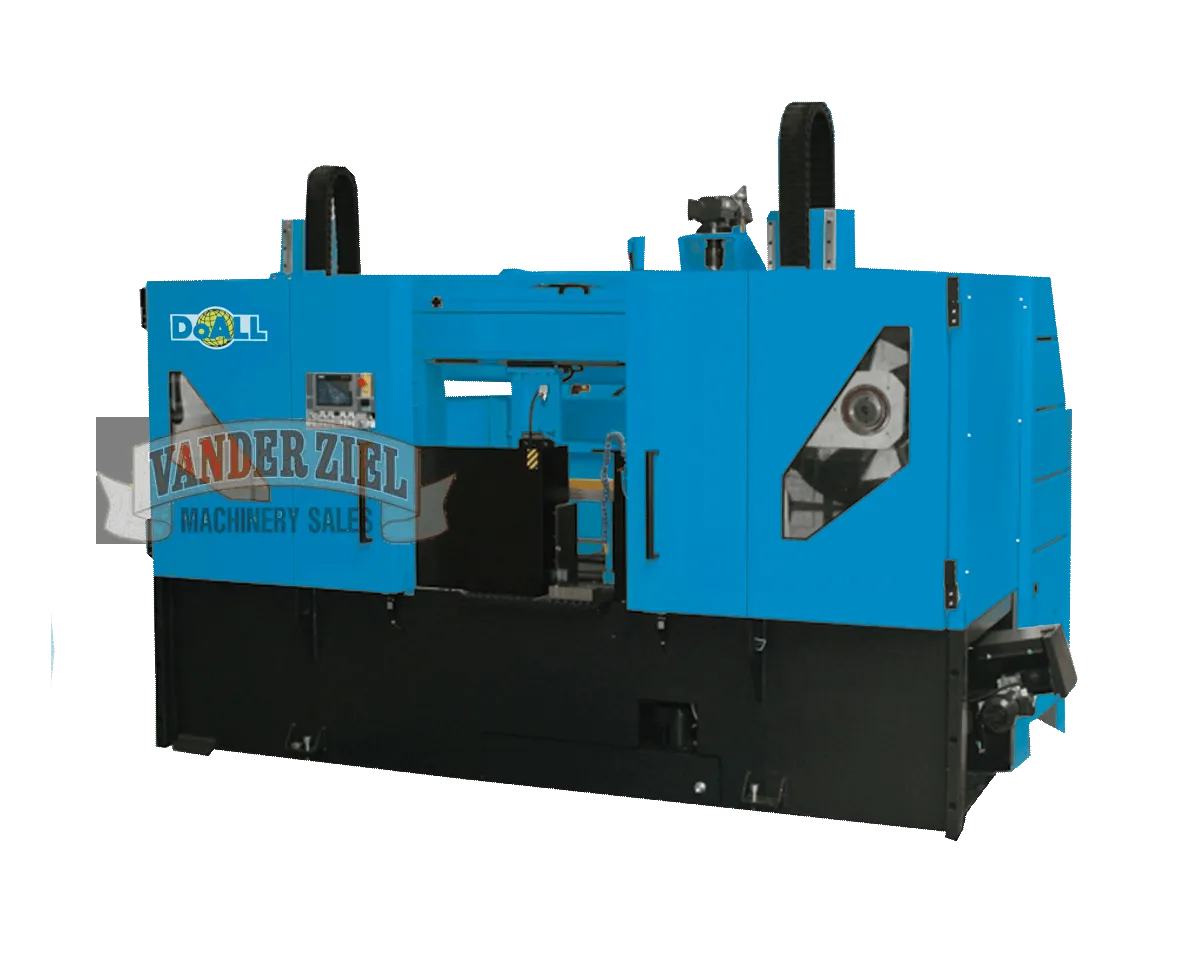

DoAll 24.5" x 21.5" Dual Column Enclosed CNC Bandsaw, Model DC-620CNC - NEW
DoAll 24.5" x 21.5" Dual Column Enclosed CNC Bandsaw, Model DC-620CNC - NEW
SKU #1120031
Machine Capacity: 24.5 x 21.5" (620x550mm) | Round (Tube or Solid): 21.5" (550mm)
Production Level: Extreme
The DC-620CNC Hercules II™ high production, horizontal CNC enclosed band saws from DoALL are highly efficient, automatic, hydraulically controlled machines. The DC-620CNC operates with a ball screw servo motor using "SMART" controls. Thanks to the robust construction of the DC-620CNC, it is possible to programm and cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round (Tube or Solid): 21.5" (550mm)
- Cutting Capacity Rectangle: 24.5 x 21.5" (620x550mm)
- Maximum Nesting Capacity: 21.5 x 13.75" (550x350mm)
- Minimum Nesting Capacity: 3" (75mm)
- Band Saw Blade Width: 2 x 0.063" (54x1.6mm)
- Maximum Blade Length: 302-1/4" (7680mm)
- Band Speed: 50-500 fpm (15-150mpm)
- Band Drive Motor: 20hp (15kW)
- Material Pass Line Height: 31 1/2" (800mm)
- Machine Weight: 17052 lbs (7735kg)
- Dimensions W x L x H: 157 x 91 x 115" (3980x2300x2900mm)
- Index Single Stroke Min-Max: 0.12-29.5" (3-750mm)
- Auto Index Multiple Stroke Max: 394" (9999mm)
- Minimum Butt End: 1.4" (35mm)
Standard Equipment:
- Siemens control with touch screen display
- Smart programming to automatically select cutting parameters based on material size and type
- Automatic material feed situated close to saw blade
- Automatic feed control with programmable feed rates
- Work light
- Worm chip conveyor for long chips including chip pan
- Variable vise pressure control - Set of 2
- Dual acting index vise jaws for crooked stock
- Hydraulic band tension
- Automatic feed of material into cutting zone
- Retractable stationary machine vice jaw
- Automatic retraction of material in cycle for protection of carbide blade
- Hydraulic blade clamping in saw guides
- Feeder and bow movements using linear-leading ball screw and servo motor
- Dynamic adjustment of feed rate to ensure square-ness
- Power-driven band brush
- Automatic guide arm setting
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One (1) DoALL bi-metal saw blade
- Instruction and parts manuals on CD
Similar Machines
Browse All Equipment Listings
Wellsaw 13" x 18" Horizontal Semi-Automatic Saw, Model 1316S-EXT-SA - NEW

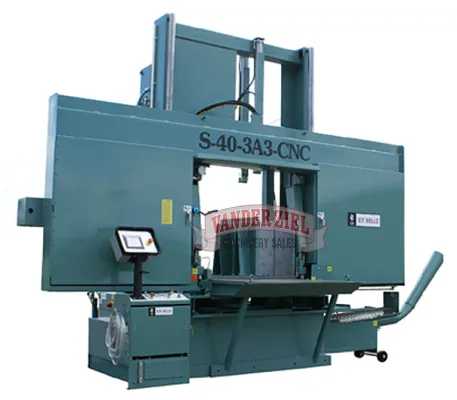

W.F. Wells 37" x 40" CNC Fully Automatic Horizontal Saw, Model S-40-3CA3 CNC - NEW
