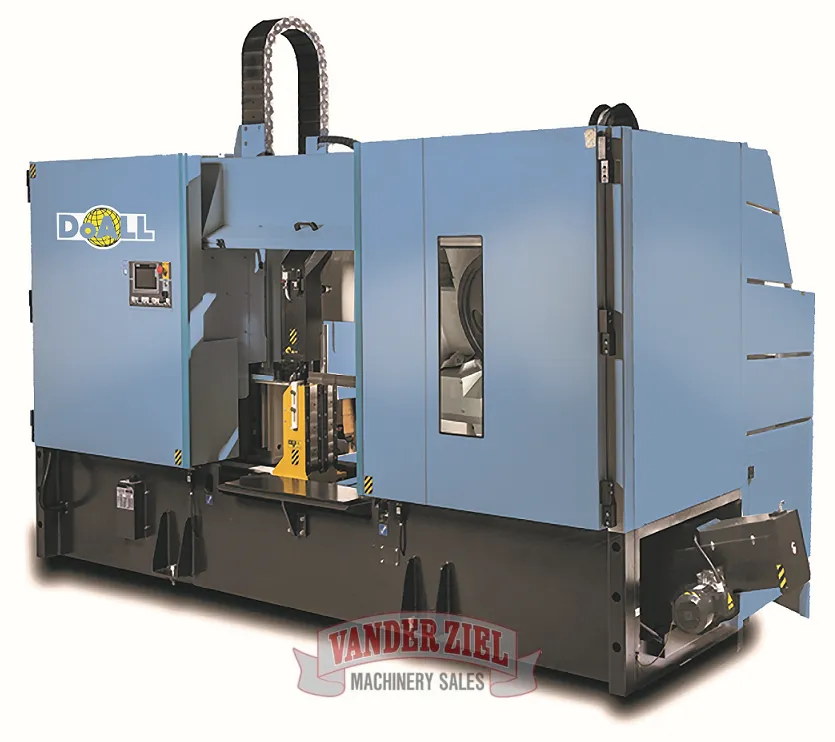

DoAll 28" x 30" Dual Column Enclosed CNC Bandsaw, Model DC-750CNC - NEW
DoAll 28" x 30" Dual Column Enclosed CNC Bandsaw, Model DC-750CNC - NEW
SKU #1120032
Machine Capacity: 28 x 30" (700 x 750mm) | Round Tube or Solid: 28" (700mm)
Production Level: Extreme
The DC-750CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-750CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-750CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round (Tube or Solid): 27.6" (700mm)
- Cutting Capacity Rectangle: 27.6x29.5" (700x750mm)
- Maximum Bundle Capacity: 29.5x17.7" (750x450mm)
- Band Saw Blade Width: 2-5/8x0.063" (67x1.6mm)
- Maximum Blade Length: 302-3/8" (7680mm)
- Band Speed: 50-262 fpm (15-80mpm)
- Band Drive: 15 hp (11.1kW)
- Hydraulic Pump: 5.4 hp (4kW)
- Coolant Pump: 0.2 hp (0.155kW)
- Material Pass Line Height: 24.2" (615mm)
- Machine Weight: 27558 lbs (12500kg)
- Dimensions W x L x H: 286 x 159 x 103" (7250x4030x2600mm)
Standard Equipment:
- Siemens saw control
- Work light
- Hydraulic band tension
- Automatic guide arm setting
- Automatic feed control with programmable feed rates
- Variable vise pressure control - Set of 2
- Power-driven, band brush

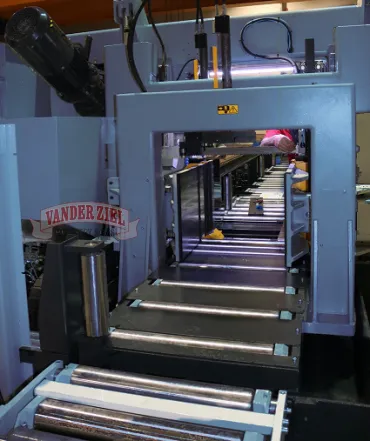

- Chain chip conveyor with large pan
- Automatic retraction of material in cycle for protection of carbide blades
- Dual acting index vice jaws for crooked stock
- Retractable stationary machine vice jaw
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
