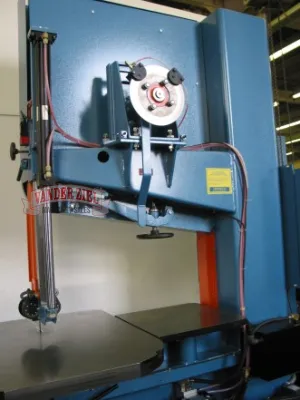

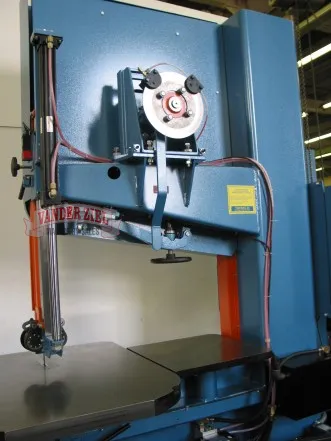

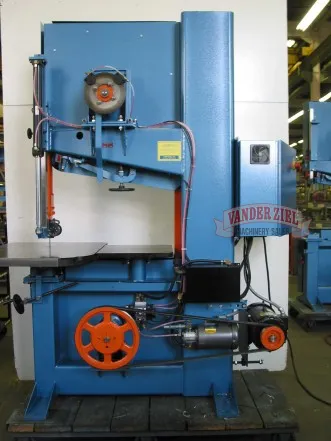

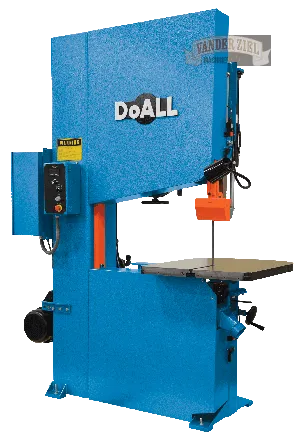

DoAll 36" Vertical Contour Saw, Model ZV-3620 - NEW
DoAll 36" Vertical Contour Saw, Model ZV-3620 - NEW
SKU # 1122000
Specifications:
- General Capacity Range: 36" x 15" (914x381mm)
- Band Saw Blade: 1/8"-1" (3.2-25.4mm)
- Band Speed: 1,000-15,000 fpm (305-4,570mpm)
- Band Drive: 15 hp (11.1kW)
- Throat, Band to Column: 35-1/4" (895mm)
- Maximum Work Height: 20" (508mm)
- Saw Band Length: 232-240" (5893-6096mm)
- Table: 30" x 36" (760 x 915mm) Tilt 45°R, 10°L
- Upper Wheel Adjustment: 3" (76mm)
- Wheels: Balanced 36" (915mm) diameter cast aluminum with replaceable crowned rubber tires
- Weight: 3000 lbs (1361kg)
- Floor Space Required: 52-1/2" x 80" (1334x2032mm)
Standard Equipment:
Job selector
Dust spout for exhaust connection
Spark guard
Roller bearing tapered spindles
Band speed indicator
Wrench for saw guides
Band tension indicator
One DoALL friction saw blade
Instruction and parts manuals on CD
REF: 000448
