DoAll 20" High Speed Contour Vertical Saw, Model 2013-V5 - NEW
DoAll 20" High Speed Contour Vertical Saw, Model 2013-V5 - NEW
SKU # 1122003
Machine Capacity: 20" x 13" (508x330mm)
Production Level: High Speed Low Production

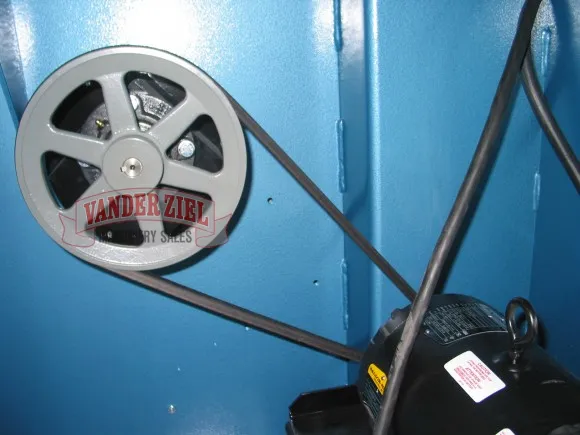

The 2013-V5 DoALL high-speed, vertical contour band saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V5 upright metal cutting saw is among the most versatile 20" x 13" (508x330mm) sawing machines on the market today.
- Band speed: 550-5,500 fpm (170-1,680 mpm)
- Throat band to Column: 20 (508 mm)
- Max. work height: 13" (330 mm)
- Band width capacity: 1/8" - 1" (3.2 - 2 mm)
- Saw band length: 154" (3,910 mm)
- Variable band speed: 550-5,500 fpm (170 - 1,680 mpm)
- Table (tilts 45° R, 10°L): 26" x 26" (660 x 660 mm)
- Table to floor height: 39" (990 mm)
- AC drive motor: 5 hp ac (3.75 kW)
- Table capacity: 500lb (227 kg)
- Wheels: Aluminum with crowned rubber tires
- Upper wheel adjustment: 3" (75 mm)
- Height maximum: 80-1/4" (2,038 mm)
- Floor space required: 53-1/2" x 45" (1,360 x 1,145 mm)
- Weight: 1250 lb ( 567 kg)
Standard Equipment:

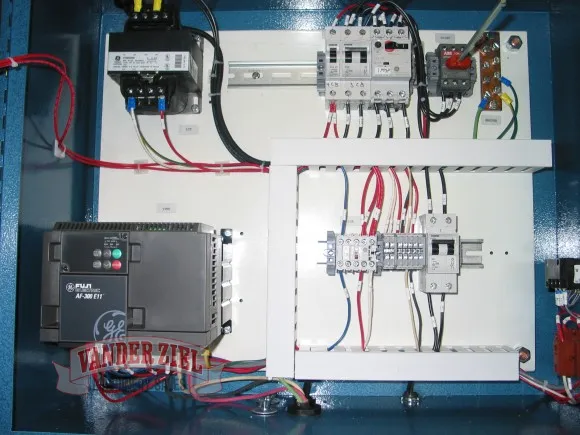

- Variable frequency AC drive
- Band speed indicator
- Band door interlocks
- Band tension indicator
- Job selector
- One set of high-speed, insert-type guide blocks for bands 1/8" - 1/2"
- Chip pan
- One set of steel guide inserts for bands 1/4", 3/8" and 1/2"
- Wrench for saw guides
- Wrench for table trunnion
- Transmission oil
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
