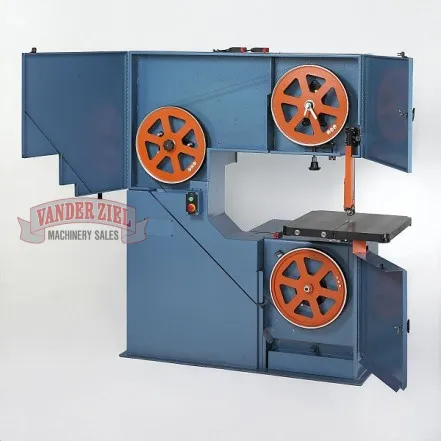

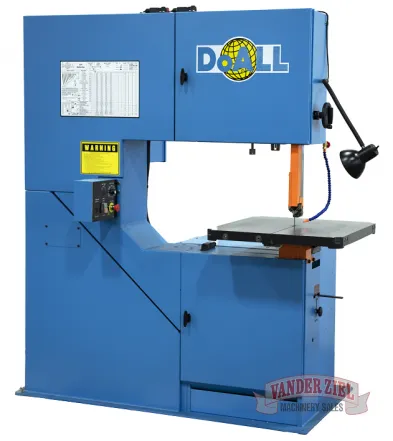

DoAll 36" Vertical Contour Saw, Model 3612-VH - NEW
DoAll 36" Vertical Contour Saw, Model 3612-VH - NEW
SKU # 1122005
Machine Capacity: 36" x 12" (915x305mm)
Production Level: Low
Vertical contour saws are among the most versatile sawing machines on the market today and the DoALL 3612-VH vertical metal cutting band saw leads the pack in versatility. The 3612-VH saws are widely used in machine shops, mold shops, maintenance departments, schools and in other areas where cutting a wide variety of materials is required. Machines are available in sizes to fit your needs and feature band speeds that permit contouring, cut-off, and machining of almost any material.
- Band Speed: 30-5,500 fpm (9-1,680mpm)
- AC Motor Drive: 3 hp (2.25kW)
- Machine Weight (net): 2,200 lbs (990kg)
- Throat, Band to Column: 36" (914mm)
- Maximum Work Height: 12" (305mm)
- Band Width Capacity: 1/8" - 1" (3.2-2.7mm)
- Band Length: 199" (5,055mm)
- Table: 26-1/2" x 33-1/2" (675 x 850mm) Tilts 45°R, 10°L
- Table to Floor Height: 40" (1,020mm)
- Table Stroke: 12" (305mm)
- Table Feed: 0-6 fpm (0-1.8 mpm)
- Table Feed Force: 0-175 lbs (0-79kg)
- Table Capacity: 500 lbs (227kg)
- Upper Wheel Adjustment: 3" (75mm)
- Wheels: Flanged with steel backed rubber tires
- Hydraulic reservoir: 5 gal
- Floor area required: 74" x 45" x 81-1/2" (1,880x1,145x2,070 mm)
Standard Equipment:
- Post elevating hand wheel
- One set of 3/4" (19mm), and 1" (25mm) carbide-faced inserts
- Dual-range transmission

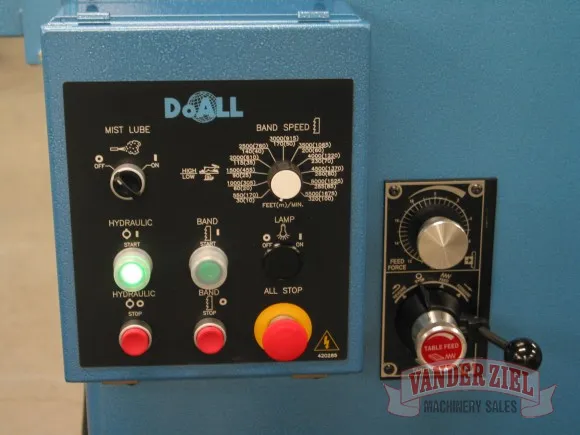

- Band speed indicator
- Set of saw guide blocks with carbide backup for bands 1/8" to 1"
- Set of metal saw guide inserts for bands 1/4", 3/8" and 1/2"
- Job selector
- Wrench for saw guides
- Table trunnion wrench
- Removable chip drawer
- Mist coolant-plant air
- Variable frequency AC drive
- Complimentary coolant package
- Transmission oil
- Band tension indicator
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000453
