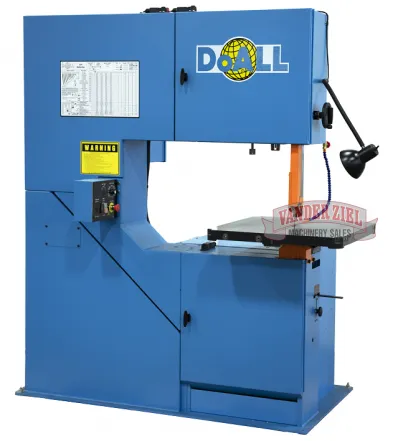

DoAll 36" High Speed Vertical Contour Saw, Model 3613-V5 - NEW

SKU # 1122008

Machine Capacity: 36" x 13" (915x330mm)
Production Level: High Speed Low Production

The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials.

Cutting Capacity at 90° Rectangle: 36" x 13" (915x330mm)

Cutting Capacity at 90° Round: 13" (330mm)

Throat band to column: 36" (915 mm)

Band width capacity: 1/8" - 1" (3.2-25.4mm)

Saw band length: 199" (5,055 mm)

Variable band speed: 550-5,500 fpm (170-1,680 mpm)

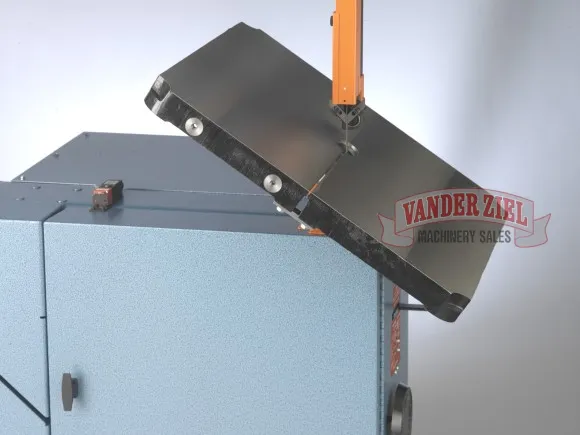

Table Tilt: 45° right and 10° left

Material Pass Line Height: 39" (990 mm)

AC drive motor: 5 hp (3.75 kW)

Table Size: 26" x 26" (660x660mm)

Table capacity: 500 lbs (227 kg)

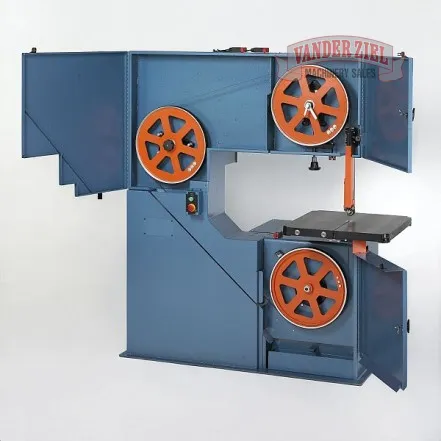

Wheels: 20" (508mm) Aluminum with crowned rubber tires

Upper wheel adjustment: 3" (76 mm)

Floor Space Required: 74" x 45" x 81-1/2" (1,880x1,145x2,070mm)

Weight: 1550 lbs (703 kg)

Standard Equipment:

One set of high-speed, insert-type guide blocks for bands 1/8" through 1/2"

One set of steel guide inserts for bands 1/4", 3/8" and 1/2"

Job selector

Band speed indicator reading in fpm/mpm

Band tension indicator

Manual post elevating

Variable frequency AC drive

Chip pan

Wrench for saw guides

Wrench for table trunnion

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
