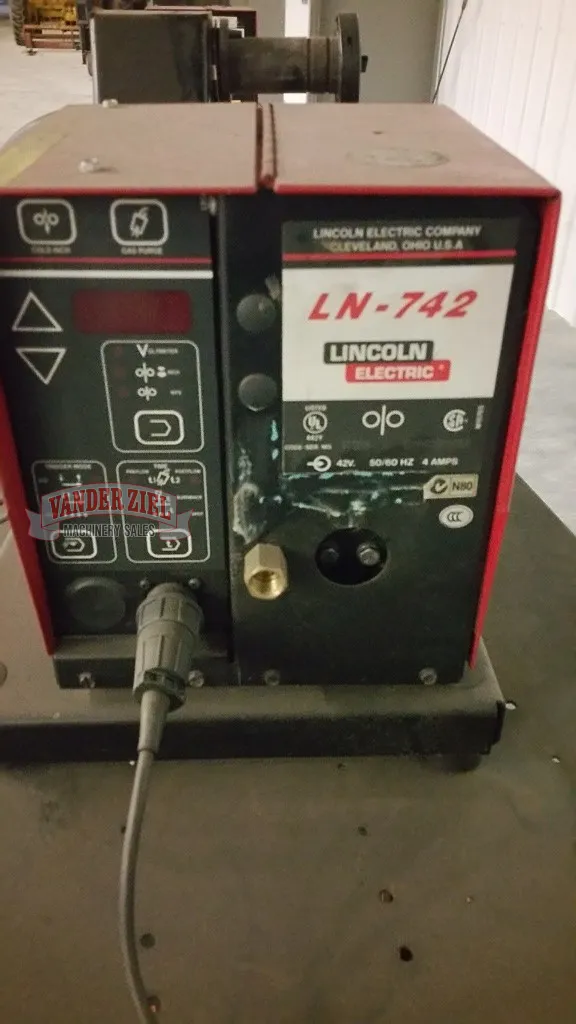

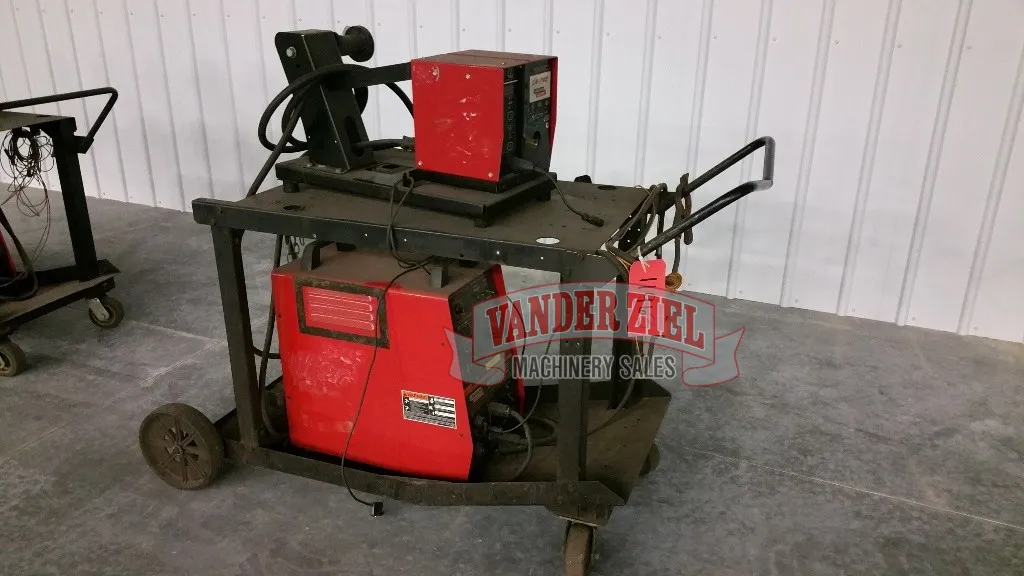

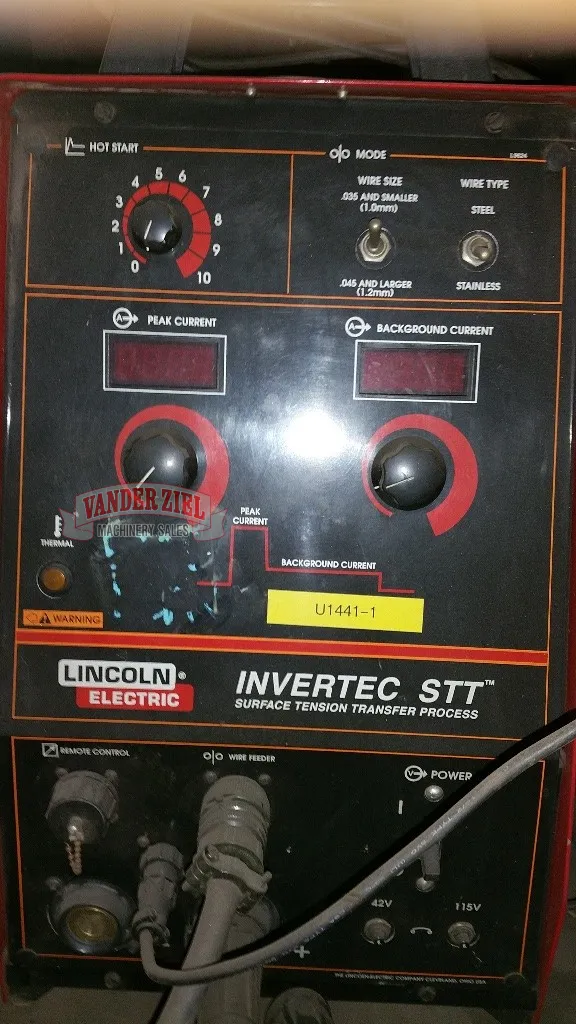

Lincoln Invertec STT Welder with Lincoln LN-742 Feeder

Serial # U1950902T8
Asset # 11963

Specifications:
Standard Voltage   208/230/460/3/60 HZ
Input Current at Rated Output   33/30/19
Standard Voltage   200/220/380/415/440/3/50/60 HZ
Input Current at Rated Output   32/30/18/17/16
Rated Output at 60% Duty Cycle    225 Amps/29 Volts
Rated Output at 100% Duty Cycle   200 Amps/28 Volts
Output - Peak Current   0-450 Amps
Output - Background   0-125 Amps
Open Circuit Voltage   85 VDC Max.
Auxiliary Power - Peak   112 VAX at 4 Amps
Auxiliary Power - Background   42 VAX at 4 Amps
Dimensions (WO Cart)   24" x 13"
Height   23"
Weight   100 lbs.
