Ellis 18" Variable Speed Drill Press, Model 9400 - NEW

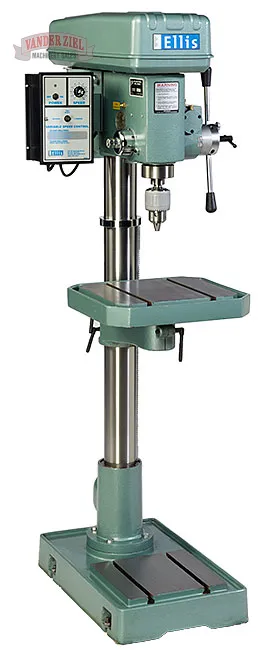

Ellis 18" Variable Speed Drill Press, Model 9400 - NEW - Main Image 1

Ellis 18 1/2" Variable Speed Drill Press - NEW

SKU#1305001

Specifications:

Motor	2HP A.C. Single PhaseChoose 110V or 220V
Control box	Infinitely variable speed by turning the dial Electronic reversing Full torque at low speeds All solid state circuitry Continuous speed adjustment while in operation
Standard	Power down feed
Spindle speeds	0 - 1200 RPM
Drills to center	18-1/8"
Drilling capacity	Steel 1-1/16"Cast iron 1-1/4"
Tapping capacity	3/4"
Morse taper	No. 3
Quill diameter	3"
Column diameter	4"
Spindle travel	5-3/8"
Spindle to table (max.)	27-1/4"
Spindle to base	46-1/4"
Shipping weight	675 lbs
Table	Production type:T- slotted 15-7/8" X 17-7/8"2 Slots for 1/2" t-boltsGround working surfaceCoolant trough
Base	T- slotted16-3/8" x 26-5/8"2 slots for 1/2" t-boltsGround working surface
Size	Height 69-1/2"Width 20"Depth 29"

Call for Pricing

Asset Number

#1305001N

CategoryDrills

ManufacturerEllis

Model9400

ConditionNew

REF: 000007
