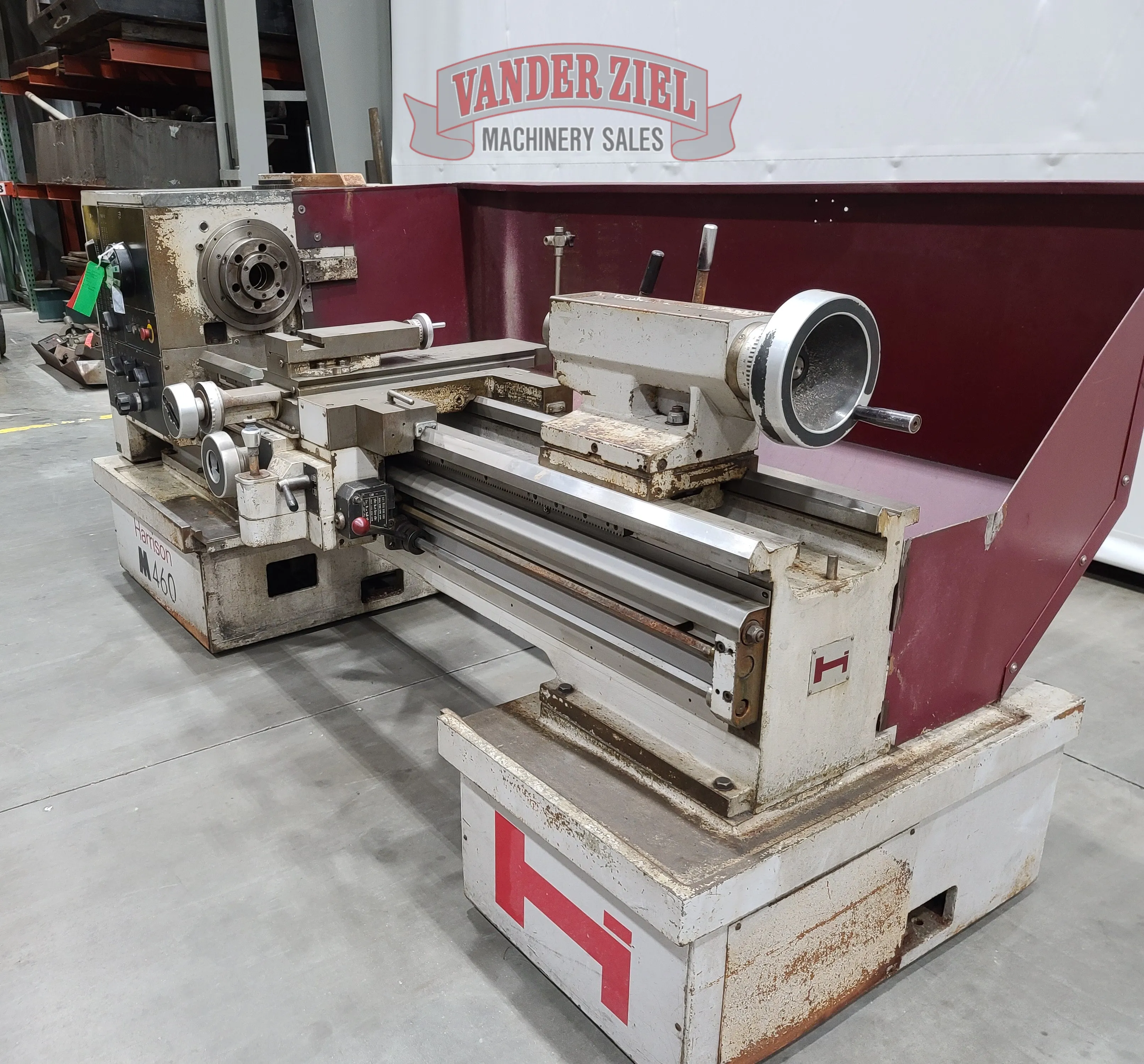

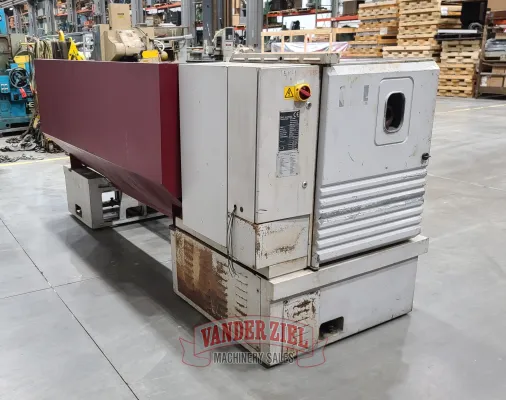

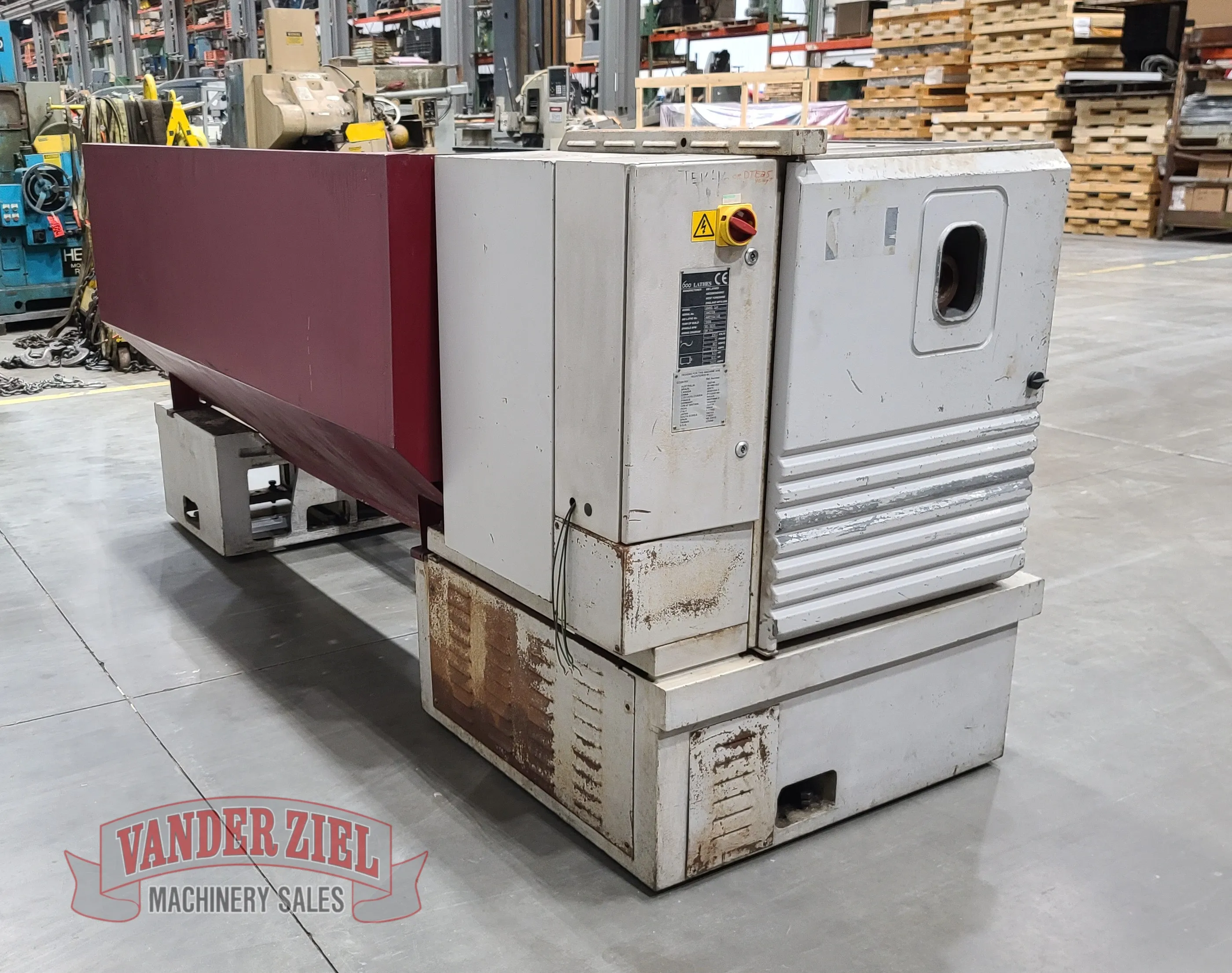

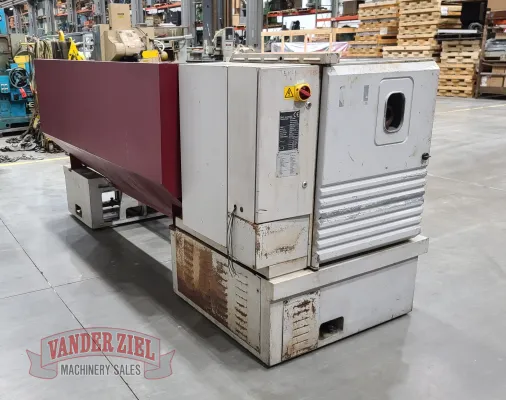

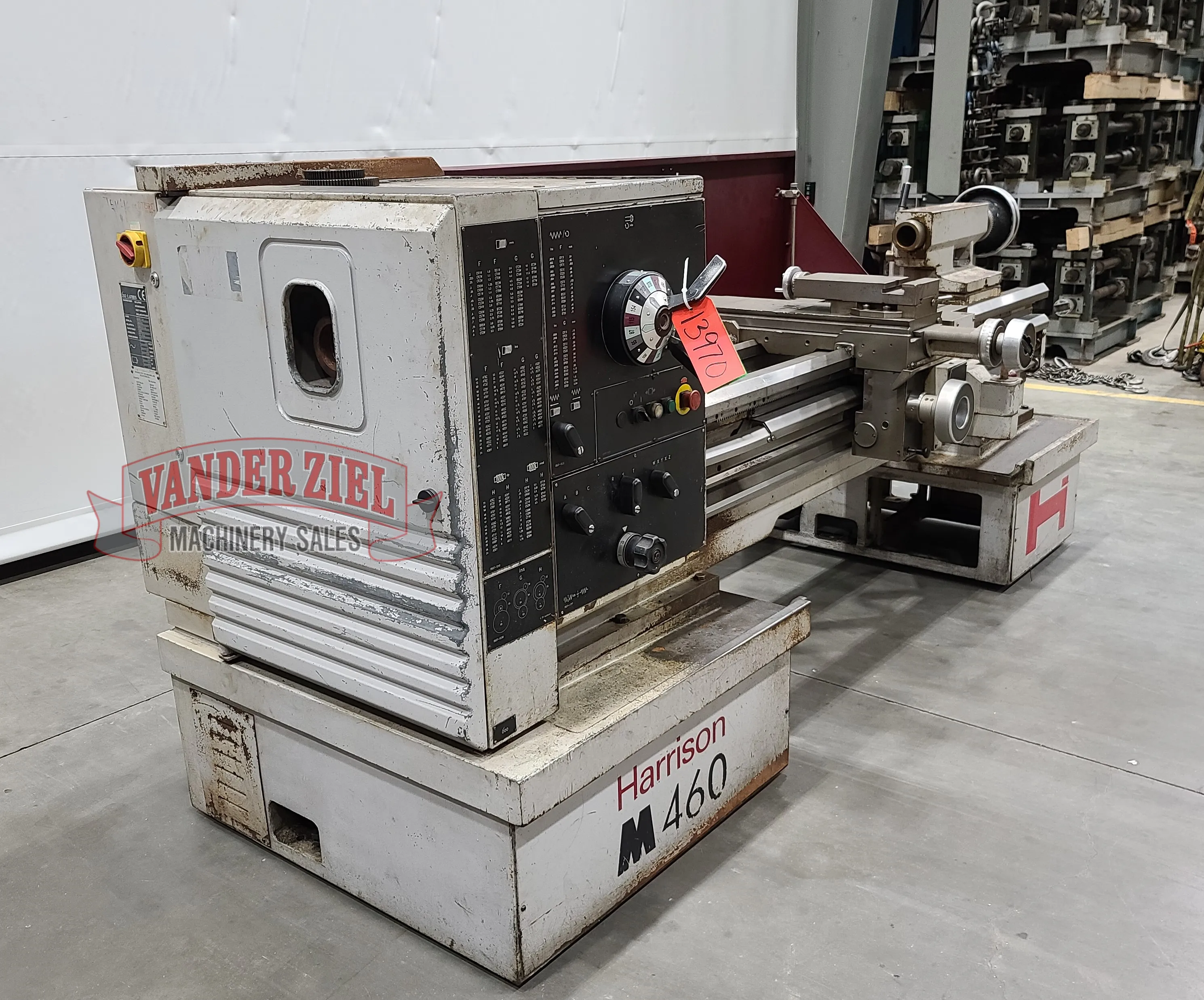

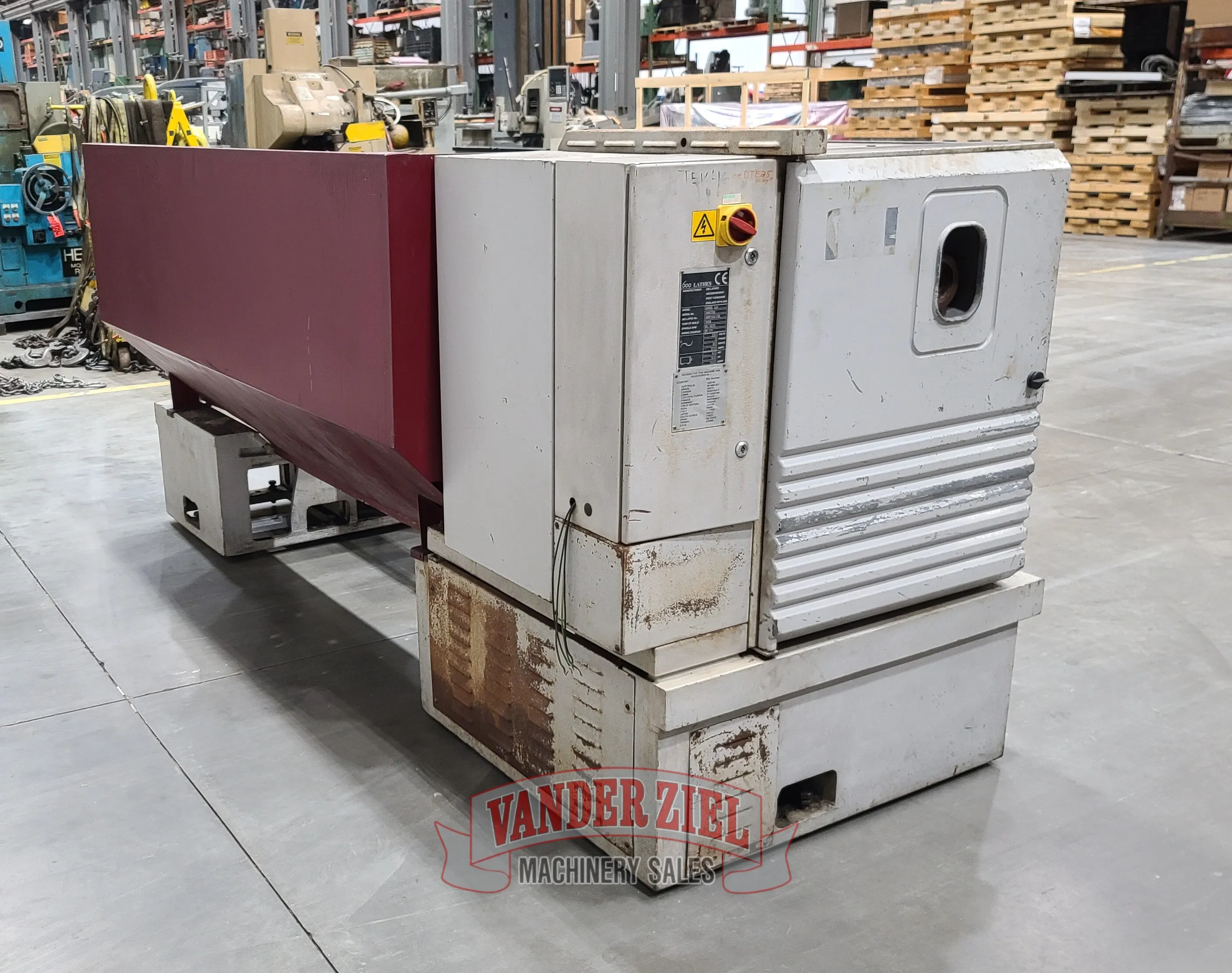

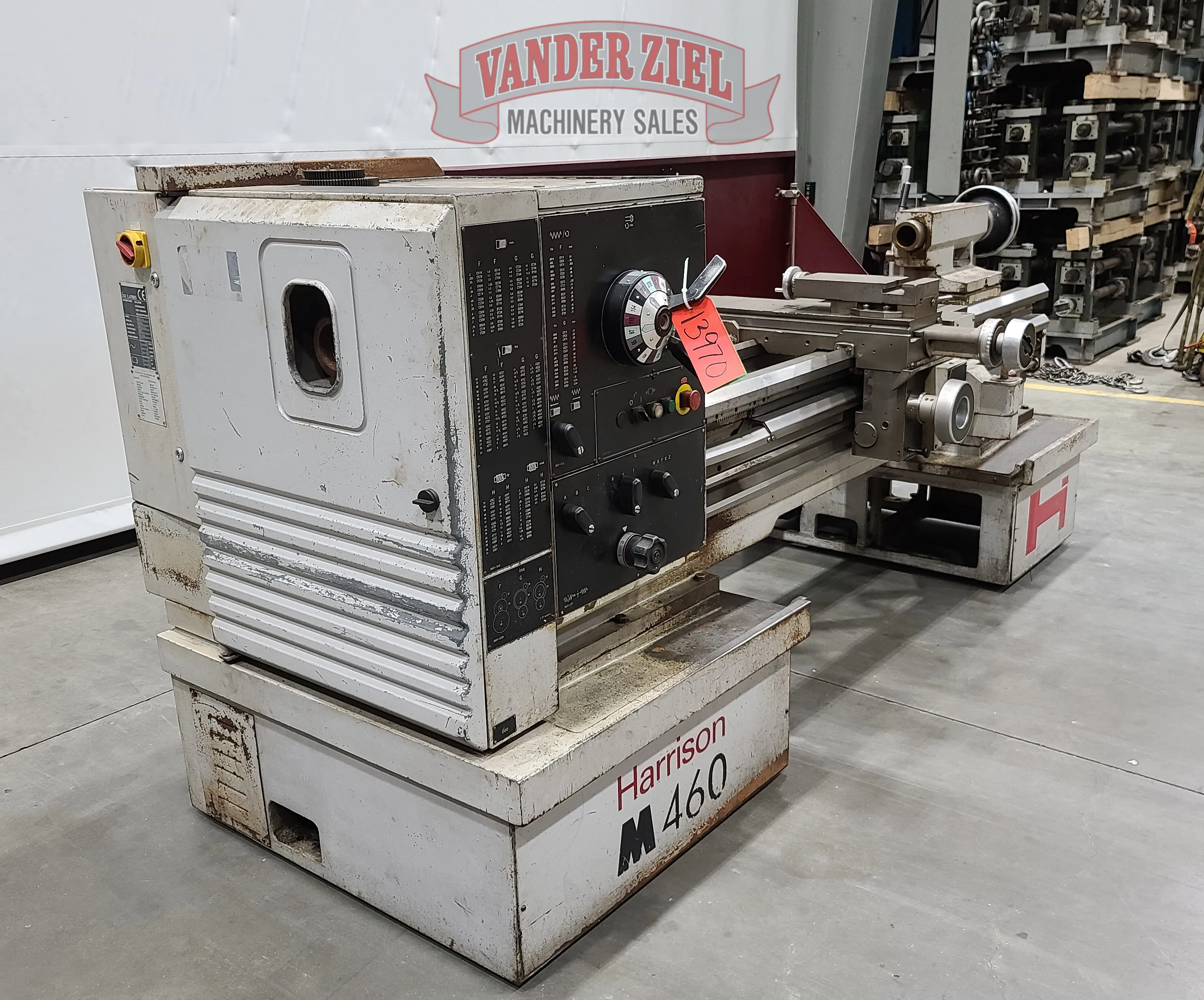

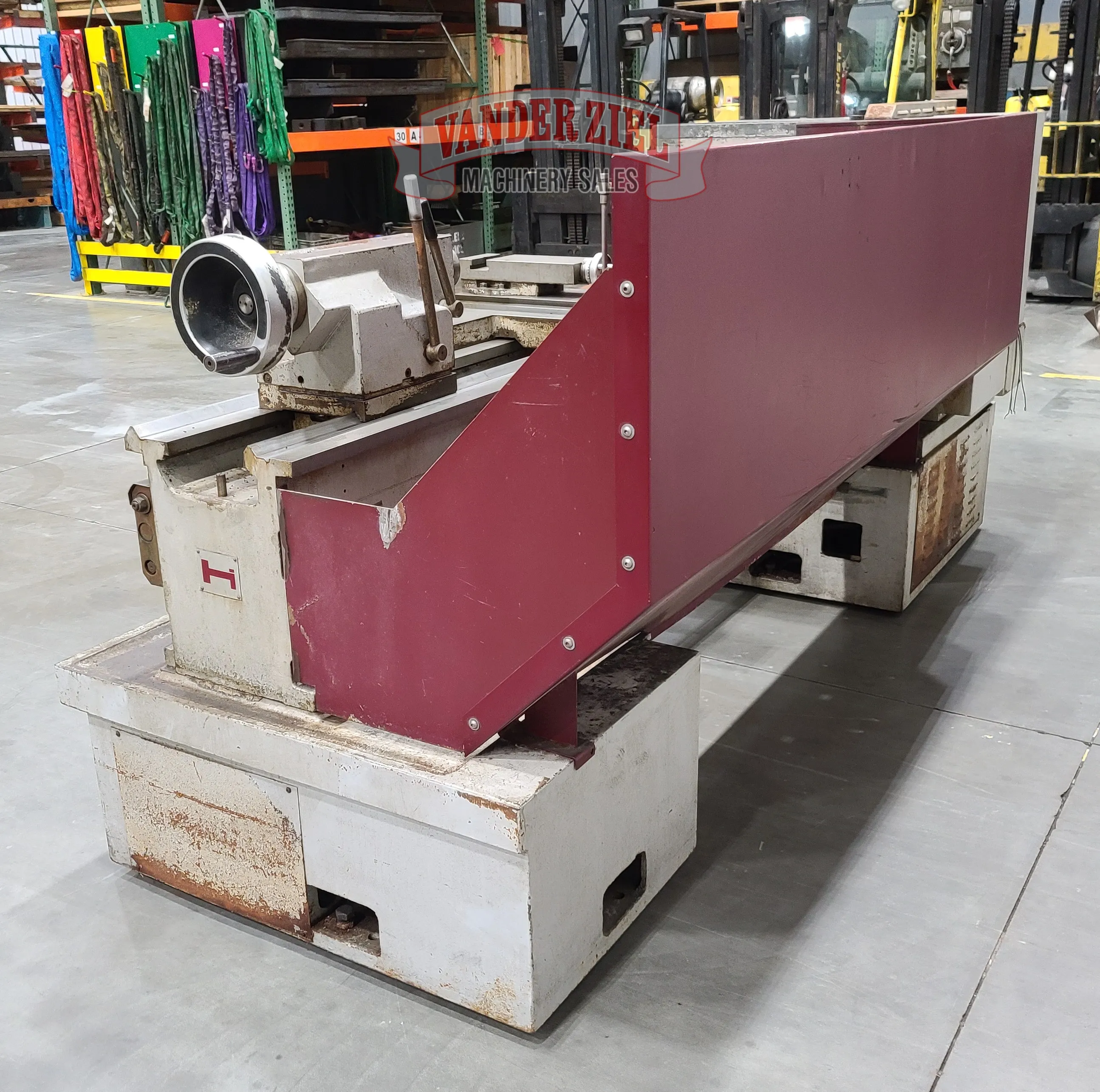

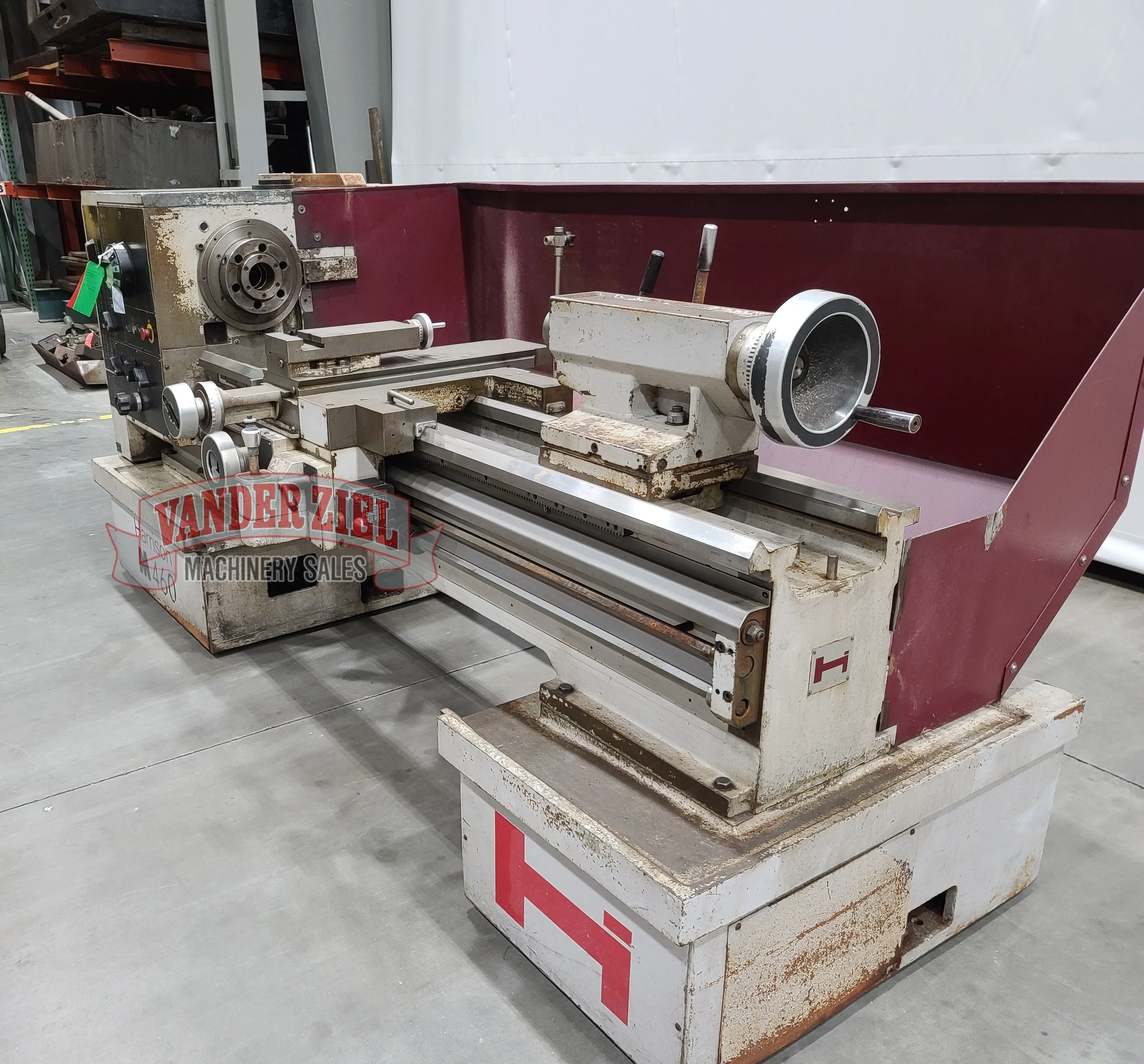

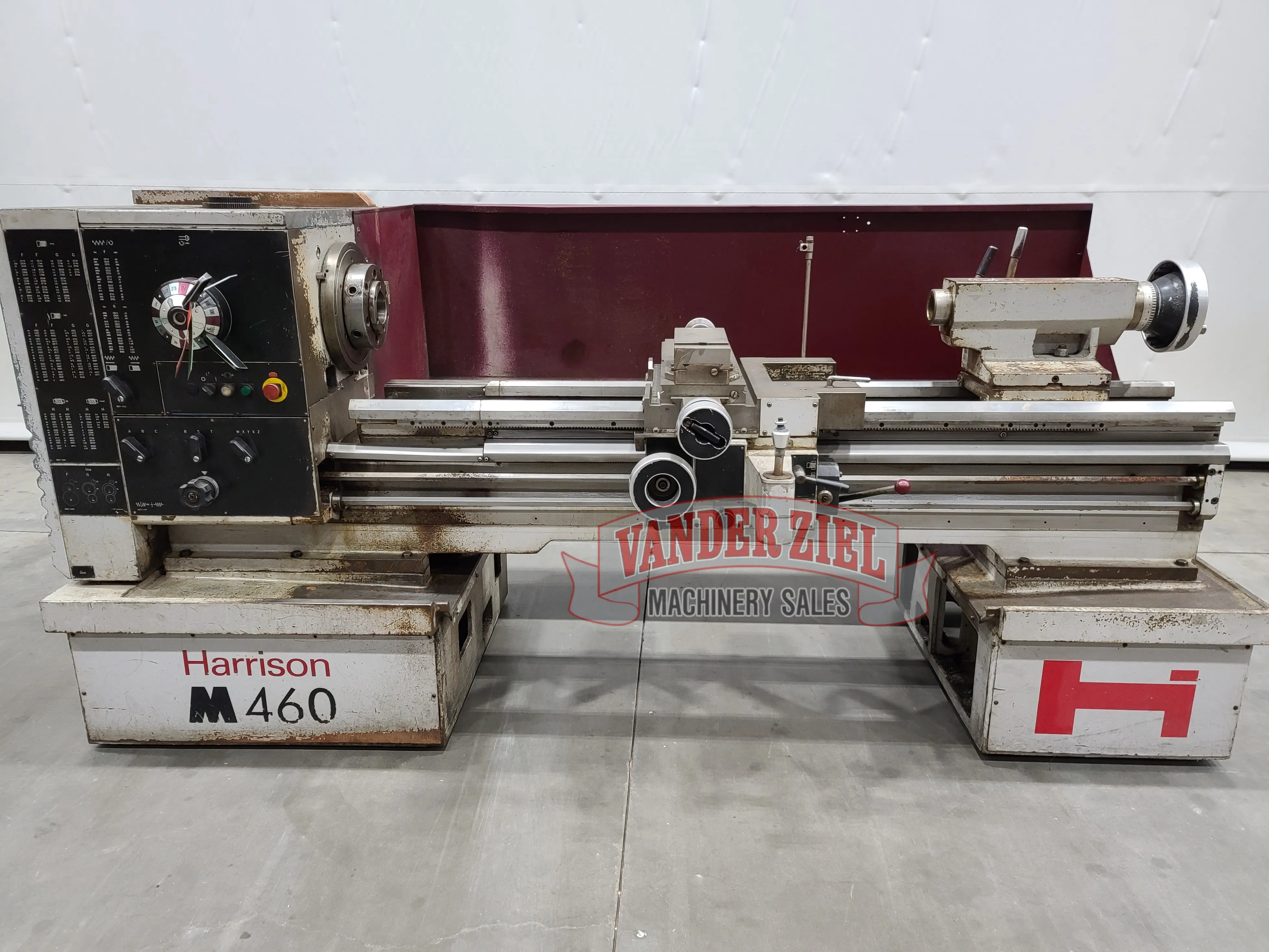

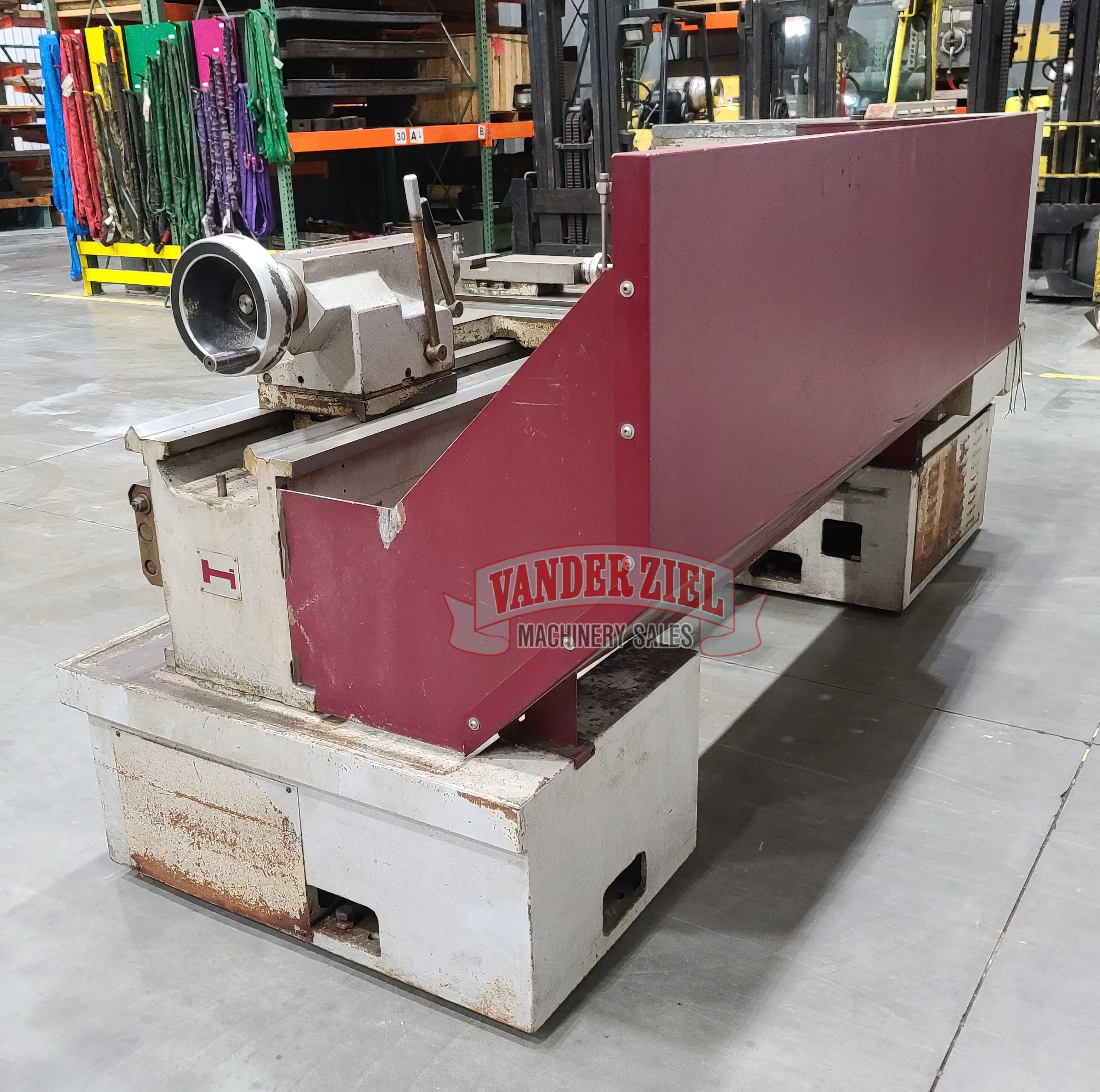

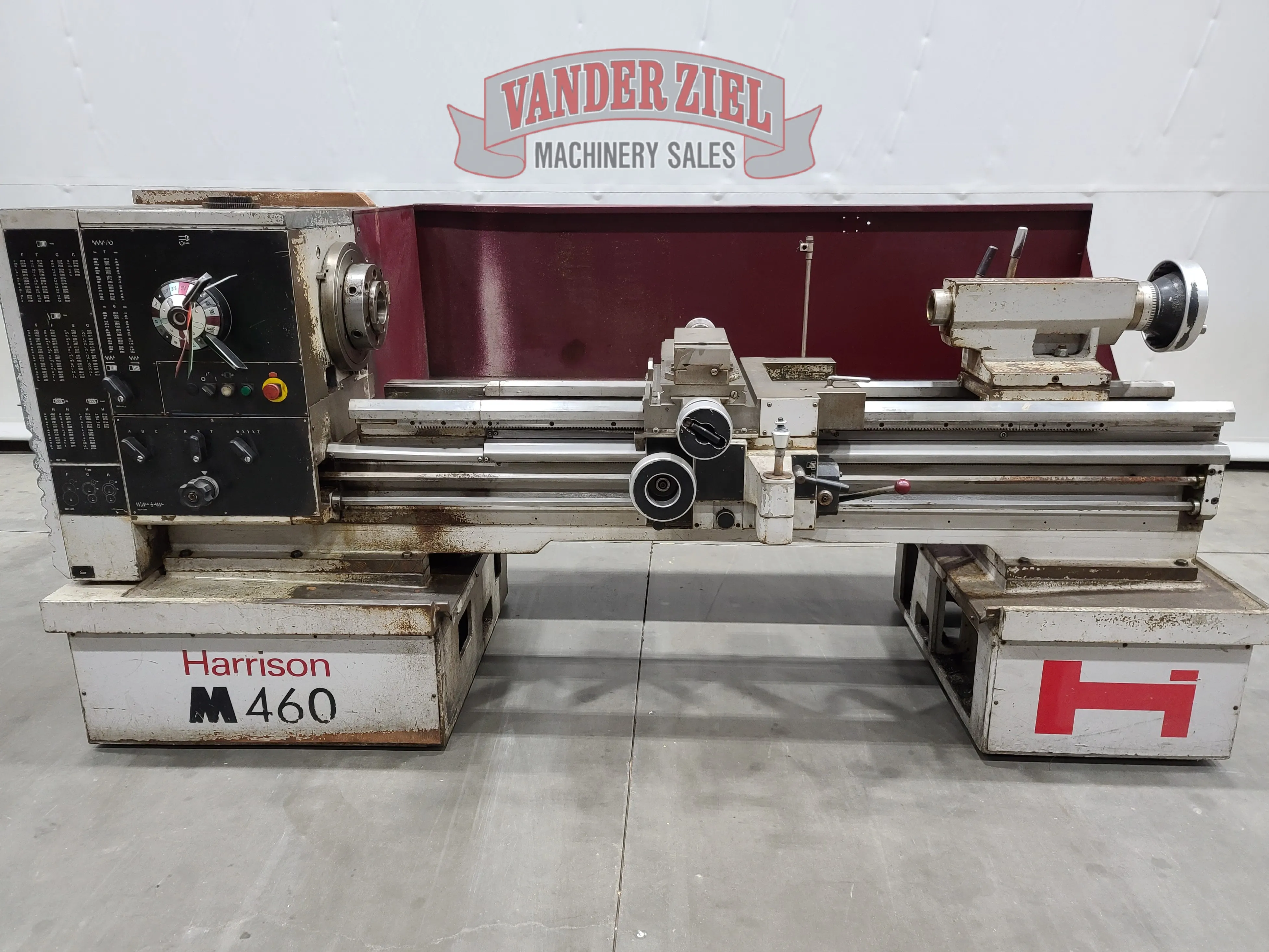

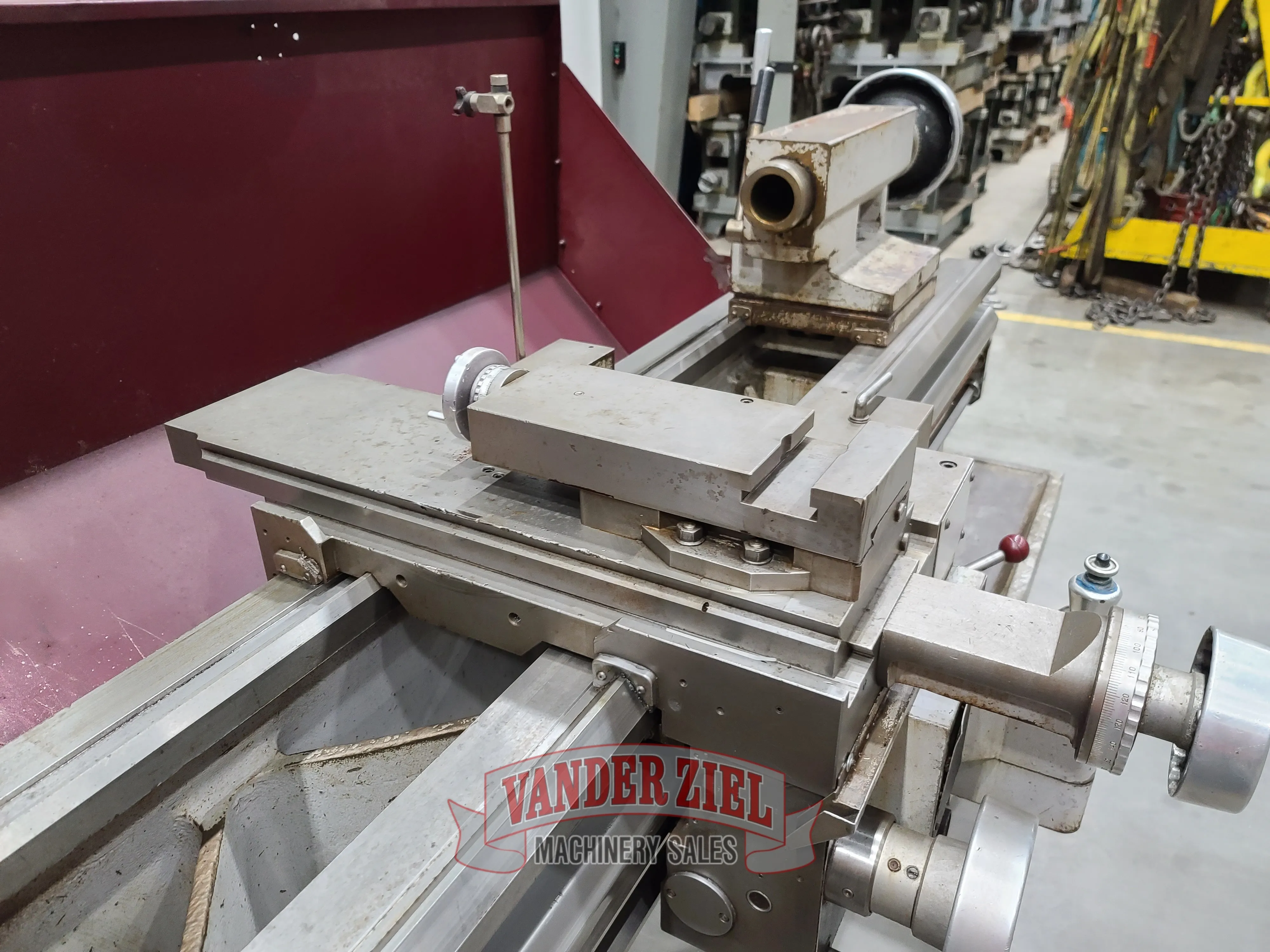

Harrison 18” x 60” Gap Bed Lathe, Model M460

Harrison 18" x 60" Gap Bed Lathe, Model M460

Serial # 4M0159/158
Asset # 13970

Specifications:
Swing over Bed 18"
Swing over Cross Slide 10 5/8"
Swing in Gap 28 3/4"
Length of Gap 8 1/2"
Center Height 9"
Distance between Centers 60"
Spindle Bore 3"

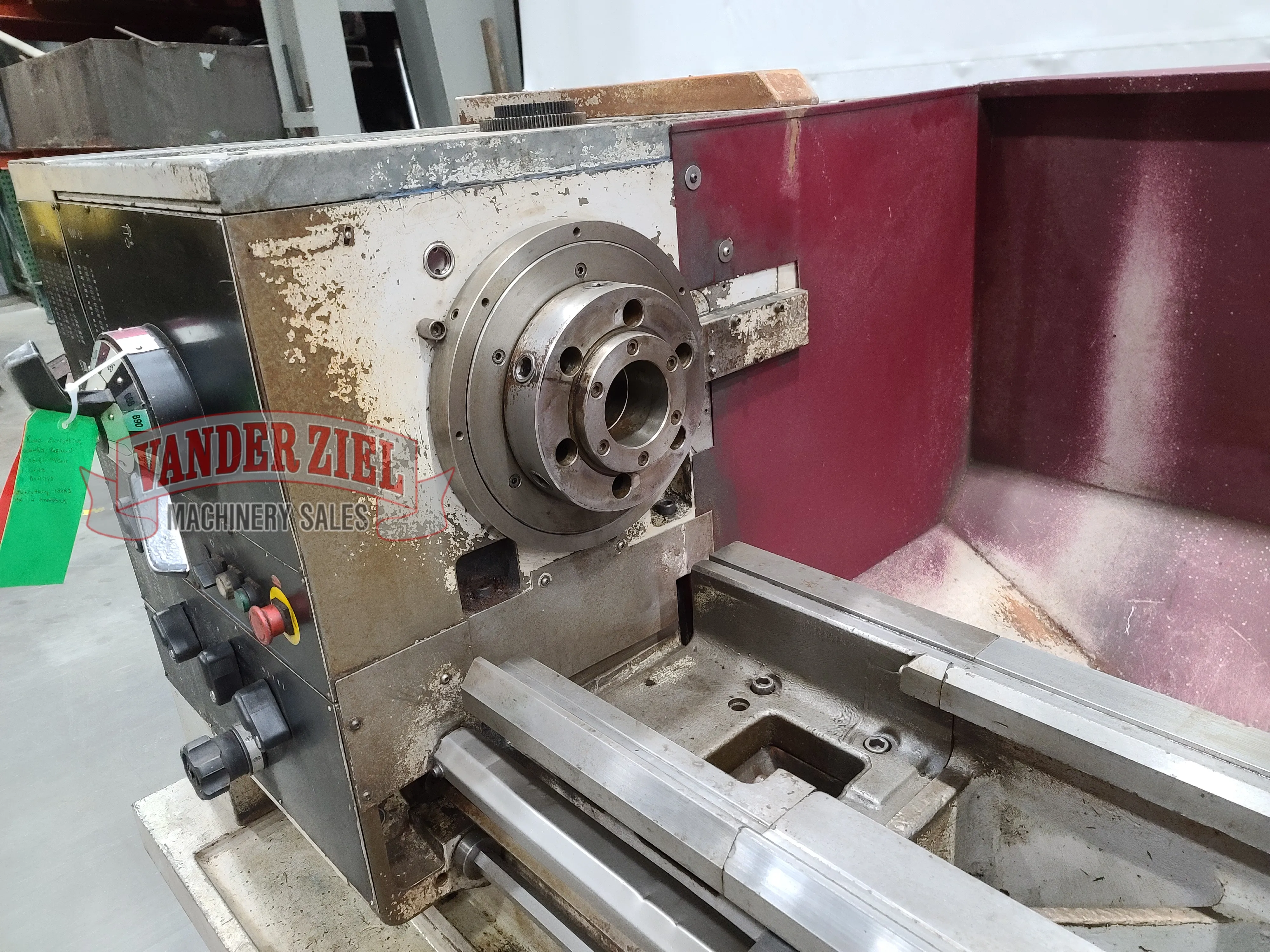

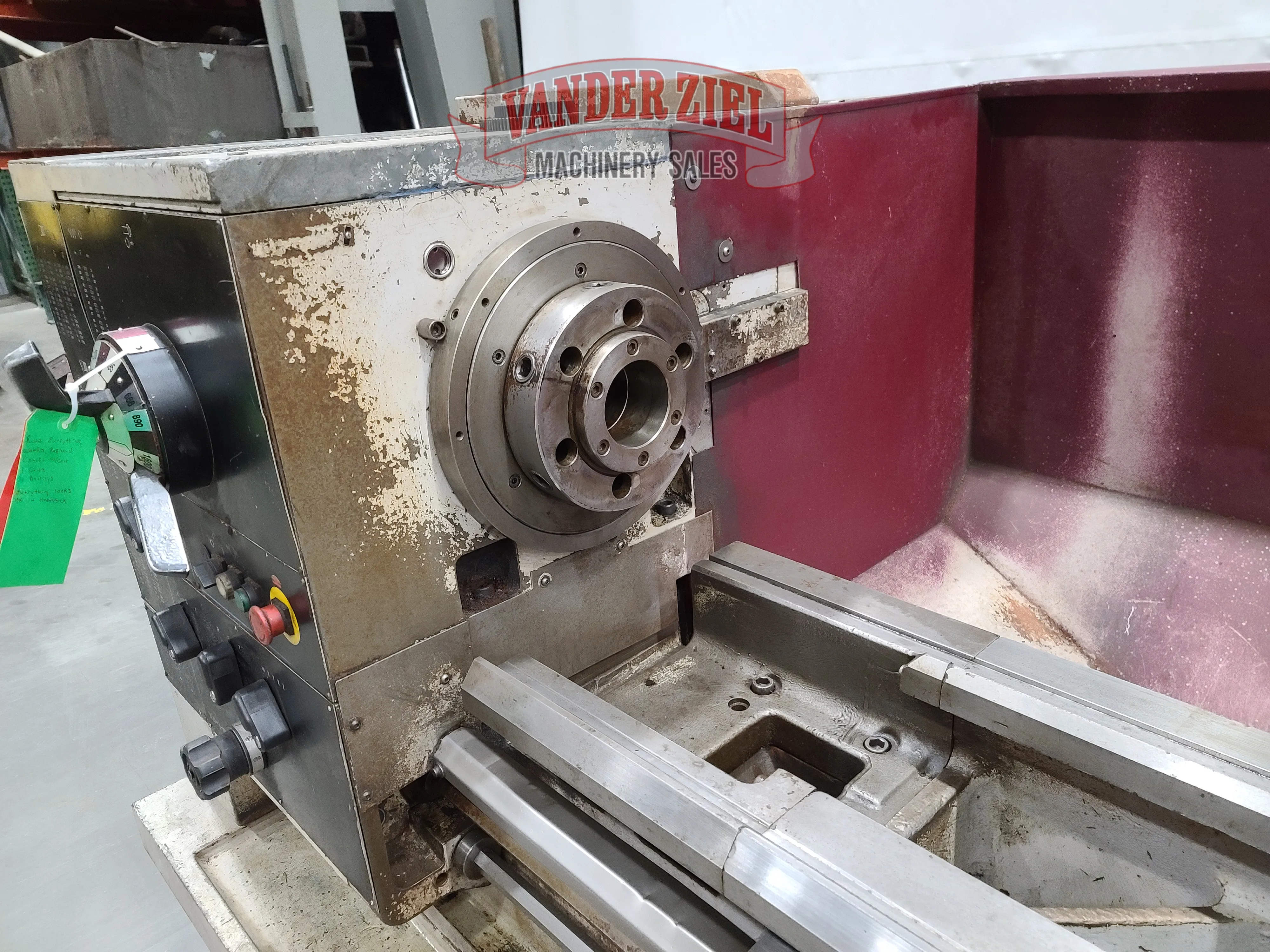

Spindle Nose D1-8 Camlock
Morse Taper #5 MT

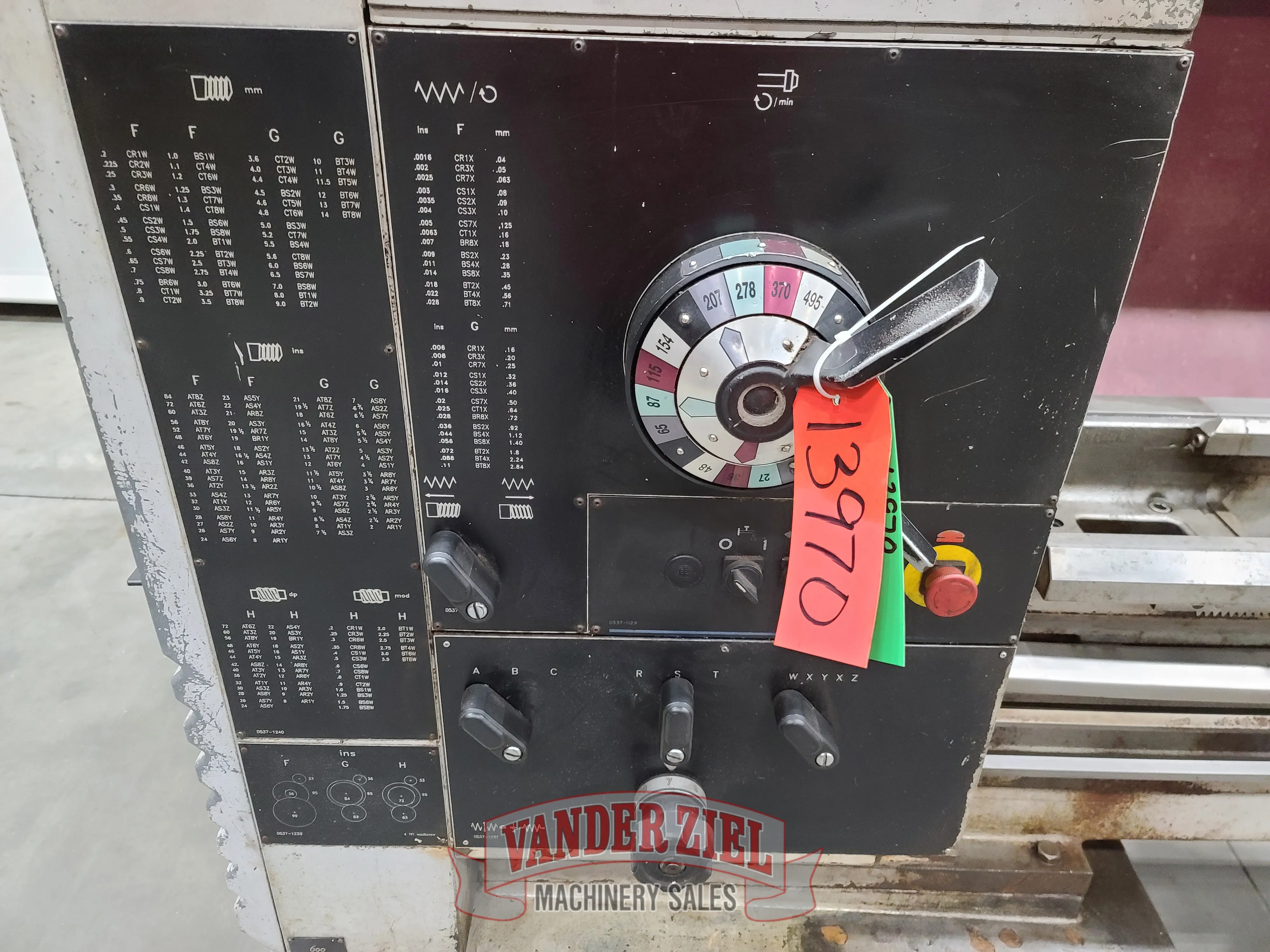

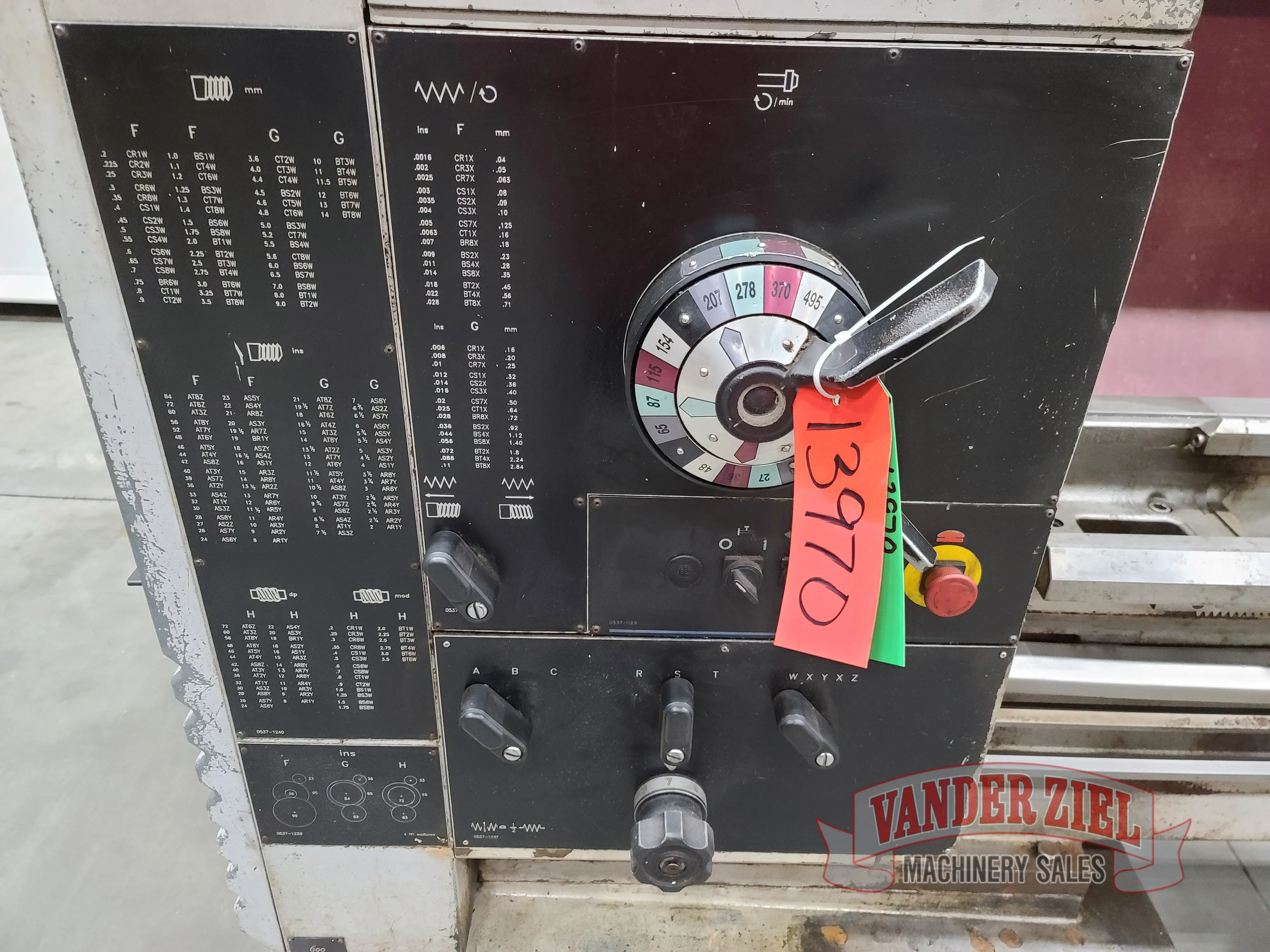

Speeds 20-2000 RPM
Leadscrew Diameter 1 1/2"
Leadscrew Thread 6 mm Pitch / 4 TPI
Metric Pitches (66) .2-14mm
Imperial Pitches (73) 2-84 TPI
Module Pitches (20) 0.2 - 3.5 MOD
Diametral Pitches (27) 8-72 DP
Metric Feeds (30) .04 - 2.8mm/rev.
Imperial Feeds (30) .0016 - .110in/rev.

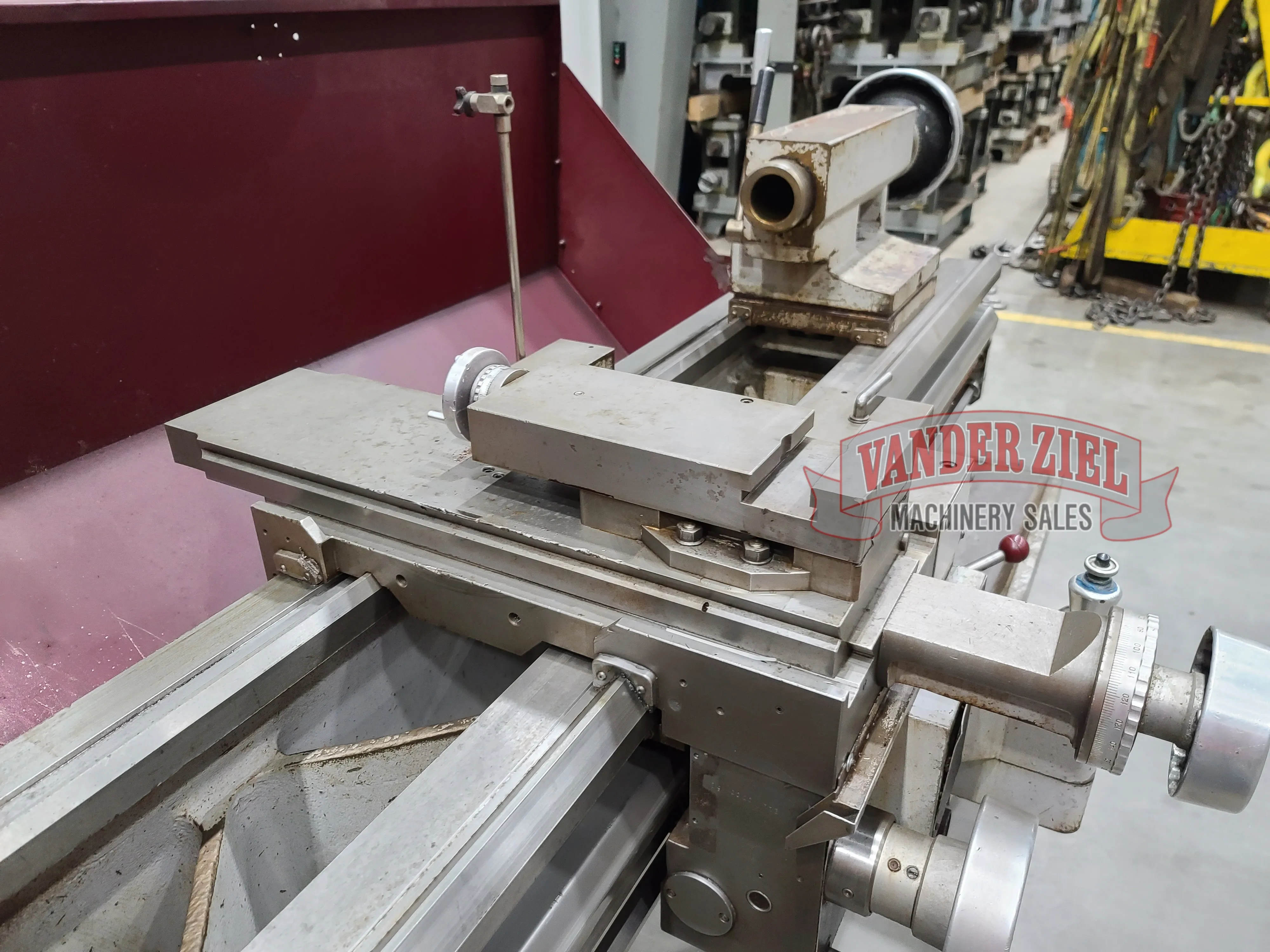

Cross Slide Travel 11 7/8"
Cross Slide Width 8"
Tailstock Quill Diameter 3 3/4"
Tailstock Travel 5 11/16"
Tailstock Morse Taper #6 MT
Dimensions 128" x 67"
Height 81"
Weight 5,753 lbs.
Preliminary Specifications - Subject to Verification
