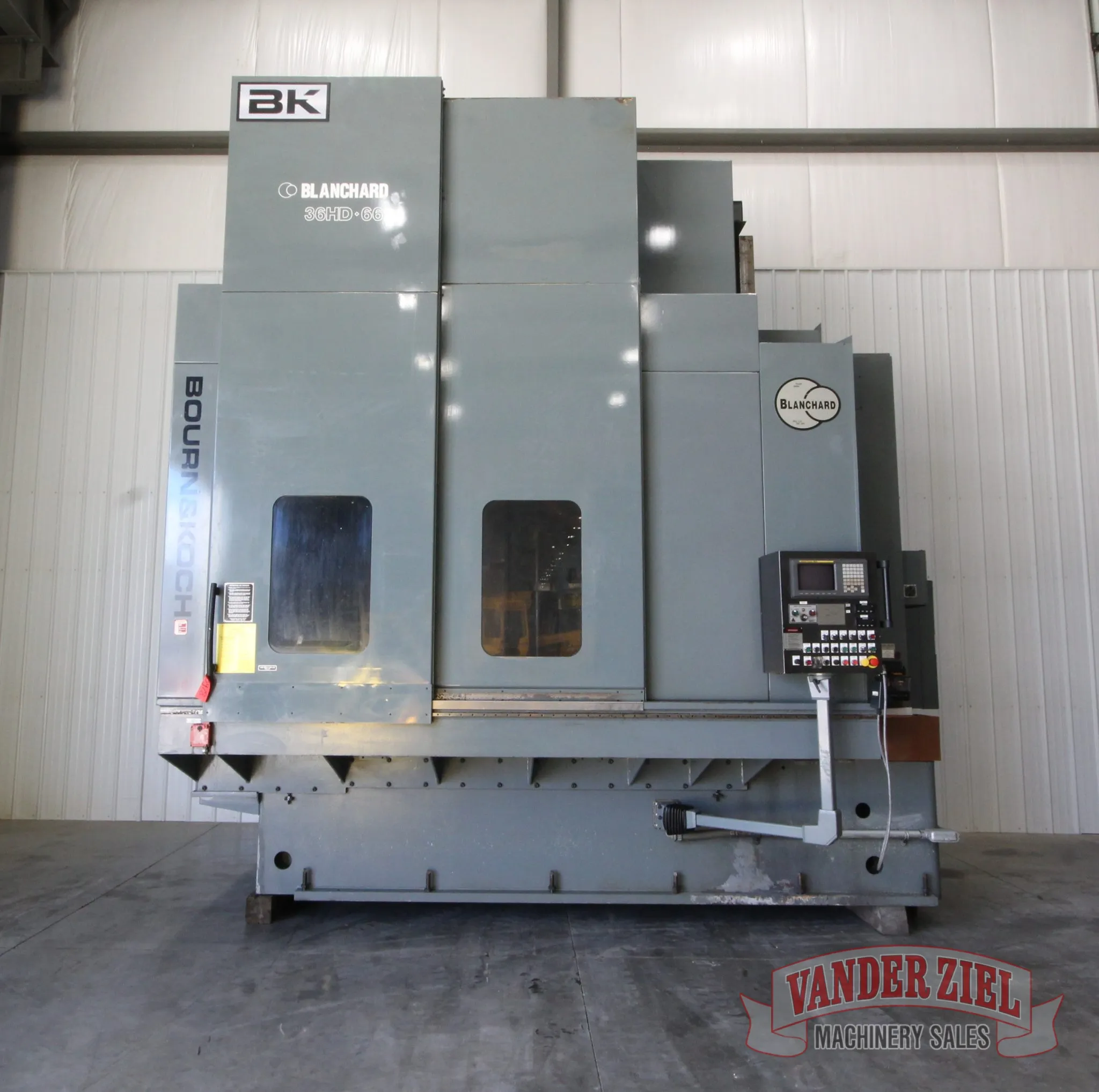

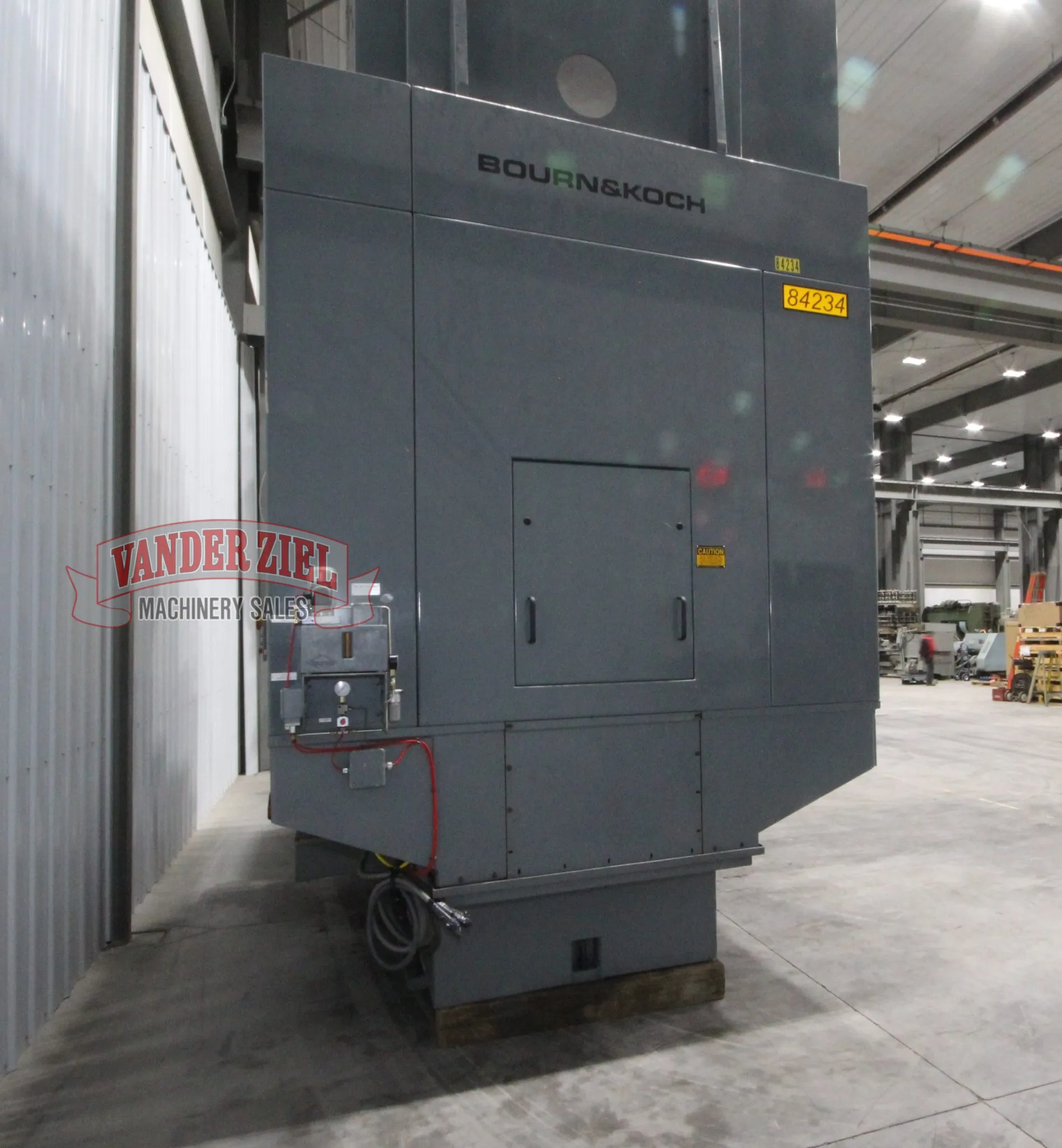

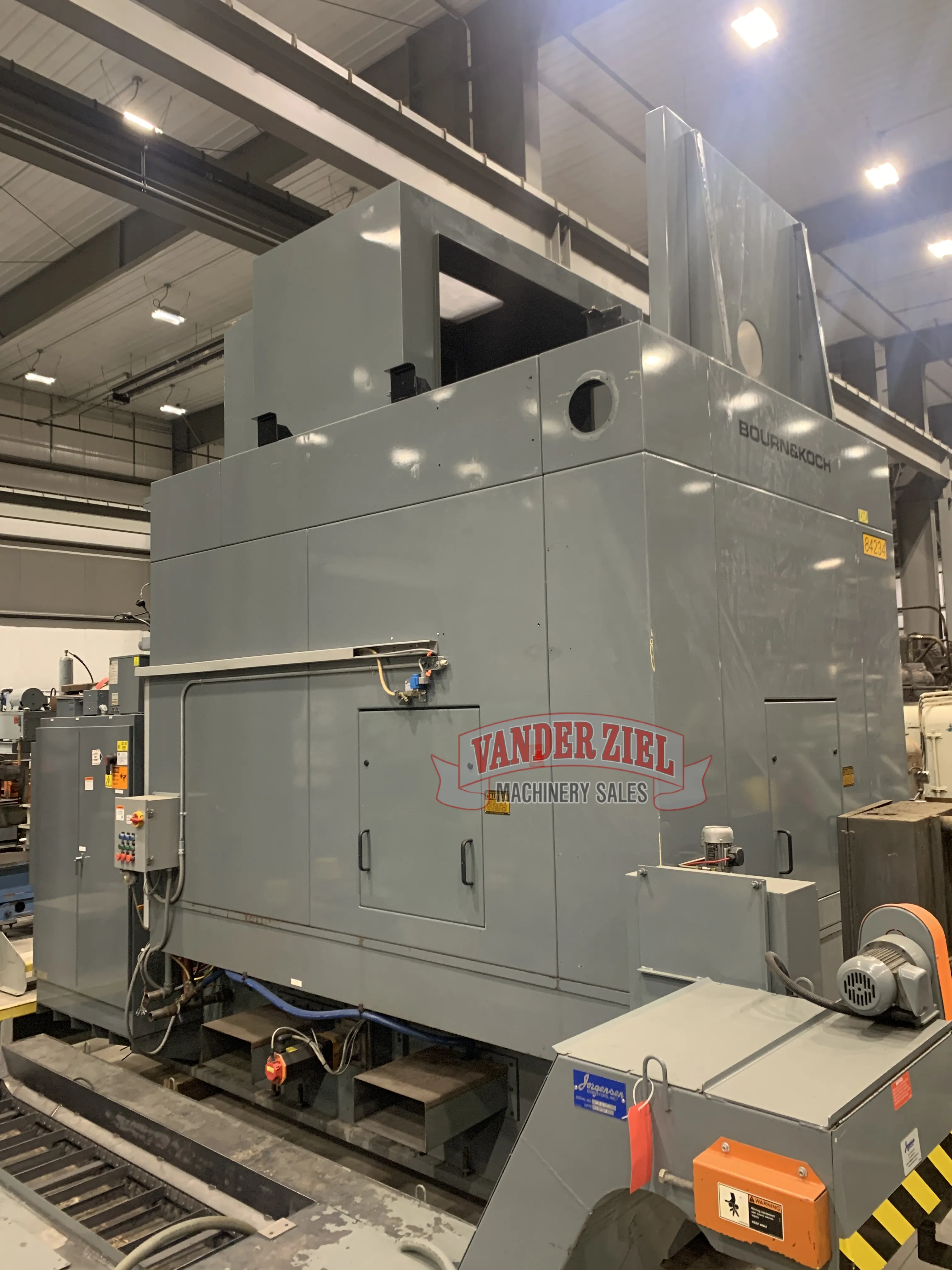

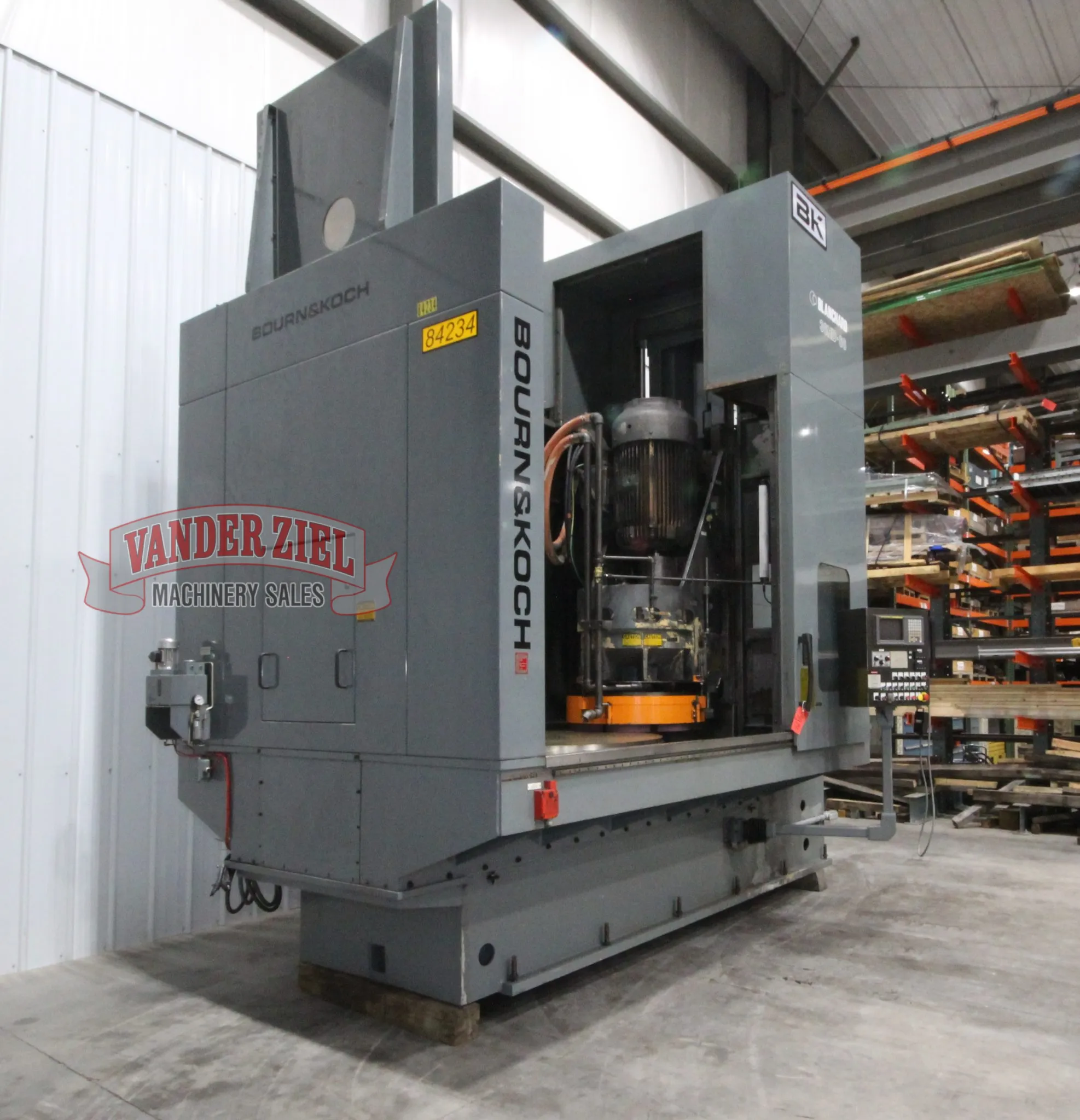

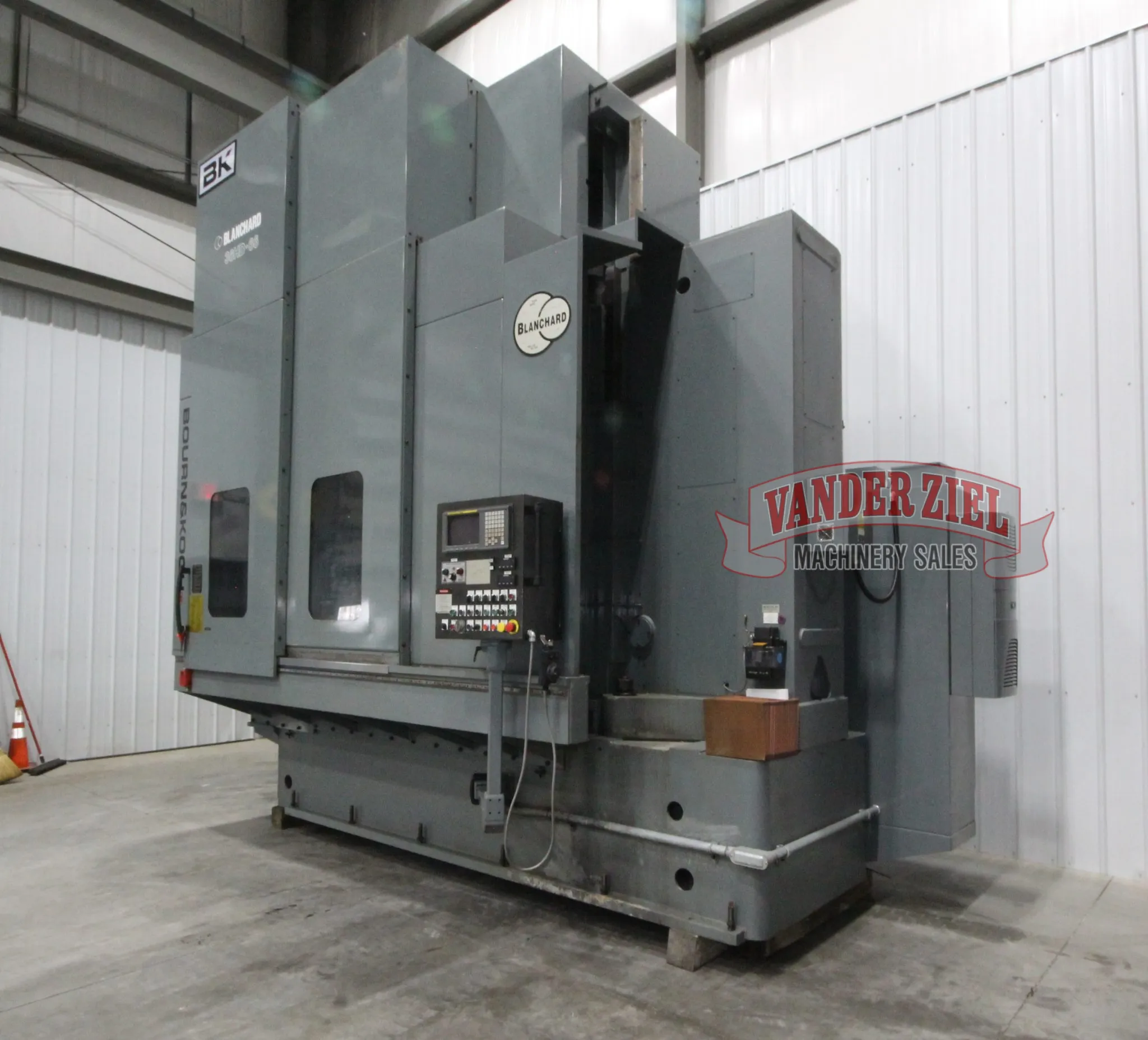

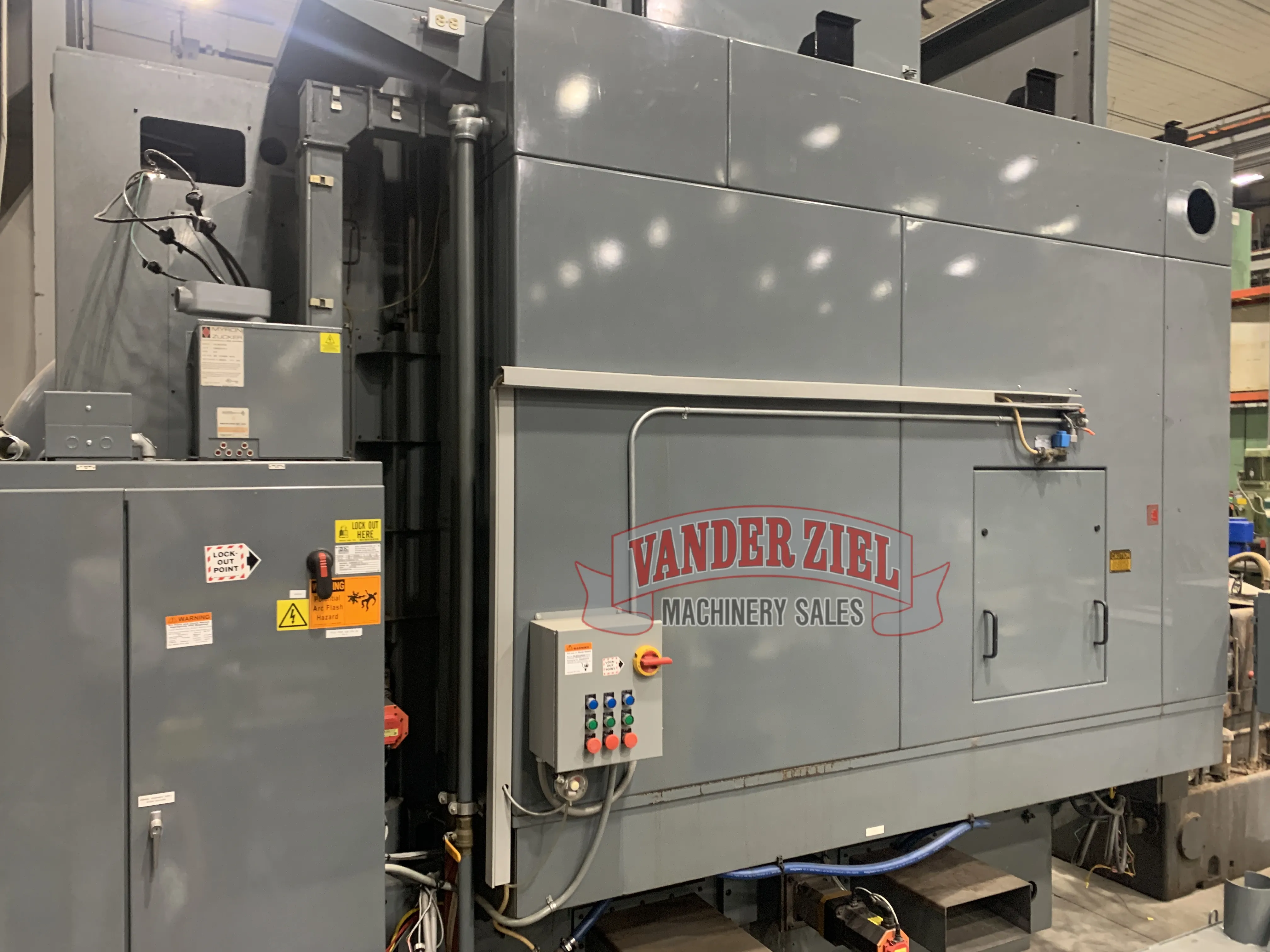

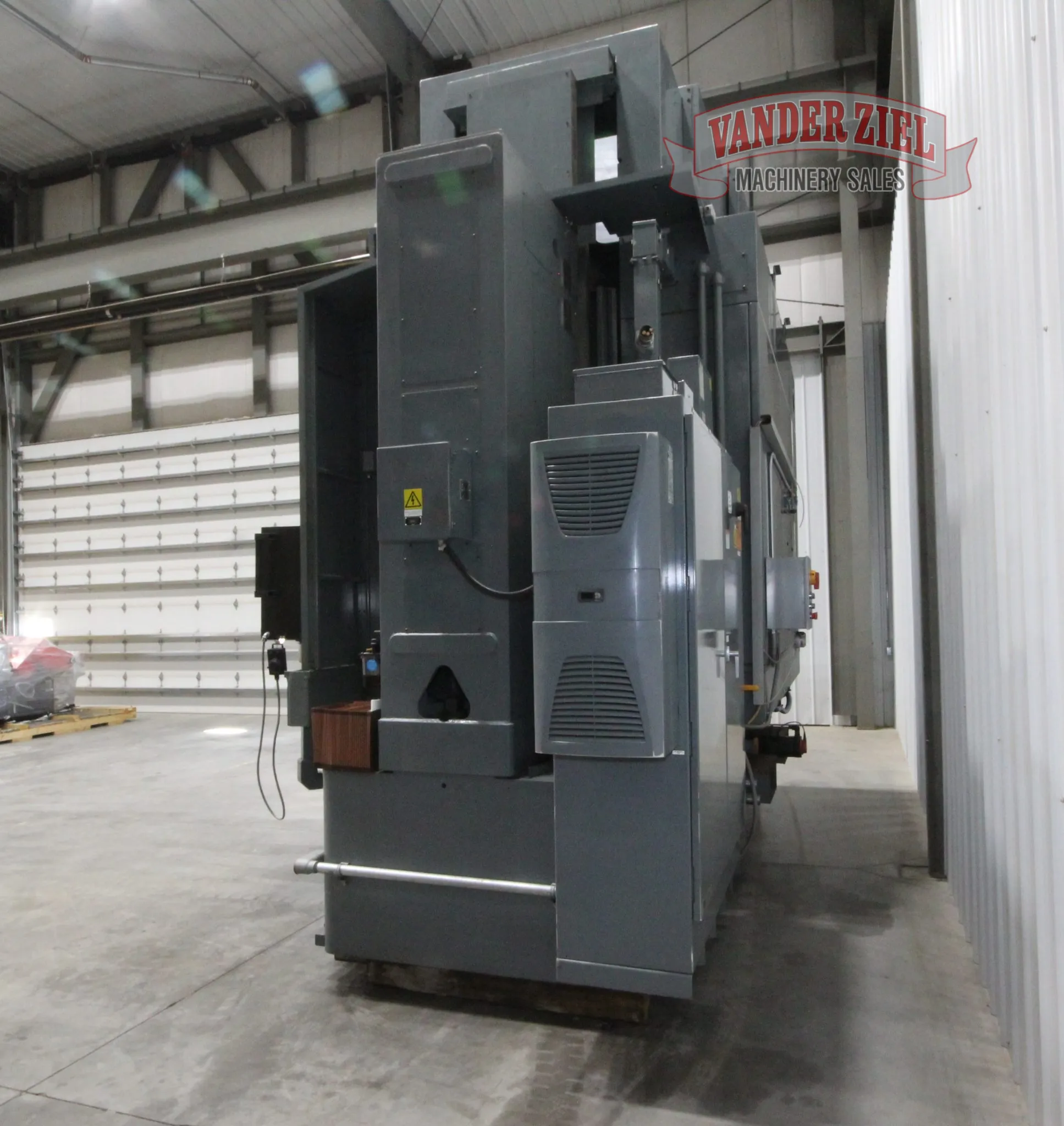

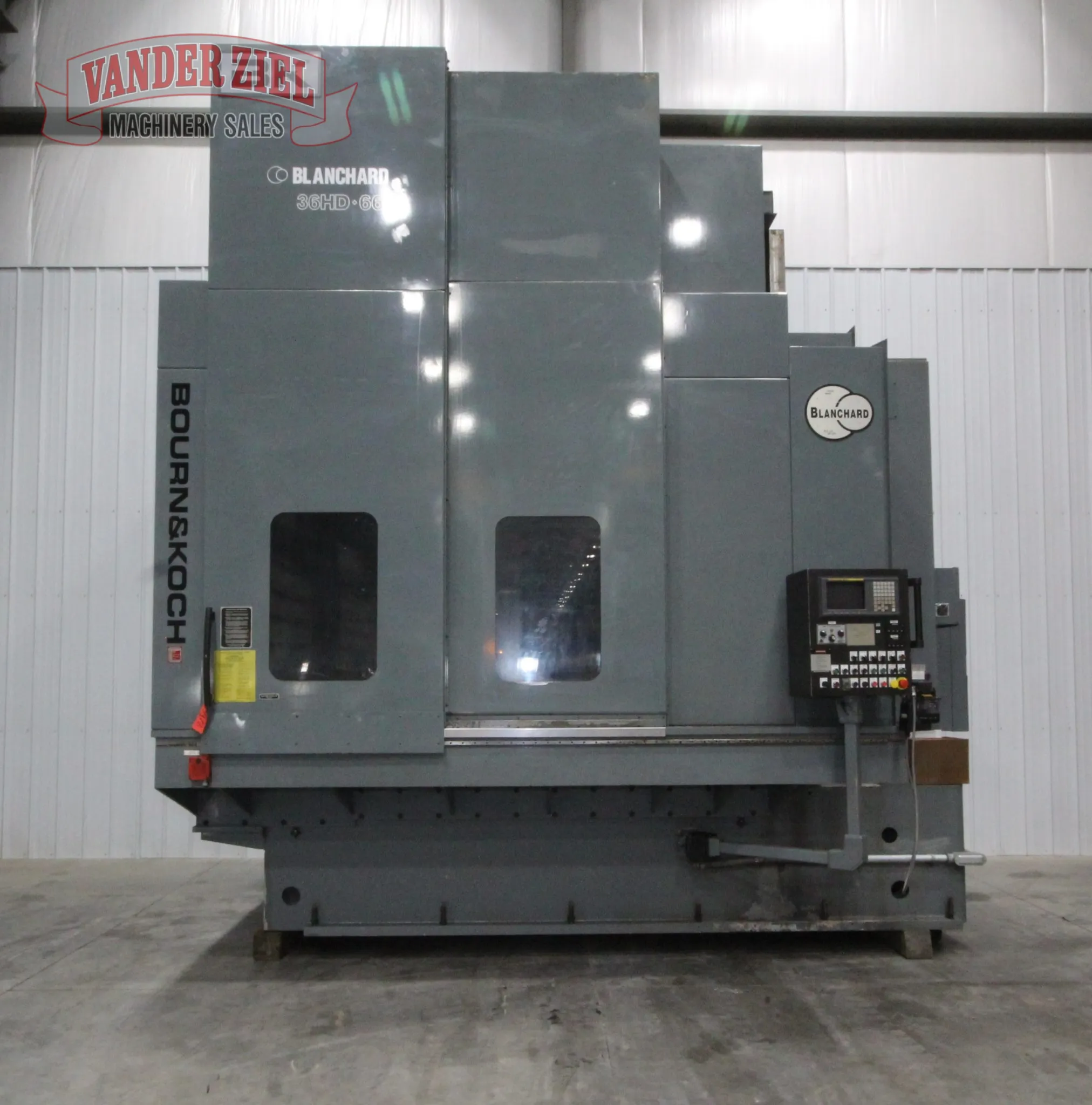

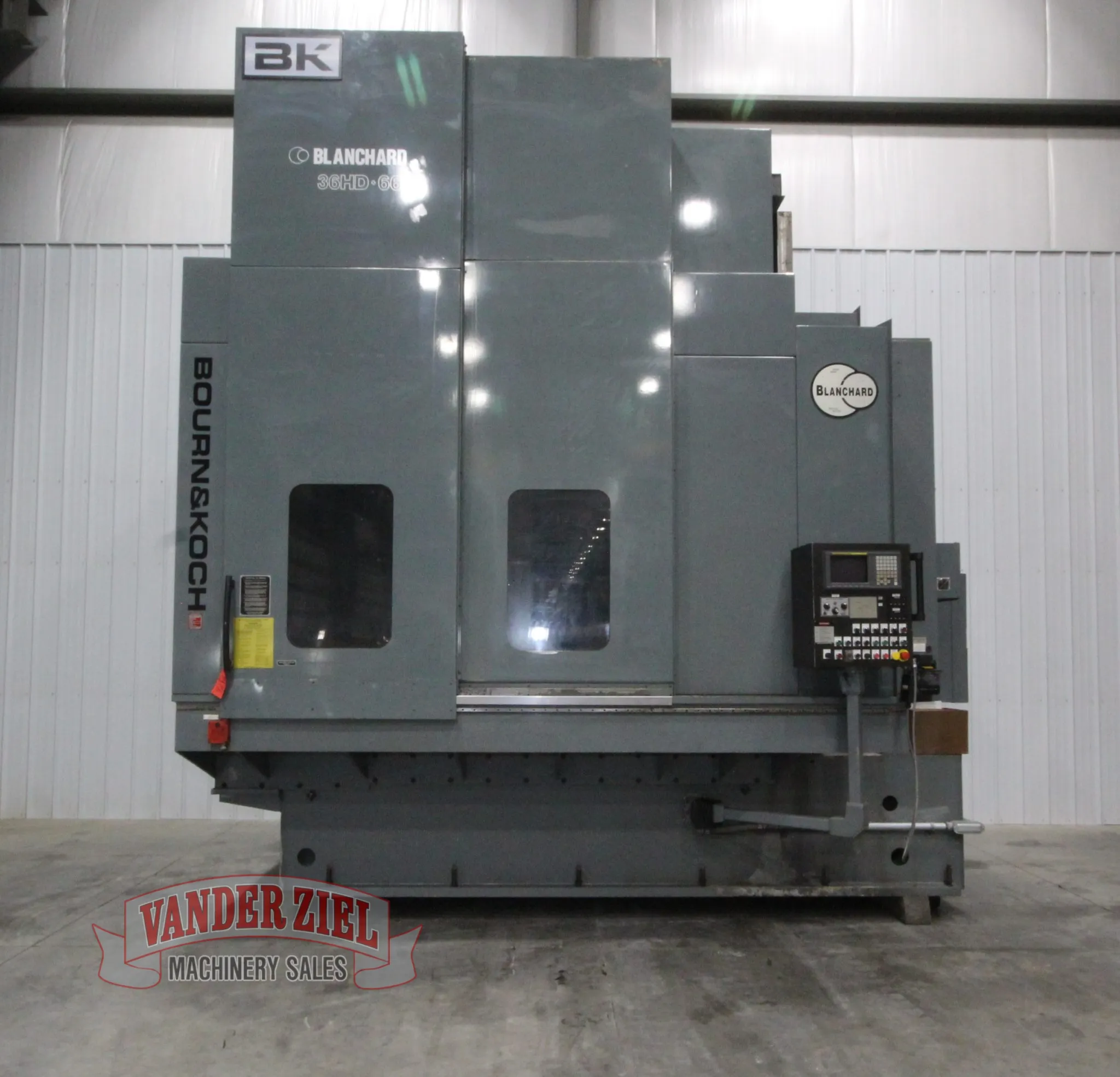

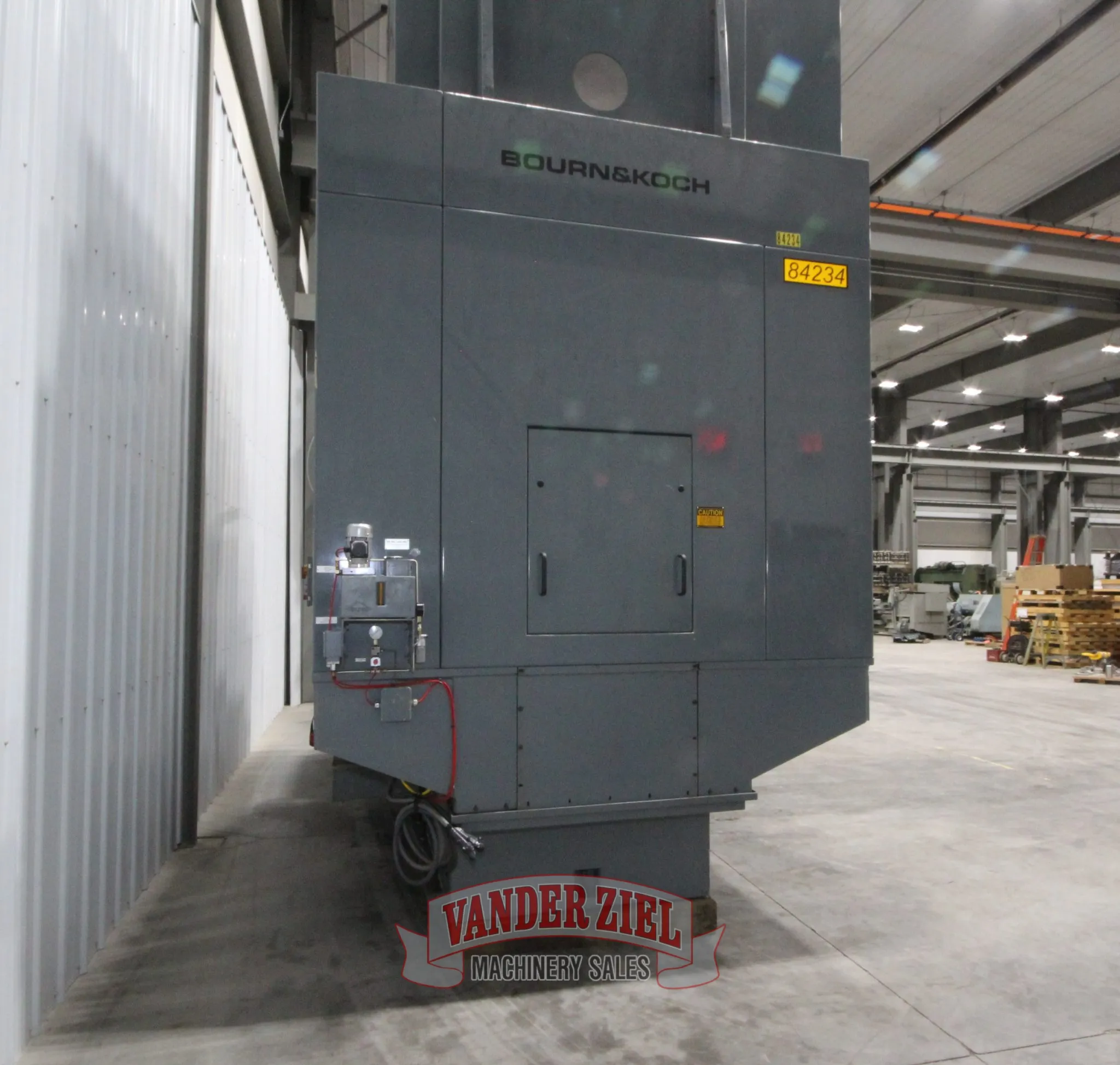

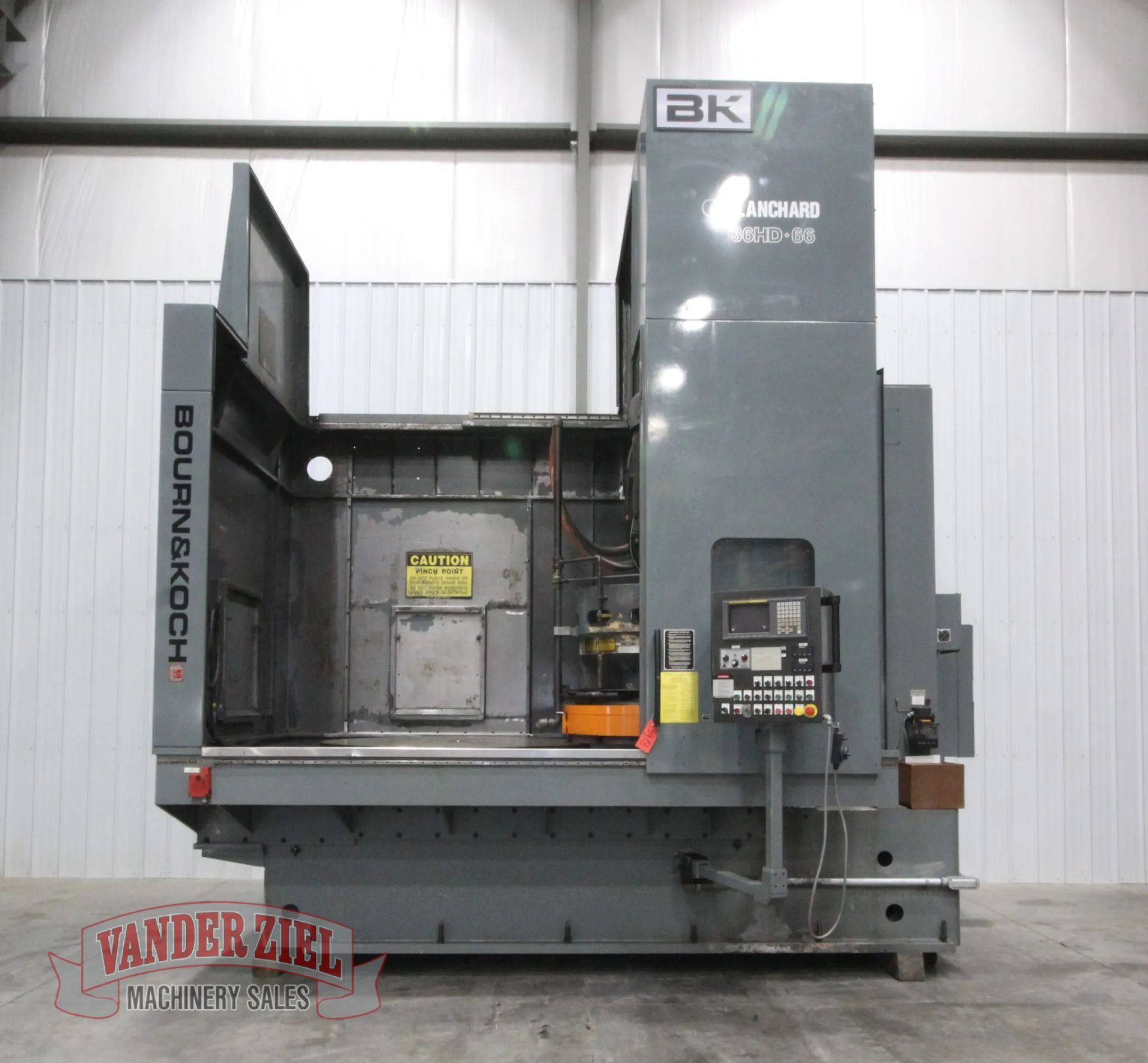

Blanchard 66” Rotary Grinder, Model 36HD-66

Blanchard 66" Rotary Grinder, Model 36HD-66

Serial # BL66564200-86369-13
Asset # 13978

733 hours

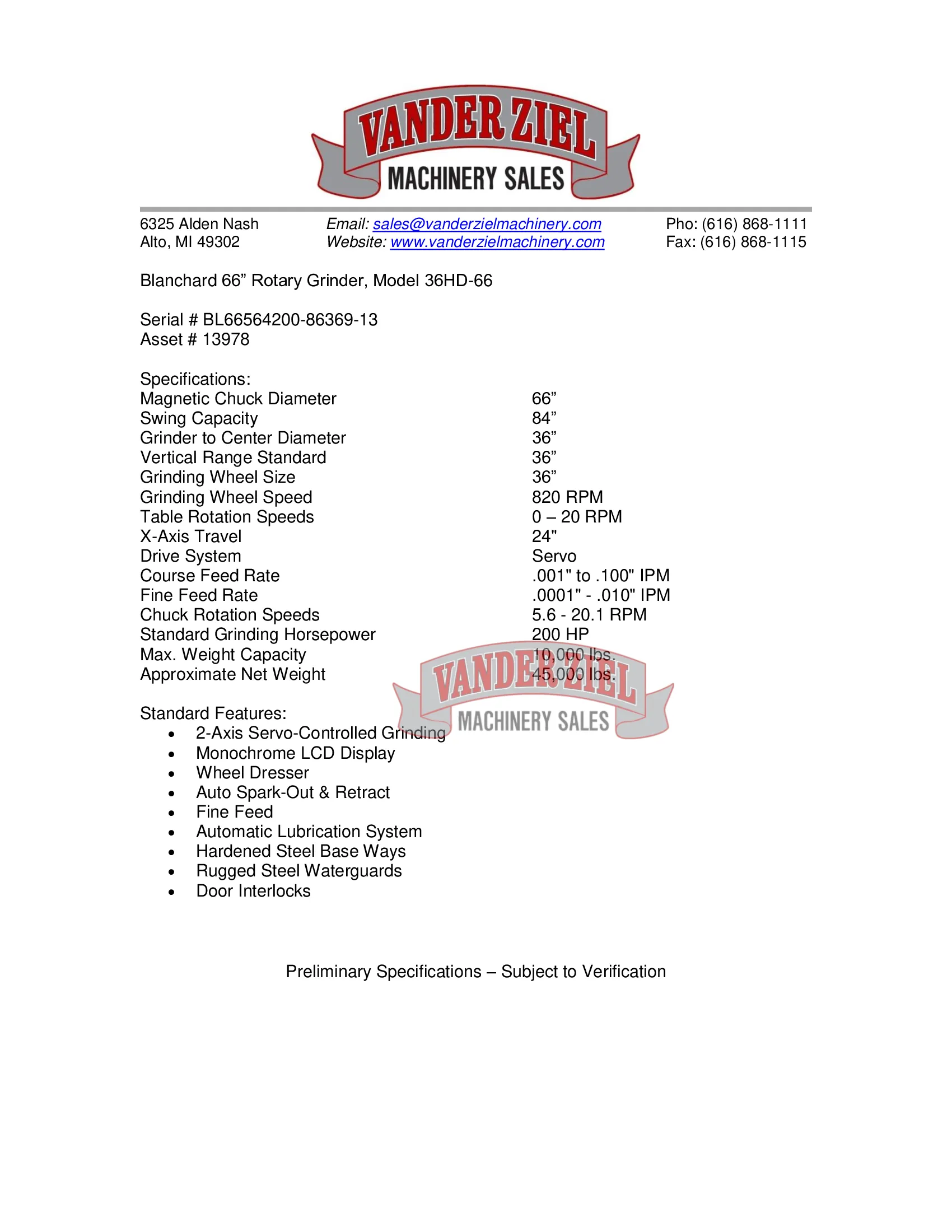

Specifications:

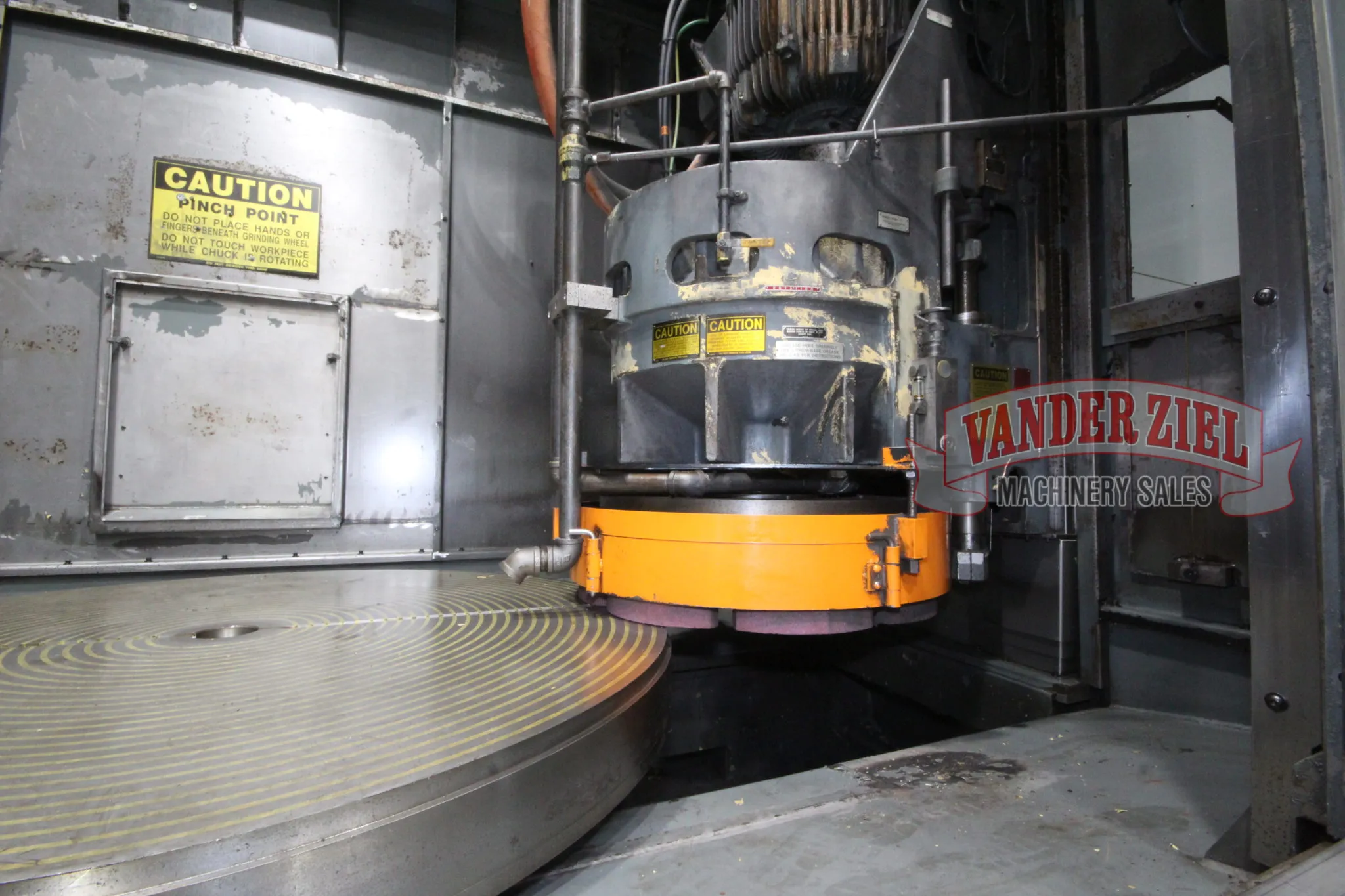

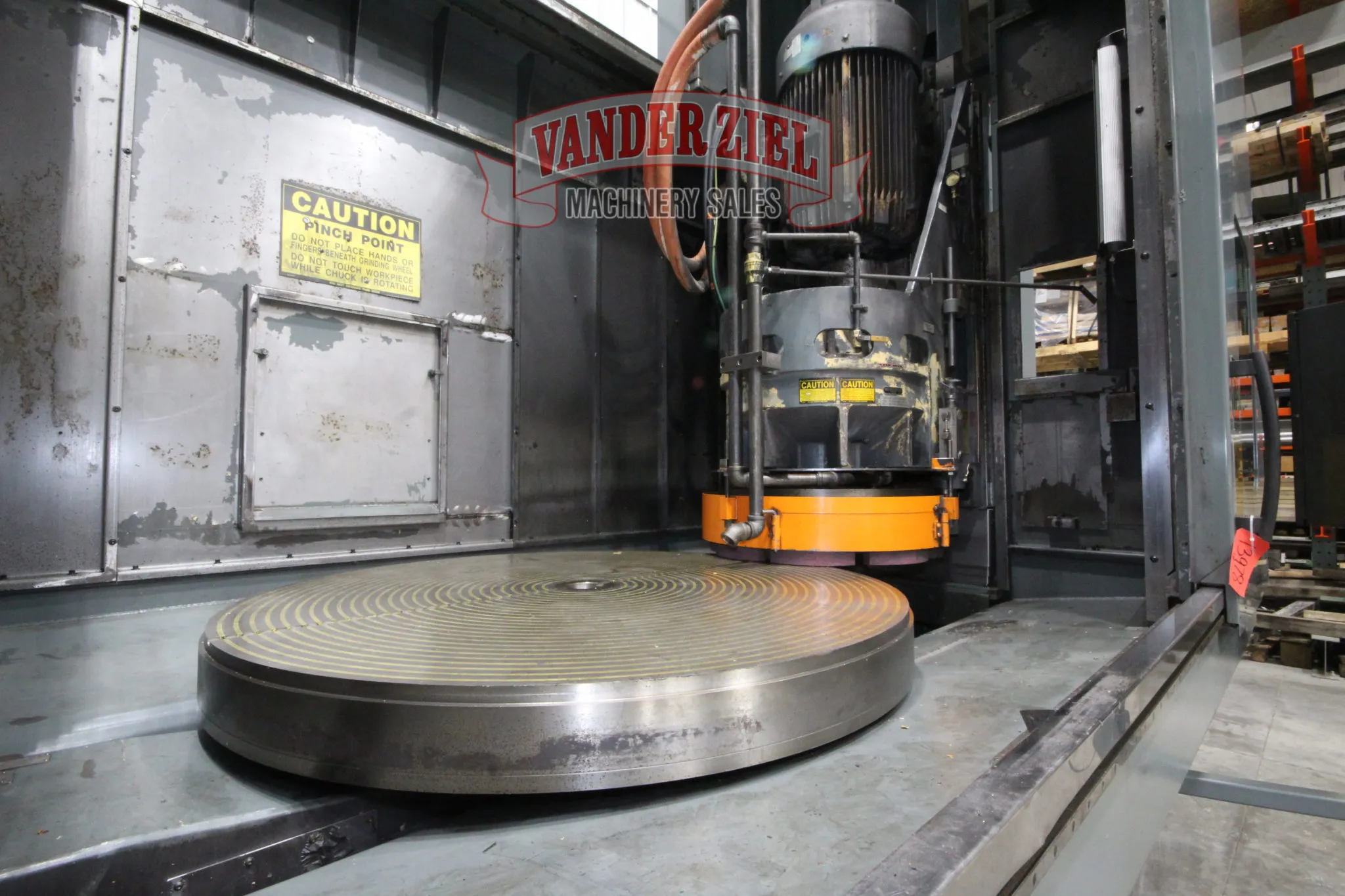

Magnetic Chuck Diameter 66"
Swing Capacity 84"
Grinder to Center Diameter 36"
Maximum Load on Chuck 10,000 lbs.
Vertical Range Standard 36"
Grinding Wheel Size 36"
Grinding Wheel Speed 820 RPM
Table Rotation Speeds 0 - 20 RPM
X-Axis Travel 24"
Drive System Servo
Course Feed Rate .001" to .080" IPM
Fine Feed Rate .0001" - .010" IPM
Chuck Rotation Speeds 5.6 - 20.1 RPM
Standard Grinding Horsepower 200 HP
Approximate Net Weight 45,000 lbs.

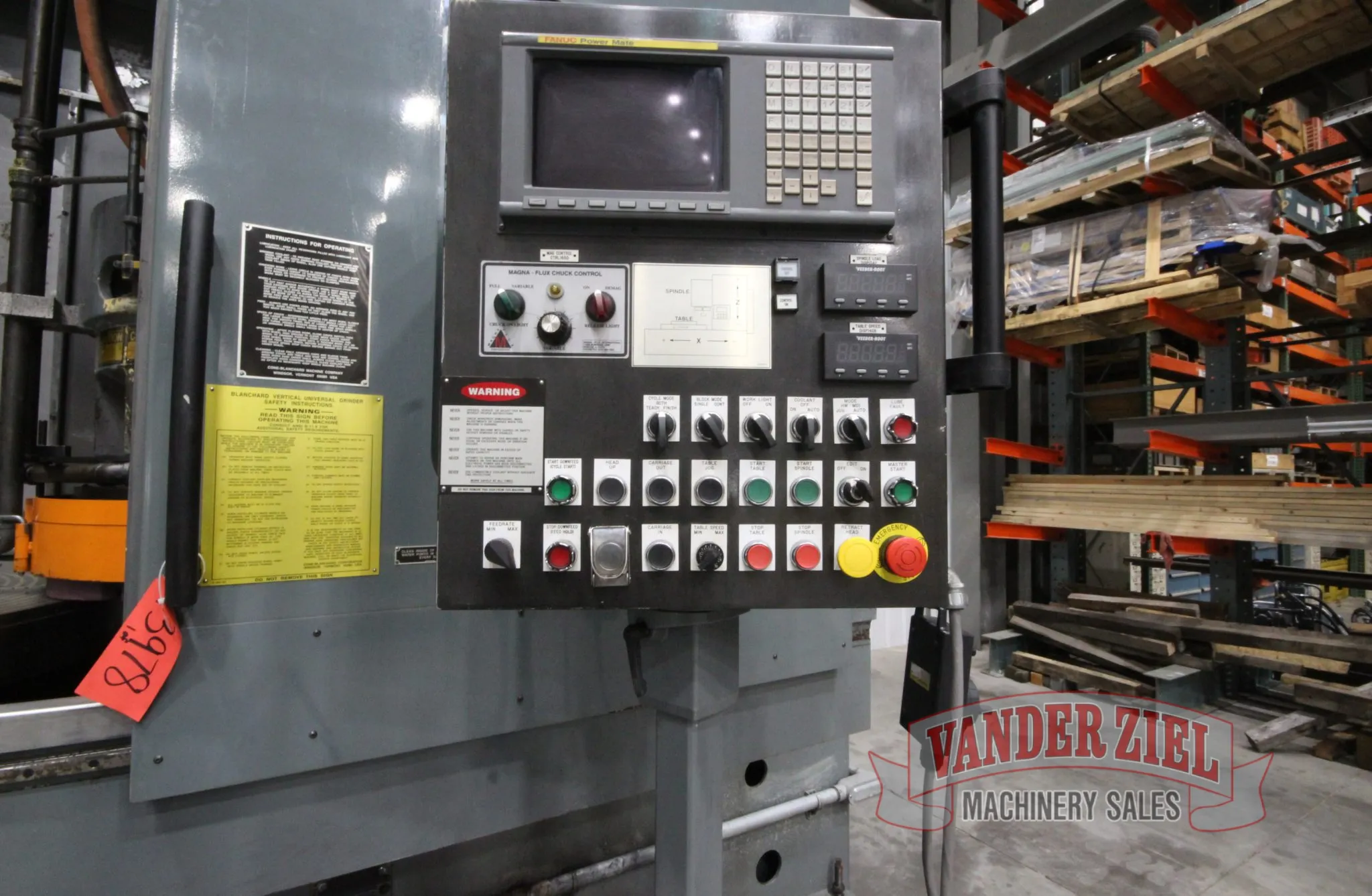

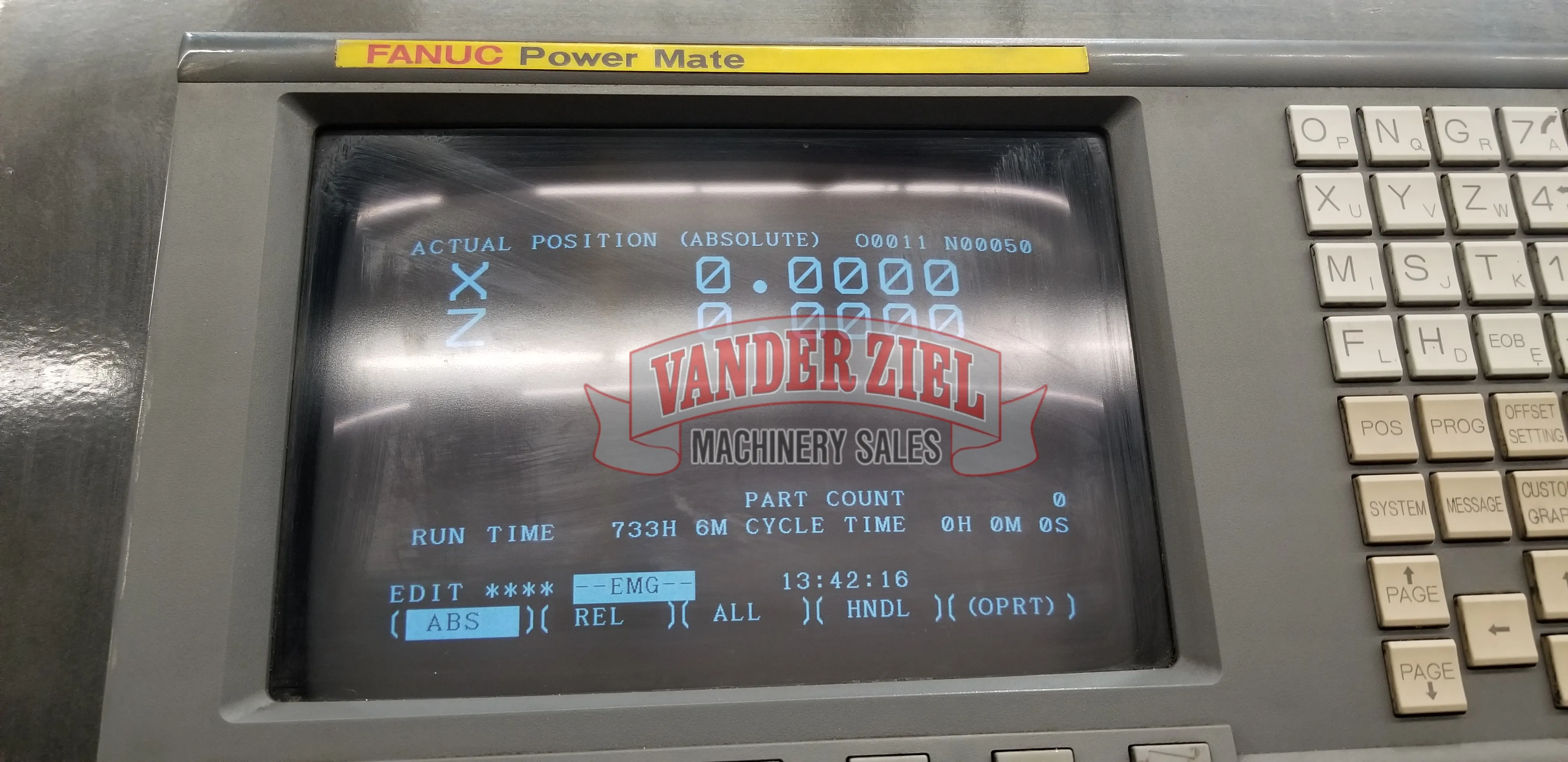

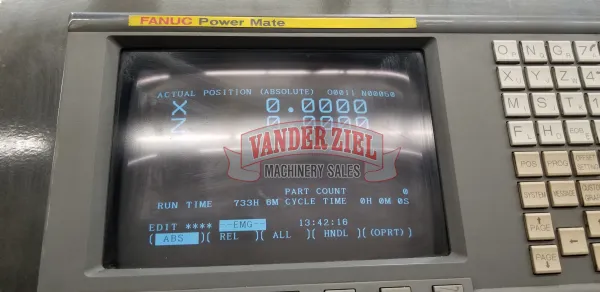

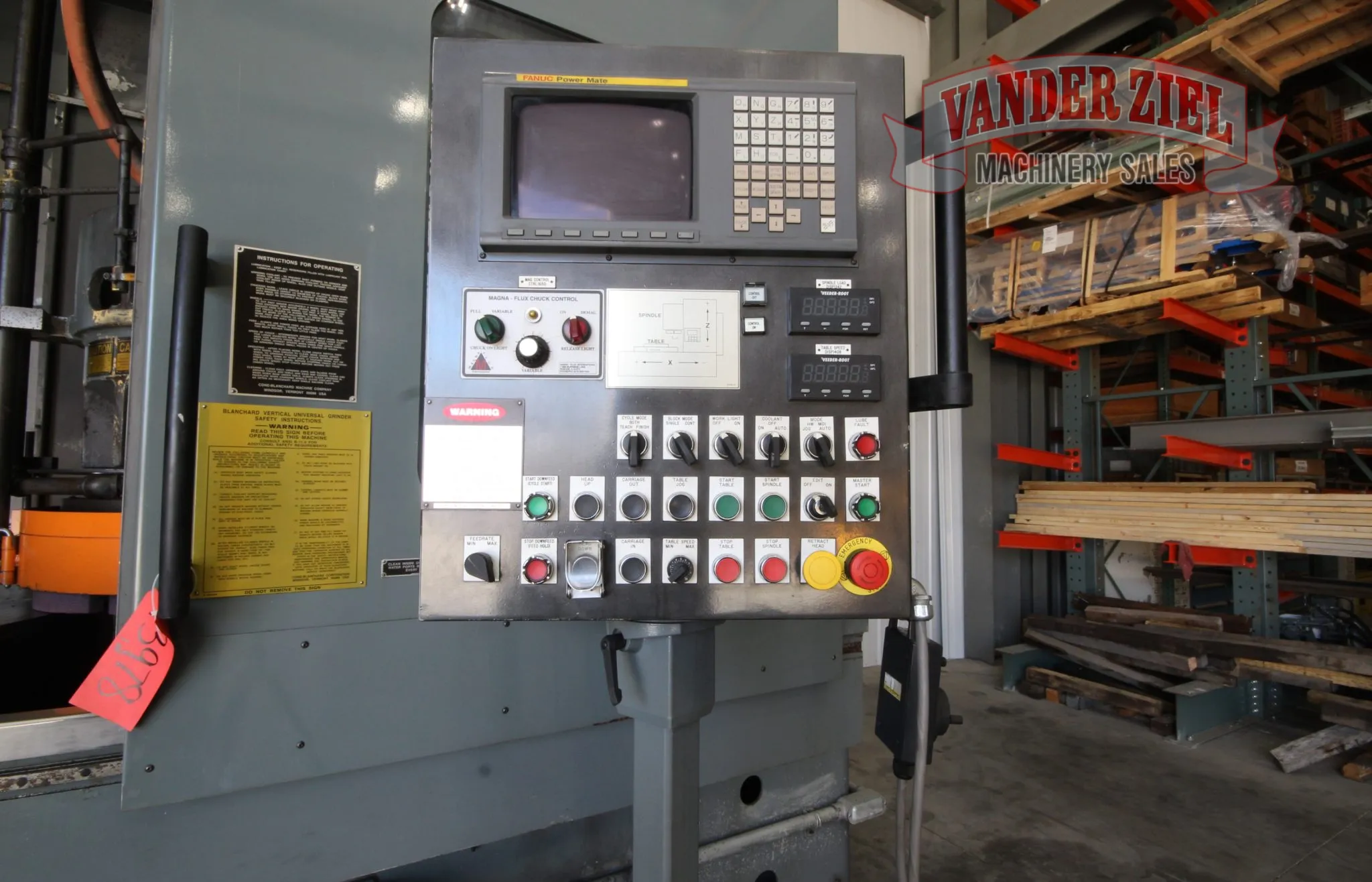

Fanuc Power Mate 7.2 inc. LCD Display

Standard Features:
• 2-Axis Servo-Controlled Grinding
• Monochrome LCD Display
• Wheel Dresser
• Auto Spark-Out & Retract
• Fine Feed
• Automatic Lubrication System
• Hardened Steel Base Ways
• Rugged Steel Waterguards
• Door Interlocks

Preliminary Specifications - Subject to Verification
