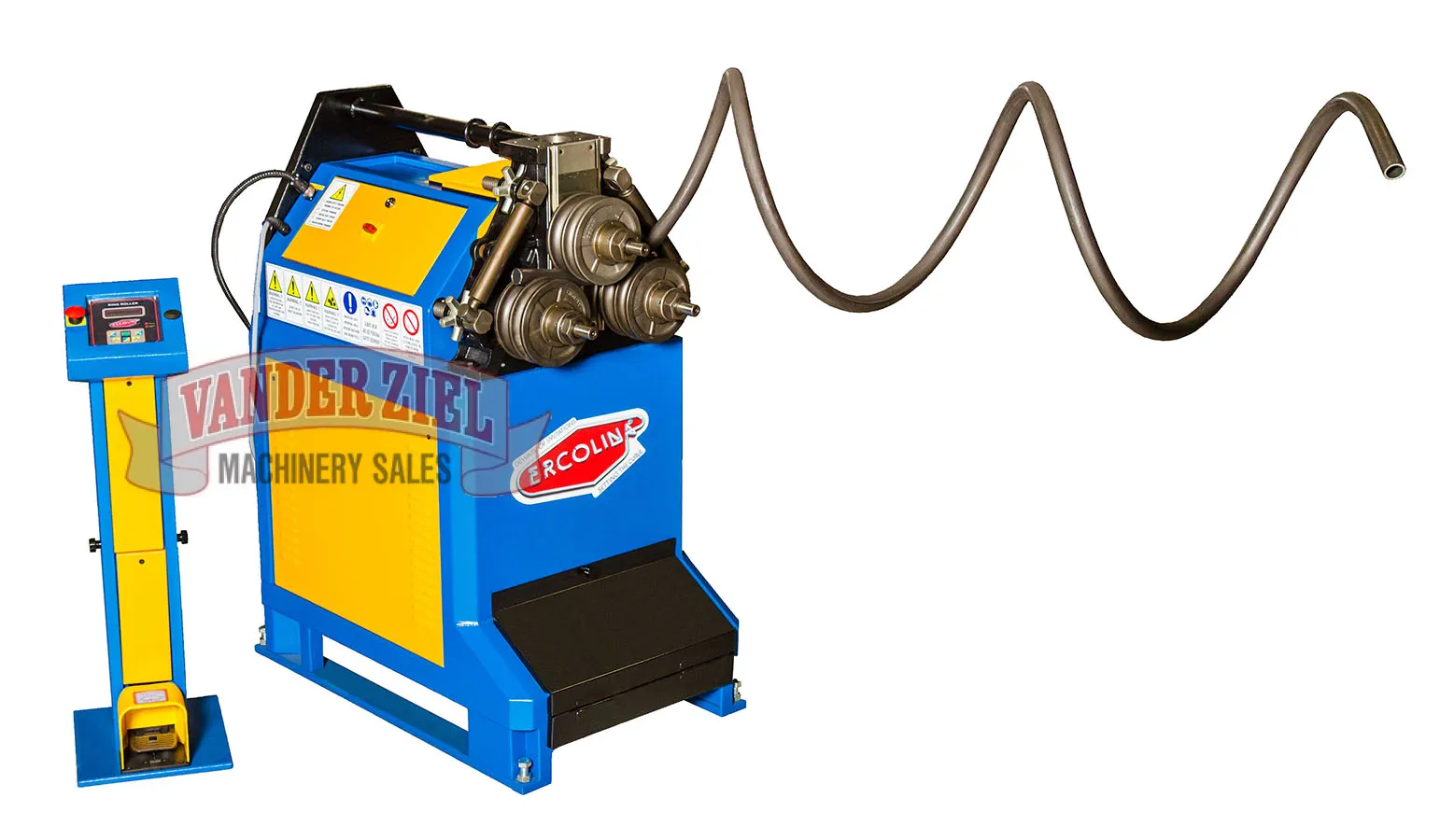

Ercolina 2 1/2" Hydraulic Angle Roll, Model CE40H3 - NEW

SKU #1416002

Universal tooling set included with each machine
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Roll shafts supported with conical steel bearings on each side of A Frame
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
In-line direct drive roll shaft system 3-roll driven
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Touchpad controls with digital center roll positioning
Control tower with low voltage controls and foot pedal
Machine with memory storage has eight (8) individual programs and unlimited passes
Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
Optional anti-twist correction system required for angle iron "Leg In" applications

Pipe (Max.) 2′′ Sch. 40

Angle (Max.) 2′′ x 2′′ x 1/4′′

Tube (Max.) 2 1/2′′ - .125 wall

Roll Shaft Diameter 40mm

Center Roll Positioning Hydraulic 10 Tons

Shaft Speed 10 RPM

Universal Tooling (Included) 6 5/8′′ O.D.

Programming NC - Touchpad

Distance between Shafts 10 5/8′′

Operating Voltage 220V or 480V 3ph

Length, Width, Height 39′′ x 26′′ x 59′′

Weight 850 lbs.

All capacities based on mild grade materials;

heavy wall and high tensile materials reduce machine capacity.
