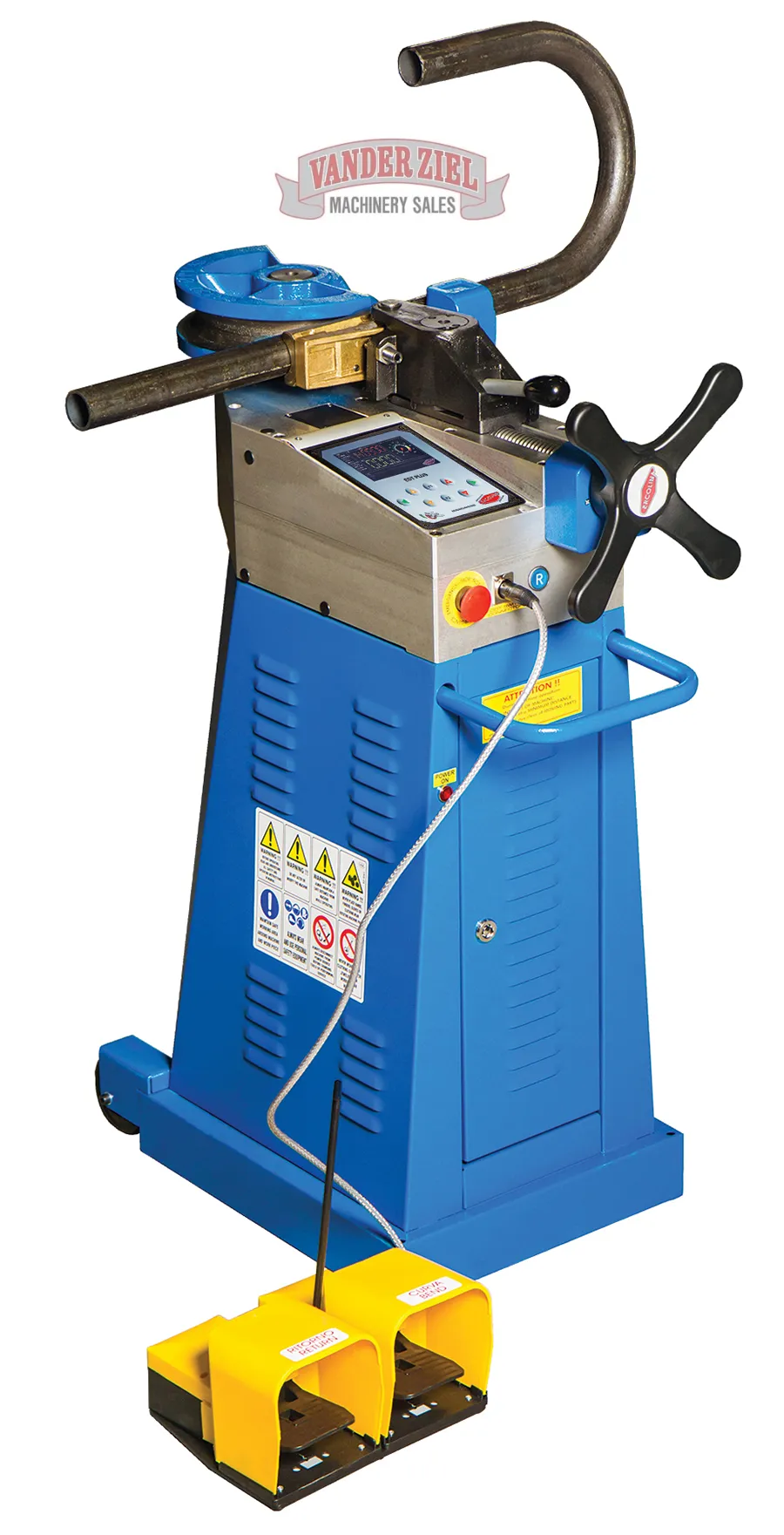

Ercolina 2" Rotary Draw Tube Bender, Model SB48 PLUS - NEW

Ercolina 2" Rotary Draw Tube Bender, Model SB48 PLUS - NEW

SKU #1425000

Ercolina's Super Bender Plus is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles.

Key Features
Mild steel tube capacity 2"
Pipe capacity 1-1/2" Sch. 40
Square tube capacity 1-1/2"
Maximum CLR 8-7/8"
Bend to CLR as small as 2D
Easy one touch control allows any operator to program and automatically store bend angle
Large easy to read color coded control displays all current information in real time
Separate display of material spring back for greater accuracy on a variety of materials
Bend any angle to 180° with independent material springback compensation for each bend
Single bending speed
Initiate bend cycle from the control panel or included foot pedal
Quick-change tooling system with multiple radii available
Swing away counterbending die vise for easy material handling
Accepts Ercolina's A40-P two axis positioning table for multiple and sequential bends
Classic Ercolina design reduces floor space requirement and easily stores to save shop floor space
Operates from single phase 220 volts for greater convenience and efficiency
No hydraulic components
All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
