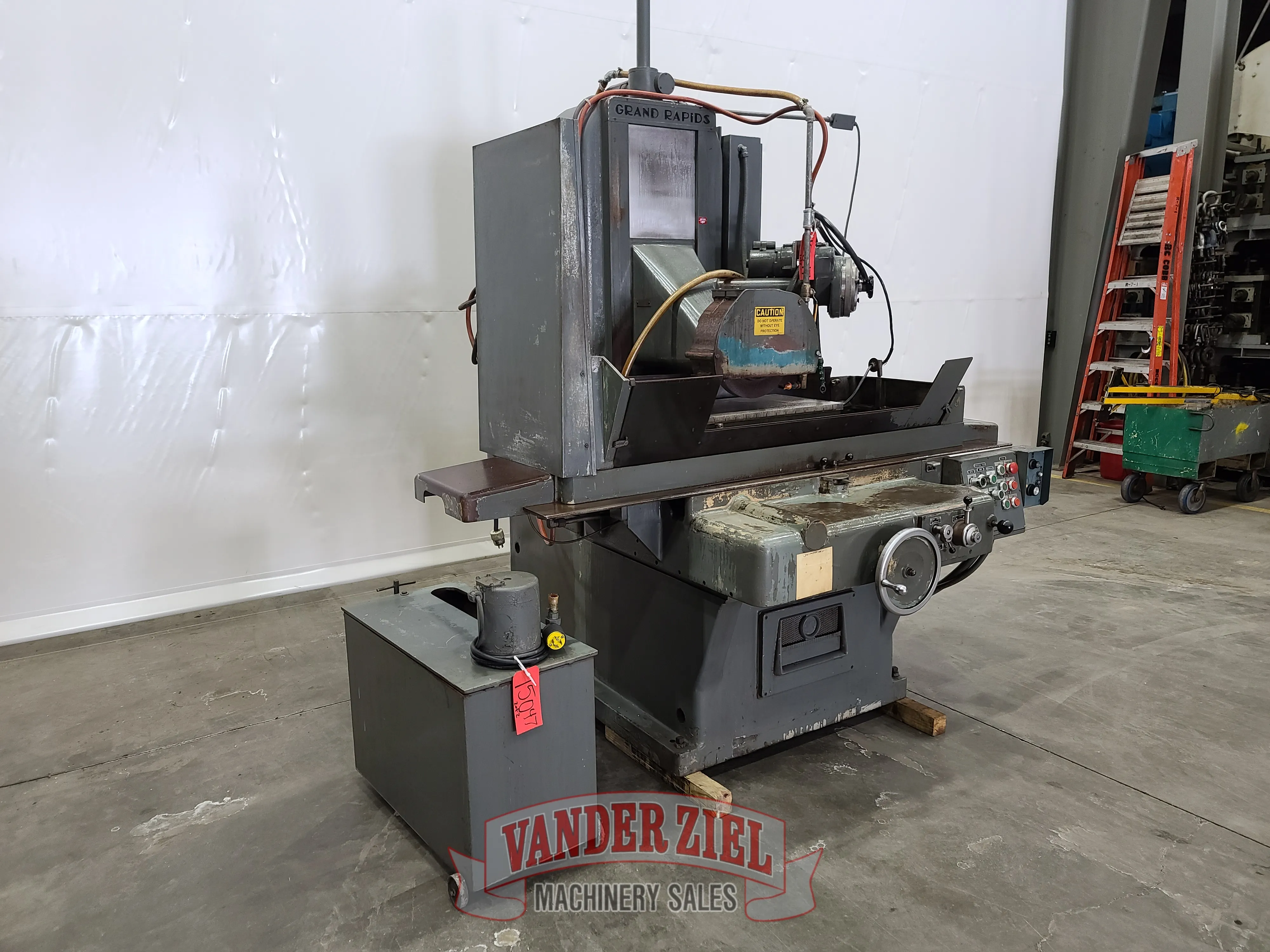

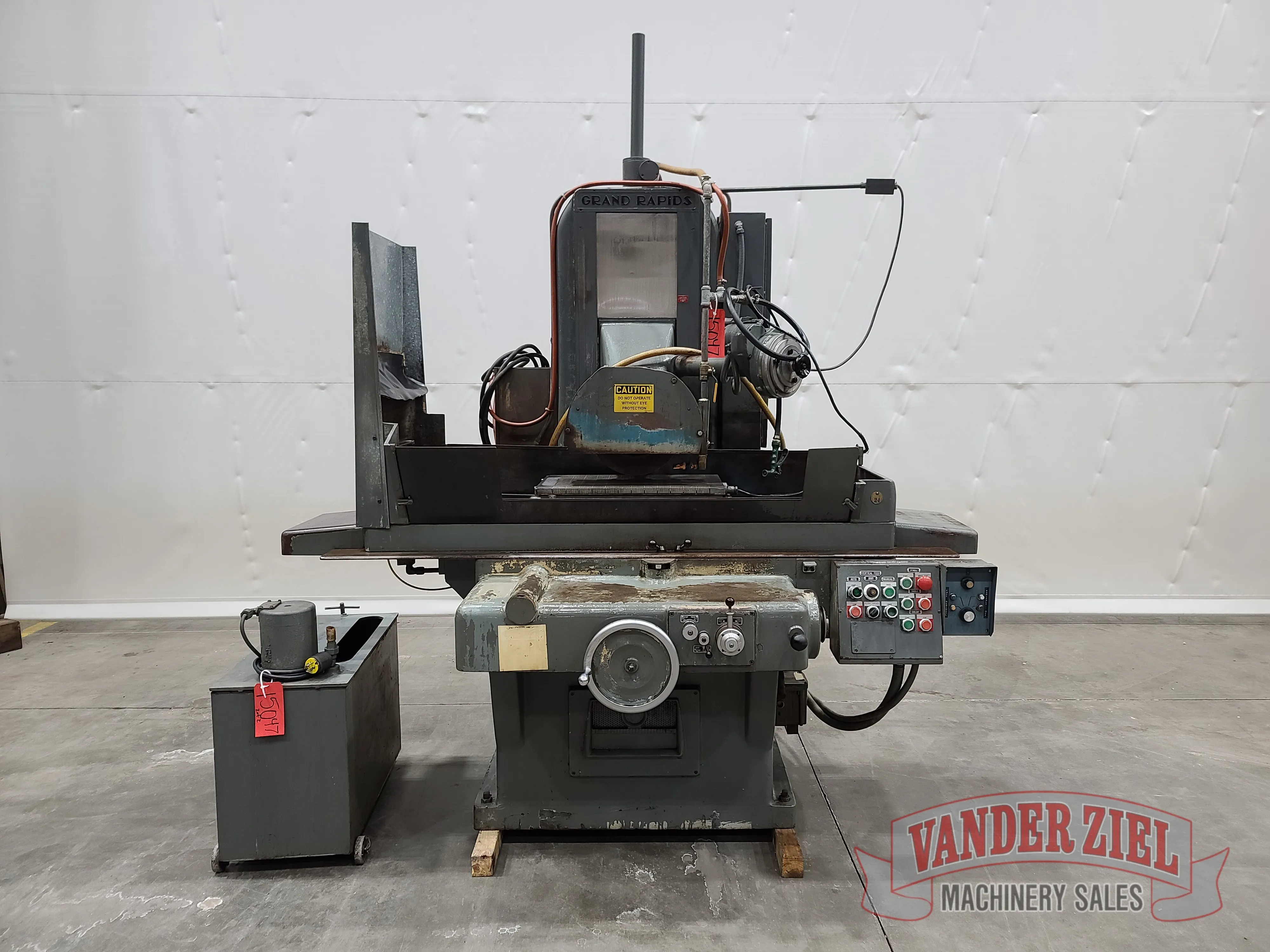

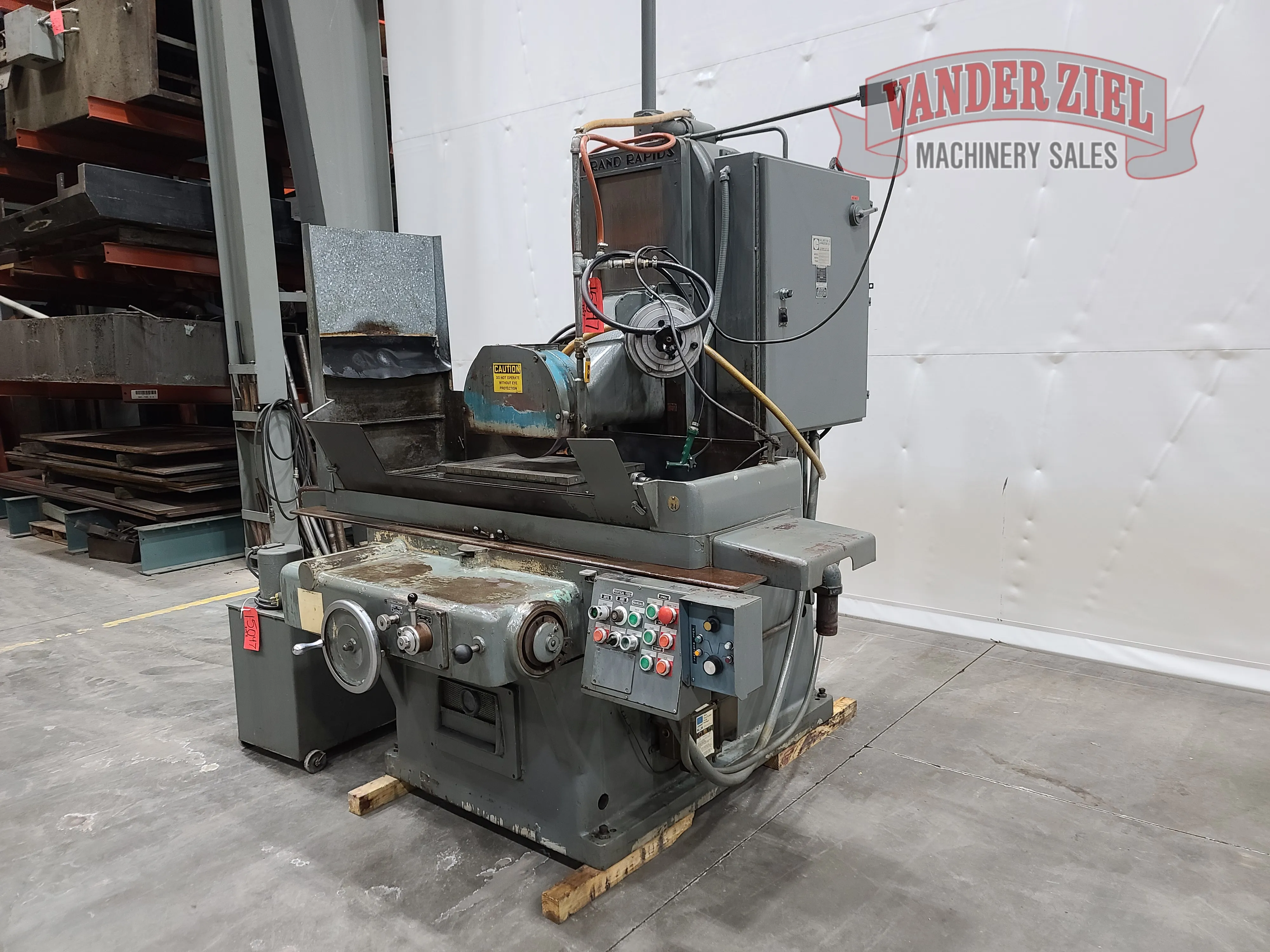

Gallmeyer & Livingston 16” x 24” Hydraulic Grinder, Model 470

Gallmeyer & Livingston 16" x 24" Hydraulic Grinder, Model 470

Serial # 470149
Asset # 15047

Specifications:
Chuck Size 14" x 24"
Max. Grinding Width 19"
Max. Grinding Length 24"
Work Height - Full Wheel 18"
Height Floor to Work Surface 38"
Spindle Wheel Diameter 14"
Spindle Wheel Width 1 1/2"
Spindle Wheel Bore Size 5"
Throat Depth 19 1/8"
Housing Radius 3"
Spindle Speed 1750 RPM
Spindle Drive Motor 7 1/2 HP
Vertical Adjustment Speed per Minute 9.33"
Table Work Surface 16" x 25"
Maximum Longitudinal Travel 35 1/2"
Maximum Longitudinal Speed 100 ft/min
Maximum Cross Travel 17 3/4"
Continuous Cross Speed - Max. per Minute 120 per minute
Step Cross Travel - Maximum 3/4"
Hydraulic Motor 3 HP
Floor Space 171" x 104"
Machine Height 106"
Approximate Weight 9,200 lbs.

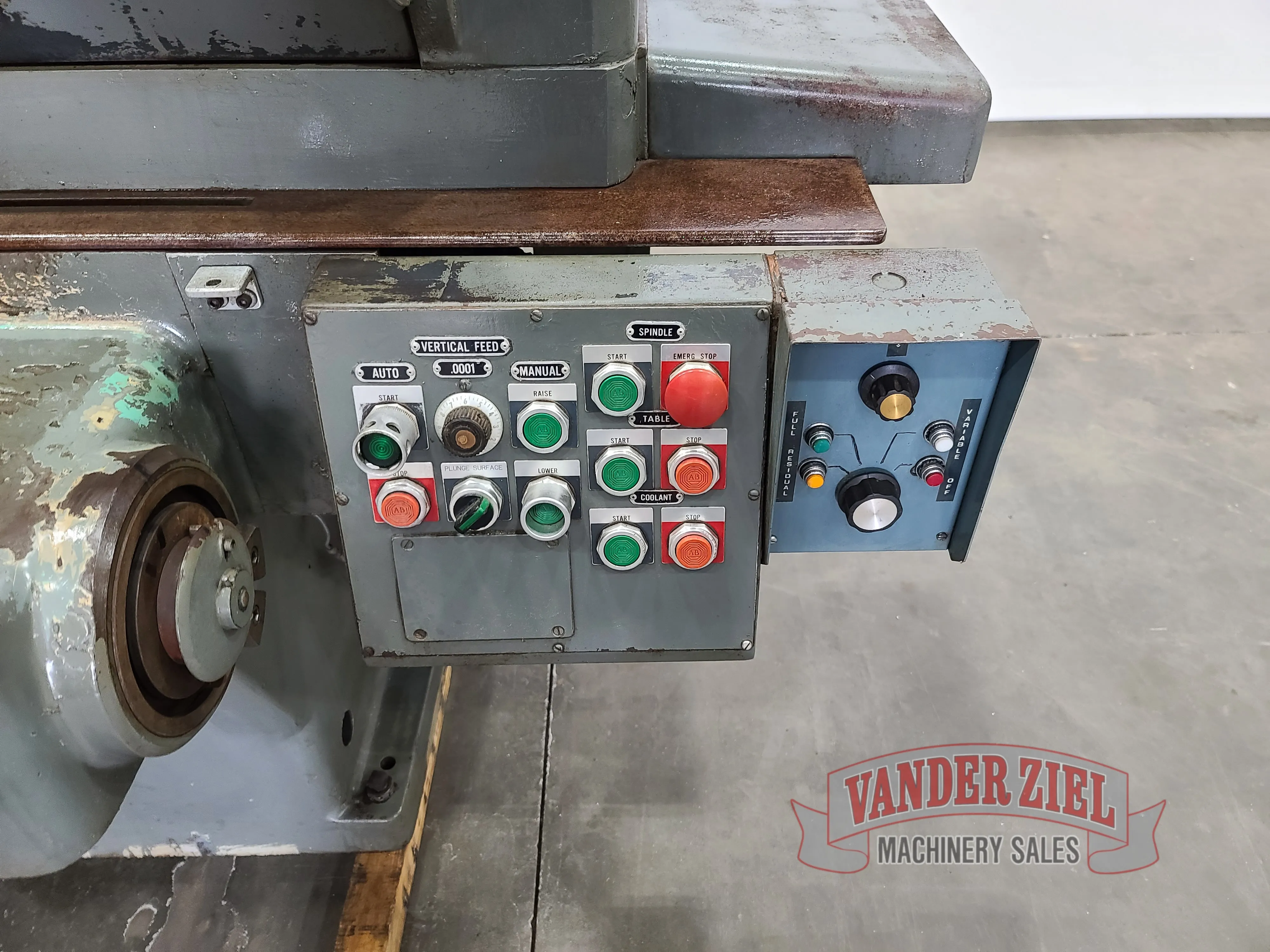

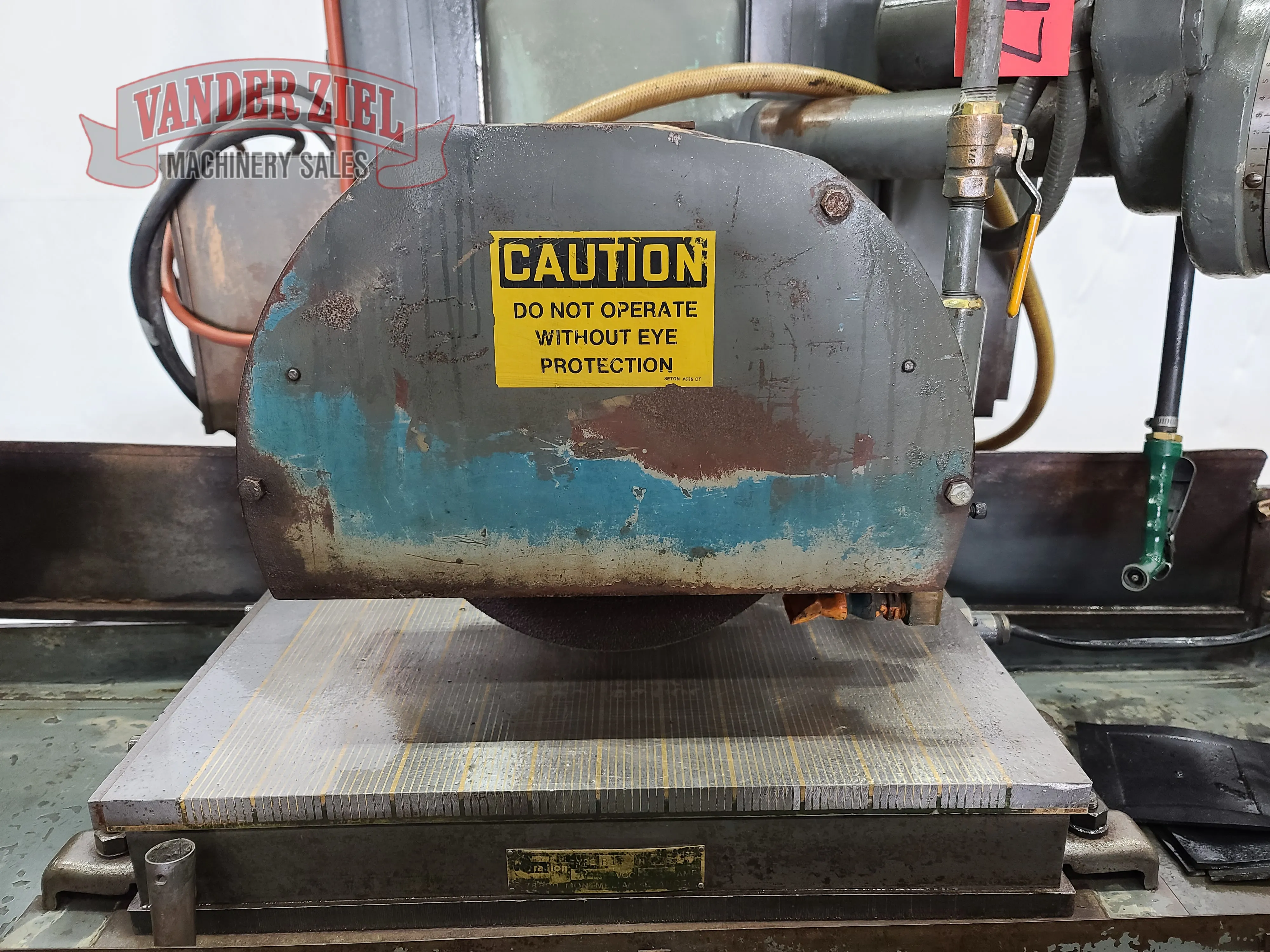

Grinder is equipped with incremental downfeed and a fine pole chuck.

Preliminary Specifications - Subject to Verification
