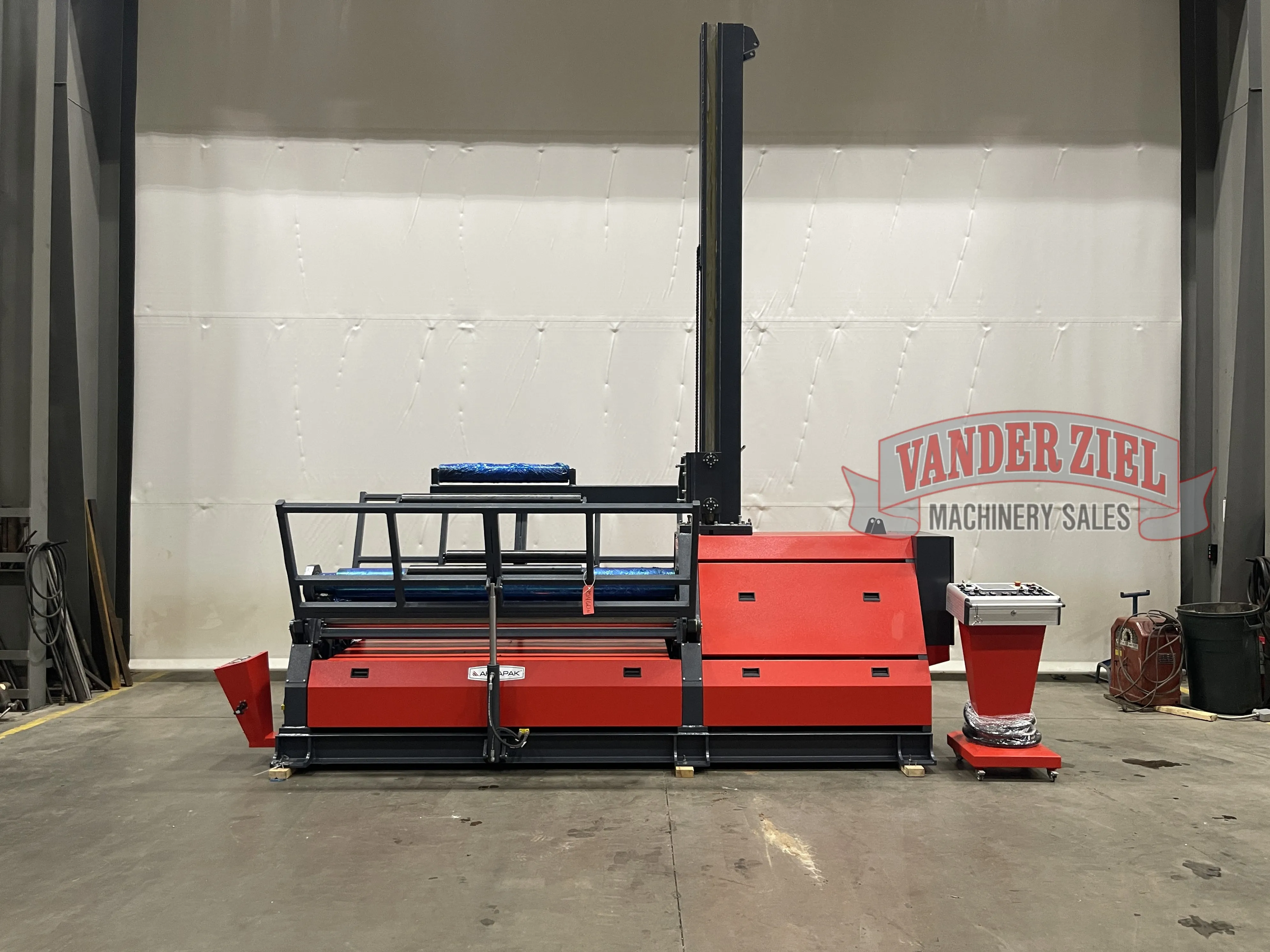

Akyapak 6' x 1/4" Plate Bending Roll, Model AHS 20/06 Top & Side Support - NEW

Akyapak 6′ x 1/4" Four Roll Hydraulic Plate Roll, Model AHS 20/06 - NEW

Asset #15460

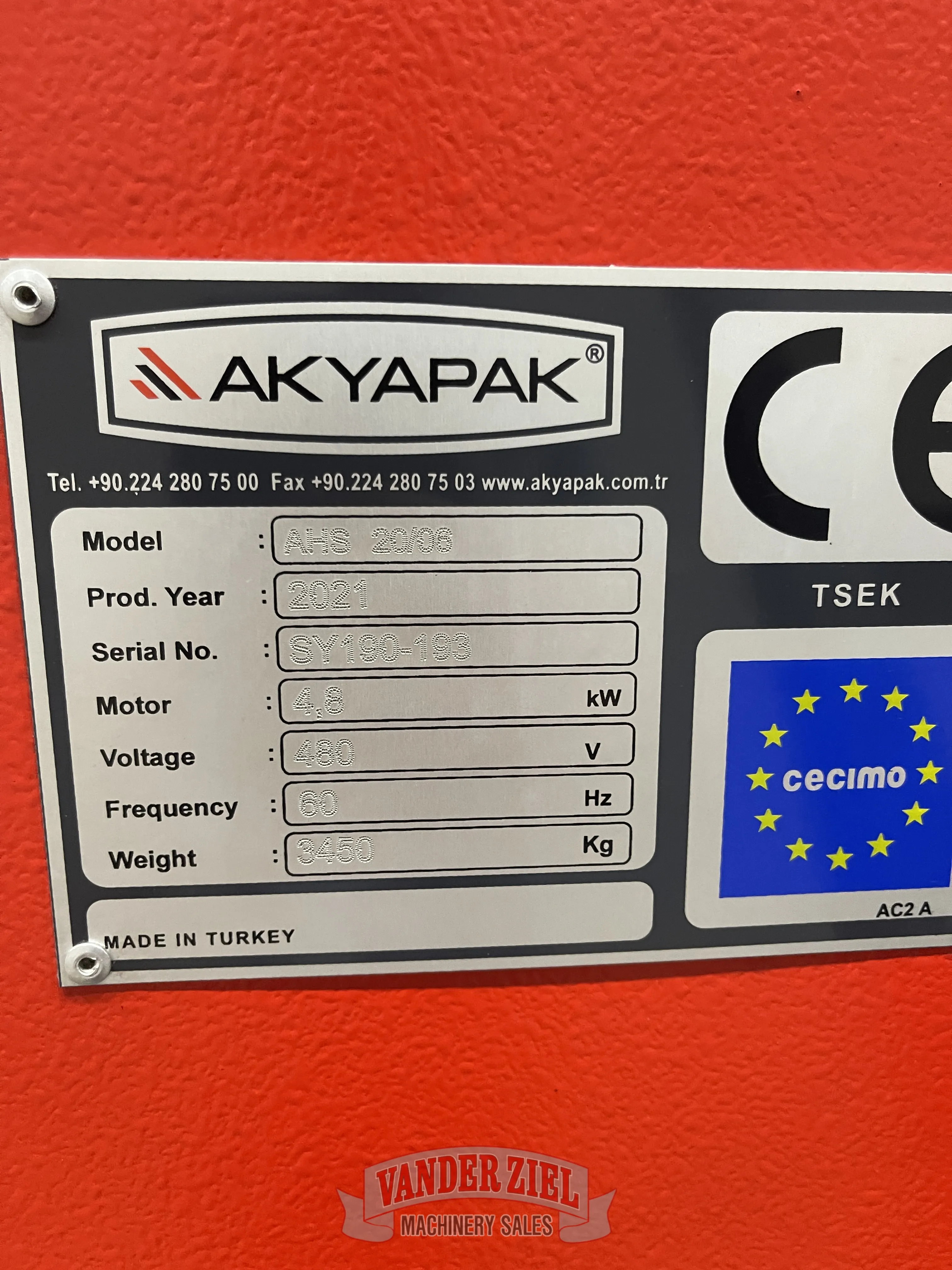

Serial #SY190-193

EQUIPPED WITH

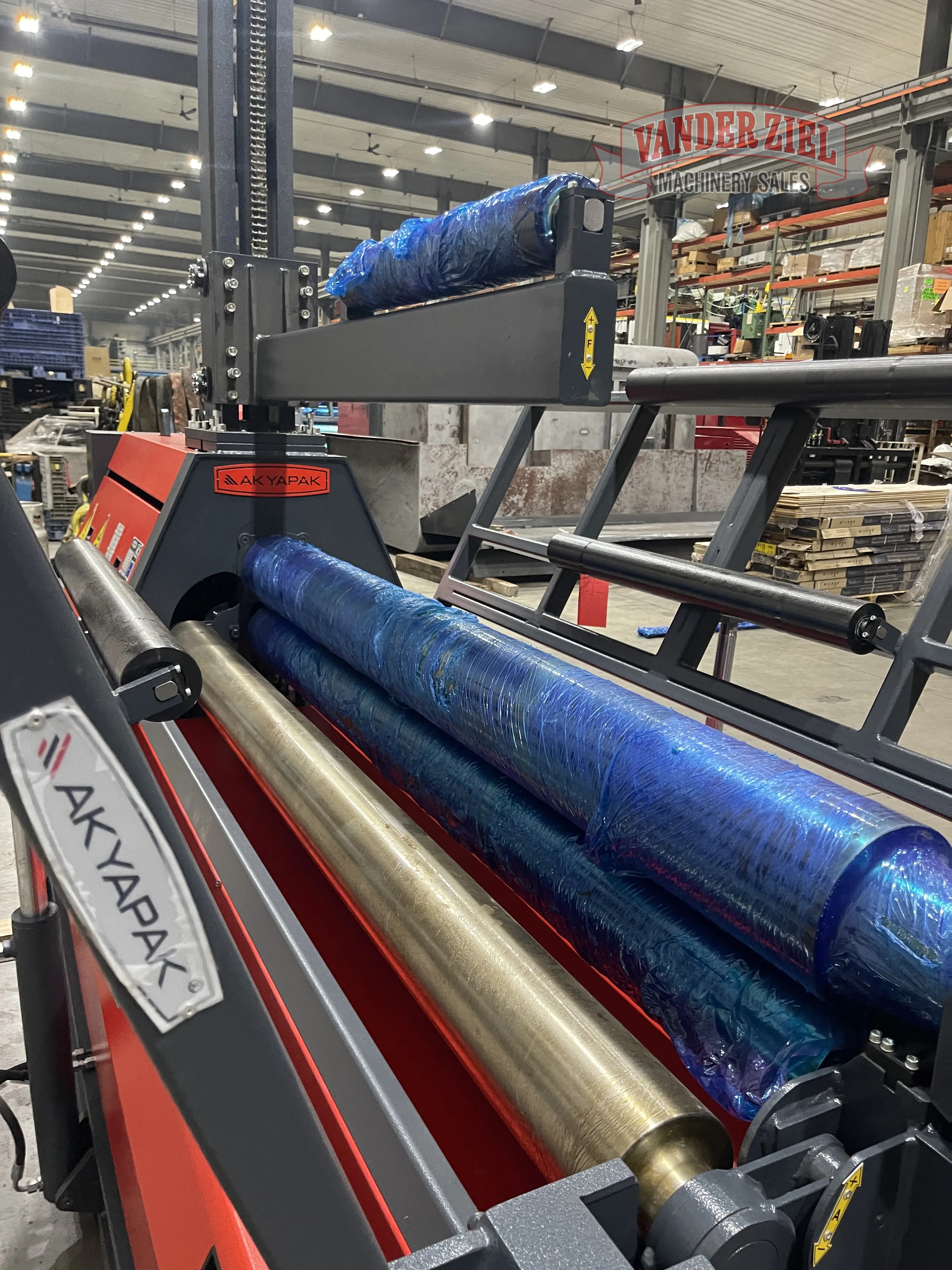

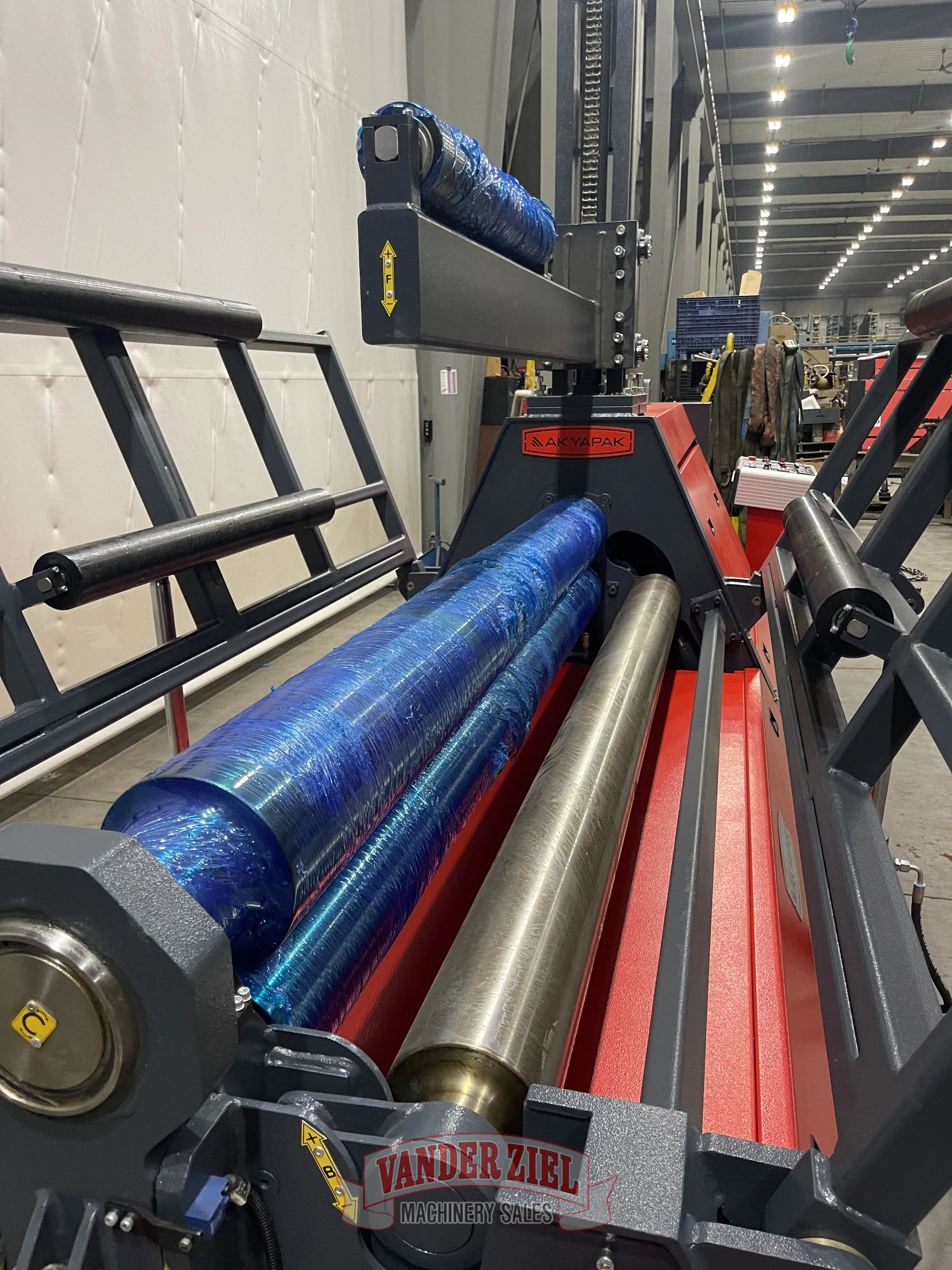

 AHS 20/06 Four-Roll Hydraulic Plate Rolling Machine,

• Induction Hardened Rolls


• Torsion Bar


• Digital Display


• Cone Bending Device


• Two Speed Control


• All rolls are made of special steel.


• Machine body is steel construction. ( ST 52 )


• All rollers mounted in bearing.

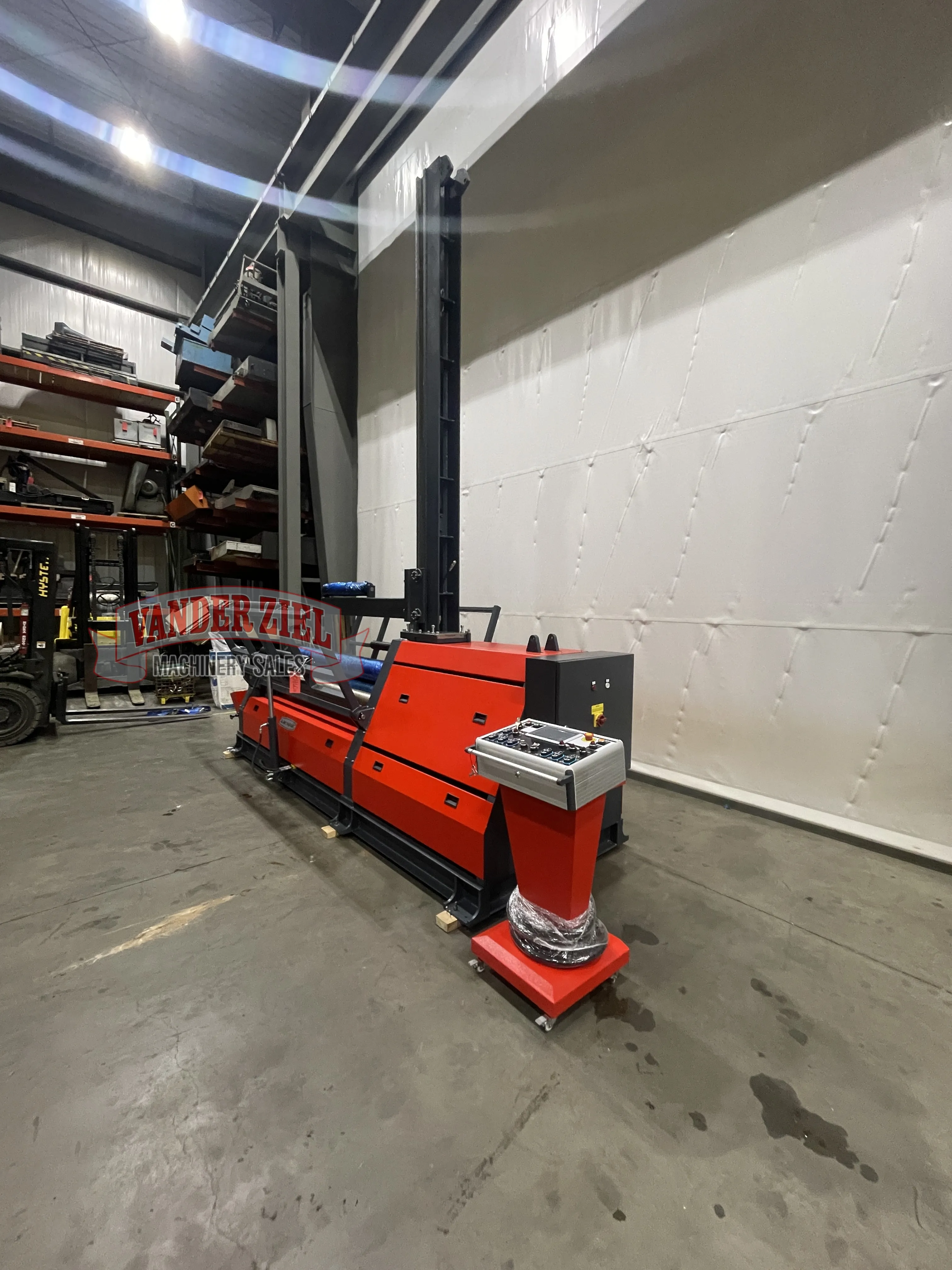

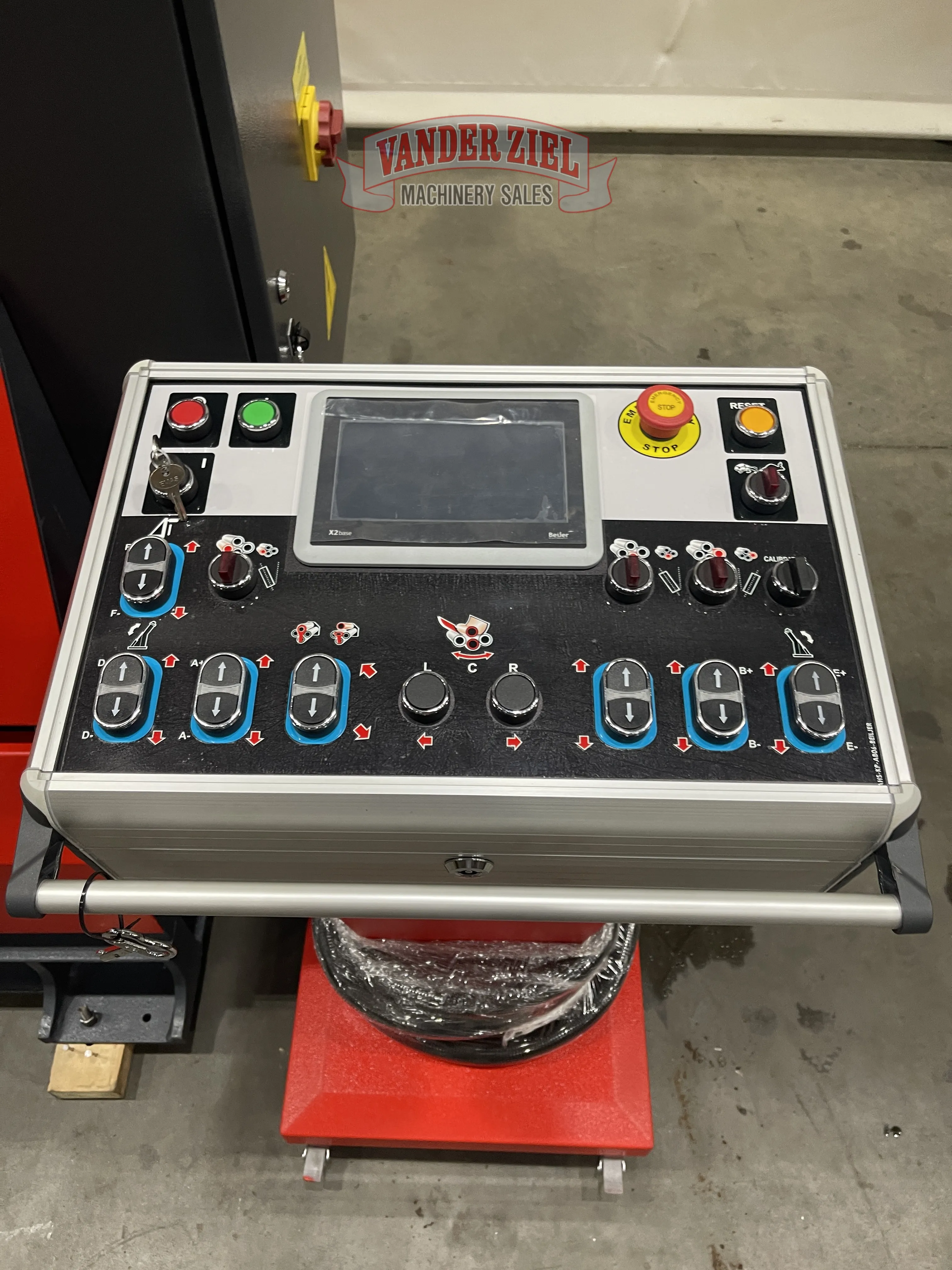

• Separate control panel


• Drop-end controlled from control panel in order to release easily bended metal sheet

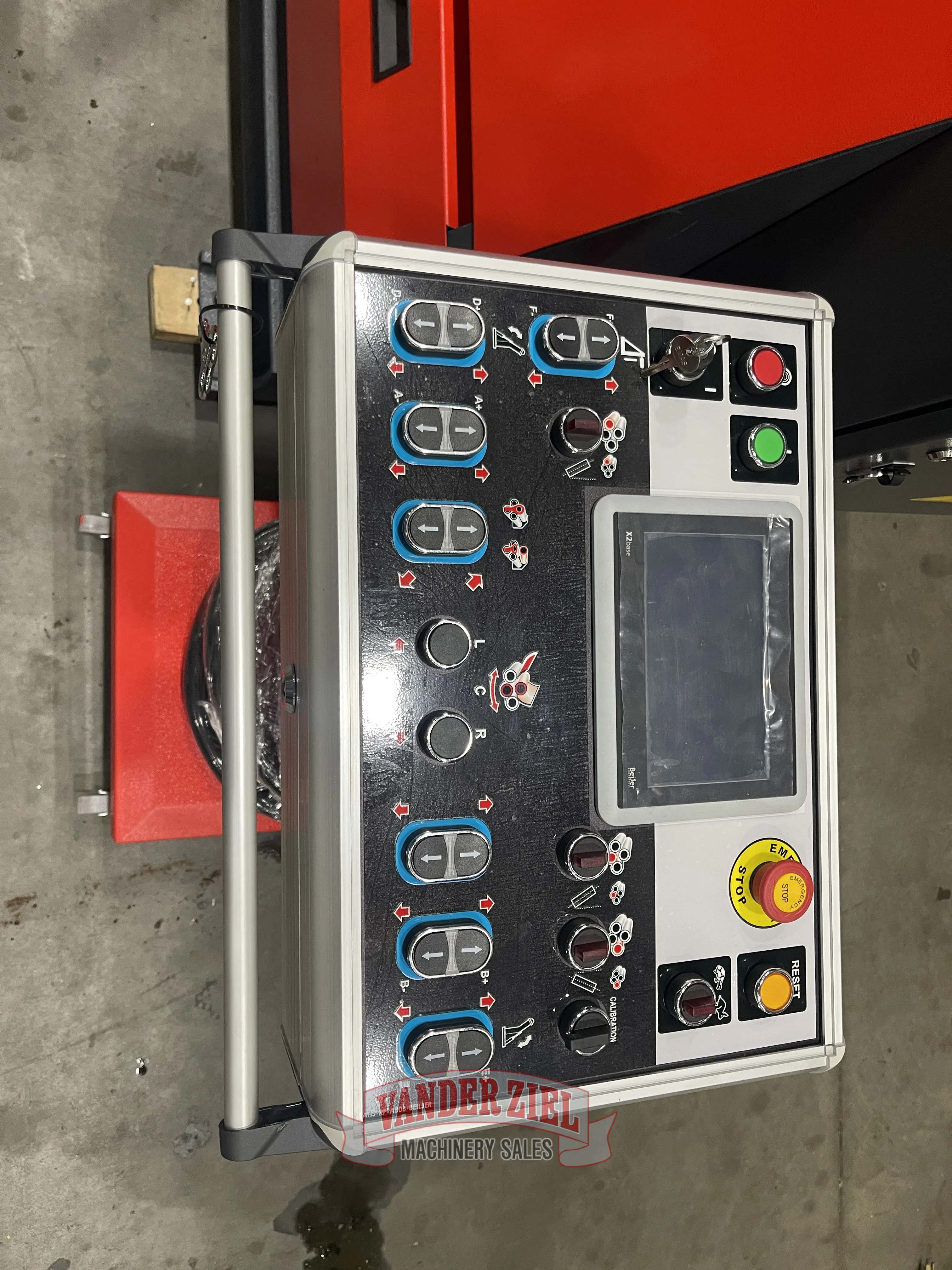

• Movement and parallelism adjustment of the rollers controlled from the control panel. (Ergonomic designed control panel which allows to control all the functions of the machine is independent from the machine.)


• Central rolls are driven with hydraulic motor and reducer.


• Electrical and hydraulic protection against overloads.


• Hydraulic installation from world-wide known companies


• Electrical installation from world-wide known companies


• Suitable for "CE".

TECHNICAL SPECIFICATIONS - AHS 20/06
Working length                                          Ft.            6'
Maximum thickness                          In     5/16

Pre-bending - 1/4

Bending - 1/4"
Yield Point: 36,000 PSI
Number of rolls                                                          4
Motor Power                                             Hp            4
Min. diameter                                            in - Ø       TRD x 3
Top roll                                                      in - Ø       7.5"
Pinch roll (Bottom)                                    in - Ø       6.7"
Side roll                                                     in - Ø       5.9"
Length                                                       In              13.3'
Height                                                        In              4.1'
Width                                                         In              4.5'
Weight                                                       Ibs            7,606

Included Accessories:
Side Support
Top Support

Optional Accessories:
Variable speed of rotation
Material feeding table
Oil Cooler System
Central Support
Side Supports
AK400 CNC Control CS3
