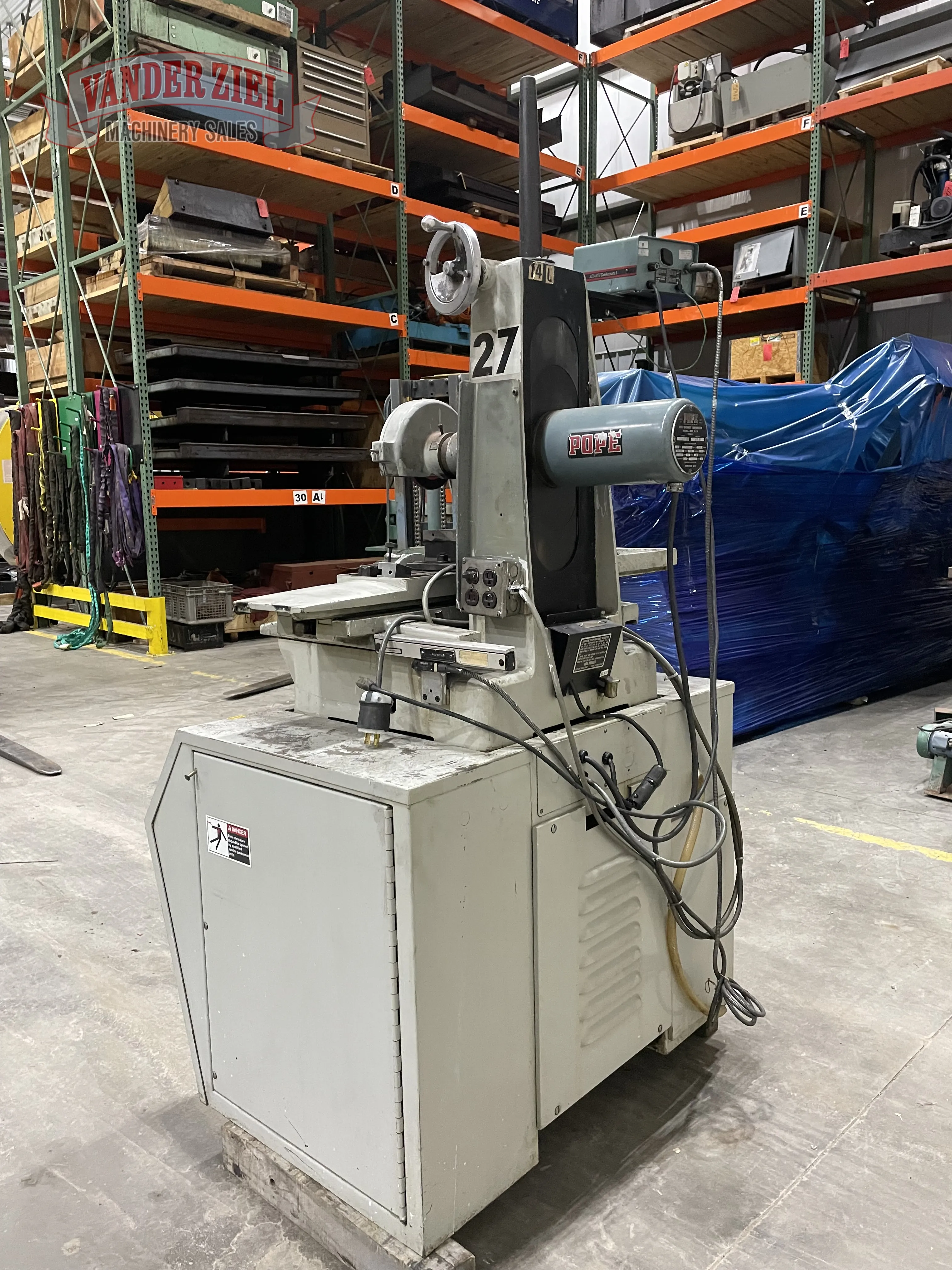

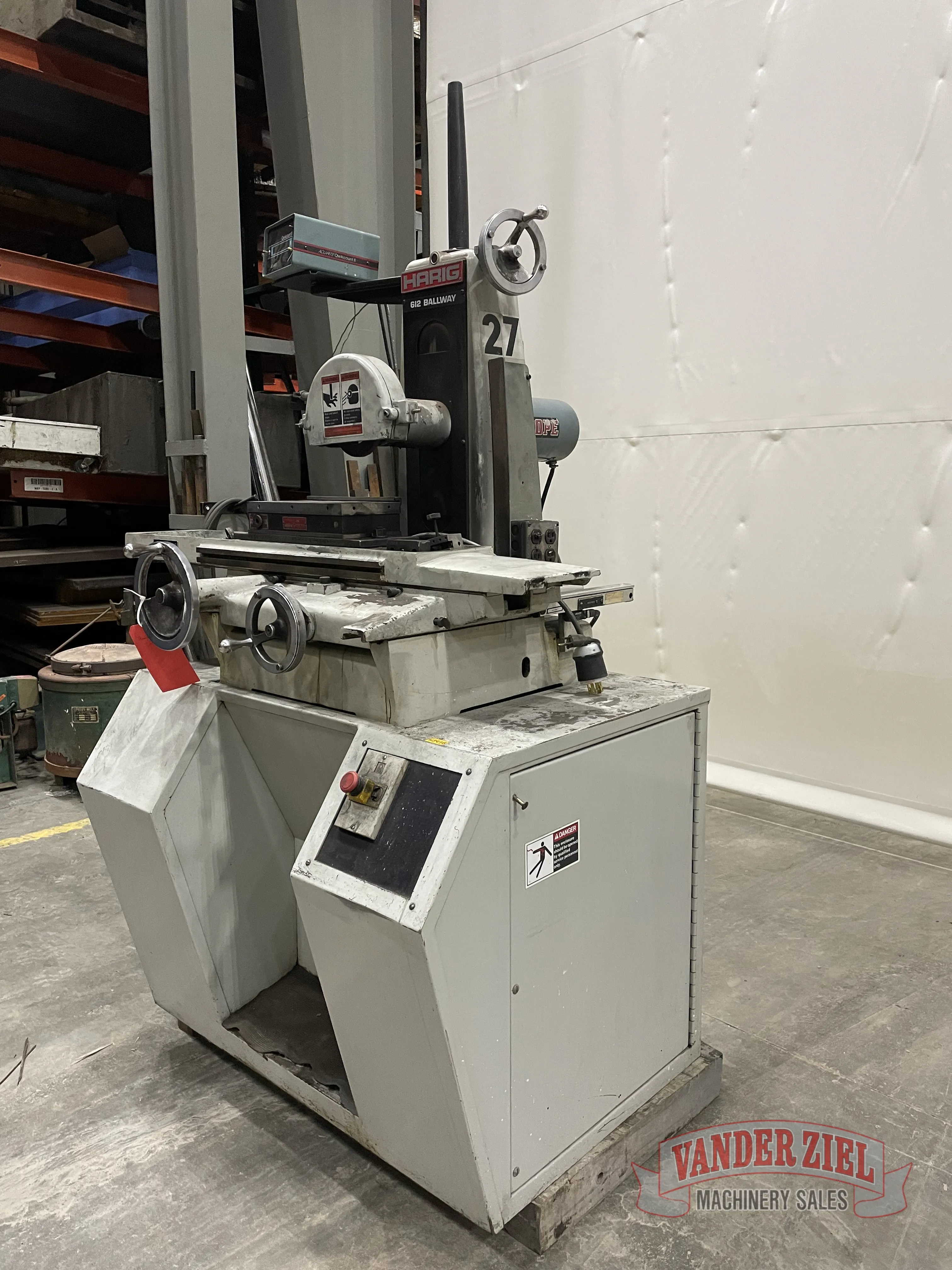

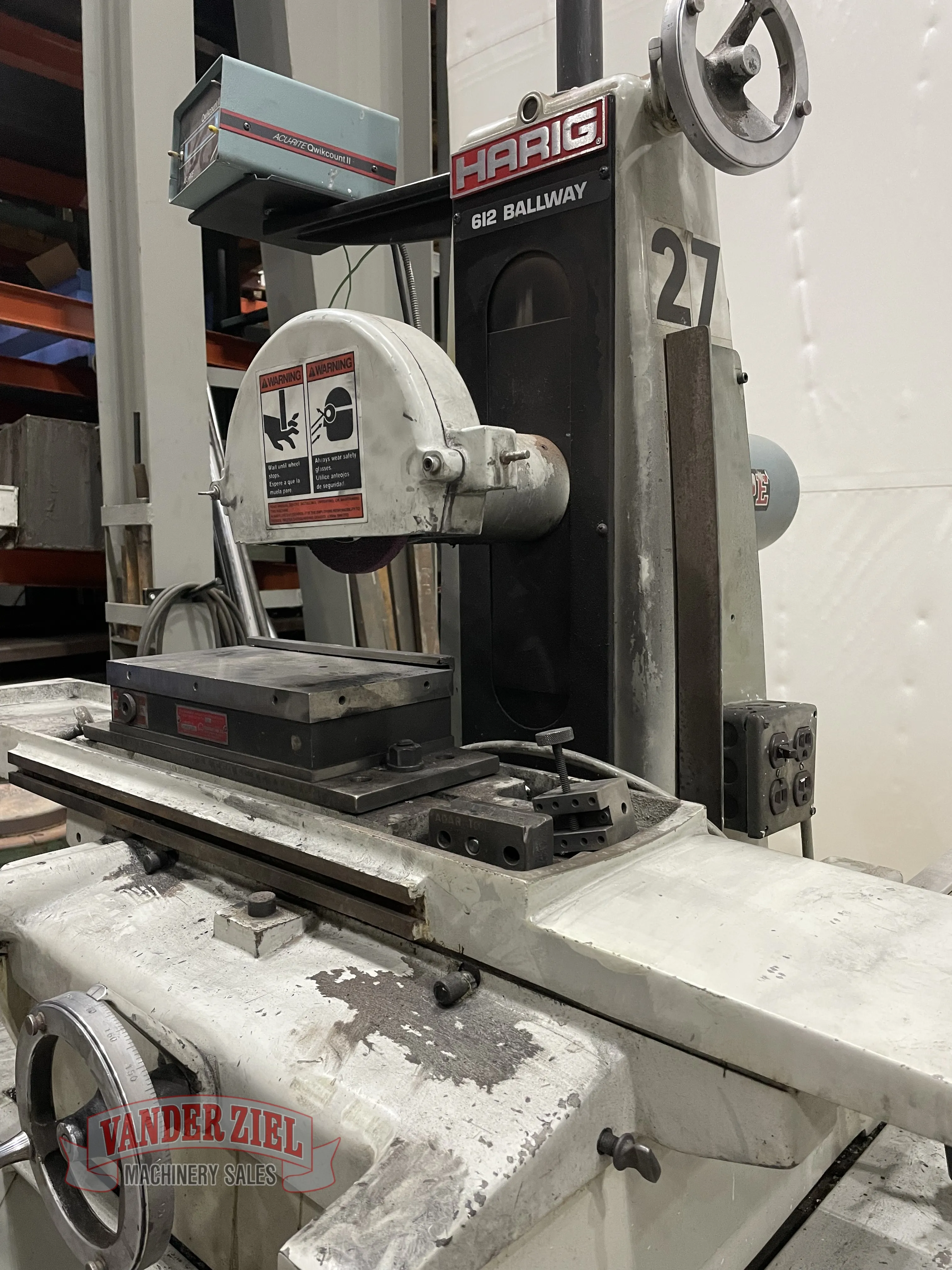

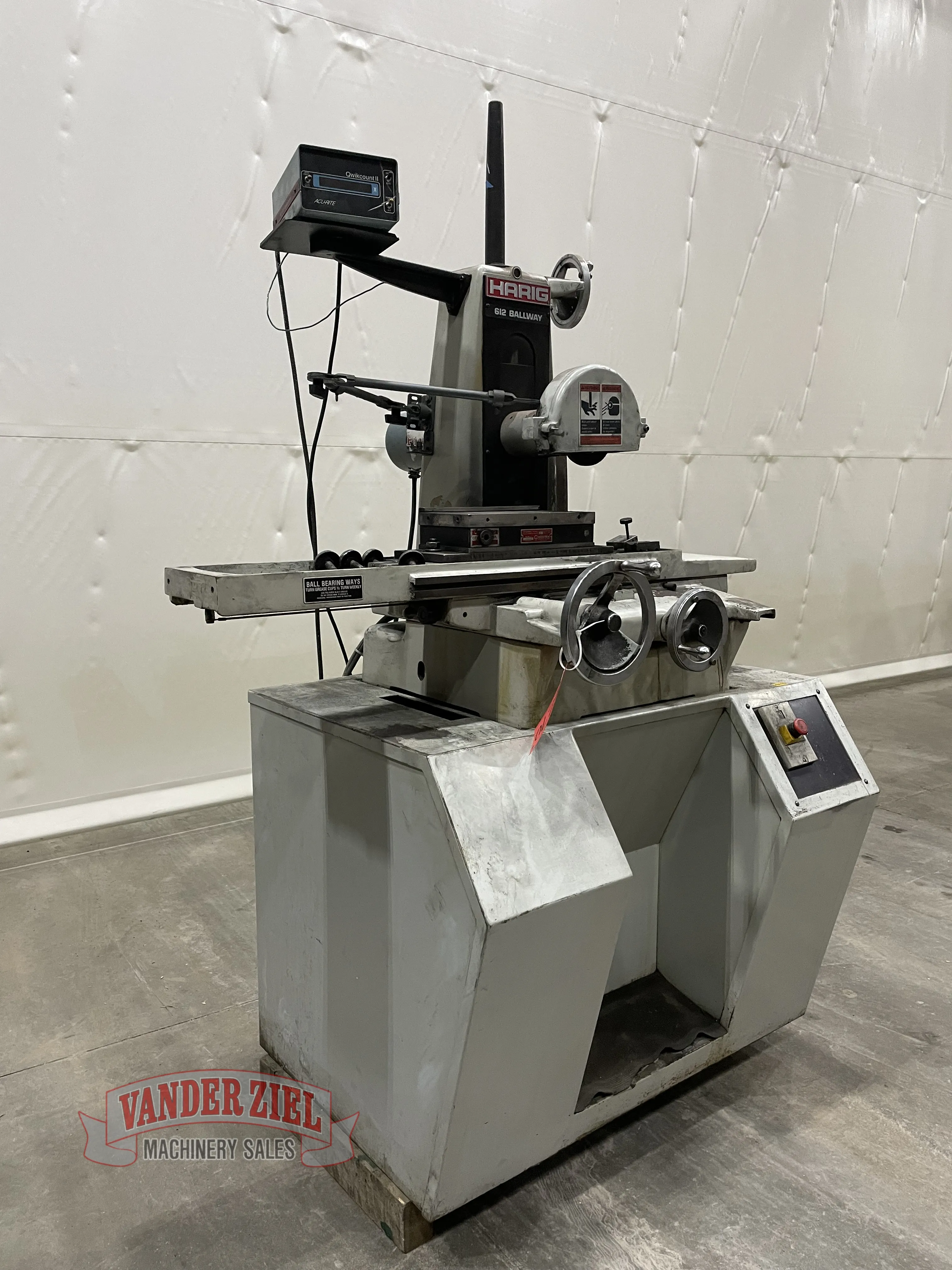

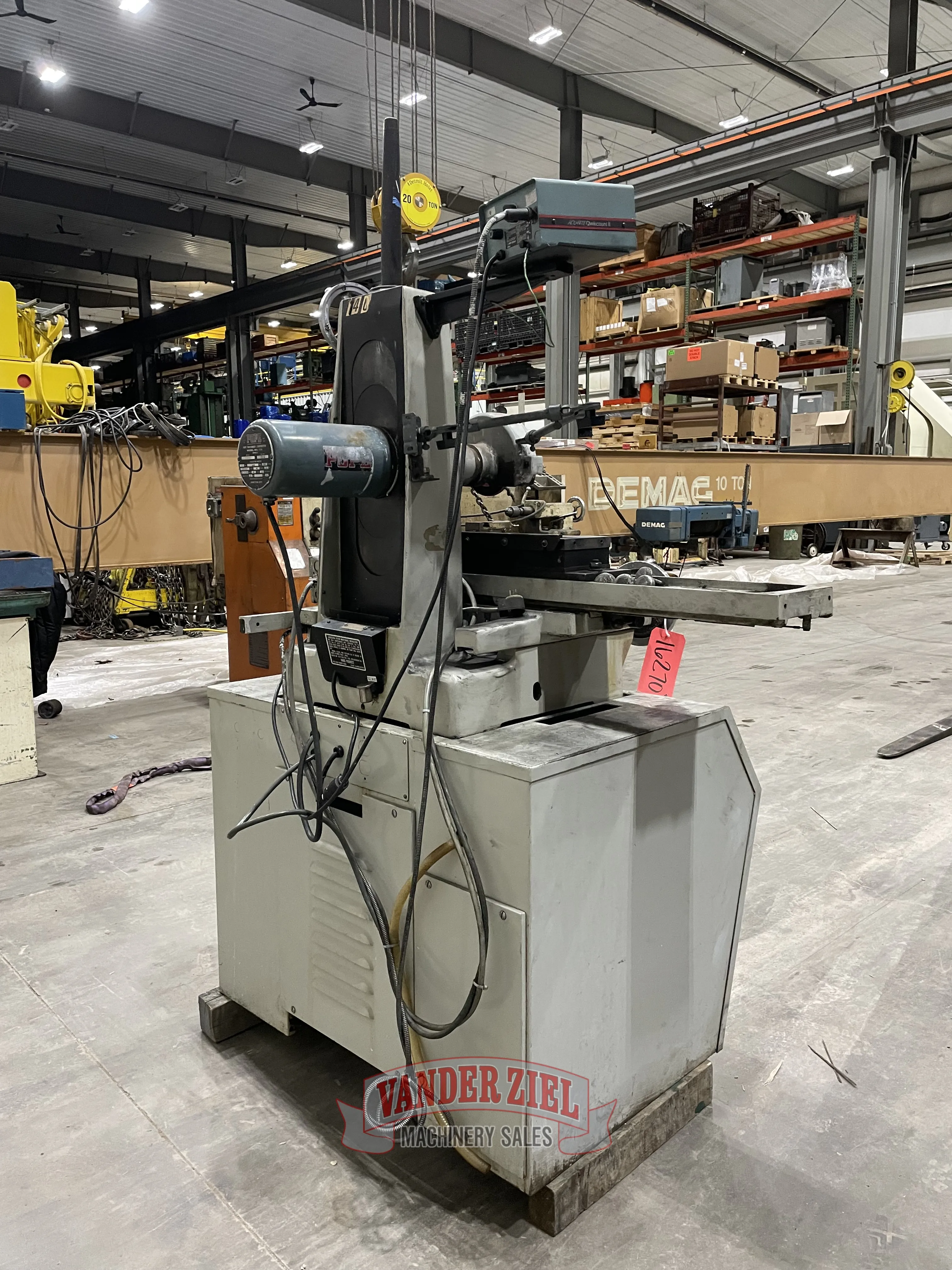

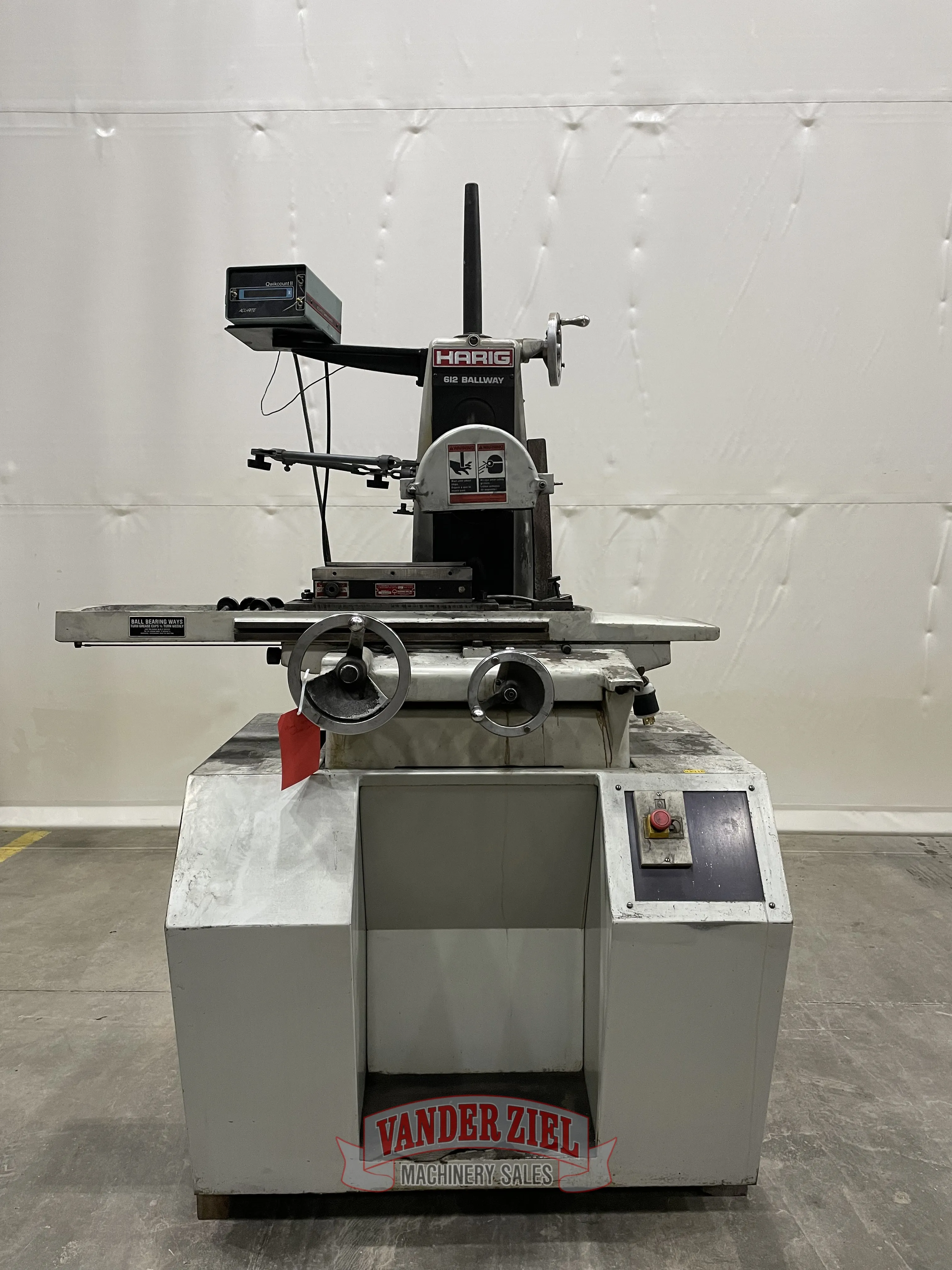

Harig 6” x 12” Ballway Surface Grinder, Model 612

Harig 6" x 12" Ballway Surface Grinder, Model 612

Serial # B-17587
Asset # 16270

Specifications:
Longitudinal Travel 12 3/4"
Cross Feed Travel 6 3/4"
Vertical Working Height 12"
Platen Work Area 6" x 18"

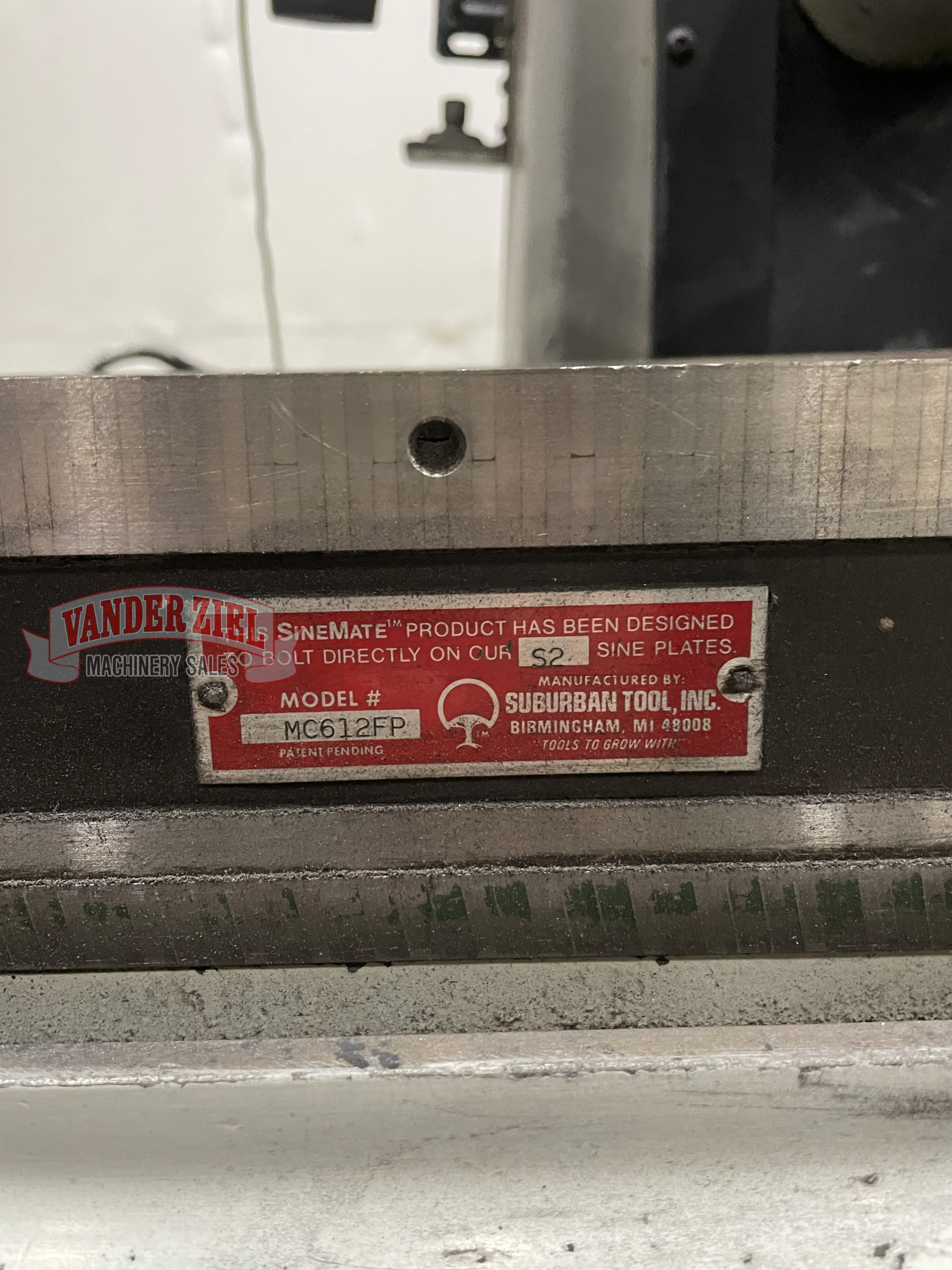

Chuck Size 6" x 12"
Grinding Wheel Furnished 7" x 1/2" x 1 1/4" ID
Grinding Wheel Maximum Capacity 8" x 1 1/4" x 1 1/4"
Elevating Handwheel Graduation 0.0001"
Cross Feed Handwheel Graduation 0.001"

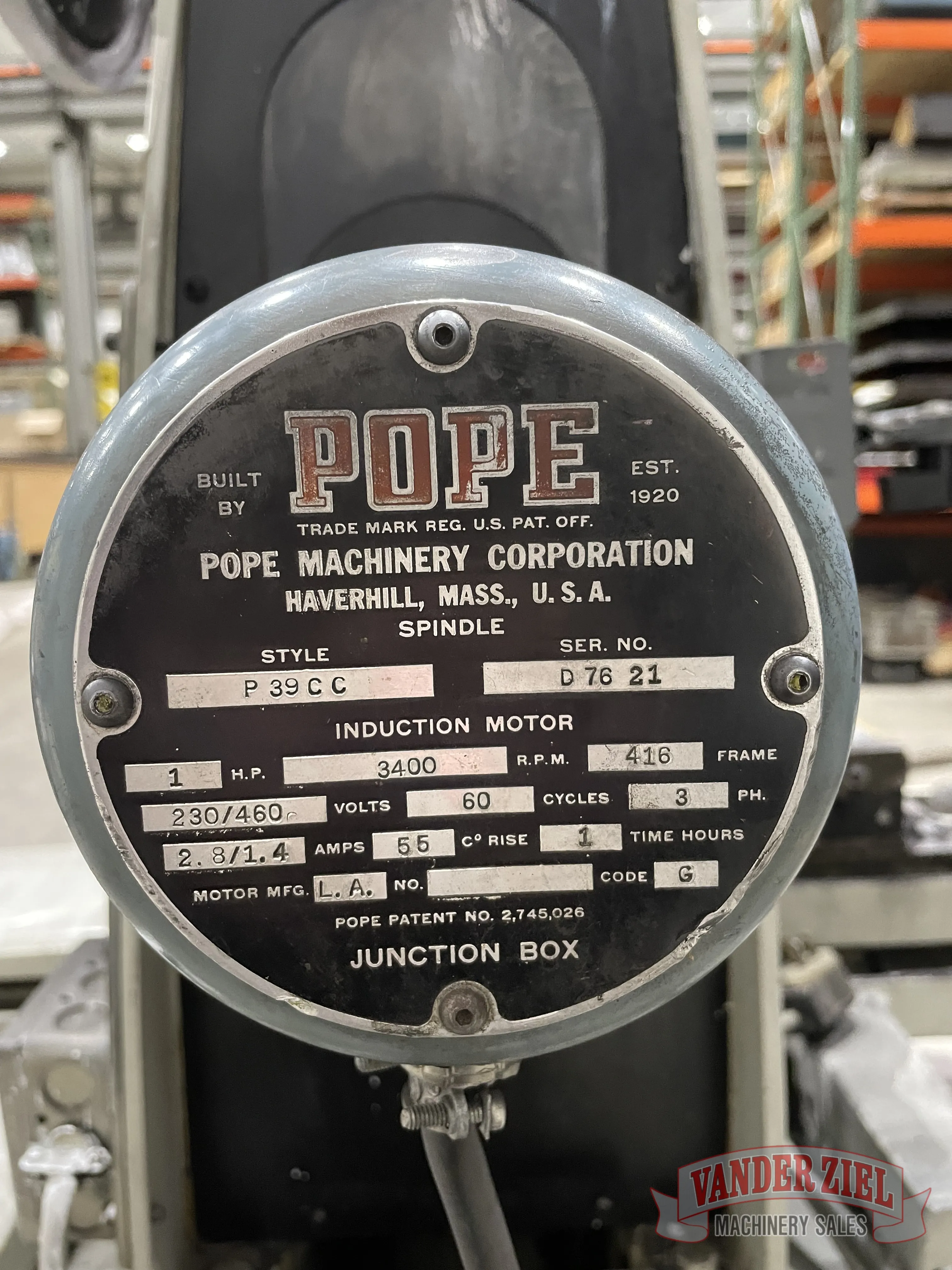

Spindle Motor 1 1/2 HP
Spindle Speed 3450 RPM @ 1 1/2 HP
Floor Cabinet Area 29" x 29"
Operating Area 48" x 45"
Weight 1450 lbs.

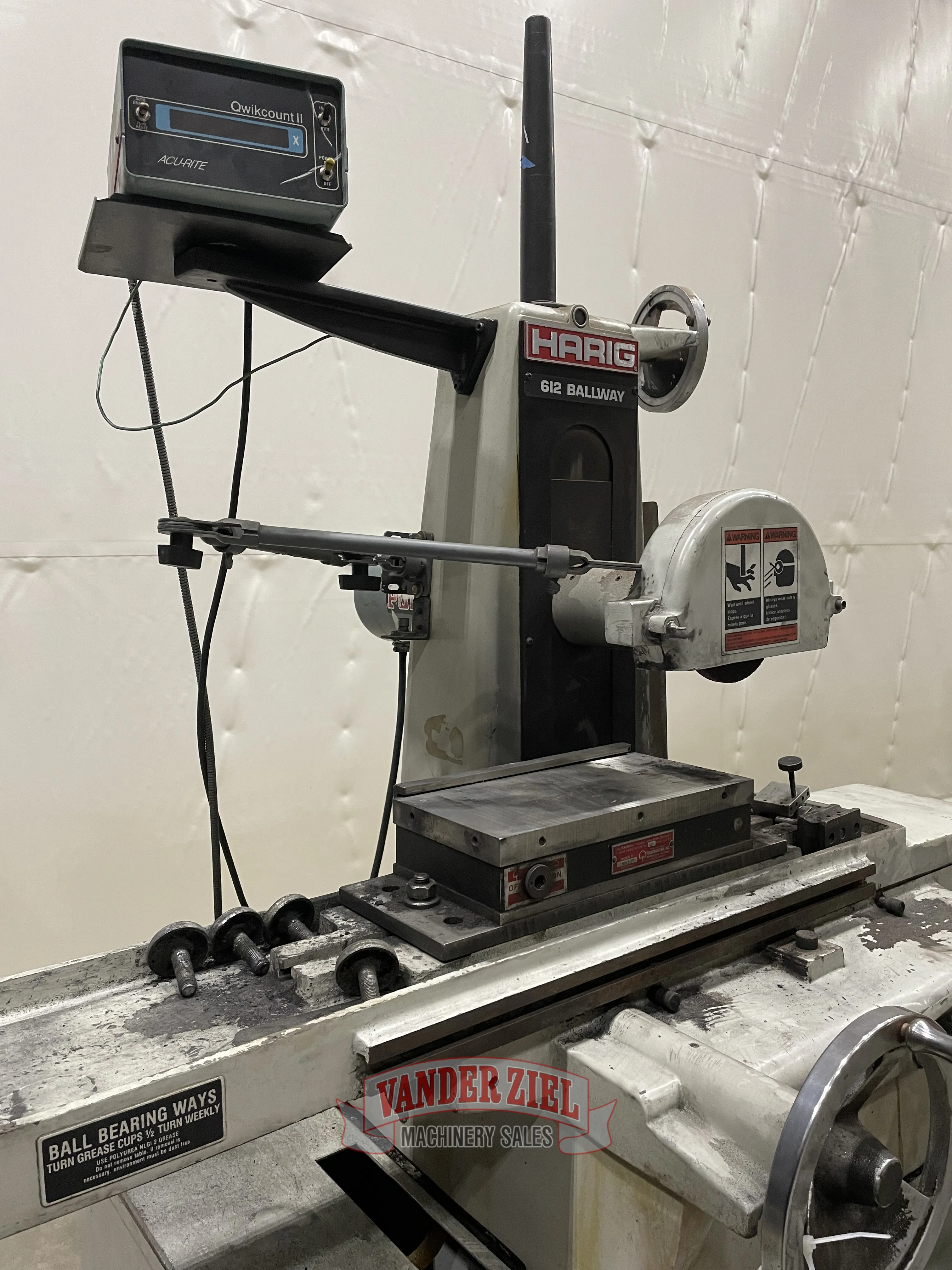

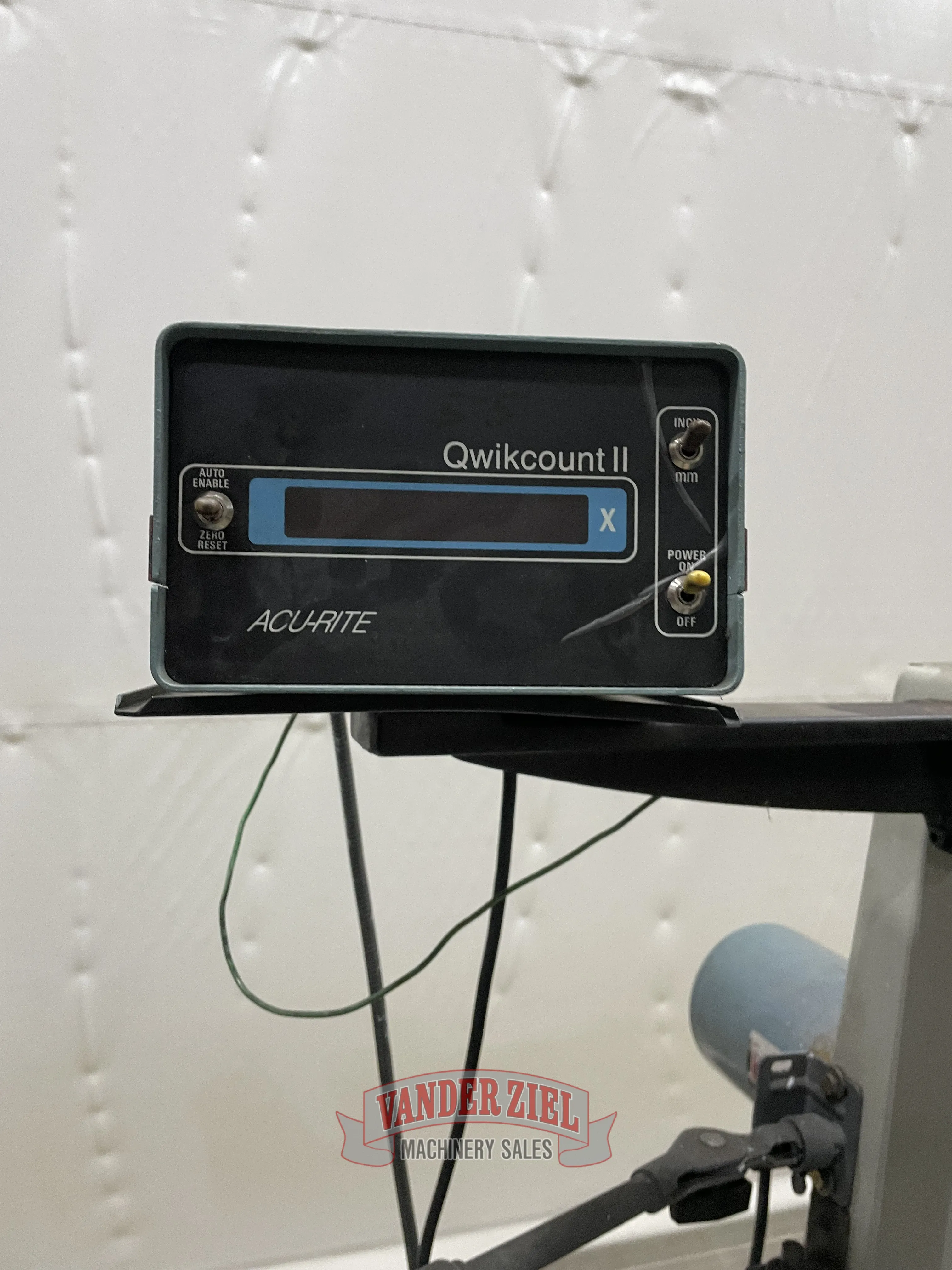

Grinder is equipped with an Acu-Rite DRO.

Preliminary Specifications - Subject to Verification
