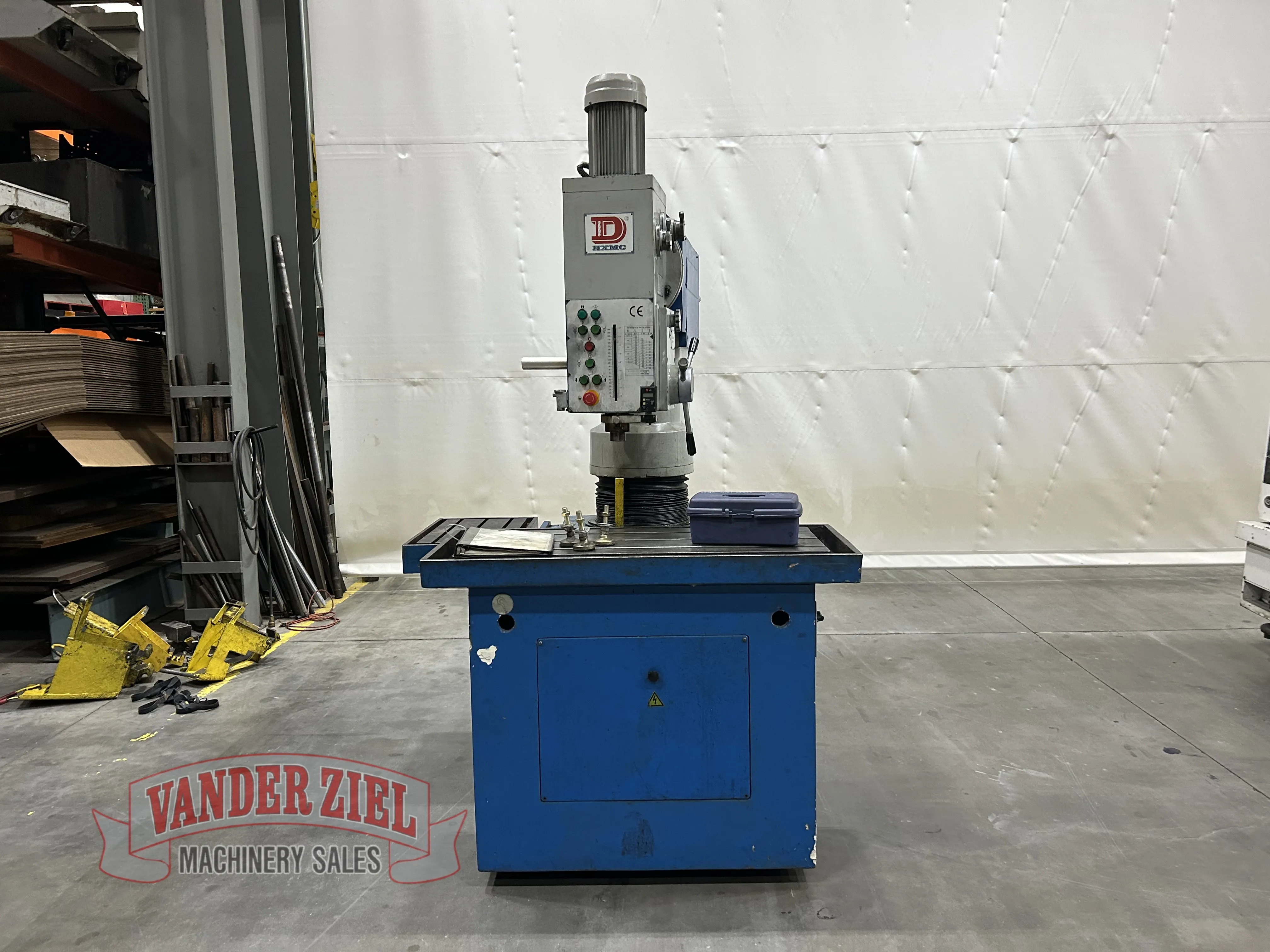

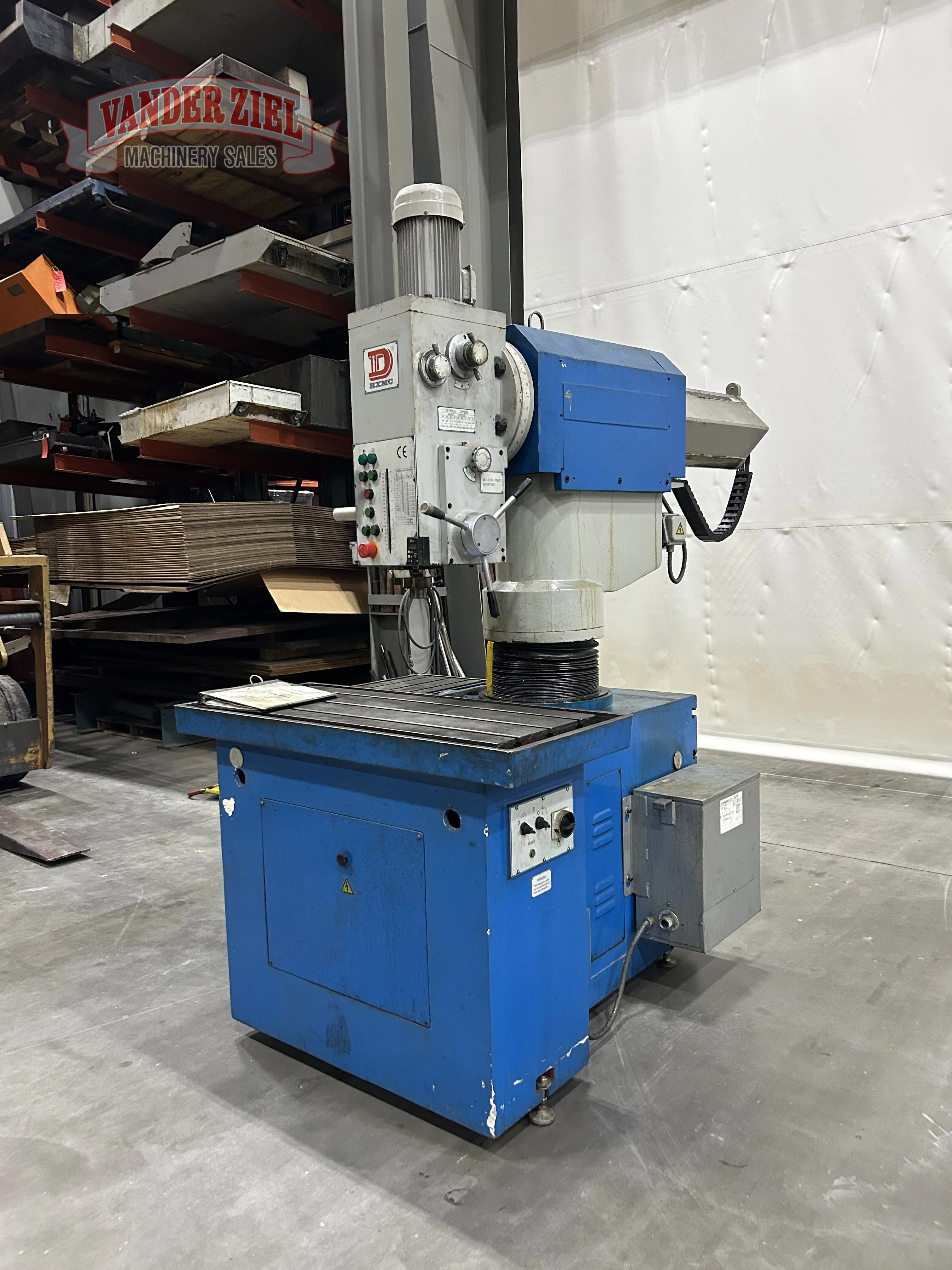

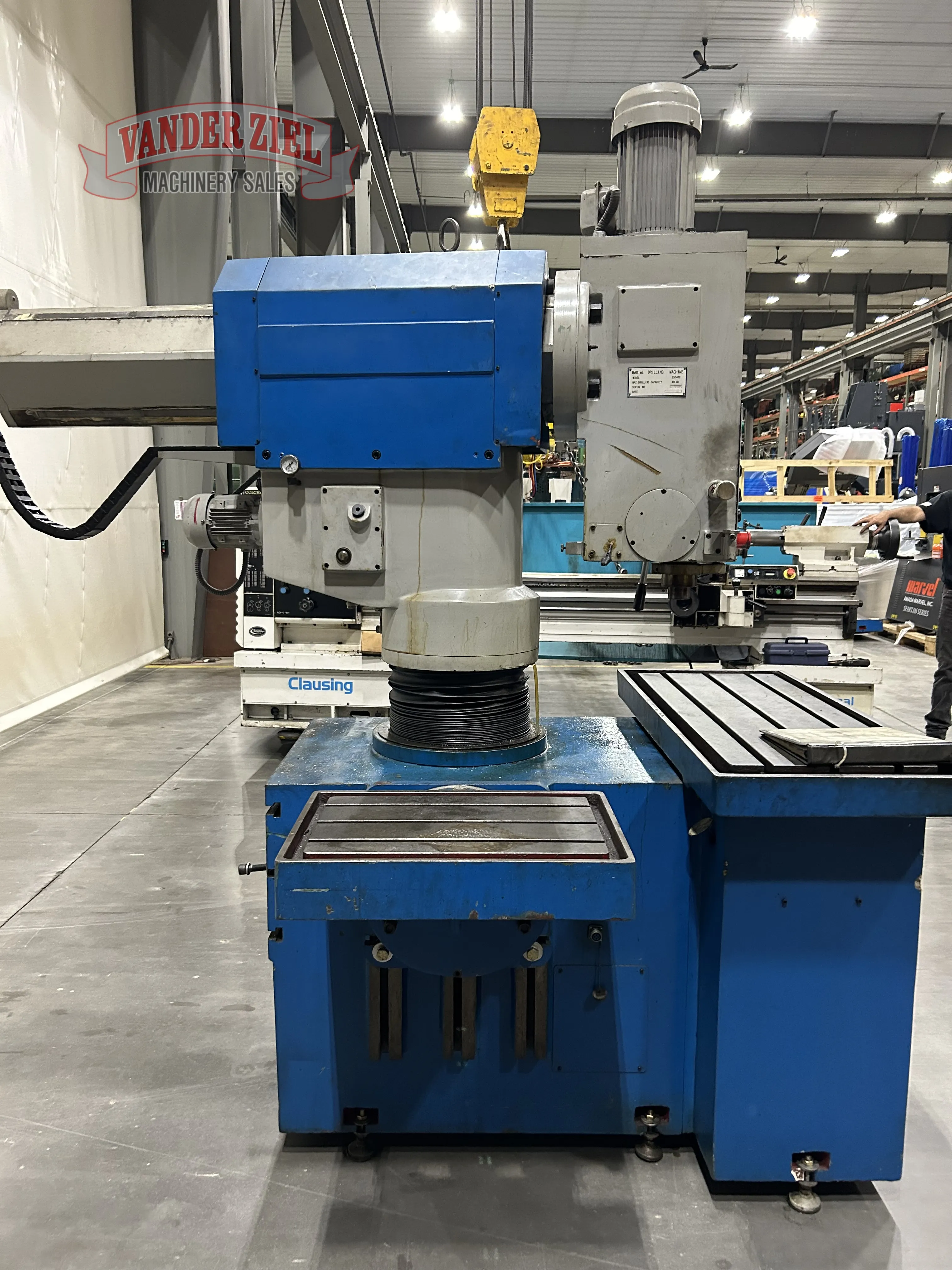

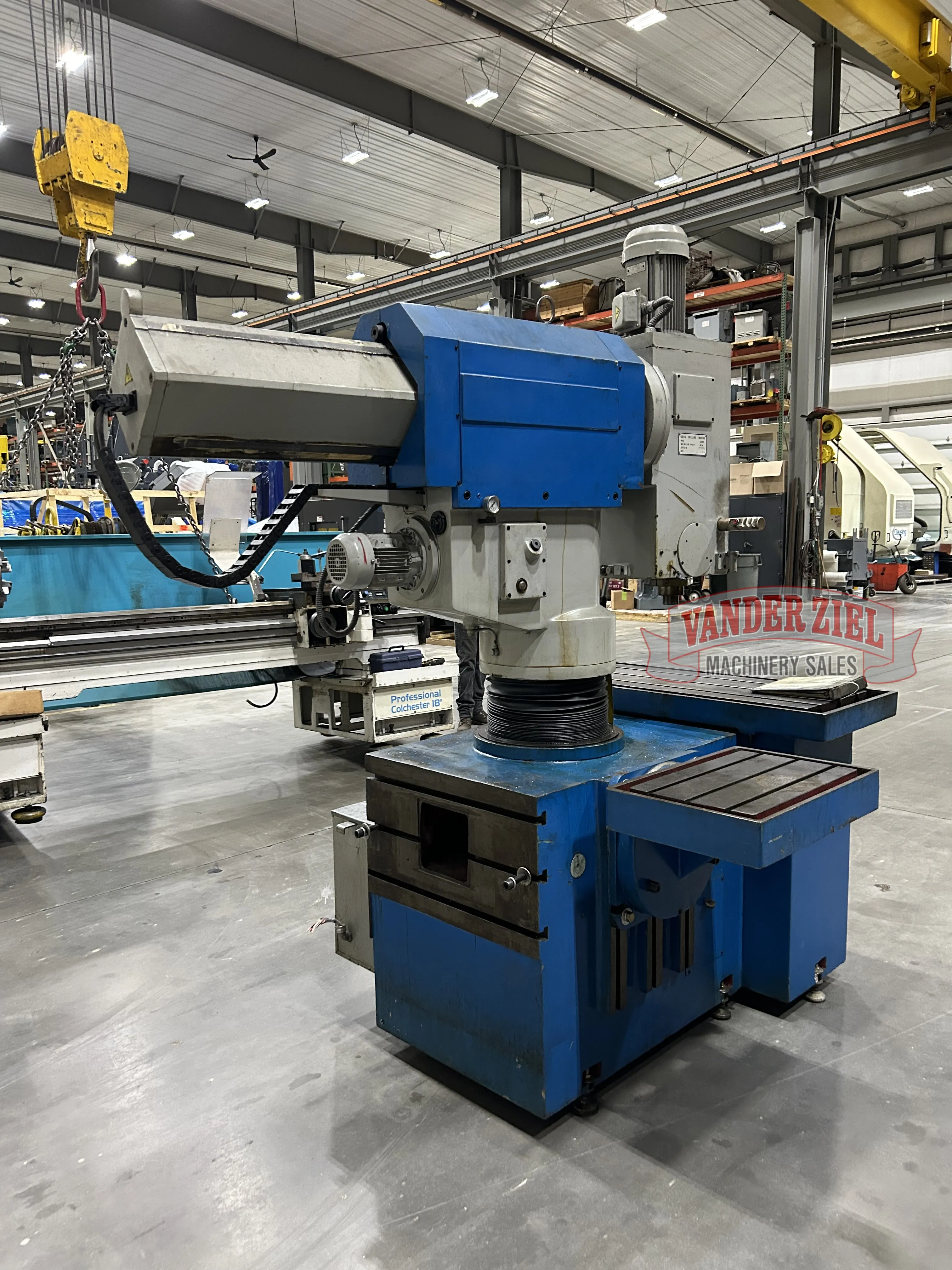

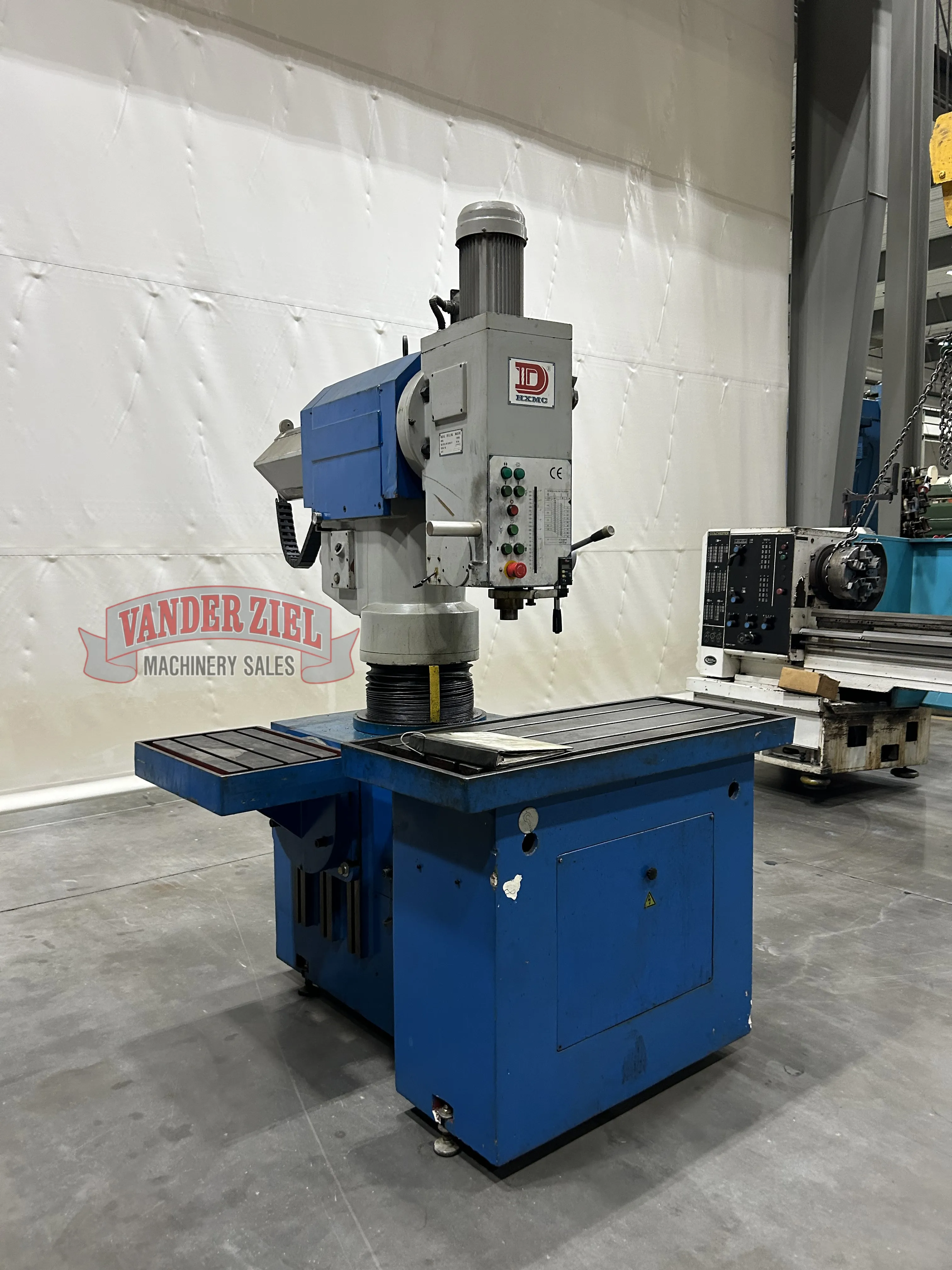

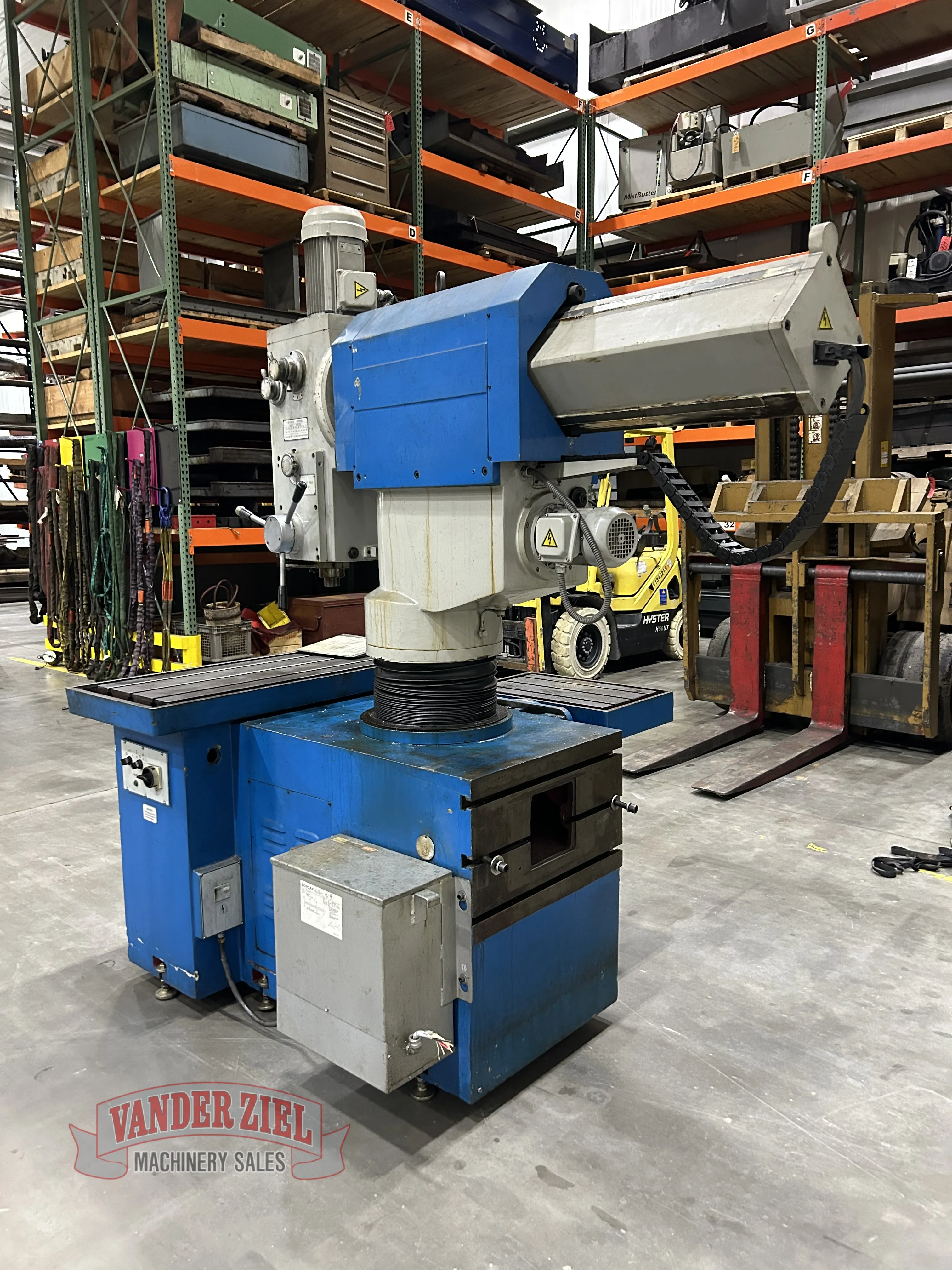

Sliding Ram Radial Drill, Model Z5040B

Sliding Ram Radial Drill, Model Z5040B

Asset #16733

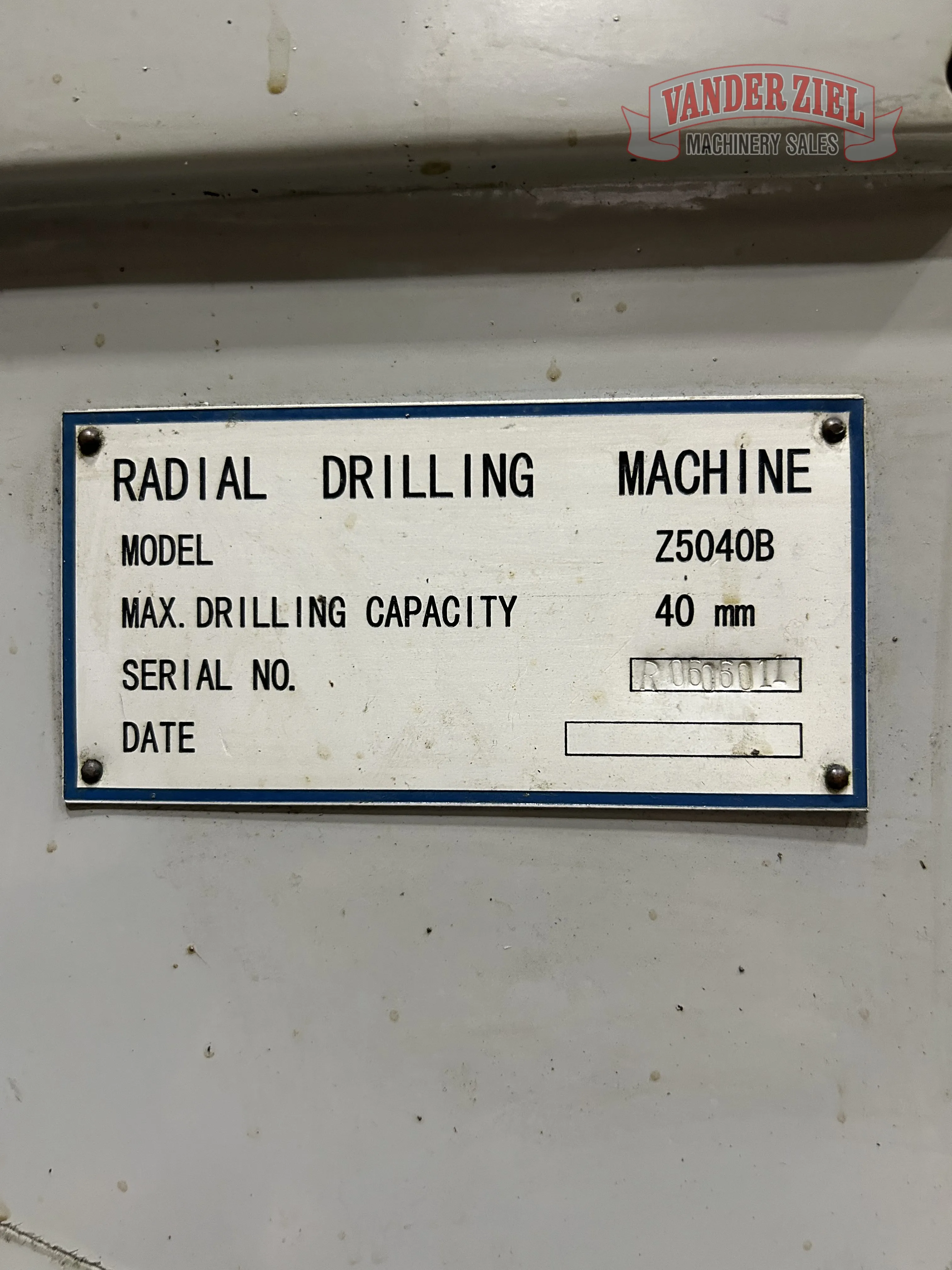

Serial # R0606011

Specifications:
Max. Drilling (Tapping) Capacity 1.574"
Max. Distance between Spindle Nose and Surface of Worktable 26.7"
Max. Travel of Slide Arm 22.8"
Max. Travel of Headstock 16.5"
Max. Travel of Spindle 7.87"
Taper of Spindle Bore 4 MT
Spindle Speeds (18) 40-2000 RPM
Spindle Feed Ranges (4) 0.00315, 0.0059, 0.010, 0.014 in/r
Diameter of Column 8.66"

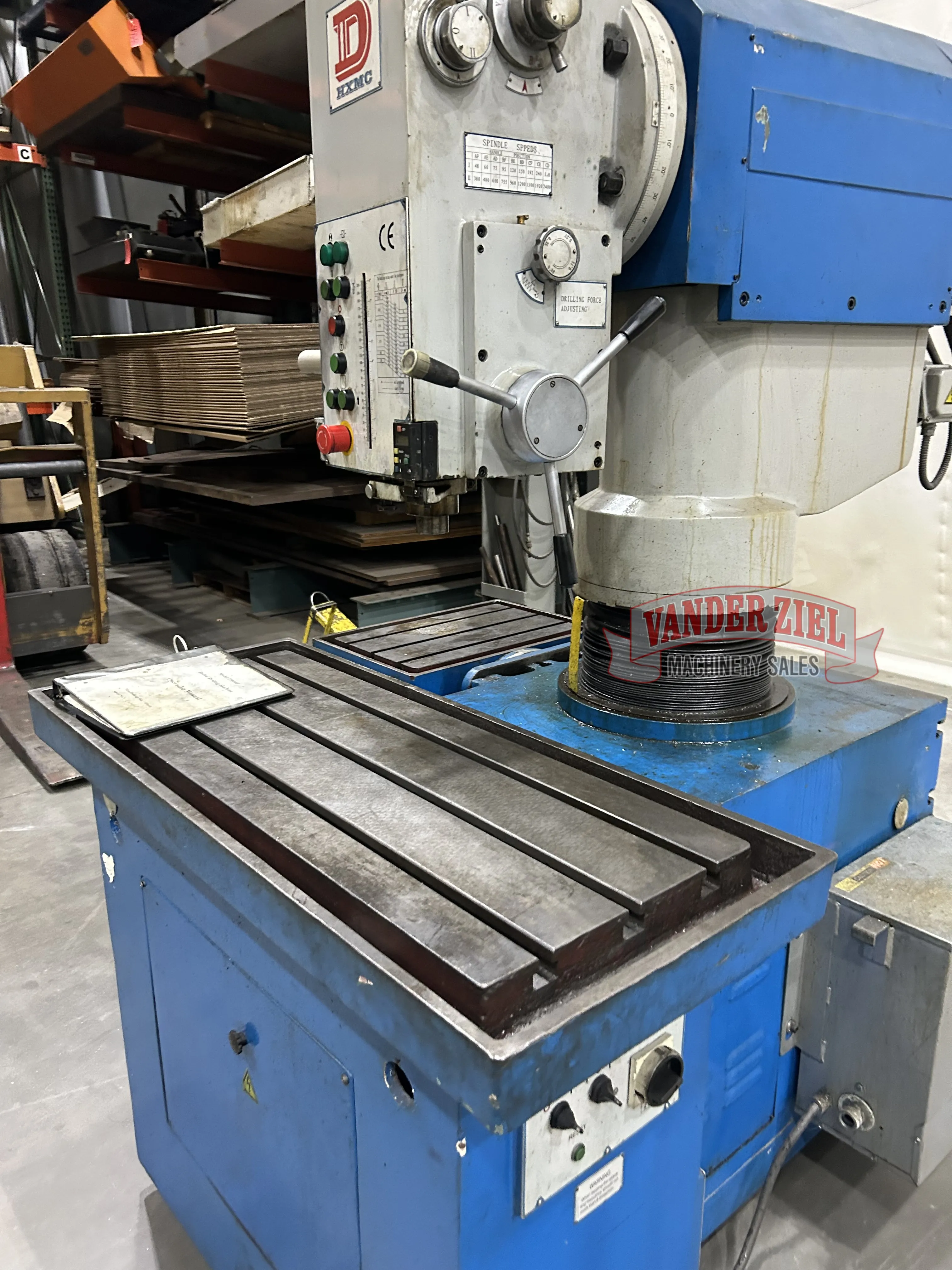

Work Surface of Table 42.3" x 15.9"
Dimension of T Slot Work Table 3-.70"
Max. Operating Height 111"
Machine Dimensions 77" x 48" x 92"H
Weight 5,866 lbs.

Preliminary Specifications - Subject to Verification
