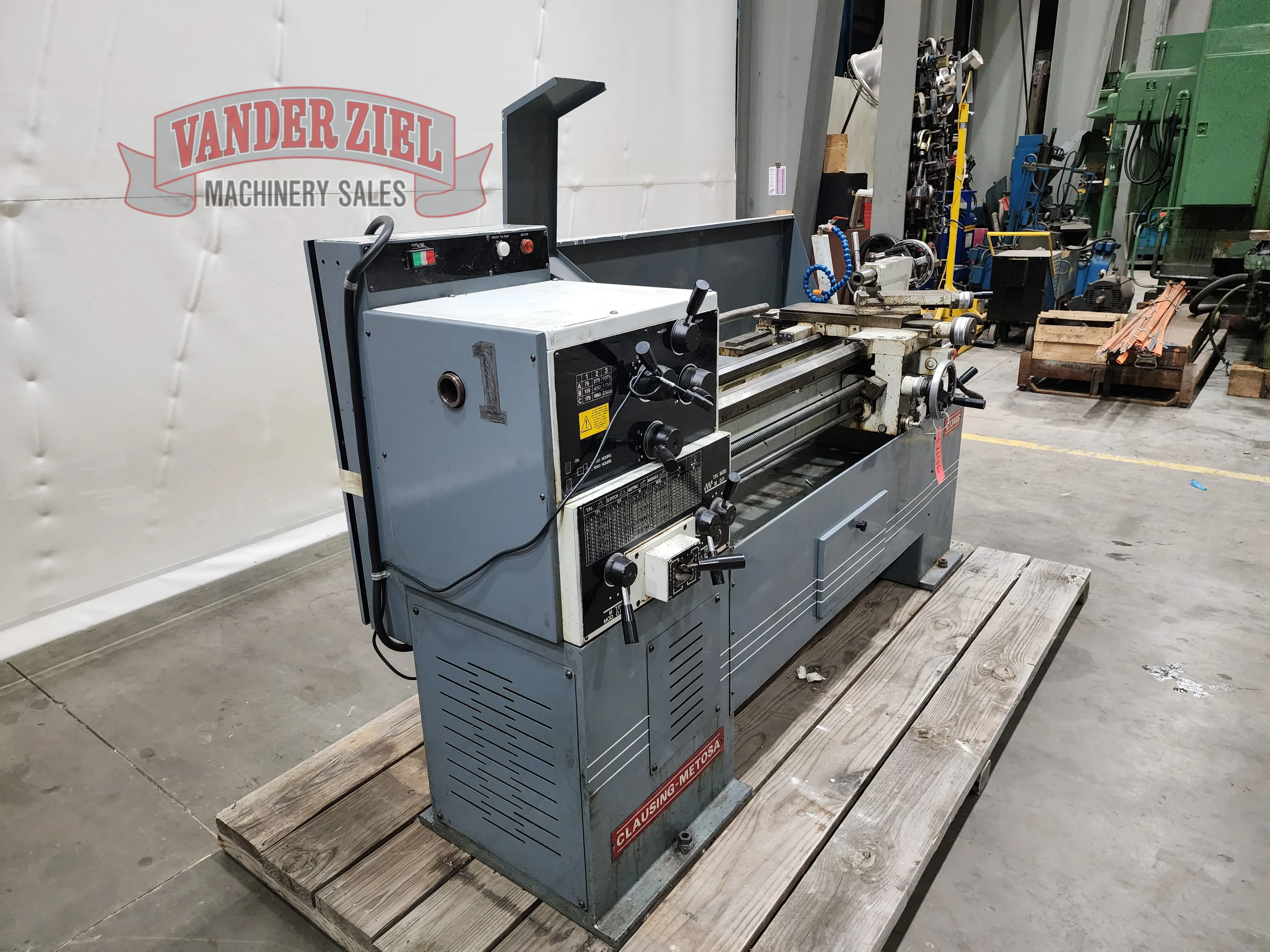

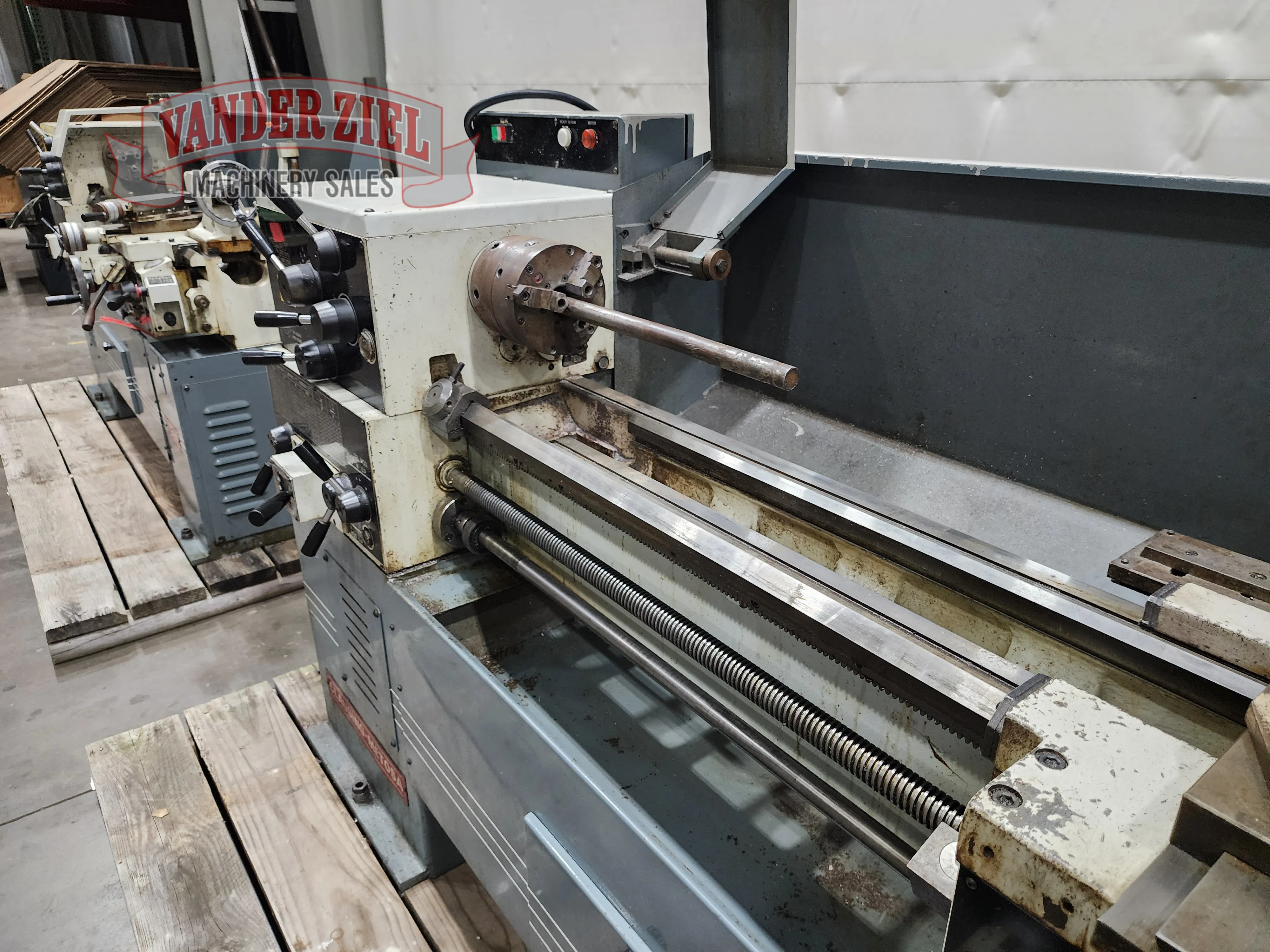

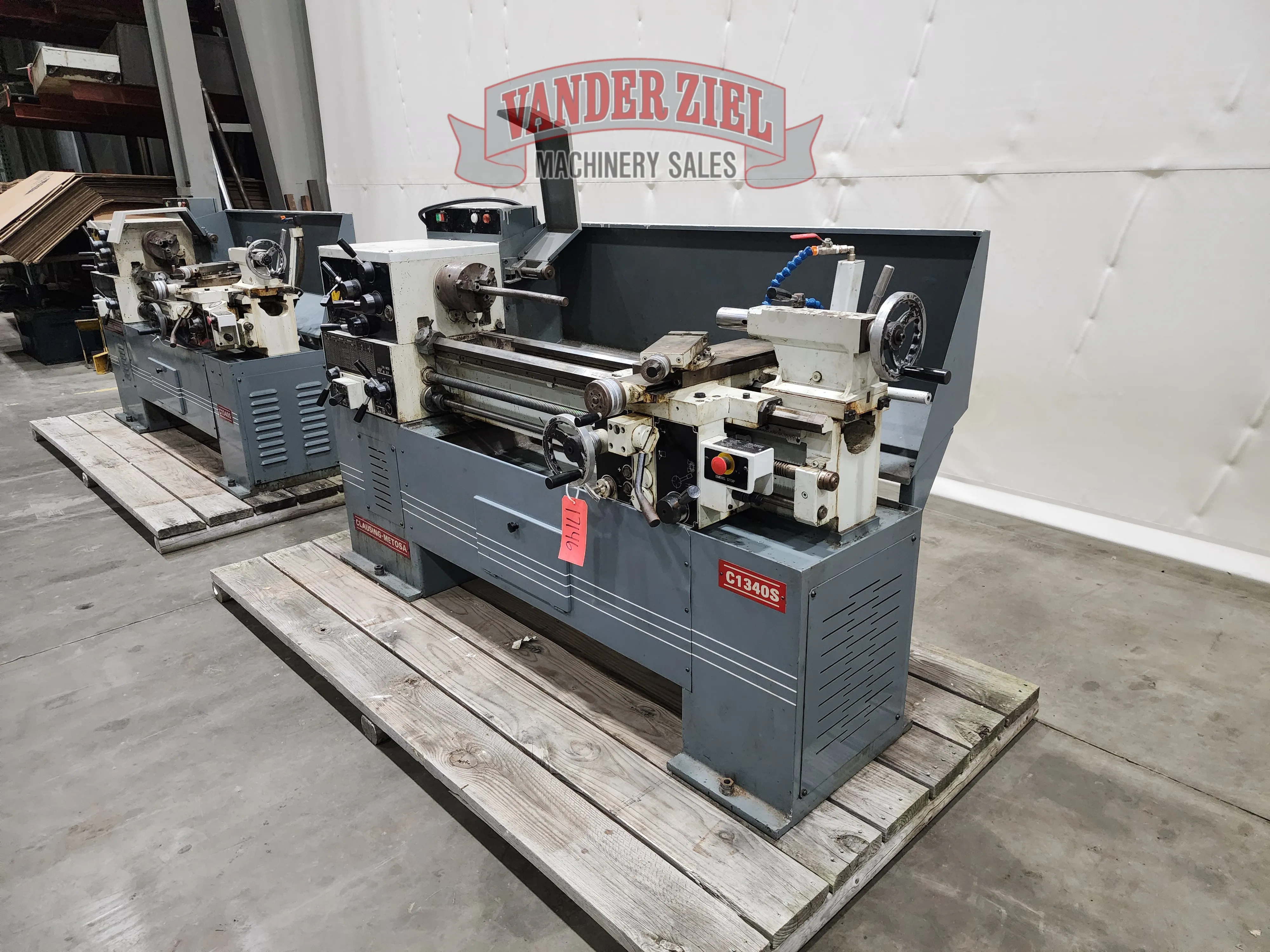

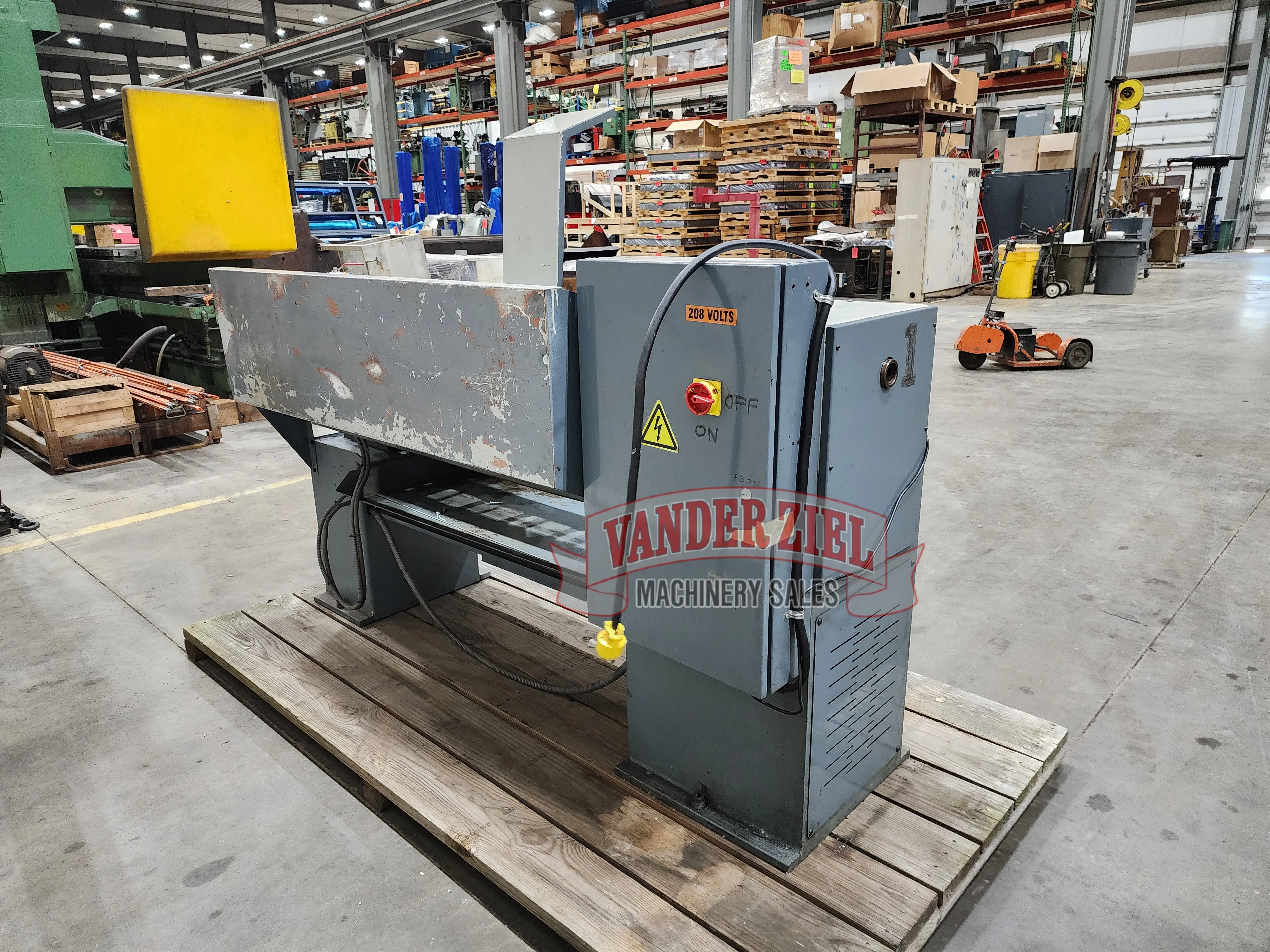

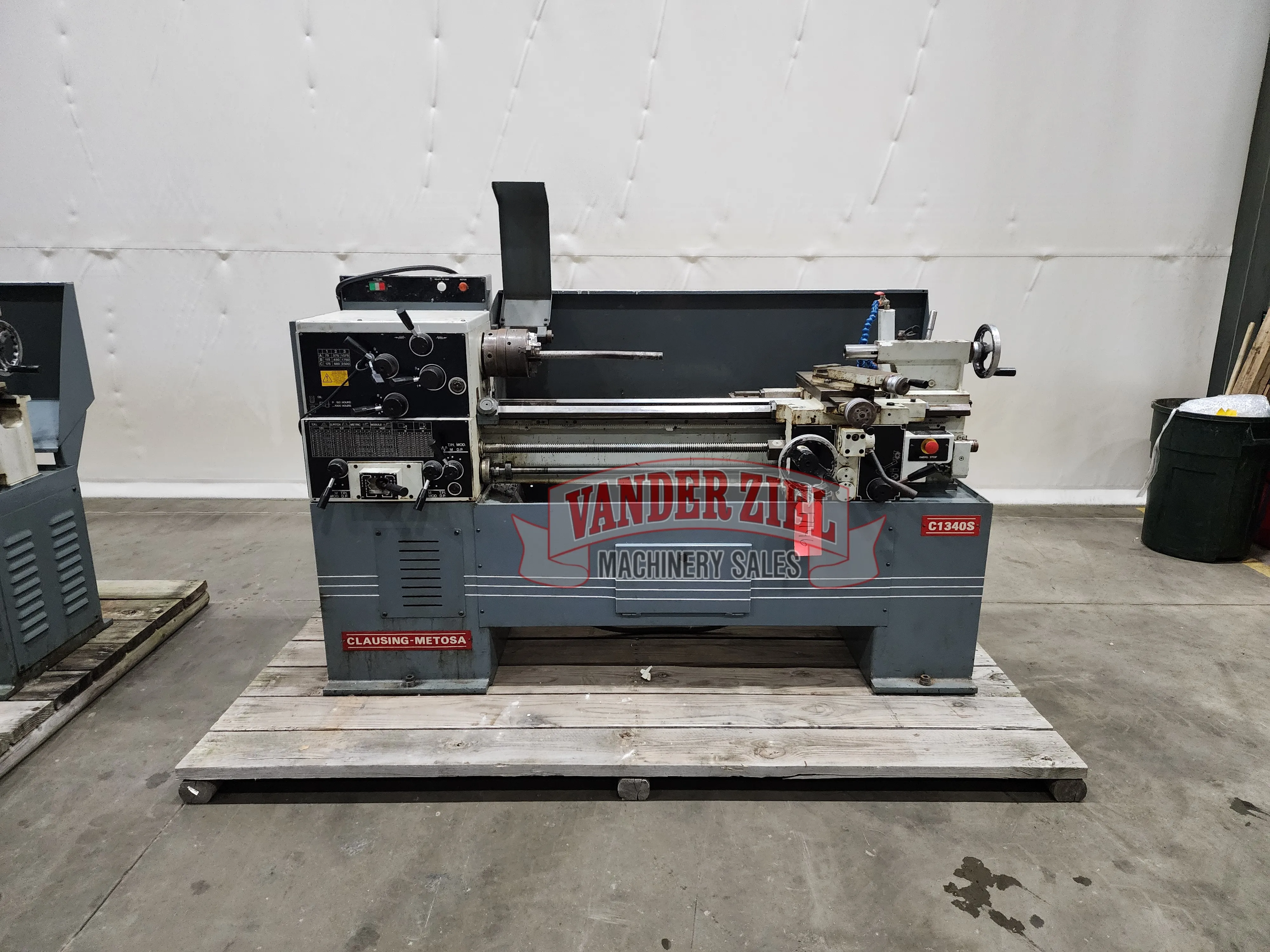

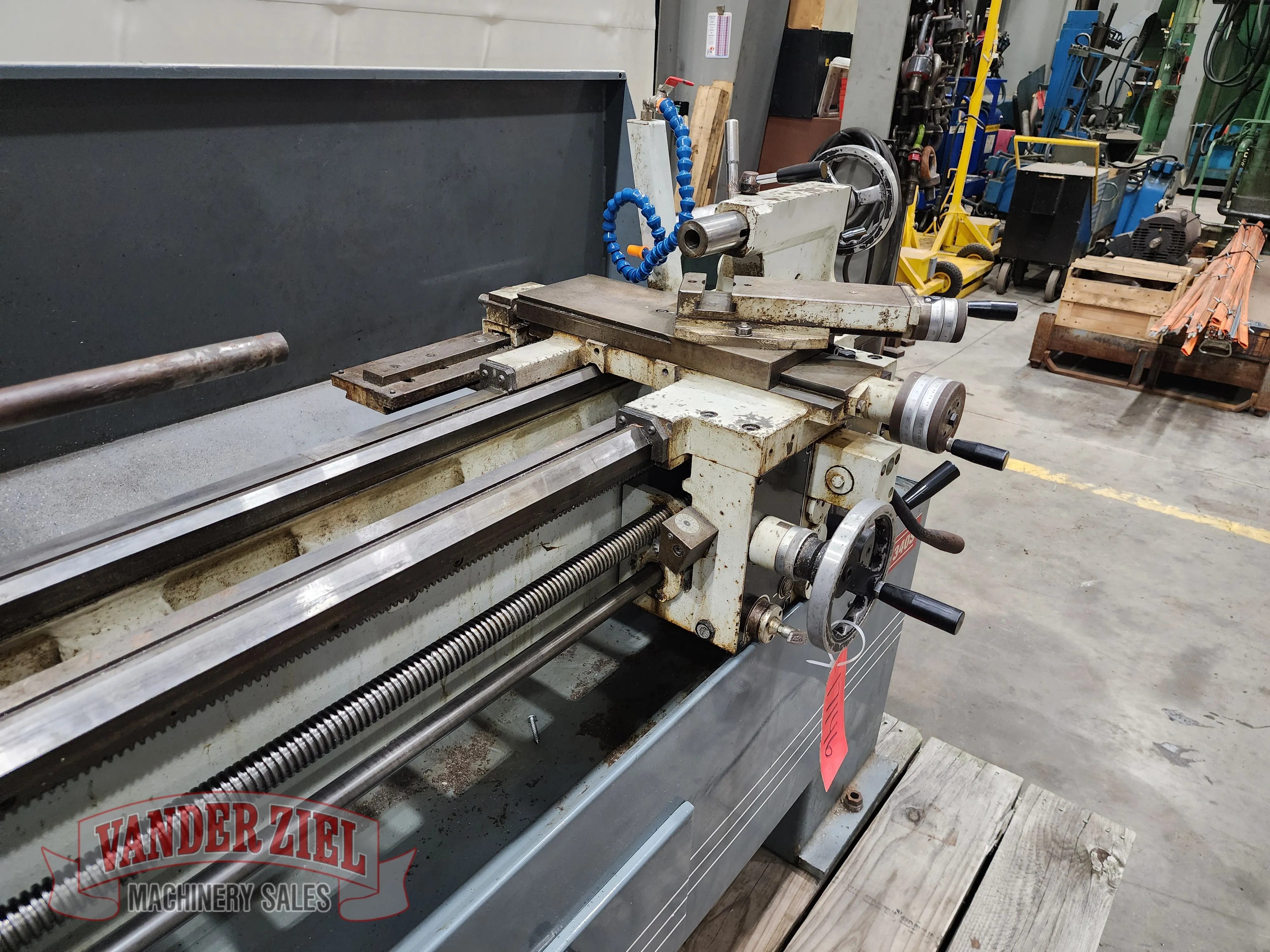

Clausing Metosa 13” x 40” Geared Head Lathe, Model C1340S

Clausing Metosa 13" x 40" Geared Head Lathe, Model C1340S

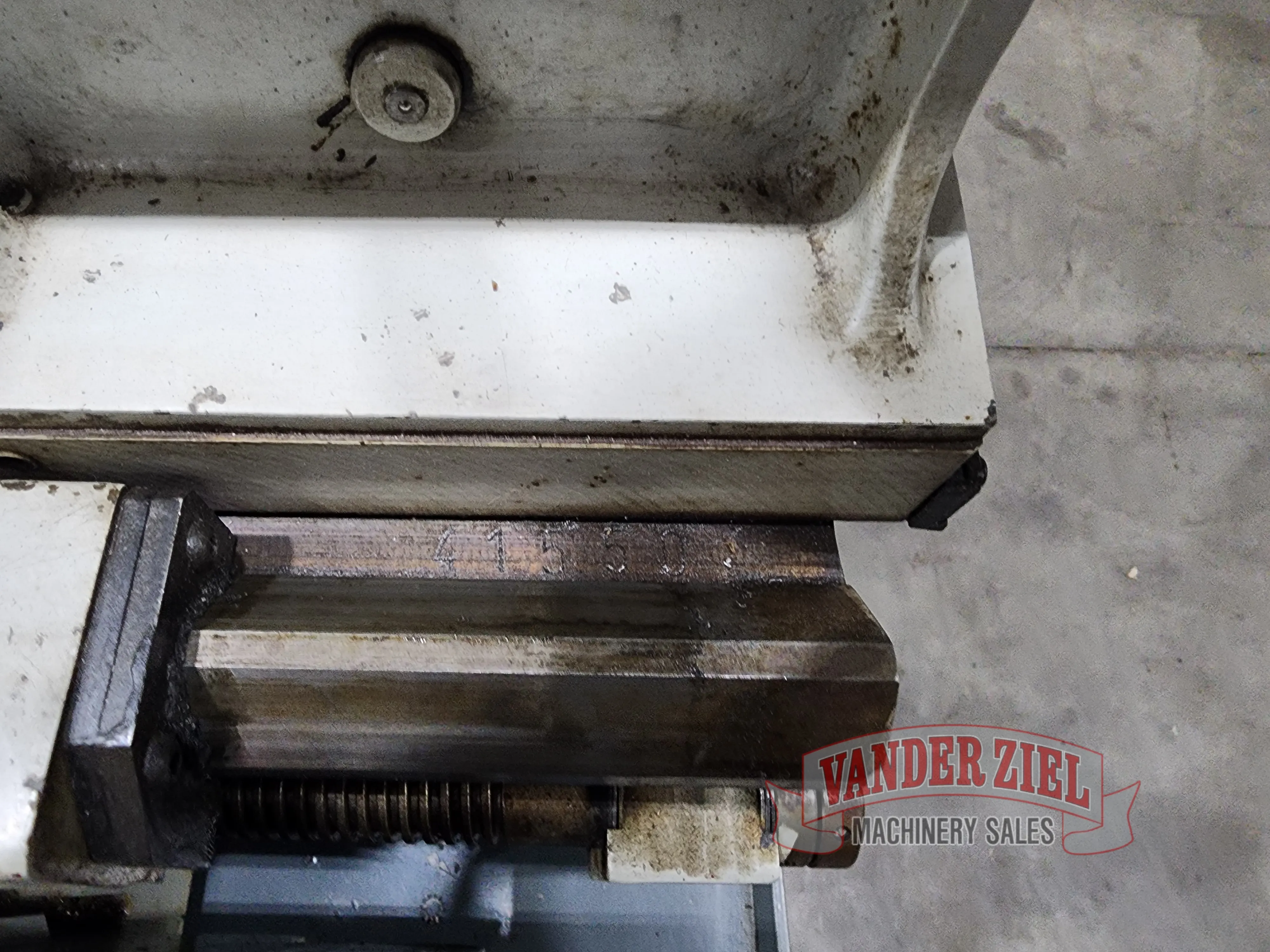

Serial # 41550
Asset # 17146

Specifications:
Swing over Bed 13.2"
Center Height 6.5"
Swing over Carriage 12.20"
Swing over Cross Slide 6.89"
Bed Width 10"
Spindle Bore 1.65"
Spindle Nose D1-5
Spindle Taper 4 MT

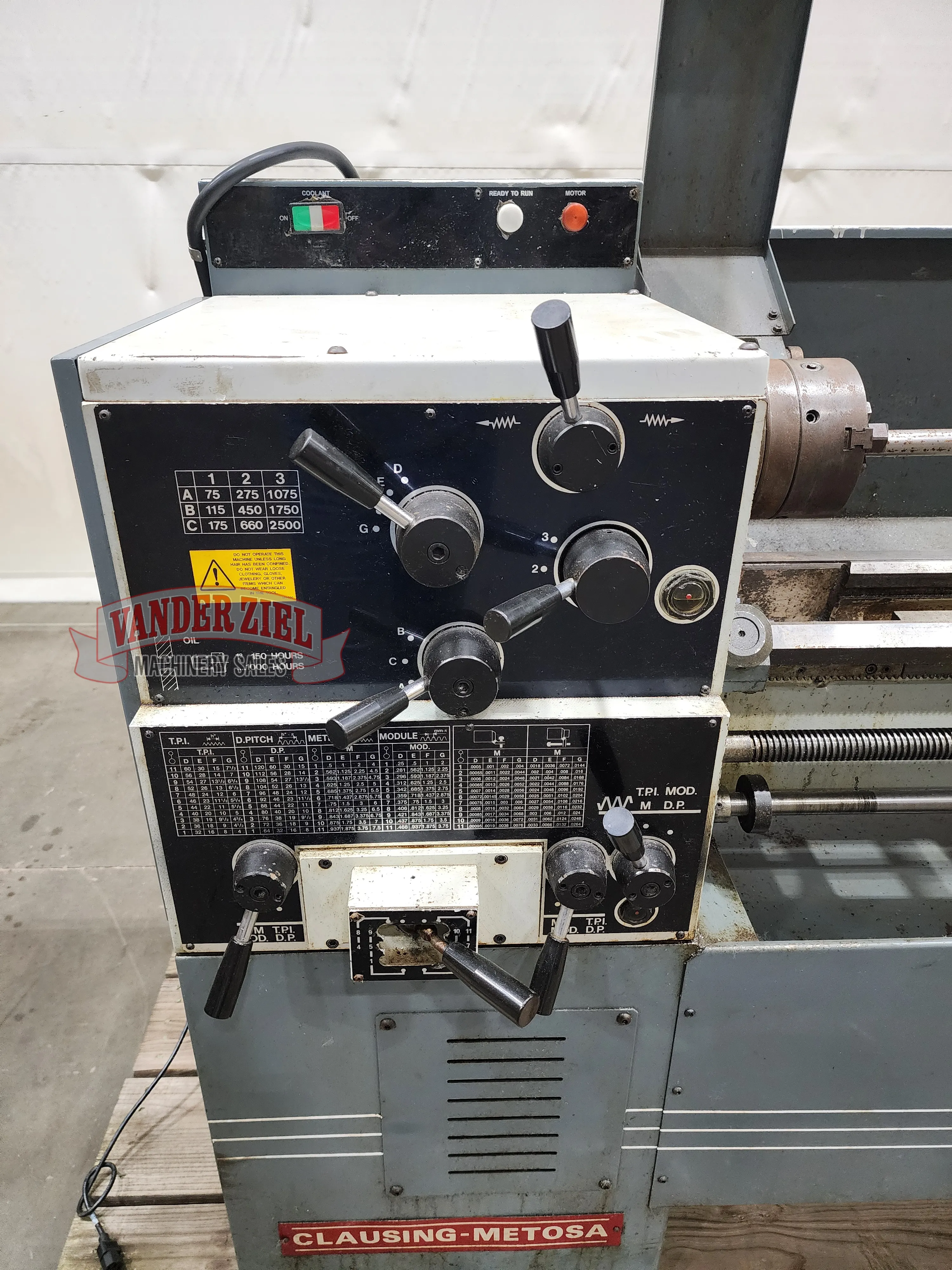

No. of Speeds 9
Spindle Speed Range 60 - 2000 RPM
Longitudinal Feeds (44) 0.0018-0.026"
Cross Feeds (44) 0.0005 - 0.0076"
Threads (44) 4-60 TPI
Modular Threads (44) 0.25 - 3.75
Diametral (44) 8-120
Leadscrew Diameter 1.26" / 4 TPI
Cross Slide Travel 9.65"
Top Slide Travel 4.72"
Max. Tool Size 5/8" x 5/8"
Tailstock Ram Diameter 1.9"
Tailstock Ram Travel 5.51"
Tailstock Taper 3 MT
Spindle Motor 3 HP
Pump Motor 3/4 HP
Dimensions 37.5" x 85.4" x 50.5"H
Weight 2,290 lbs.

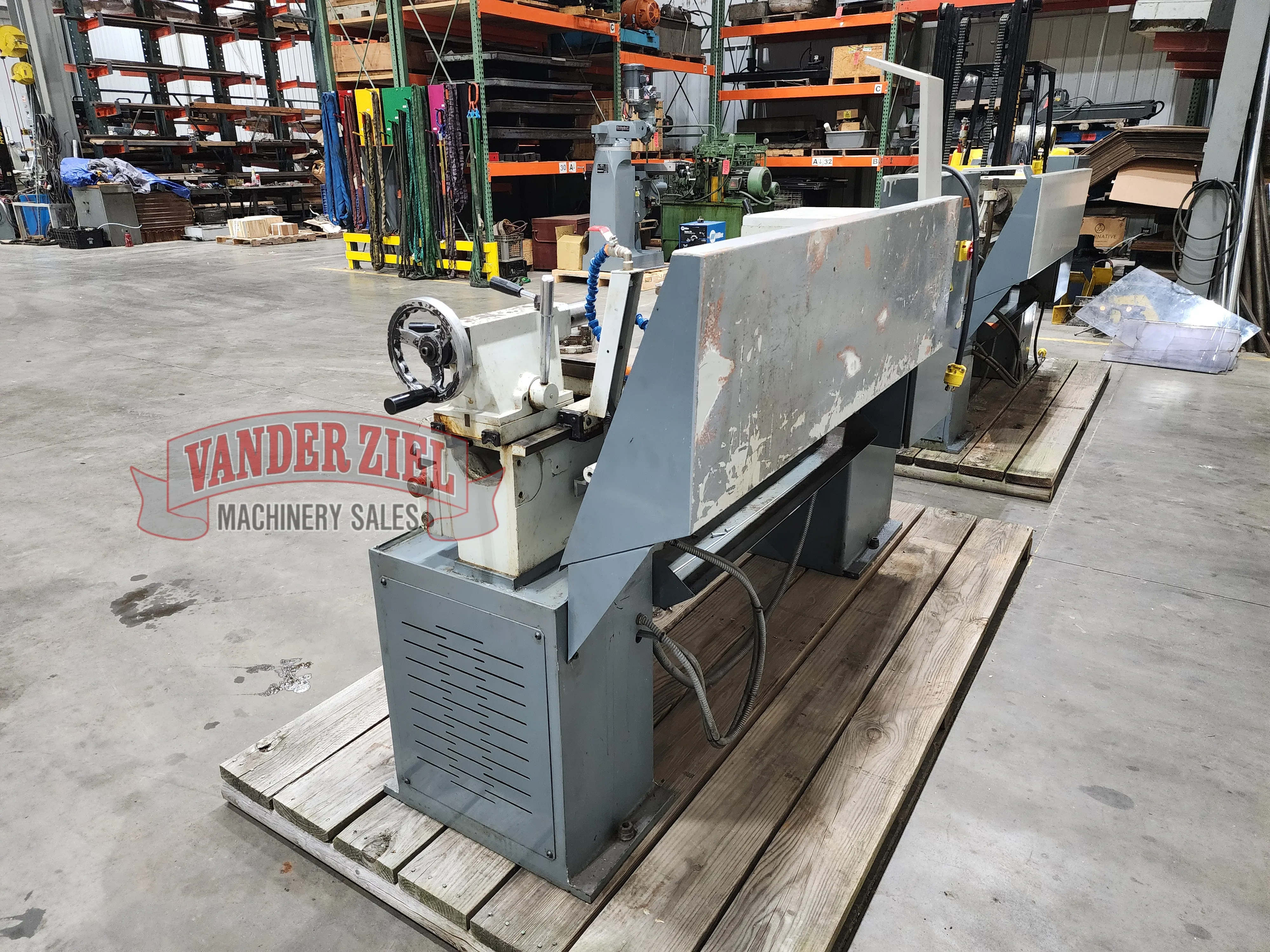

Lathe is equipped with a taper attachment.

Preliminary Specifications - Subject to Verification
