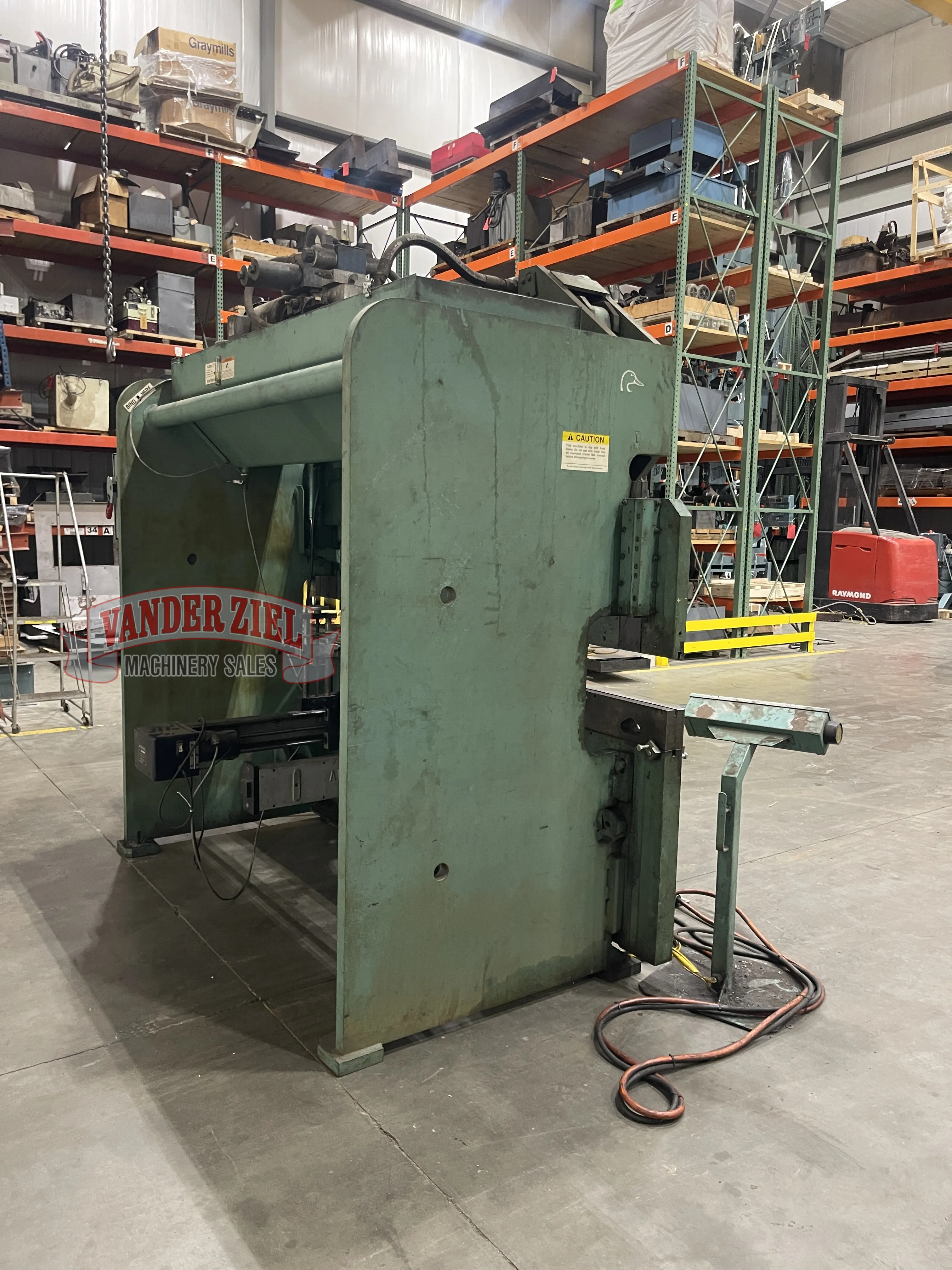

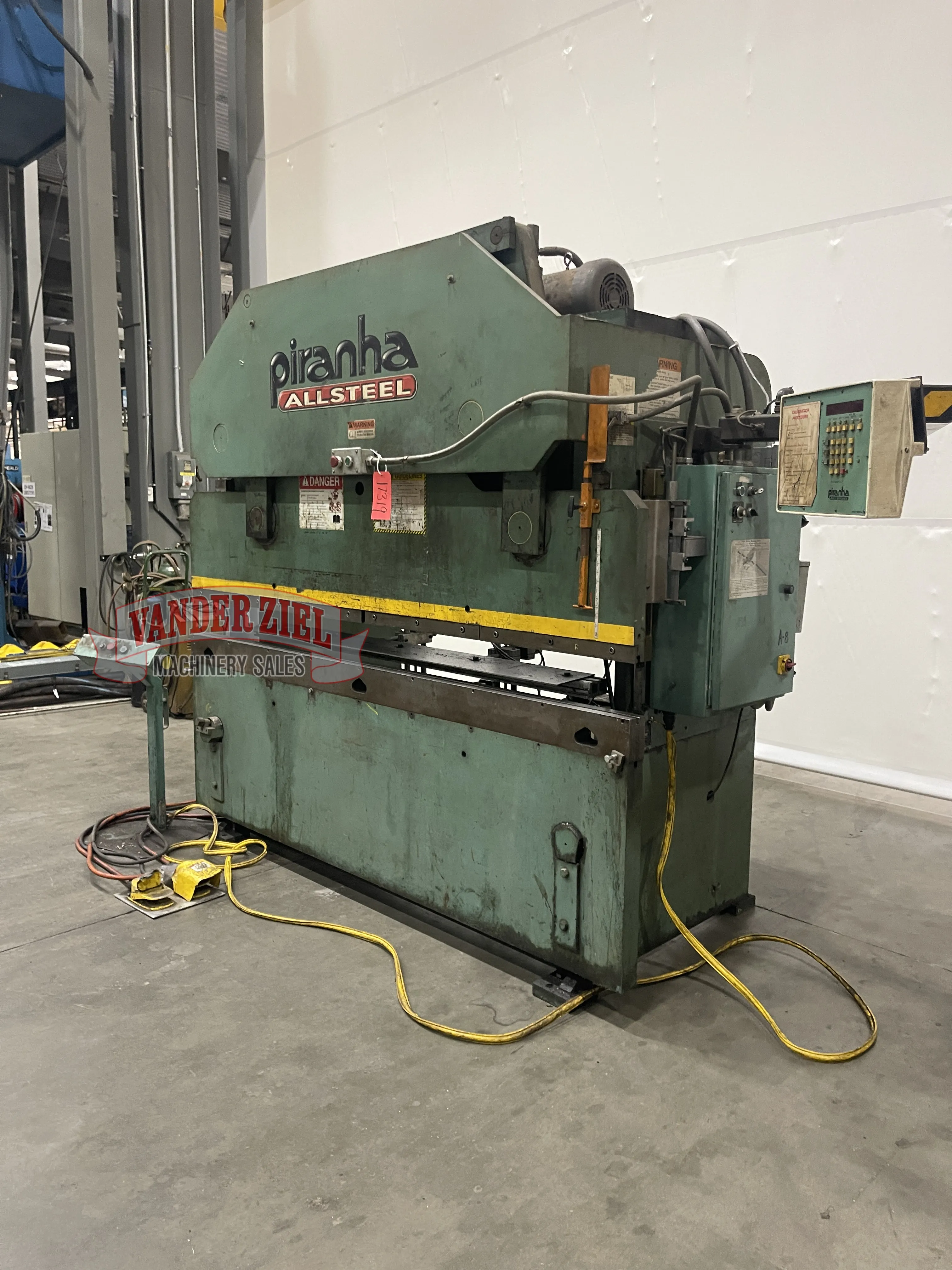

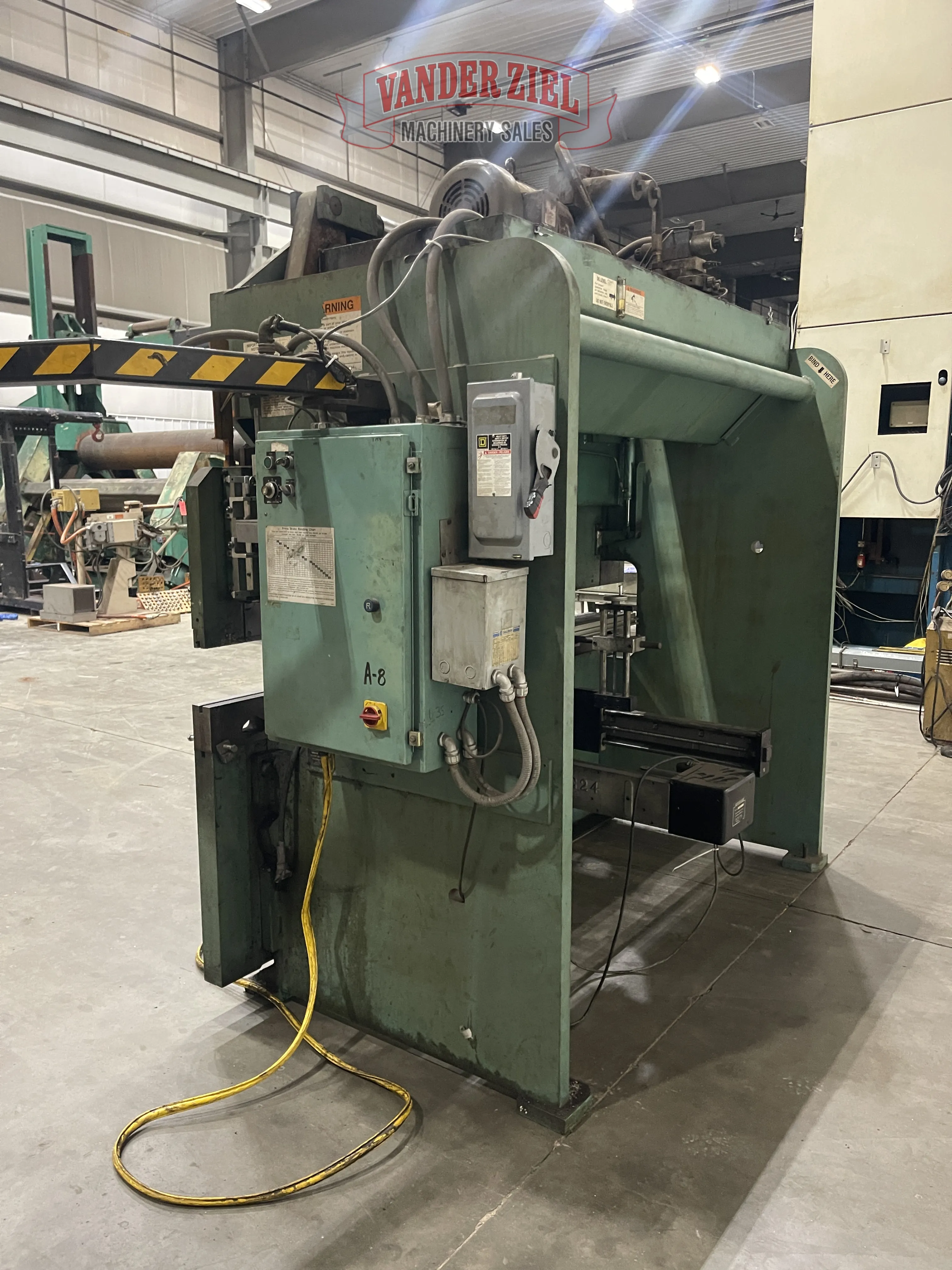

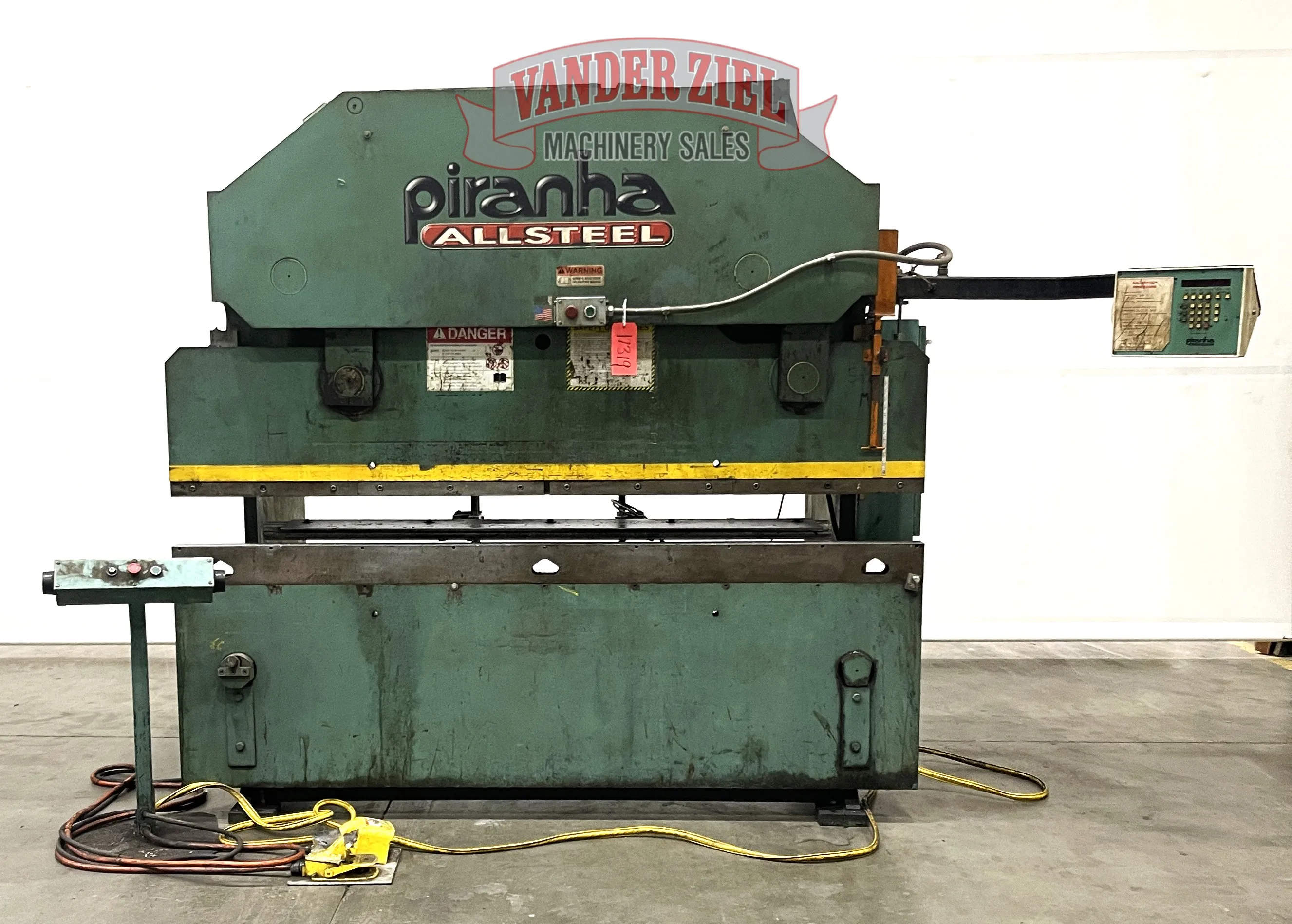

Piranha All Steel 8' x 65 Tons Press Brake, Model 65-8

Piranha All Steel 8' x 65 Tons Press Brake
Asset #17319
Serial # 6508-1089
Specifications:
Capacity 65 Tons
Bending Length 8′
Bending Capacities
12 GA - 8′
10 GA - 6′
1/4" x 4′
3/8" x 3′
Drive HP 10
Approach & Return 1.5"/sec
Low Speed .25"/sec
High Speed .75"/sec
Stroke 0-6"
Open Height 15"
Shut Height 9"
Distance Between Housings 78"
Approx Oil Capacity 65 Gallons
Dimensions 96" x 46"
Height 98"
Weight 10,000 lbs

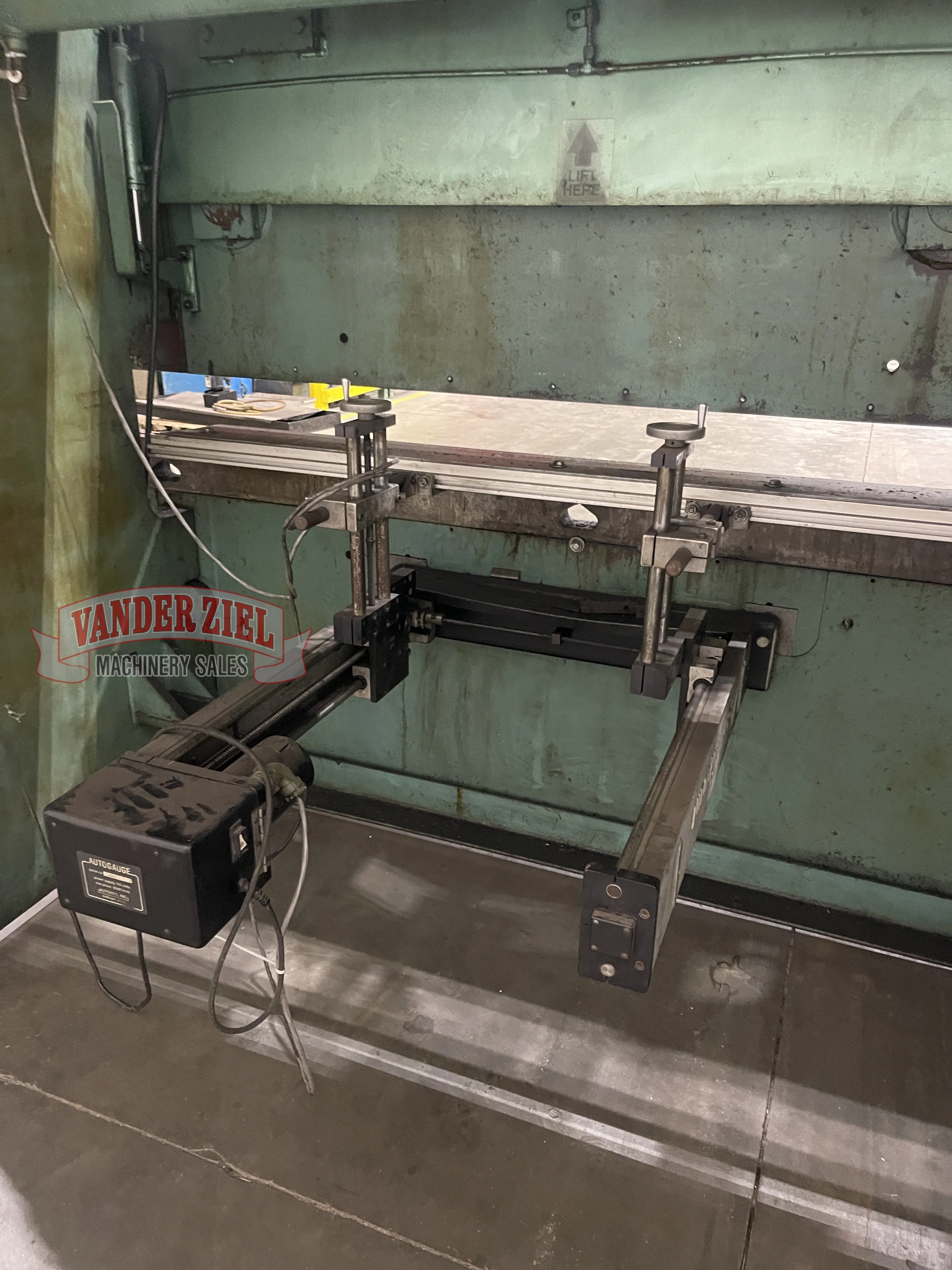

Brake is equipped with a 24" Backguage.
Preliminary Specifications - Subject to Verification
REF: 014964
