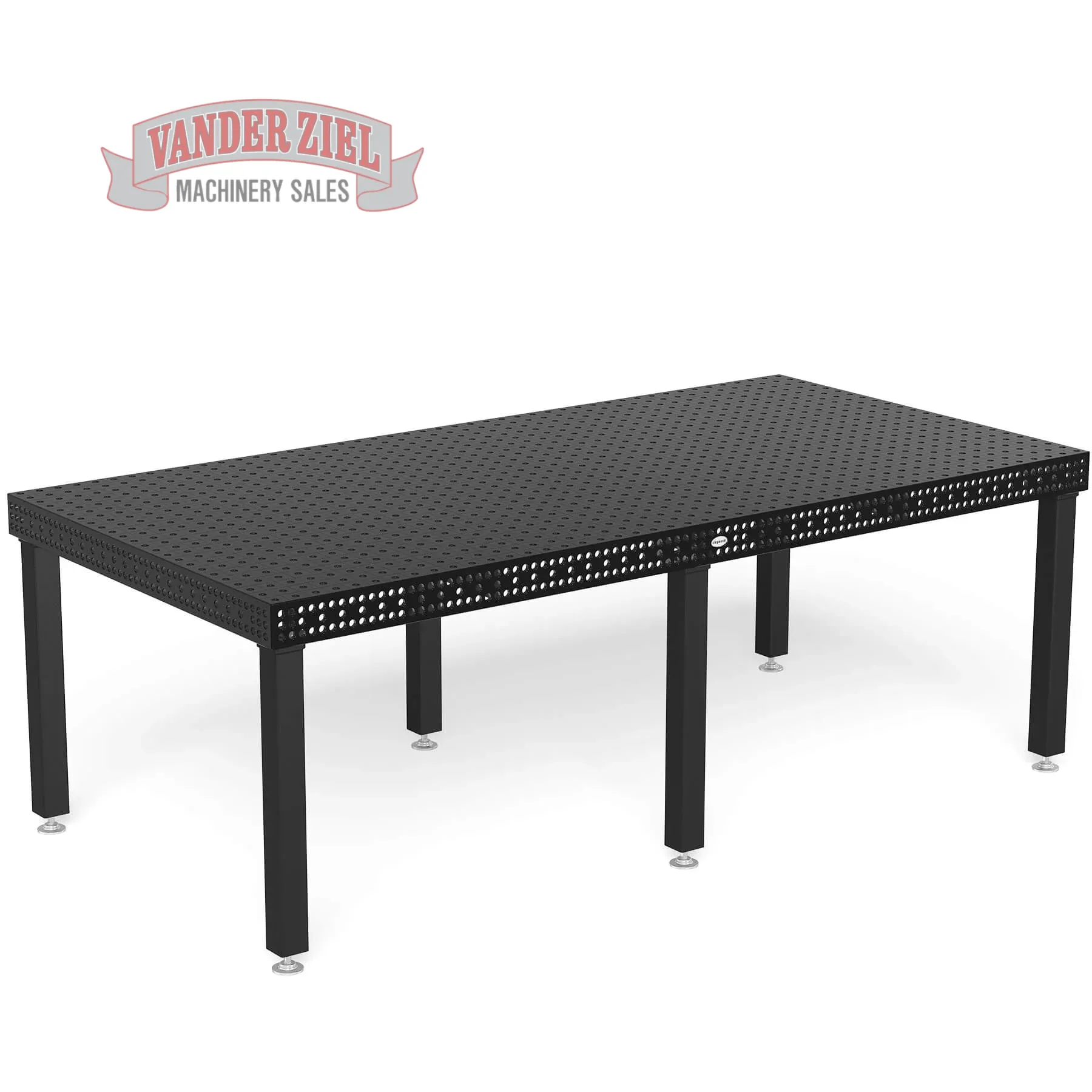

Siegmund 2,400x1,200mm 8.7 Series System 16 Welding Table, Model 4-160030.X7D - NEW

Siegmund 2,400x1,200mm 8.7 Series System 16 Welding Table - NEW

Asset # 17335

Welding Table Specs and Features:

Overall Tabletop Size: 2400x1200x100mm (94.48" x 47.24" x 3.93")
Borehole: Ø 16mm (0.629")
Welding Table Series: Professional Extreme 8.7 Series
Welding Table Material Thickness: Approx. 11.5 - 13mm (0.45" - 0.51")
Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
Table Surface Hardness: 450-850 Vickers
Official Siegmund Welding Table Part No.: 4-160030.X7D
Maximum Weight Load: 7,700 lbs. (Based on Even Distribution)
Approximate Table Weight: 1,100 lbs. / 499 kg.

Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
Boreholes have a radius of 2mm (0.078").
Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")
Metric Scaling on the surface.
Construction reinforced with ribbing.
