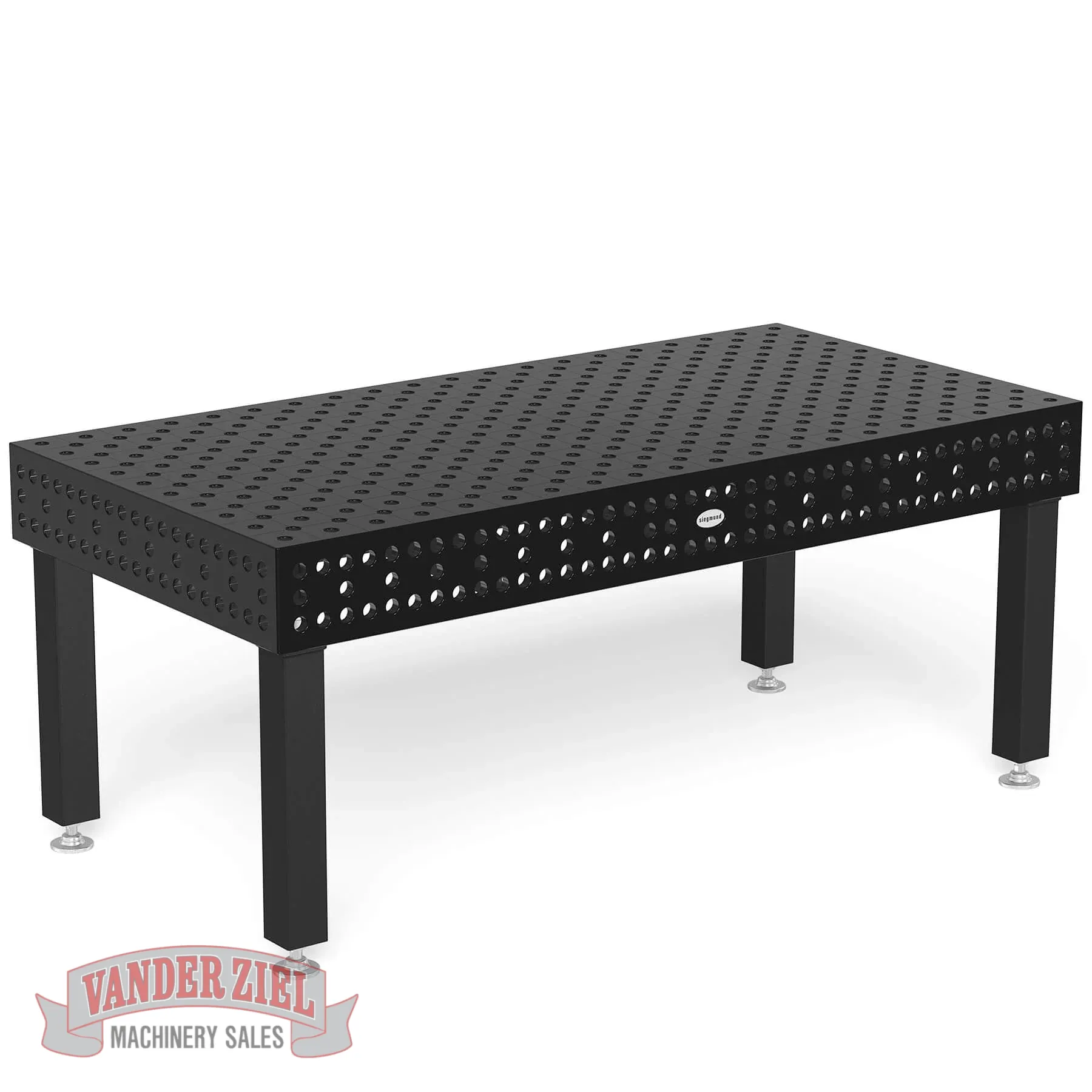

Siegmund 2,000x1,000mm 8.7 Series System 28 Welding Table, Model 4-280020.XD7D - NEW

Welding Table Specs and Features:

• Overall Tabletop Size: 2,000 x 1,000 x 200mm (78.74" x 39.37" x 7.87")


• Borehole: Ø 28mm (1.10")


• Welding Table Series: Professional Extreme 8.7 Series


• Welding Table Material Thickness: Approx. 24.5 - 27mm (0.96" - 1.06")


• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated


• Table Surface Hardness: 450-850 Vickers


• Official Siegmund Welding Table Part No.: 4-280020.XD7D


• Maximum Weight Load: 10,192 lbs. (Based on Even Distribution)


• Approximate Table Weight: 1,541 lbs. / 699 kg.

1. Boreholes on the Surface are in a Diagonal Grid Configuration.


2. Boreholes have a radius of 3mm (0.118").


3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.


4. Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")


5. Metric Scaling on the surface.


6.

   Construction reinforced with ribbing.
