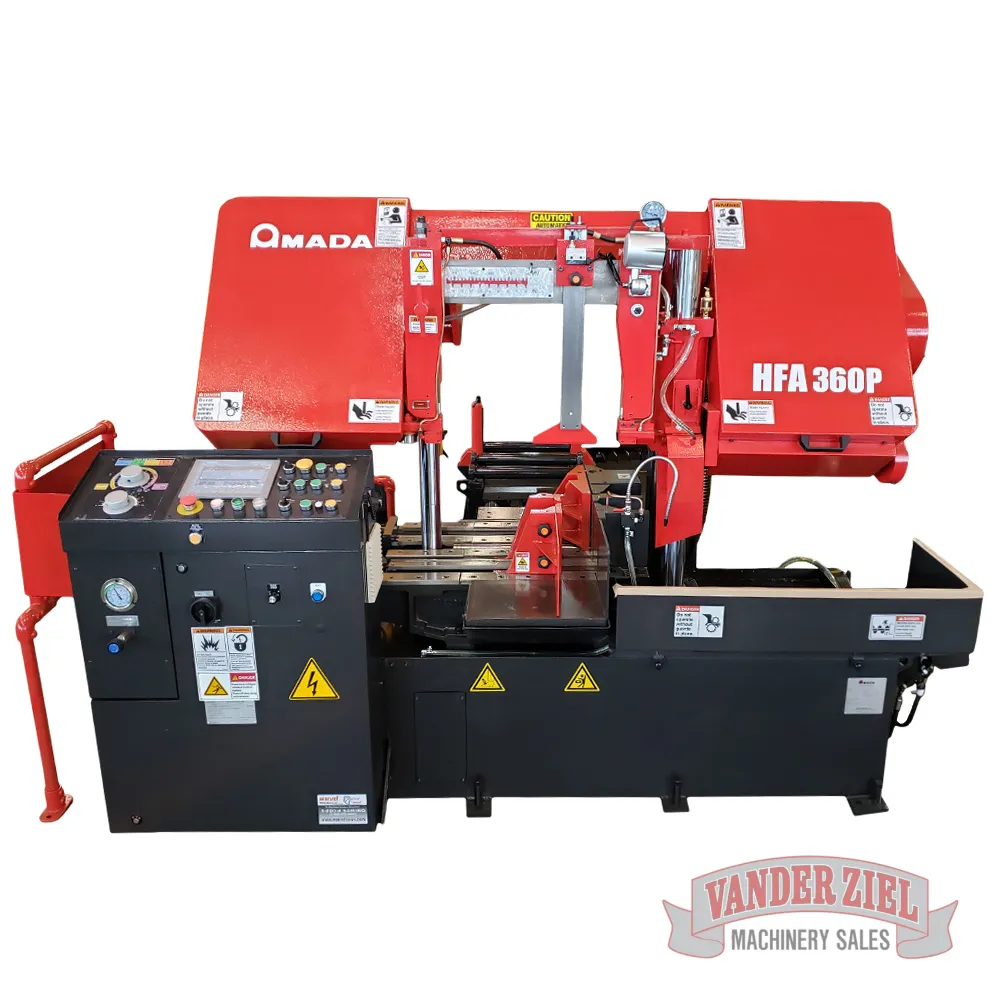

Amada Marvel HFA360P Horizontal Dual Post Saw - NEW

Asset # 17411
Serial # HFA360P-210

SPECIFICATIONS & FEATURES

Capacity	Square W x H	Round
Blade at 90^o	14" Wide x 14" High (360 x 360 mm)	14" (360 mm)

Blade	1.25" L x .042" W x 14'6" H (34 x 1.1 x 4420 mm)
Blade Tension	Hydraulically controlled tension (30,000 psi) provides consistent square cutting accuracy. The motion detector will shut the machine off should the blade break or stall.
Speed Range	70 - 330 feet per minute (21 - 101 meter per minute) infinitely variable through a frequency inverter drive and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. A read out at the operator's touch screen assures accurate speed setting.
Hydraulic Down Feed	Feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator's station.
Hydraulic Shuttle Feed	Length settings of 0 - 20" (305 mm) are accomplished with simple programming at the operator's touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss. Repeatability is + .005 per index.
Motors	Blade Drive: 5 H.P. (3.75 kW) Inverter Drive. Hydraulic Pump Motor: 2 H.P. (.75 kW). Coolant Pump Motor: 1/8 H.P. (0.09 kW). All motors are 230-volts, 3 ph. 60 Hz.
Operator's Control Panel	Mounted on the left-hand side of the machine. It offers full control of the all the features of the machine such as vising, saw frame, Bundle Clamping, Touch Screen, Shuttle Advance & Retract, Coolant, Work Light and more.
MPC Programmable Control	Conveniently located on the operator's control panel, this touch screen control allows the operator to program and store up to 100 jobs. Inputs include Part Length from 0 to 999" (0 - 25M) (in inches up to 3 decimal places) and Number of Pieces to be cut. The Automatic Piece Counter stops each job when the pre-set number of cuts have been made. The control provides the option of running up to 20 parts in one job consecutively.
Out-of-Stock Switch	The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation.
Blade Guides	The hydraulic clamping and combination roller bearing, and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of + .002 per inch (.051 per mm) of cut material. Large anti-vibration rollers help to increase blade life.
Chip Brush	Powered from the main drive shaft of the saw, the brush changes speed along with the blade to assure that chips are being removed from each gullet of the blade, improving cutting performance and blade life.
Fast Approach	Work height is automatically set allowing the head to raise just enough to clear the work piece while reducing cycle time and improving cutting performance.
Work Light	Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator's control panel.
Vice Jaws	Hydraulic Full Stroking. Front jaws are split to reduce the remnant to as little as 3.5" (89 mm). The split vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting. Holding the work piece on both sides of the blade reduces blade vibration, providing more accurate cuts and longer blade life. Rear Vise: The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts.
Automatic Chip Removal	The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations. Coolant is allowed to drain back to the tank before the chips are removed from the machine.
Variable Vise Pressure	Hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin wall material, allowing the piece to be held securely and without distortion.
Dual Column Structure	True dual column operation provides stronger column construction with true dual column operation. This allows for the clamping of parts without the need to remove spacer blocks to adjust for size of the part to be cut.
Out of Square Detector	The Out of Square Detector monitors the squareness of each cut to a pre-set value. If the pre-set value is exceeded, then the Out of Square Detector is activated and shuts down the saw.
Machine Weight	4,400 lbs. (1996 kg)
Table Height	26" (663 mm)
20 Blades	20 SVGLB, 14'6" long x 1.25" wide, 4/6 tooth pitch blades ship standard with every new saw purchase included in net price unless otherwise specified on purchase order. Please specify alternative blade type at time of purchase.

Amada Marvel HFA360P Horizontal Dual Post Saw - NEW

Similar Machines

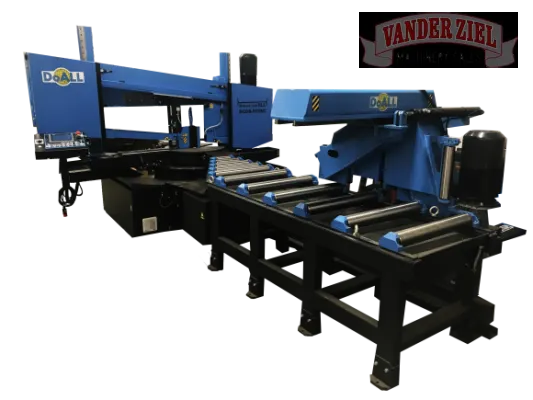

DoAll 16" x 24" Dual Column Miter Horizontal Saw, Model DCDS-600NC - NEW

W.F. Wells 22" x 40" Semi-Automatic Horizontal Saw, Model B-25-3C - NEW

Ellis Stock Stand for Model 3000's and 4000's – 5’ Long, 4-Rollers (20″ W), PN 6227

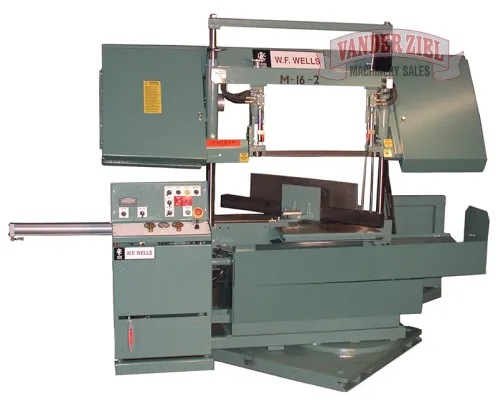

W.F. Wells 16" x 26" Semi-Automatic Miter Saw, Model M-16-2 - NEW
