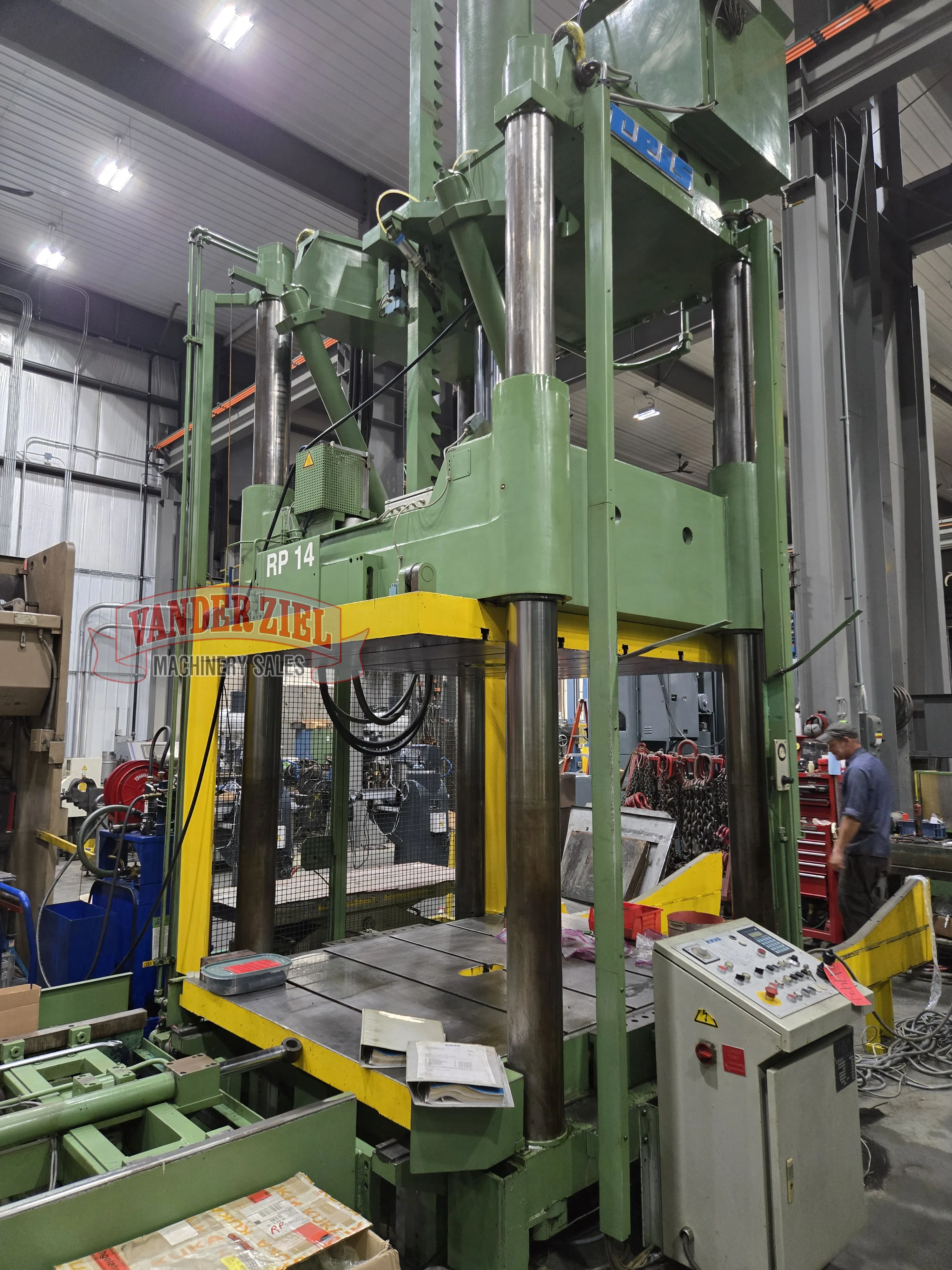

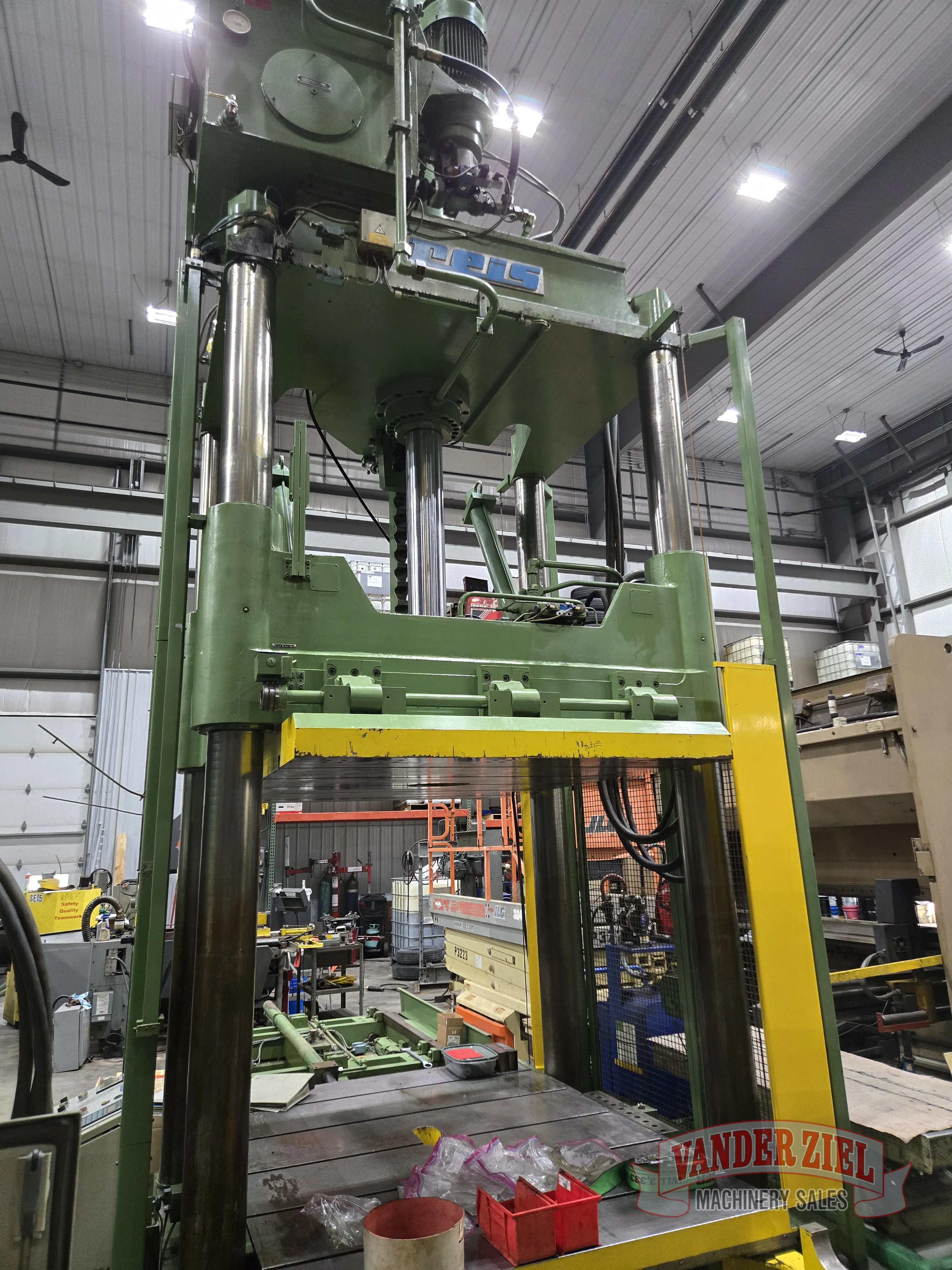

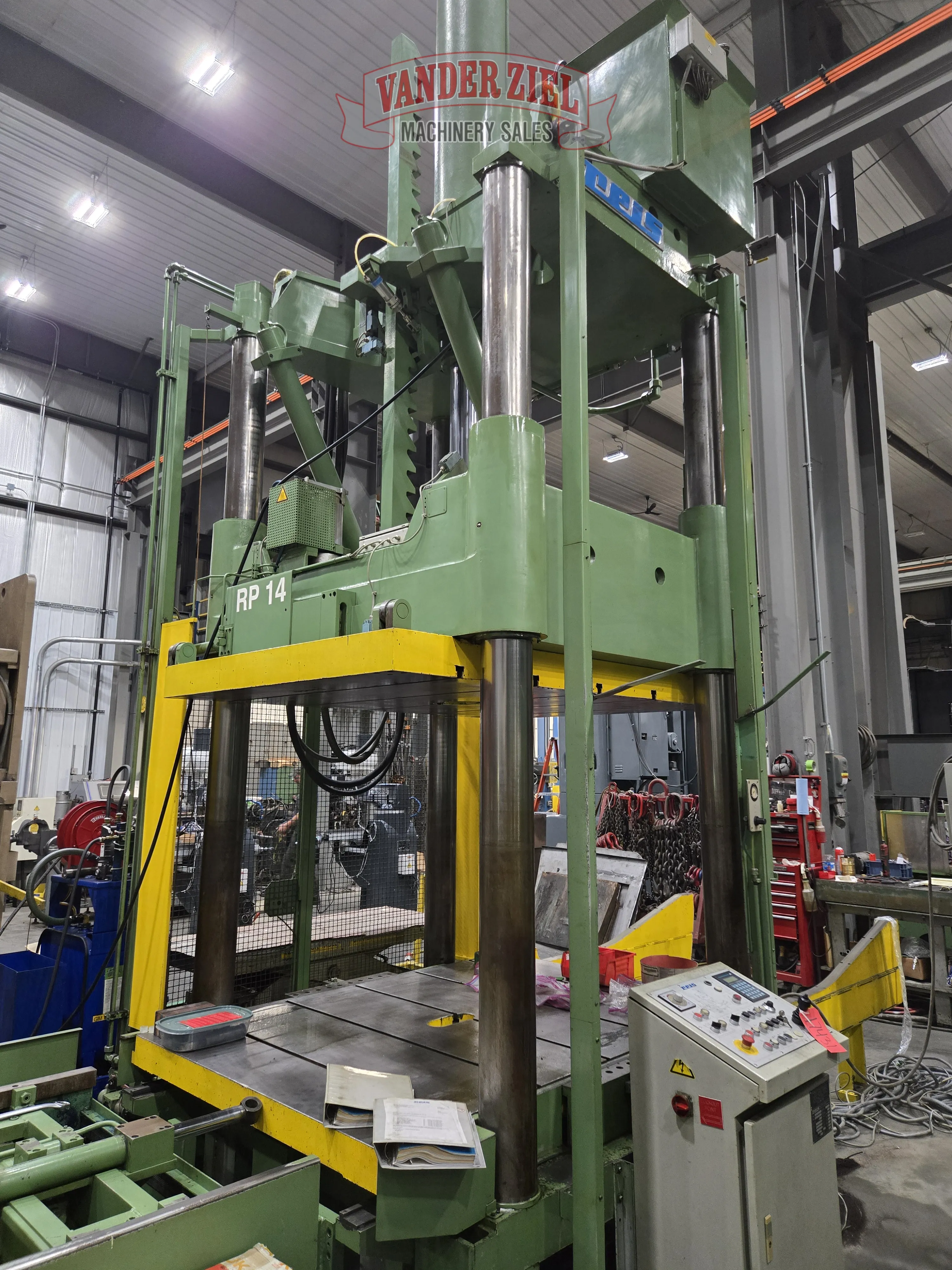

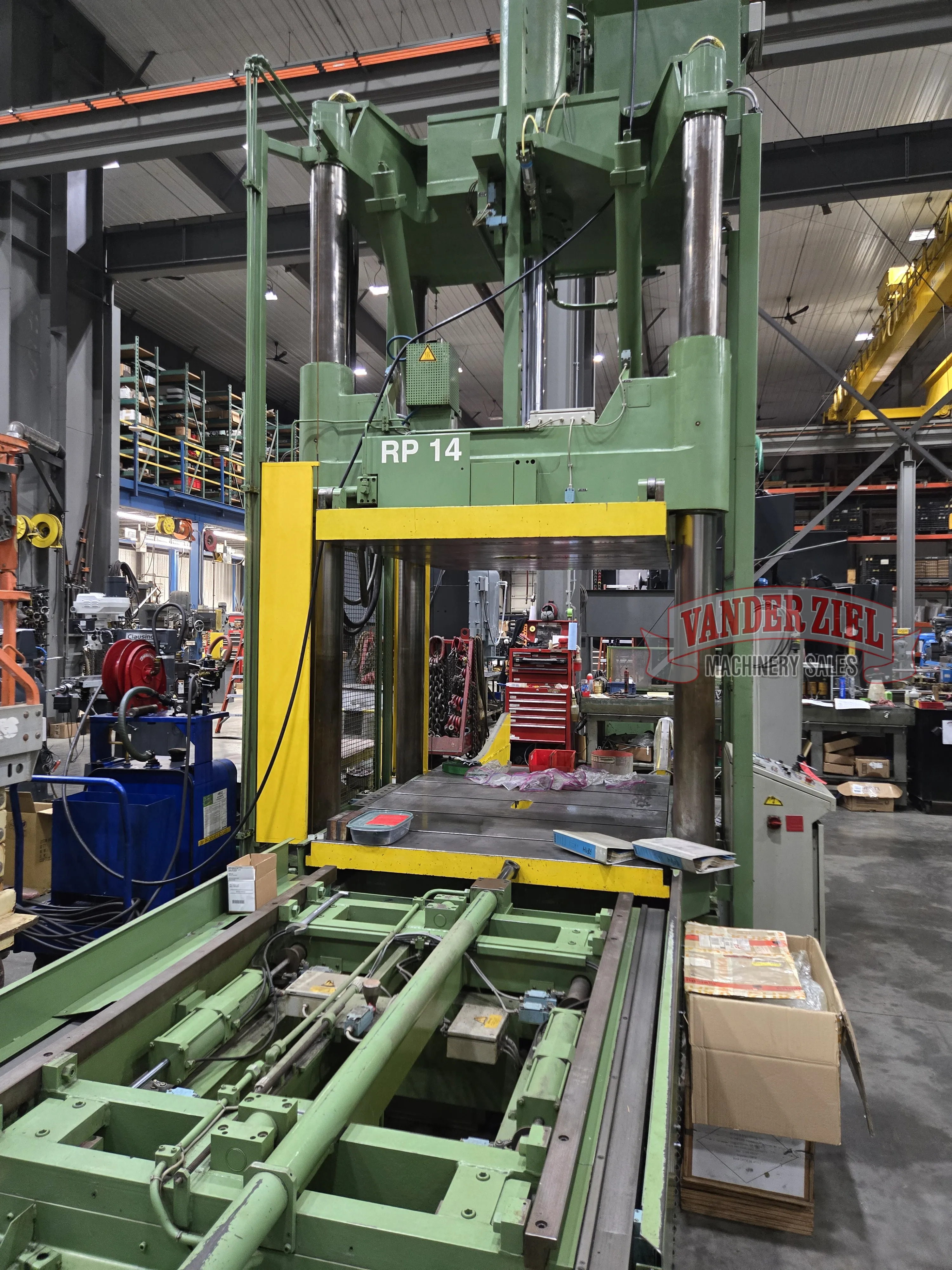

Reis 100 Ton Hydraulic Spotting Press, Model TUS-160-100

Reis 100 Ton Hydraulic Spotting Press, Model TUS-160S-100

Asset # 17431
Serial # 03.189.00

Specifications:
Daylight Between Columns 63.78"
Daylight 90.55"
Clamping Surface 86.6" x 61"
T Slot Dimensions, 25.59" x .866"
Ram Force 100 Tons
Retraction Force 45 Tons
Swivel Platen Capacity 6 Tons
Ejector Force 3.5 Tons
Ejector Stroke 7.87"
Moveable Platen Load Capacity 15 Tons
Tilting Table Load Capacity (Tilted) 9 Tons
Stroke of Injection Nozzle 2.75"
Hydraulic Pump Motor 30 HP
Dimensions 272" x 114" x 259" H
Approximate Weight 57,350 lbs.

Press is equipped with:
Injection Unit
Swivel Platen 180 Degrees
Mechanical Ram Locking Device
1000 KN Nominal Force
Hydraulic Tilting Table
Hydraulic Oil Plug Socket
Slidable Ejector

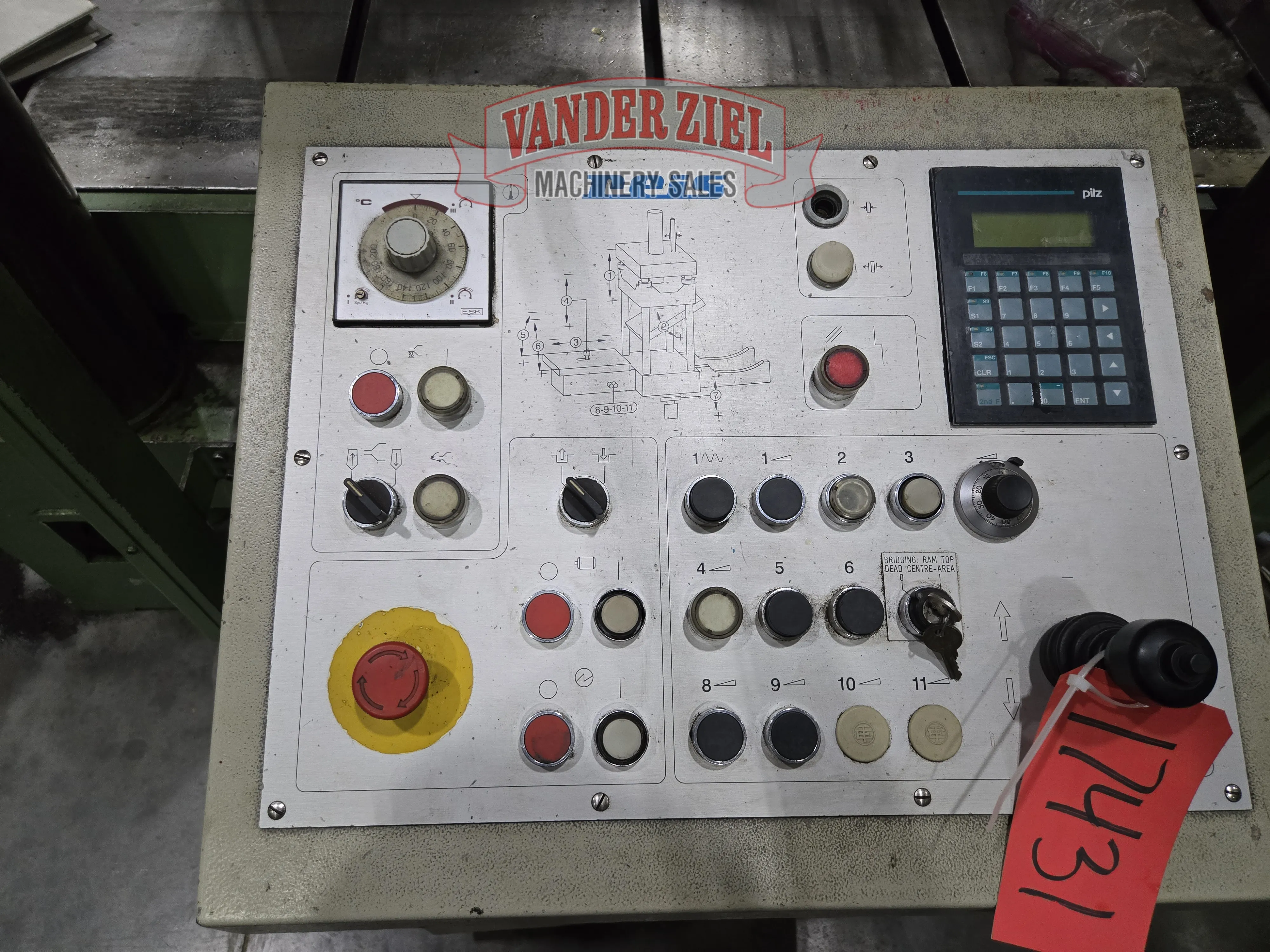

Positioning Control
Daylight Enlargement by 3.93"
Extension of Stroke by 3.93"

Preliminary Specifications - Subject to Verification
