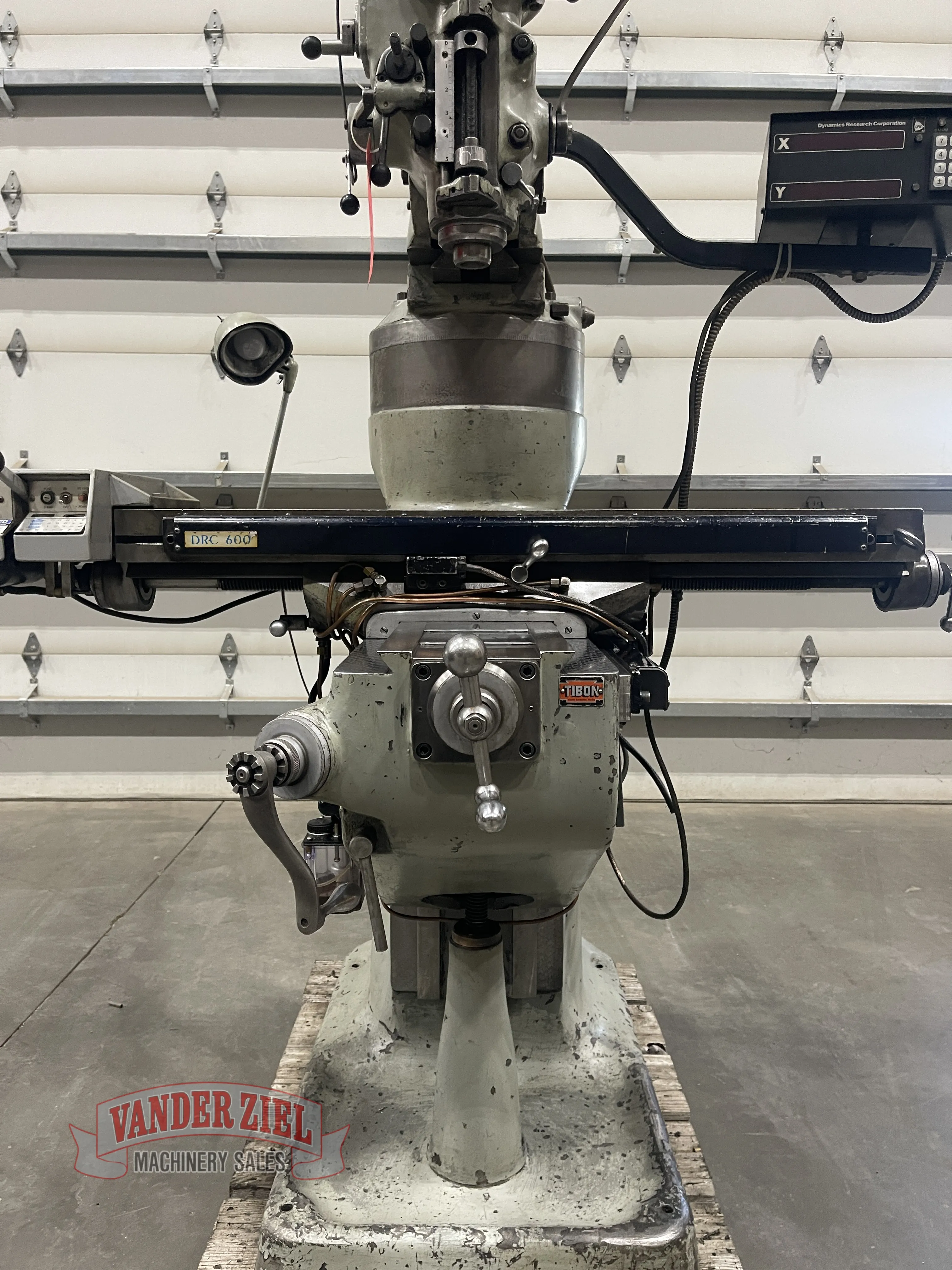

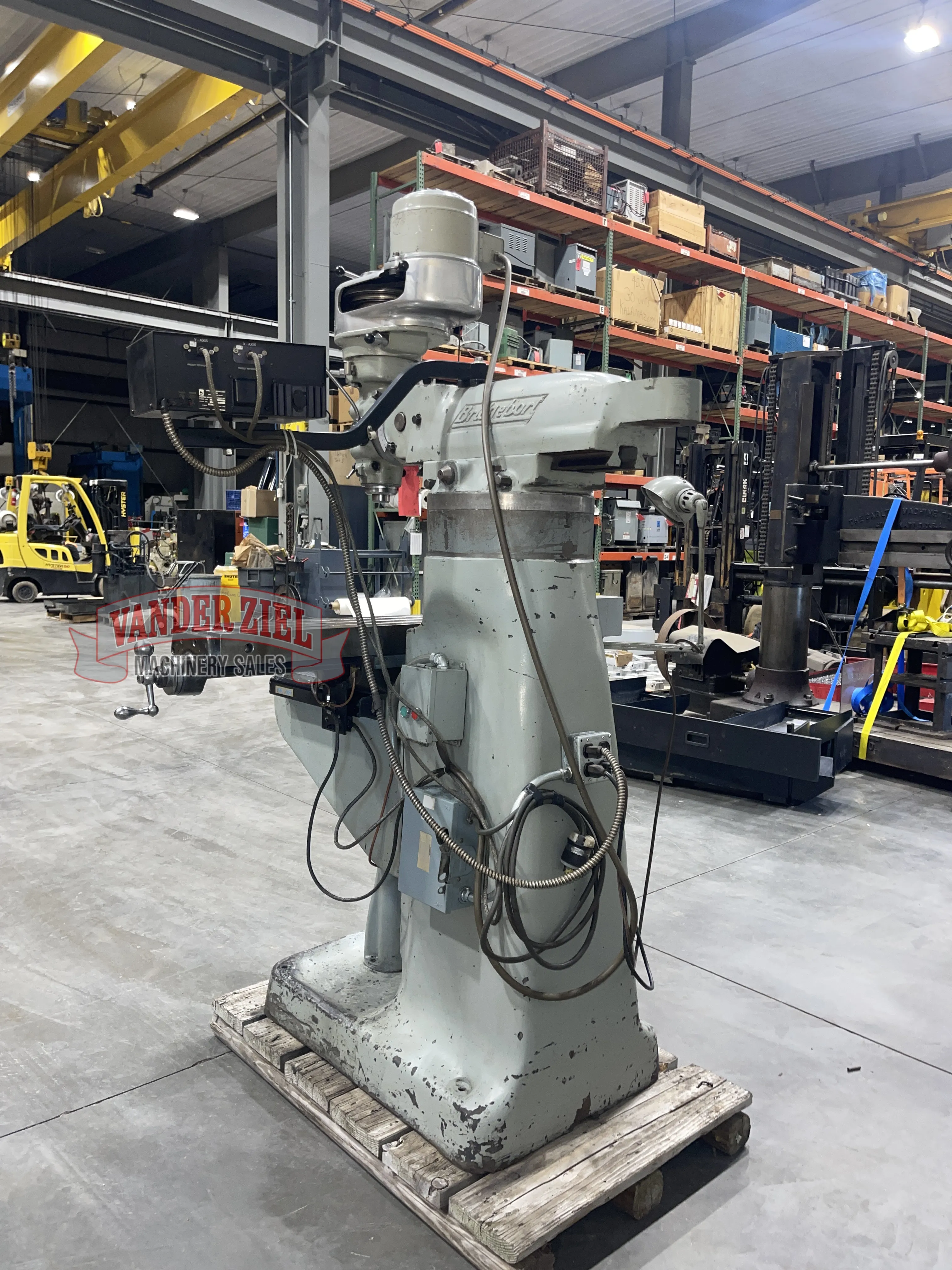

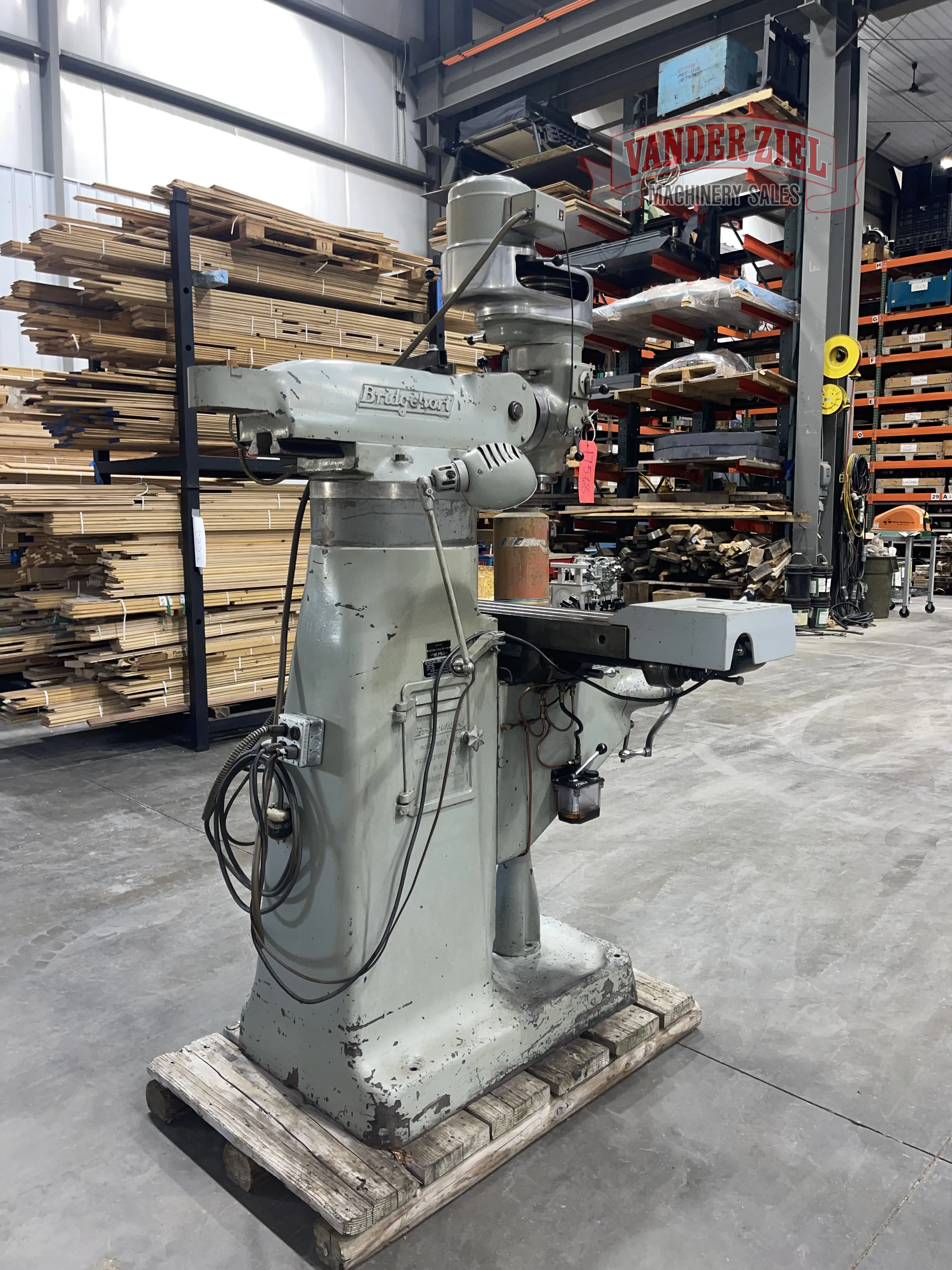

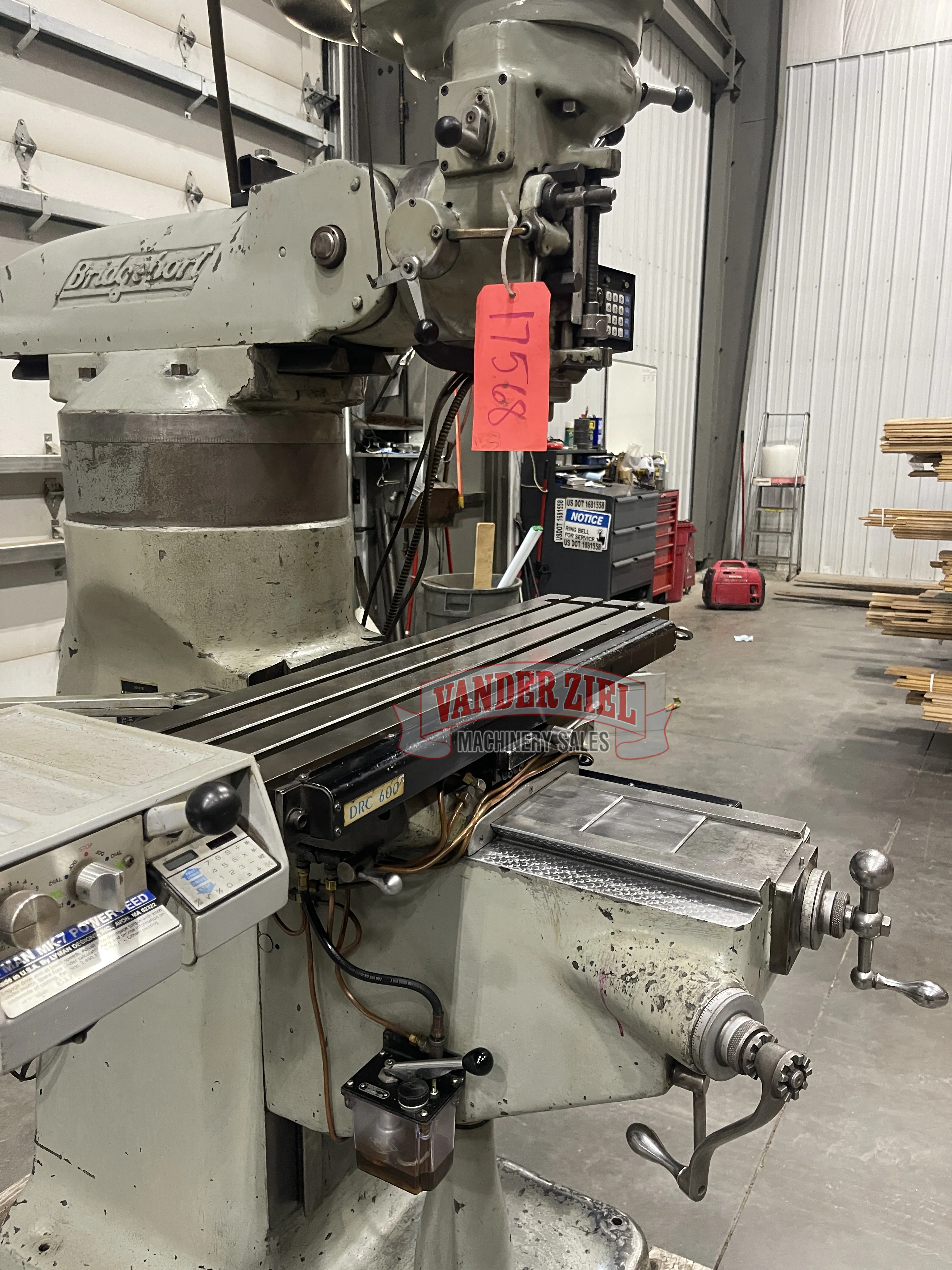

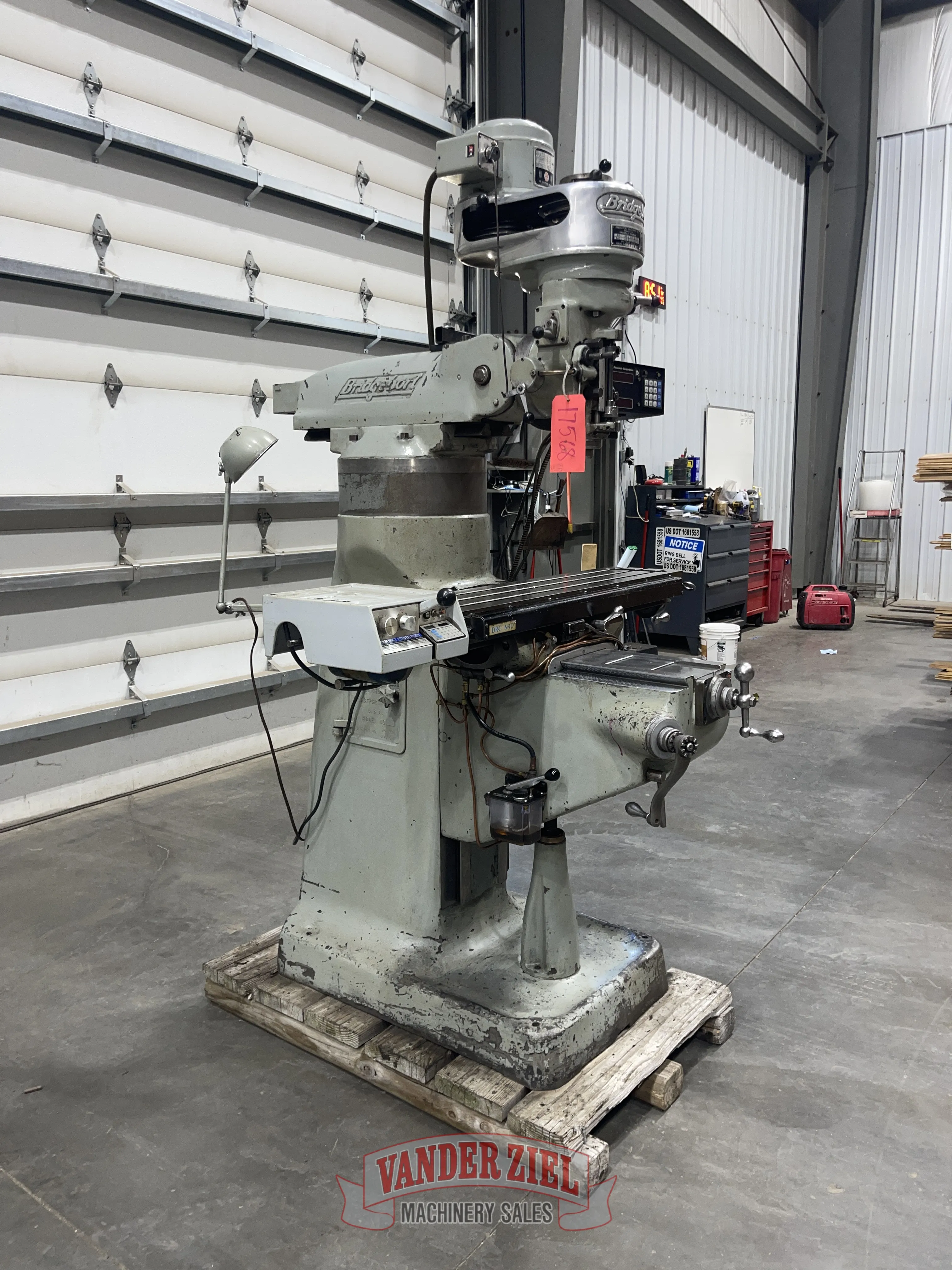

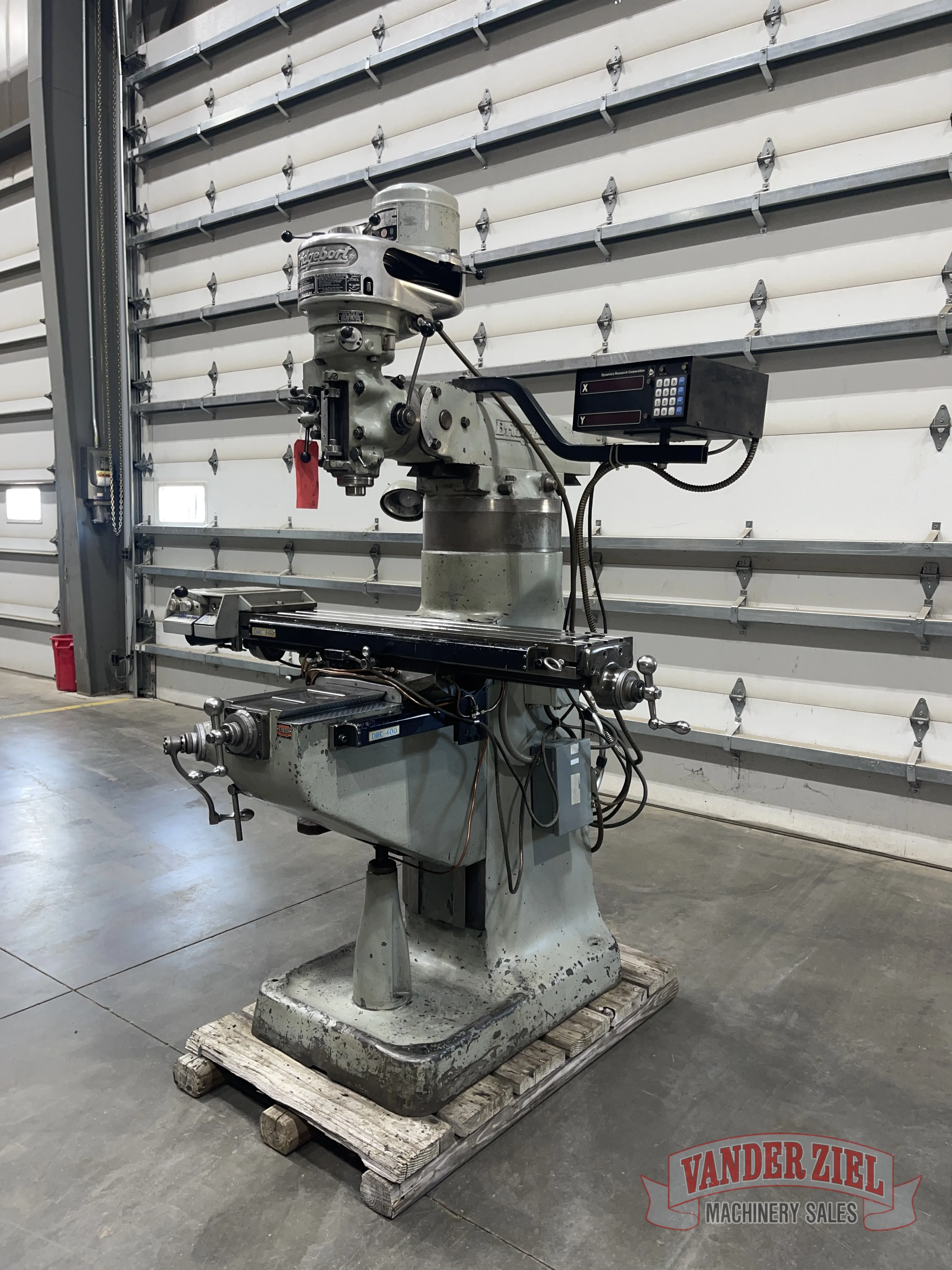

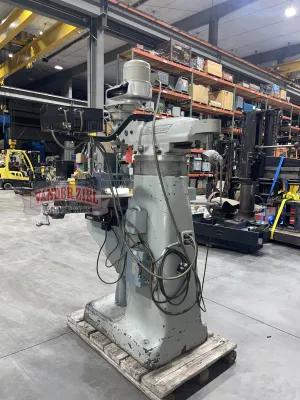

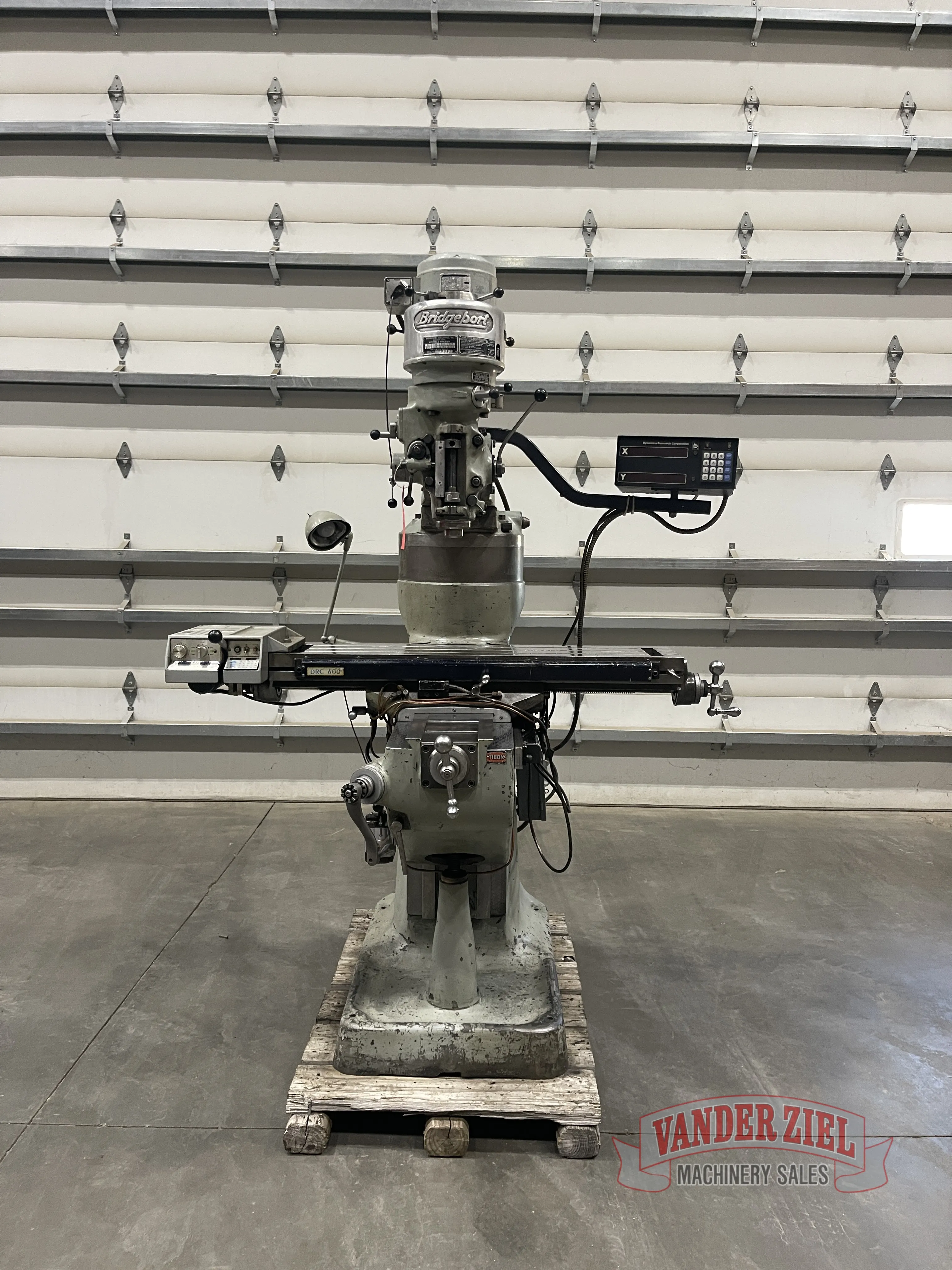

Bridgeport Step Pulley Vertical Knee Mill, 9” x 42” Table, 1 HP

Bridgeport Step Pulley Vertical Knee Mill, 9" x 42" Table, 1 HP

Asset # 17568
Serial # 12/BR 100576

Specifications:
Table Size 9" x 42"
Longitudinal Table Travel 30"
Cross Travel 9"
Vertical Travel of Knee 16"
Spindle to Table Distance, Min - Max 0 - 18.5"
Spindle to Column Distance, Min - Max. 0 - 12"
Spindle to Column Distance, Head at 90 6.75 - 18.75"

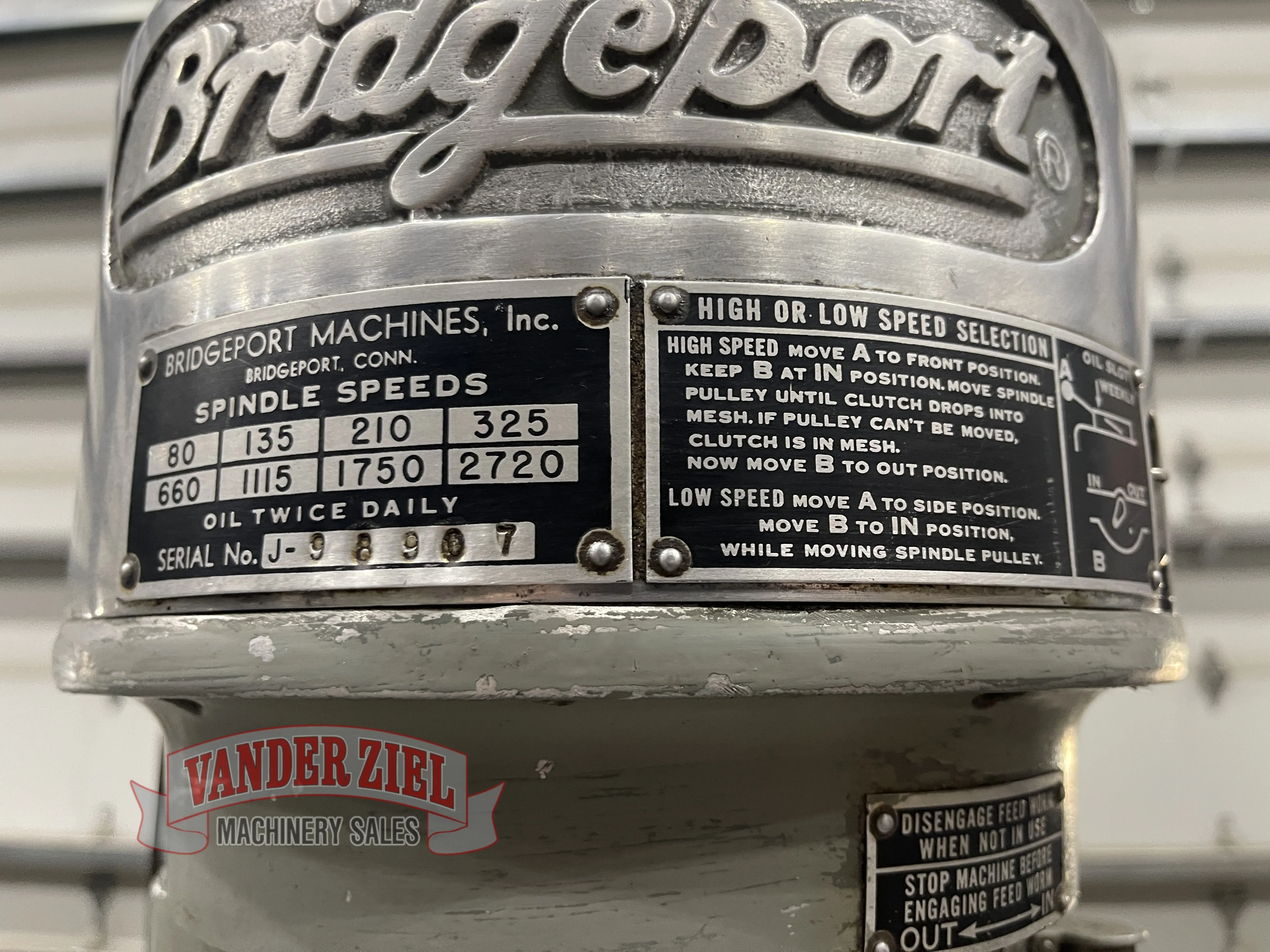

Spindle Speeds (8) 80-2720 RPM
Spindle Taper R8
Collet Capacity 3/4
Quill Travel 5"
Approximate Dimensions 70" x 60"
Approximate Height 78"

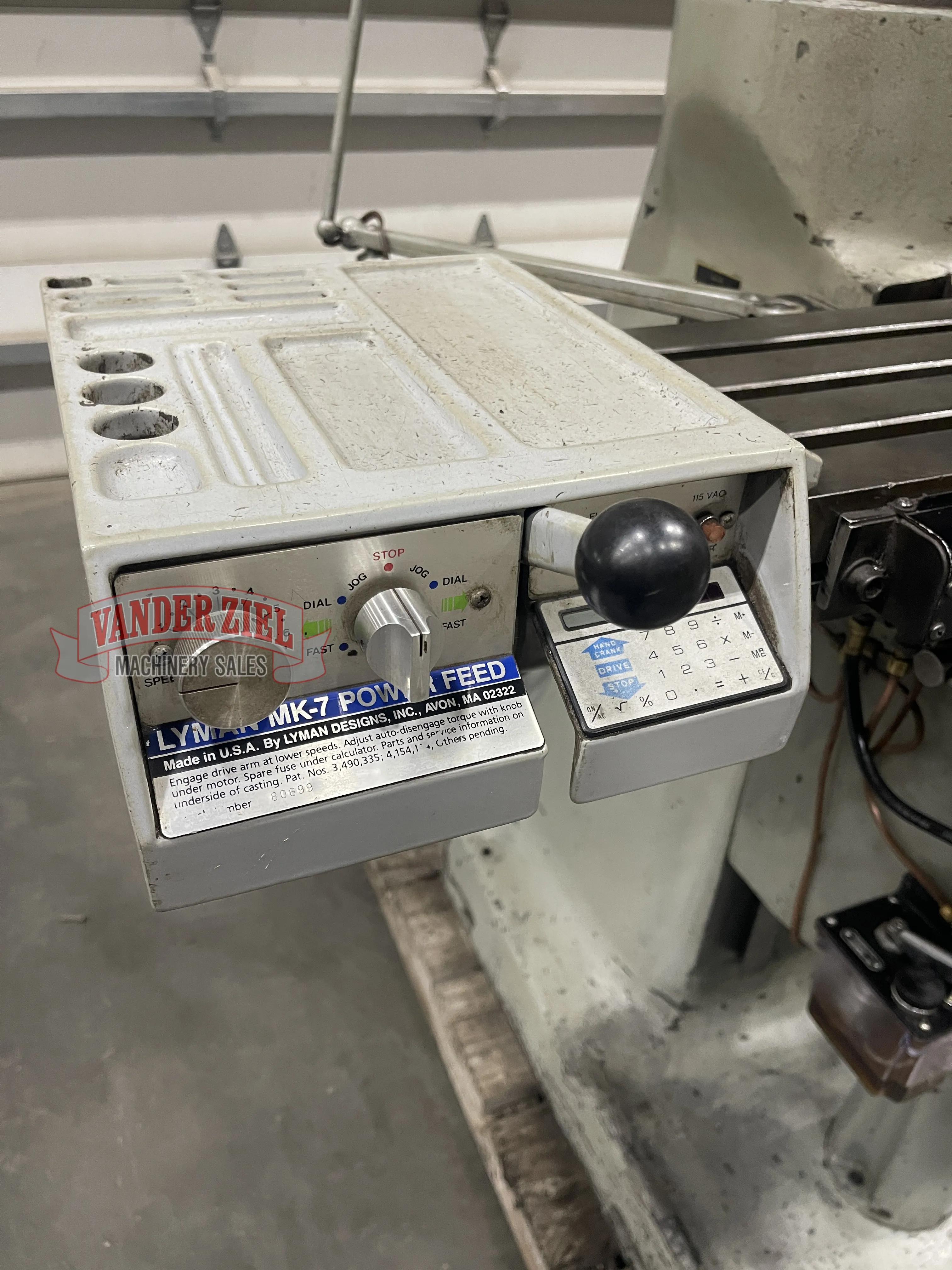

Mill is equipped with a powerfeed on X, DRC 2 Axis DRO, 4" Column Riser.

230/3/60v

Preliminary Specifications - Subject to Verification
