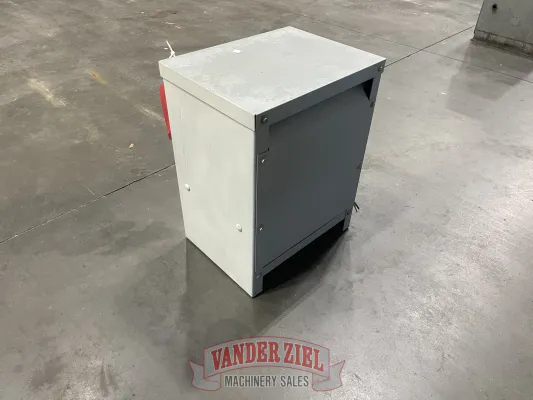

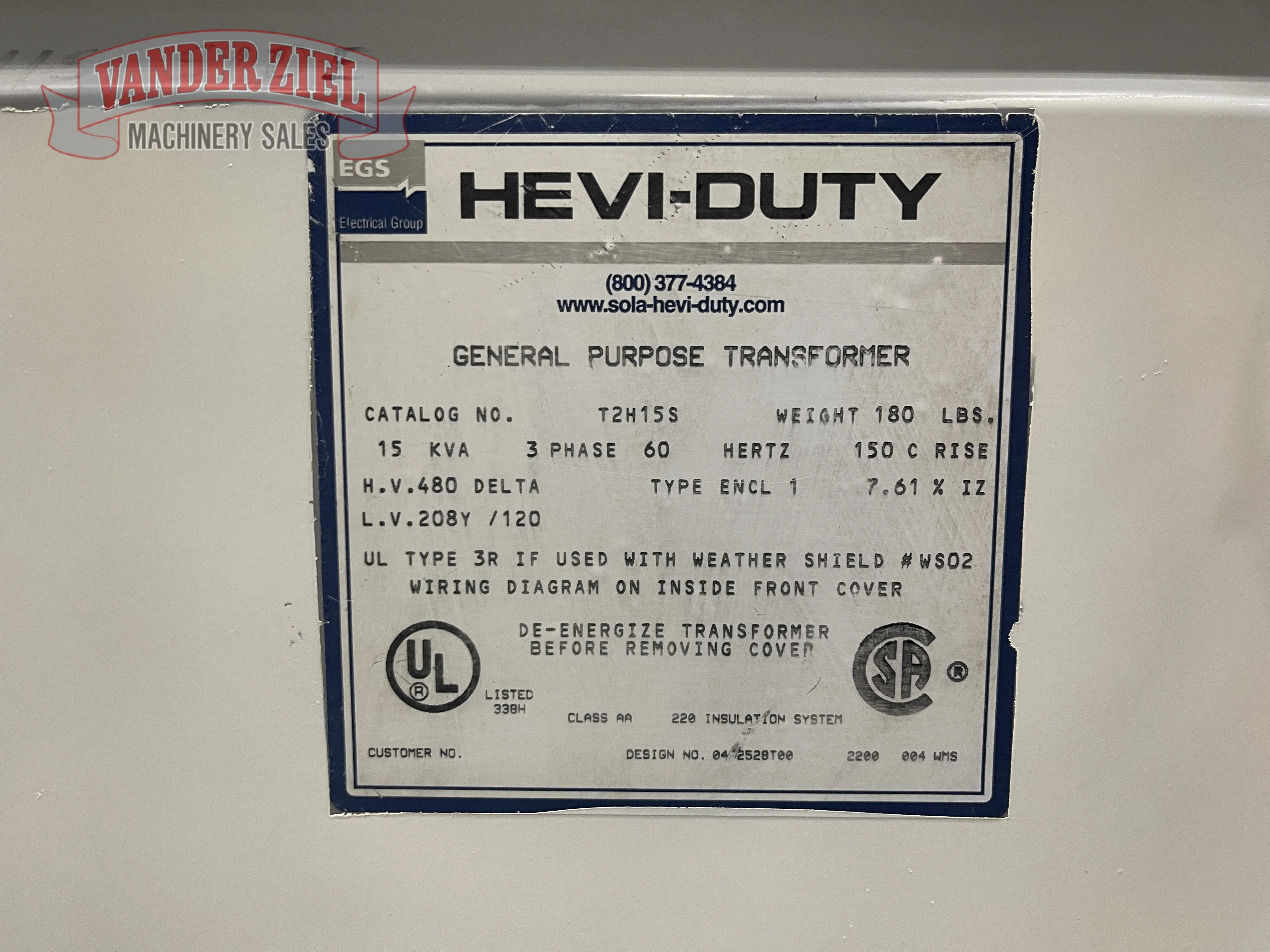

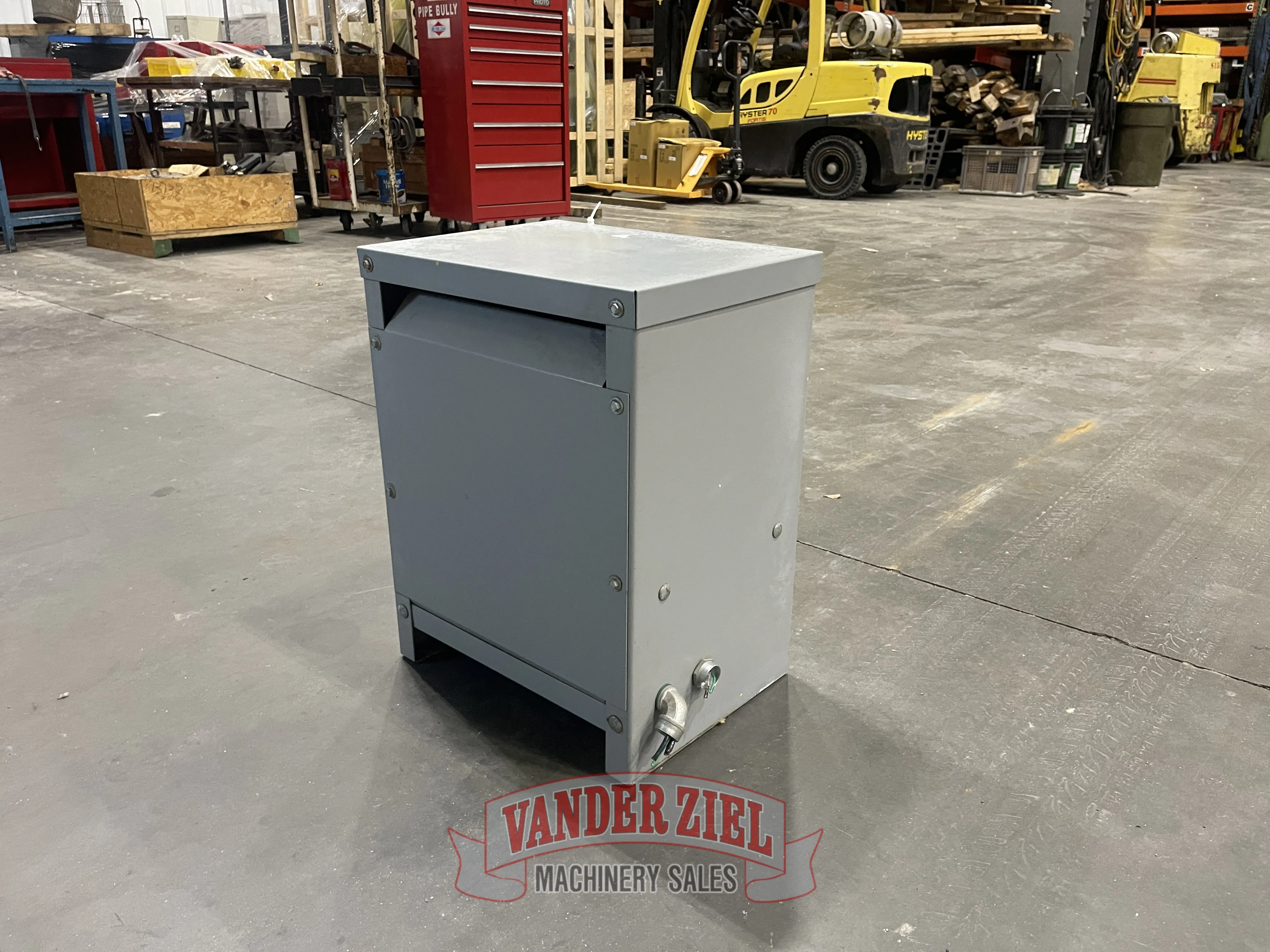

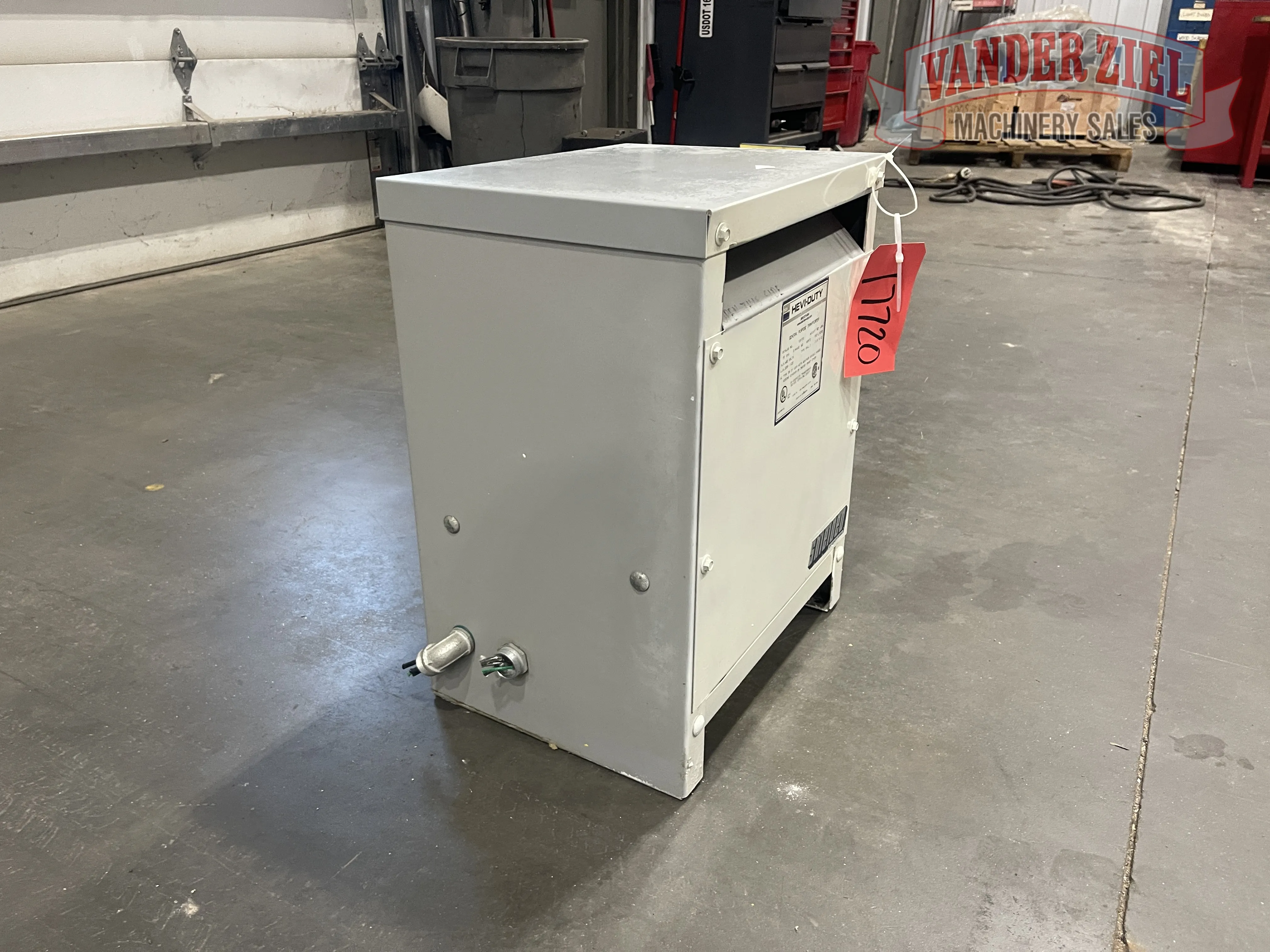

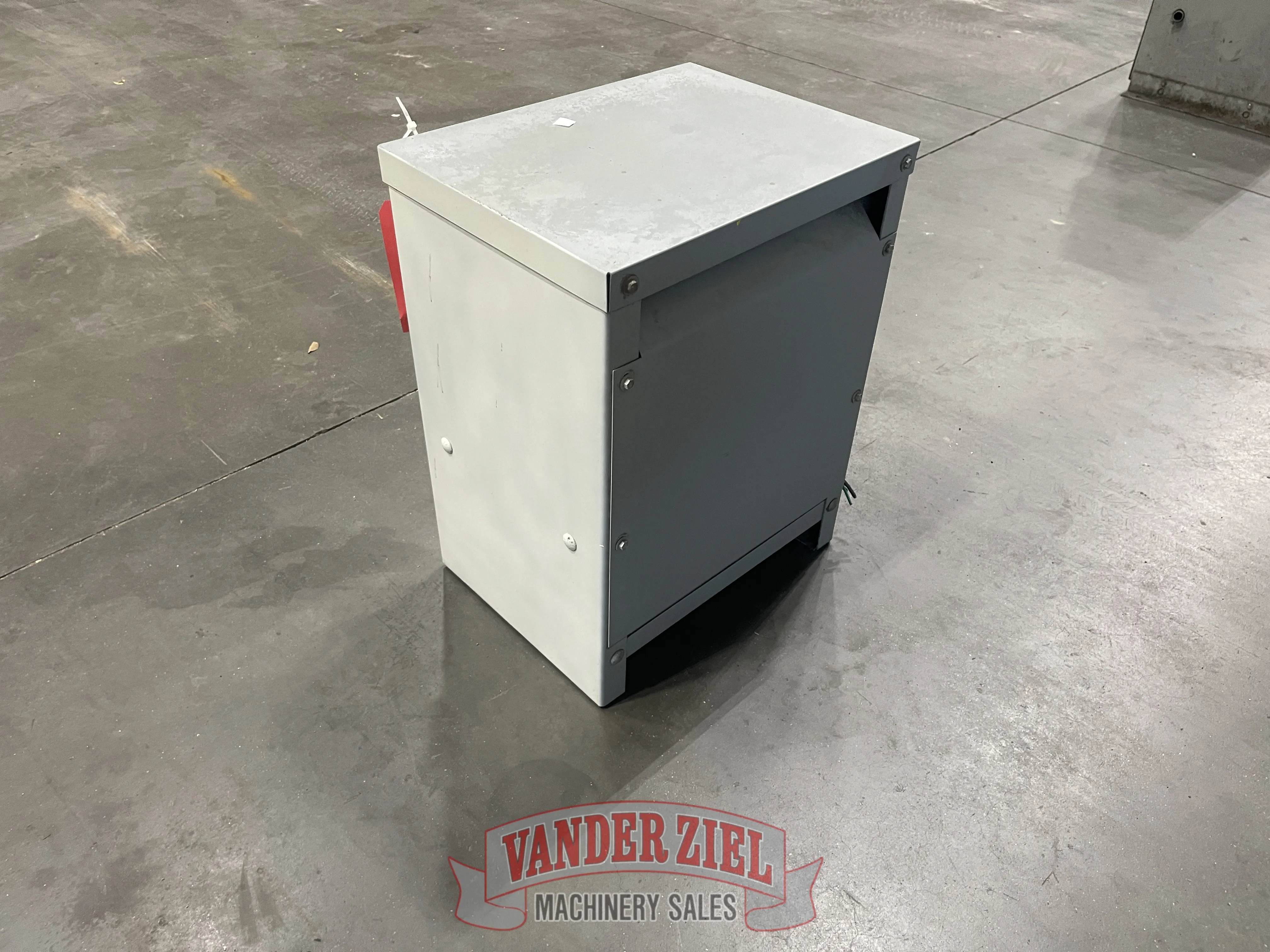

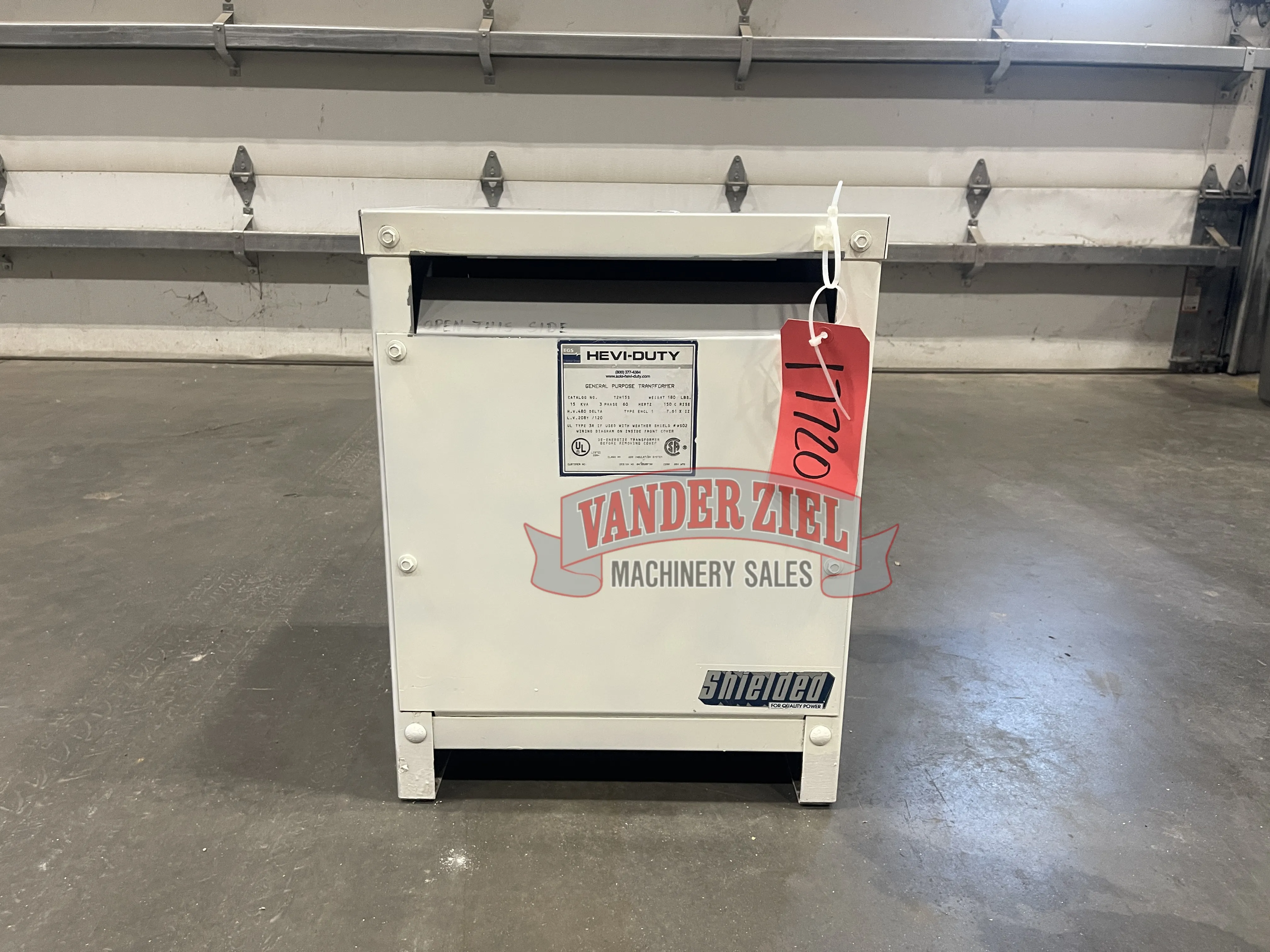

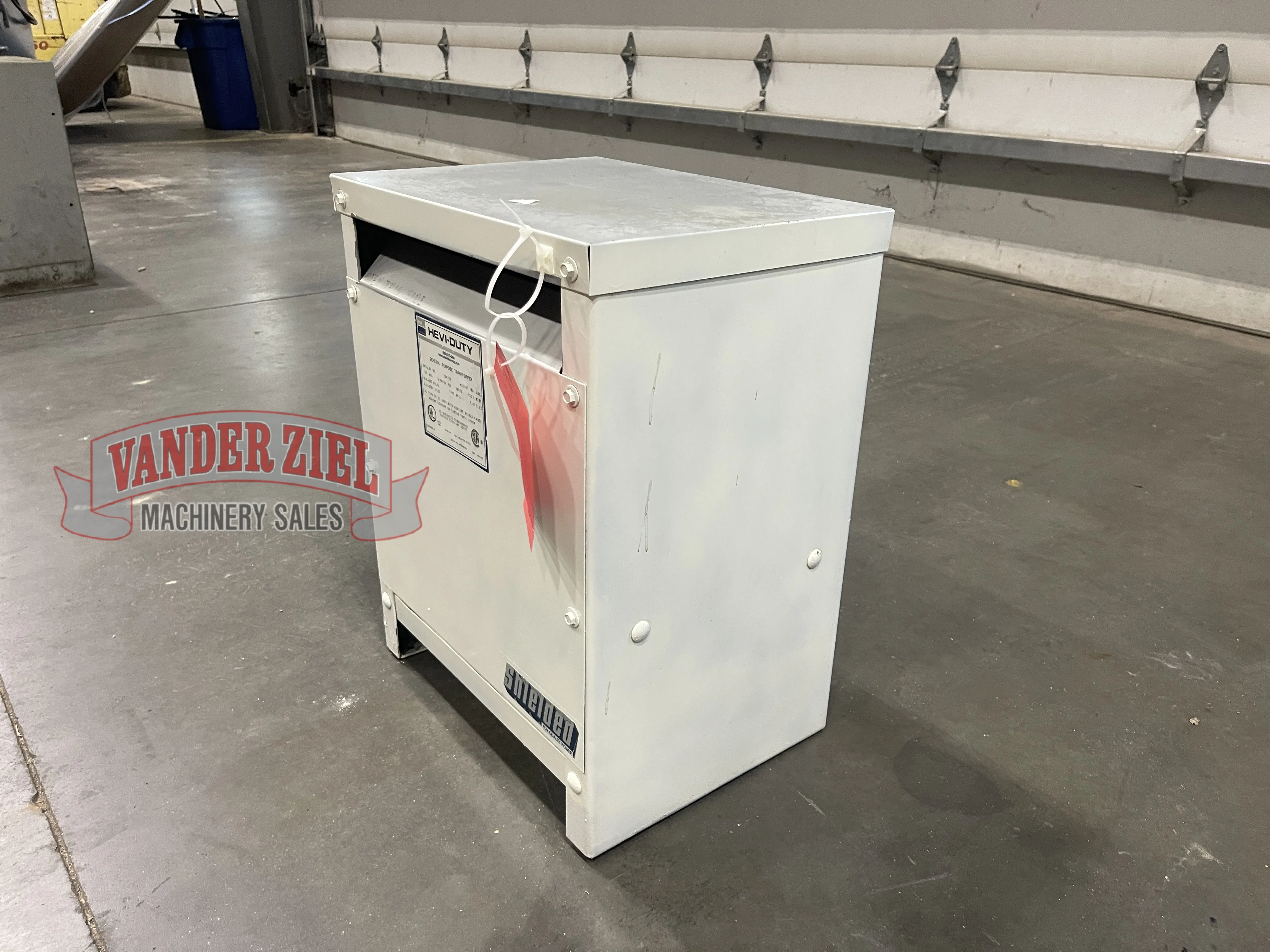

Transformer Specifications - HEVI‑DUTY (EGS Electrical Group)

Type: General Purpose Transformer
Catalog No.: T2H15S
kVA Rating: 15 kVA
Phase: 3‑phase
Frequency: 60 Hz
Temperature Rise: 150°C rise
Weight: 180 lbs

---

Voltage Ratings

High Voltage (Primary):

• 480 V Delta

Low Voltage (Secondary):

• 208Y / 120 V (Wye)

---

Construction & Ratings

• Enclosure Type: Type 1 (indoor)


• UL Type 3R when used with Weather Shield #WS02


• Impedance: 7.61% IZ


• Insulation System: 220°C (Class AA)

---

Certifications

• UL Listed (338H)


• CSA Certified

---

Additional Information

• Customer No.: (not filled in)


• Design No.: 04‑252B700


• WMS: 2200 004 WMS


• Website / Support: www.sola‑hevi‑duty.com


• Phone: (800) 377‑4384


• Warning: "De‑energize transformer before removing cover."


• Wiring Diagram: Located inside front cover
