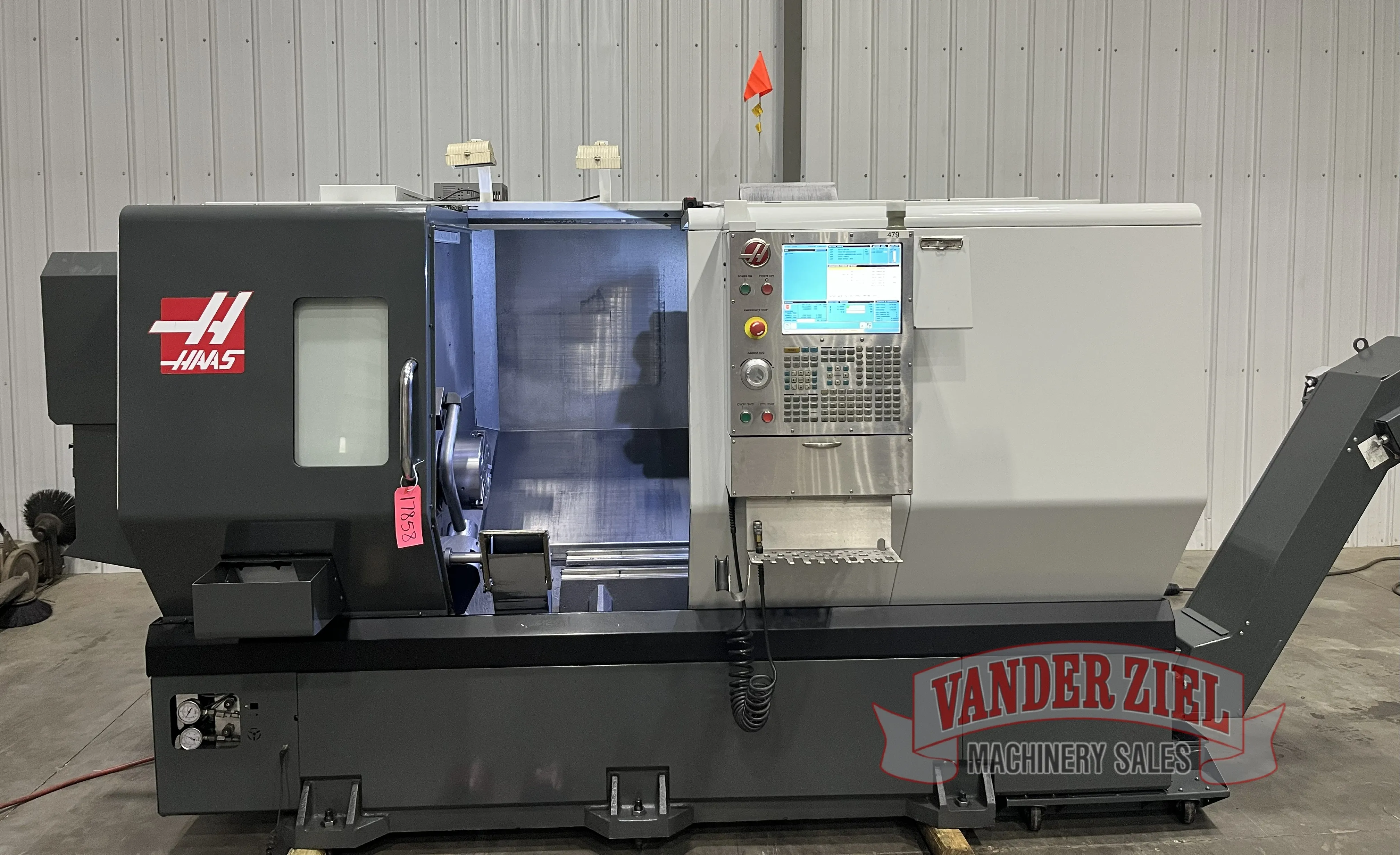

Haas ST-30 CNC Turning Center, 2015
Haas ST-30 CNC Turning Center, 2015
Asset# 17858
Serial # 3102479
SWING DIAMETER S.A.E.
Over Front Apron 31.75 "
Over Cross Slide 20.75 "
Over Tailstock 23.0 "
CAPACITIES S.A.E.
Chuck Size 10.0 "
Max Cutting Diameter (varies with turret) 21.0 "
Max Cutting Length (without workholding) 26.0 "
Bar Capacity 3.0 "
Between Centers 30 "
TRAVELS & FEEDRATES S.A.E.
X Axis 12.5 "
Z Axis 26 "
Rapids on X 945 in/min
Rapids on Z 945 in/min
Max Thrust X 4100 lb
Max Thrust Z 5100 lb
SPINDLE S.A.E.
Max Rating 30 hp
Max Speed 3400 rpm
Max Torque 300 ft-lb @ 500 rpm
Spindle Nose A2-6
Max Torque w/opt Gearbox 1000 ft-lb @ 150 rpm
Spindle Bore ø 3.50 "
TURRET S.A.E.
Number of Tools 12 Stations
OD vs ID Tools Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret ) 4.0 "
GENERAL S.A.E.
Air Required 4 scfm, 100 psi
Coolant Capacity 55 gal
Preliminary Specifications - Subject to Verification
Additional Factory included options:
30HP spindle motor
12 station BOT turret
Chip conveyor
Tailstock
Automatic tool Presetter
High intensity lighting
High pressure coolant, 300psi
Parts catcher
Ethernet interface
Auxiliary coolant filter
Coolant tank oil skimmer
