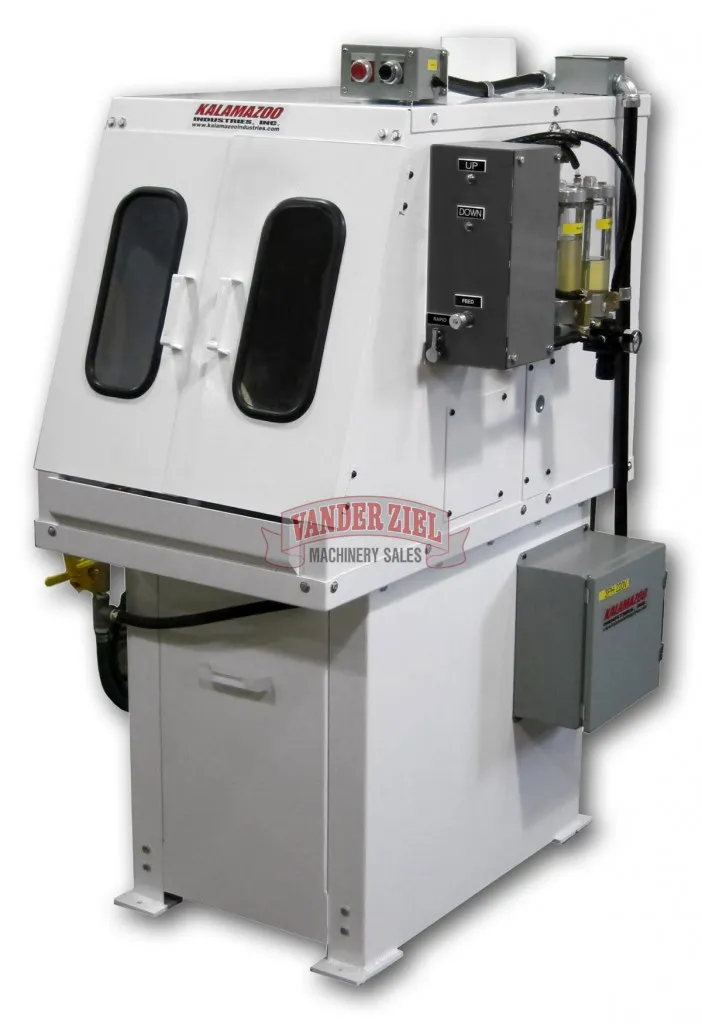

Kalamazoo Industries 14" Metallurgical Saw, Model K12-14MS - NEW

Kalamazoo Industries 14" Metallurgical Saw, Model K12-14MS - NEW

SKU#2118009

Kalamazoo Industries K12-14MS, 14 inch metallurgical saw

Kalamazoo Industries K12-14MS, 14 inch metallurgical saw features a full enclosure with a semi-automatic air/oil power down feed and an adjustable 0-12 FPM feed rate, with momentary override for rapid approach. Other features include dual moveable 4-inch screw vises, dual coolant nozzles, internal halogen light, a 5HP, 1725 rpm motor, and a 1-inch wheel arbor that accepts a 12-in or 14-in wheel. To ensure the highest possible quality cutting, the wheel is not included because it must be specially ordered for the type of metal being cut. The saw has a capacity up to 2-1/2-inch solids and 3-inch shapes.

Options include oscillation cutting for large sections, a T slot table, and door interlocks.

Kalamazoo Industries K12-14MS, 14 inch metallurgical saw is great for metallurgical labs, excellent finishes on sample sectioning, ferrous or non-ferrous material.

Keeps dirt and coolant off your shop floor! Air/Oil Semi-auto power down with rapid down feed over ride gives bright, clean cuts with controlled feed rates.

Removable side access panels for long parts.

This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments

5 HP, 3 PH 1725 RPM TEFC motor,CE, available in 50 hz and 575 volt.
Semi-automatic air/oil power down feed.
Adjustable feed rate 0-12 FPM, Momentary rapid override for rapid approach.
Dual moveable 4" screw vises.
Capacity 2-1/2" solid, 3" shapes.
Magnetic switch, low-voltage protection at switch, 24V.
Internal halogen light - 24V.
1" wheel arbor, 12" or 14" blade, (not included), Optional 1.25"/32mm arbor.
Dual coolant nozzles.
2200 spindle speed at 1725 RPM.
Flood coolant, 10 gal., 1/3 HP.
External Dimensions: L 43" x W 26" x H 60".
Internal Dimensions: L 43" x W 24" x H 22".
Table Dimensions: L 22" x W 15".
Work Area: L 9.25 (with vises) x W 15".
Enclosed wet cutting metallurgical saw.
Options: Oscillation for large sections # OSC-18, door interlocks, T slot table # TS-14, X axis table, stock conveyors
900 lbs.
Made in USA!
Model: K12-14MS
