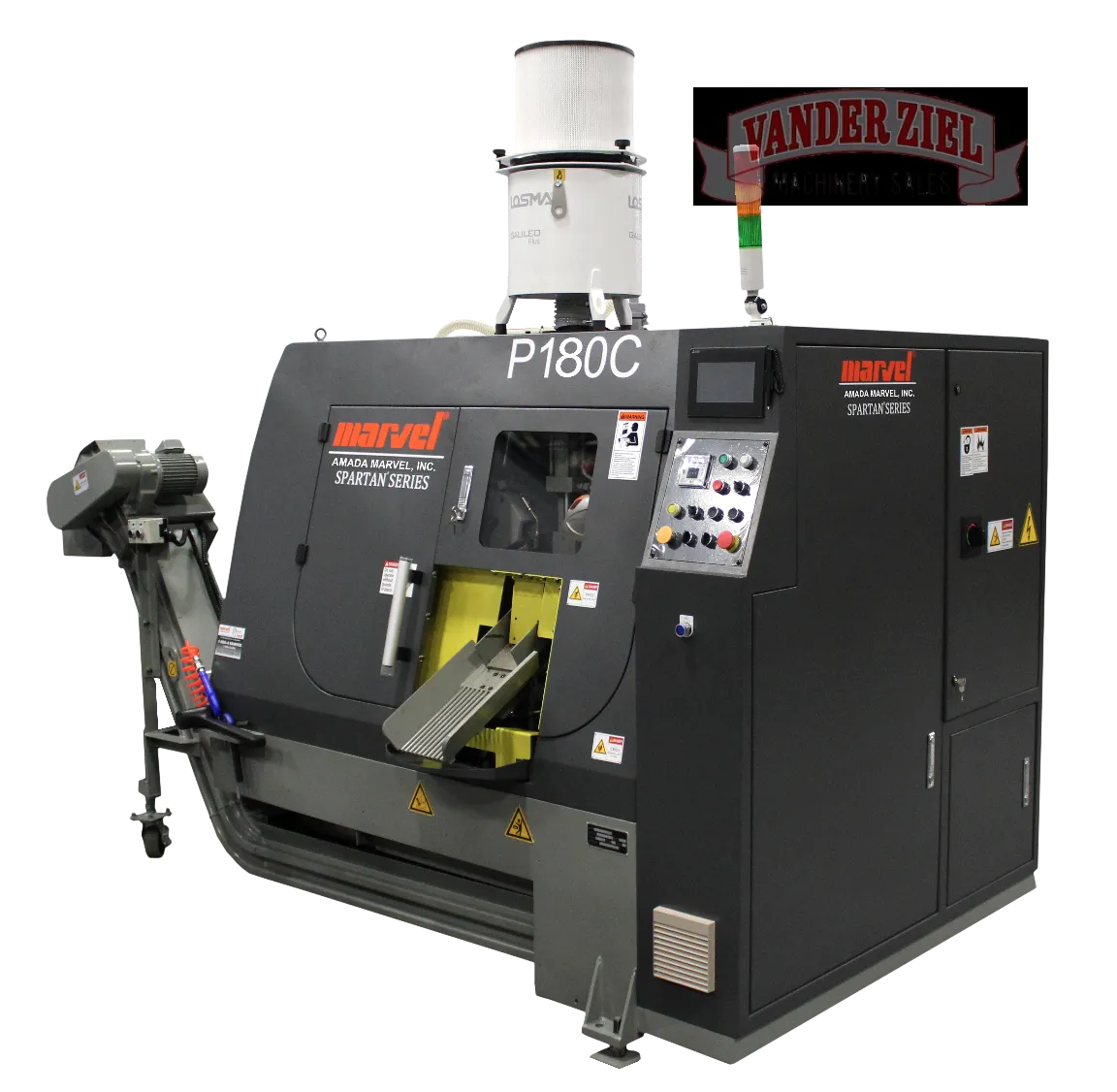

Marvel Spartan 20" Automatic Circular Saw, Model P-180C - NEW

SKU # 2319002

SPECIFICATIONS & FEATURES

Round Capacity	Square Capacity	Rectangle Capacity
2.75" (70 mm) Minimum	2.75" (70 mm) Minimum	2.75" (70 mm) Minimum
7" (179 mm) Maximum	7.08" (179 mm) Maximum	5.125" (130 mm) Maximum

Blade	520mm x 3.0mm kerf x 2.5mm thick.
Blade Speed Range	30-110 RPM controlled through an Inverter Drive.
Servo Blade Feed	Servo drive blade feed and precision ball screw provide precision and vibration free cutting. Cutting force is infinitely adjustable to accommodate different types of material. An inner brake device eliminates transmission backlash and leads to higher efficiency cutting and longer blade life. An air-cooling device is also standard cooling the blade for increased life.
Blade Guides	Four carbide inserts provide additional support for the blade, allowing for the use of thinner blades, reducing kerf loss.
Motors	Blade Drive: 25 H.P.; Hydraulic: 5 H.P. The machine operates at 460-3-60 volts (230 volt is available with a supplied transformer or with special factory production and lead time required).
Vises	Machine vises clamp the material from the sides as well as vertically. The floating shuttle vise retracts the material as the saw blade returns, preventing contact as the blades return to the start position.
Mist Lubrication and Air Filter	The mist lubrication system assures long blade life by lubricating the blade causing heat to be taken by the chip and not the material or blade with improved volume adjustment. The air filter keeps the working environment clean by filtering air from the saw before it is passed back into the shop (requires compressed air connection).
Touch Screen Controls	The user-friendly touch screen allows the operator to select material type and set the number of teeth in the blade. Both feed and blade speed are automatically set. Job storage of up to 9 different jobs is available. The self-diagnostic feature allows for on-screen trouble shooting.
Automatic Shuttle Vise	The shuttle vise is servo driven through a ball screw and will index from .375" (10 mm) to 27.5" (699 mm) in a single shuttle. Shuttle lengths up to 118.125" (3000 mm) can be achieved via multi-index with the shuttle traveling at 40 feet per minute (12.2 meters/minute). The shuttle table includes an automatic lubrication system. The shuttle vise floats in three steps to accommodate crooked stock.
Loading Table	The 16' 5" (5 m) automatic loading table allows for storage of round bar stock and fully automatic feeding of the same. The bar stock is lifted piece by piece and fed into the saw.
Hydraulic Automatic Sorting Chute	The sorting chute automatically directs the trim cut and remnant away from good cut piece.
Chip Brush	The chip brush centered location assures chips are removed from the gullet of the blade providing straighter cuts and longer blade life.
Chip Conveyor	The paddle-type chip conveyor removes chips from the machine base and automatically deposits them in a collection container.
Machine Weight	13,225 lbs (5999 kg)
Floor Space	10'2" (3.1 m) x 23'6" (7.1 m)
Pass Line Height	40.5" (1029 mm)

STANDARD FEATURES

Servo Drive Length Indexing with Ball Screw
Hydraulic Vising
Floating Shuttle Vise with Blade Saver Feature
Servo Motor and Ball Screw Blade Feed
Programmable Blade Speeds and Feed Pressures
Inverter Driven Variable Blade Speed
Automatic Hydraulic Sorting Chute
Carbide Insert Blade Guides
Mist Lubrication and Air Filter (Requires compressed air connection, minimum 71.12 PSI (5 KG/cm²) at .005 cfm (.15 L/min)
Touch Screen Controls with On-Screen Trouble Shooting
Preset Material Cutting Parameters
Automatic Loading Table
Out-of-Stock Detector
Automatic Paddle-Type Chip Conveyor
Chip Brush
